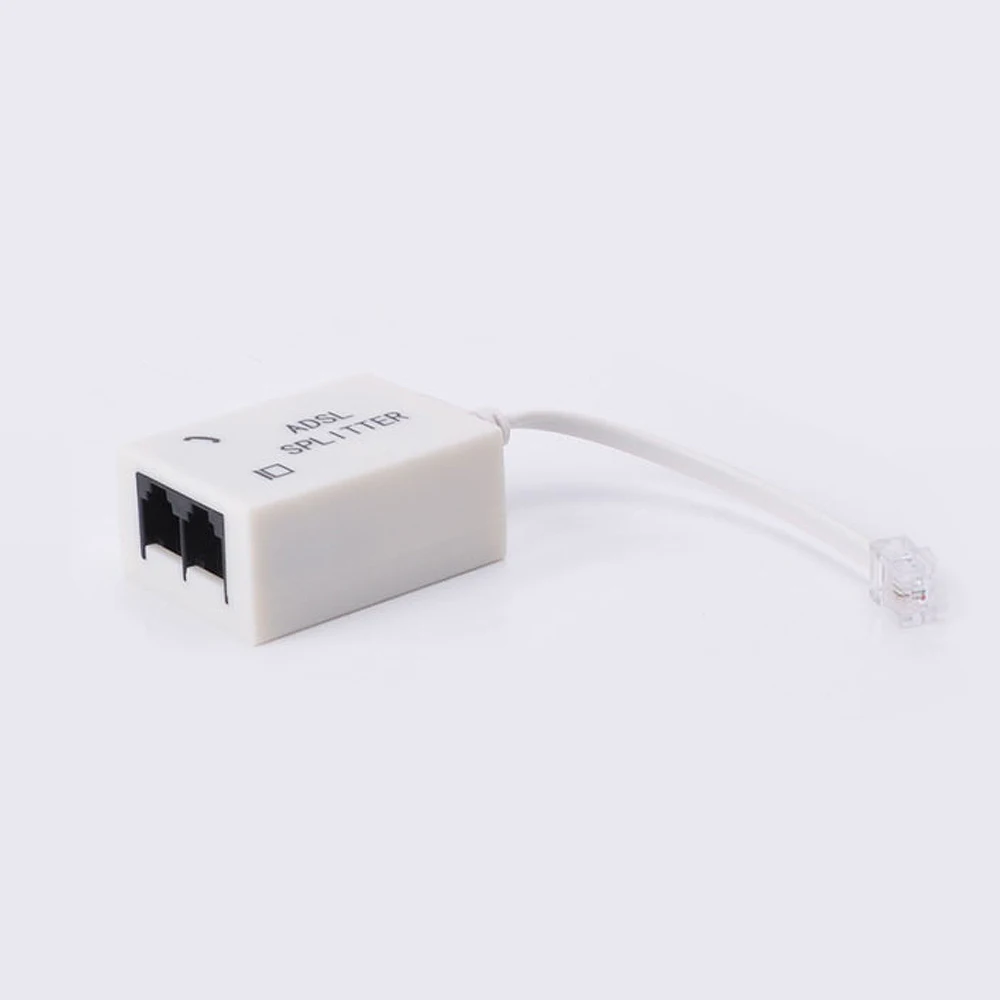

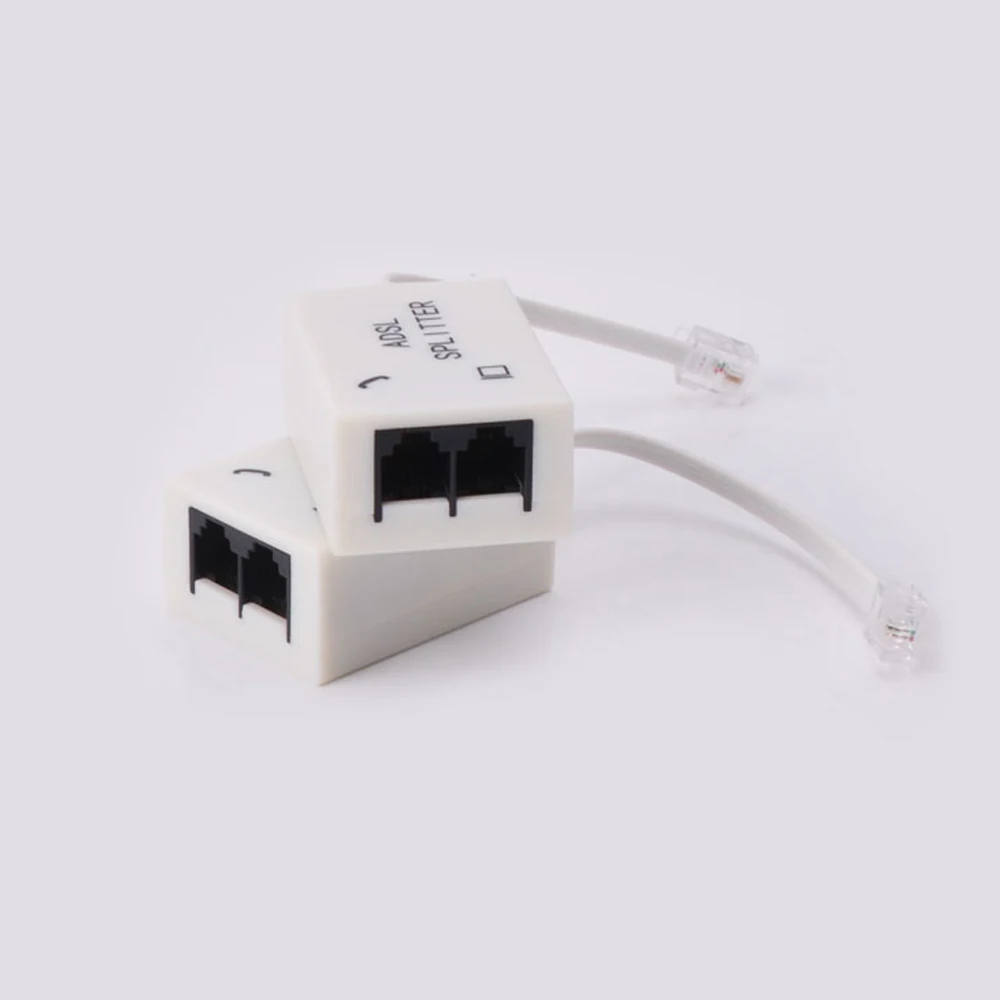

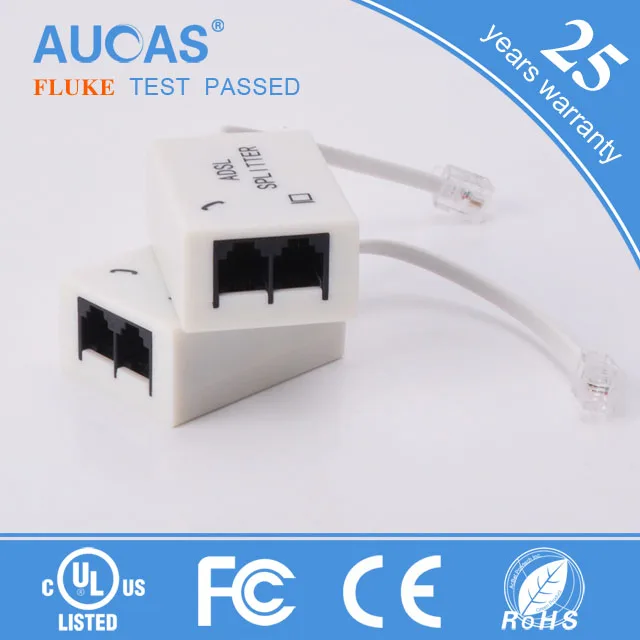

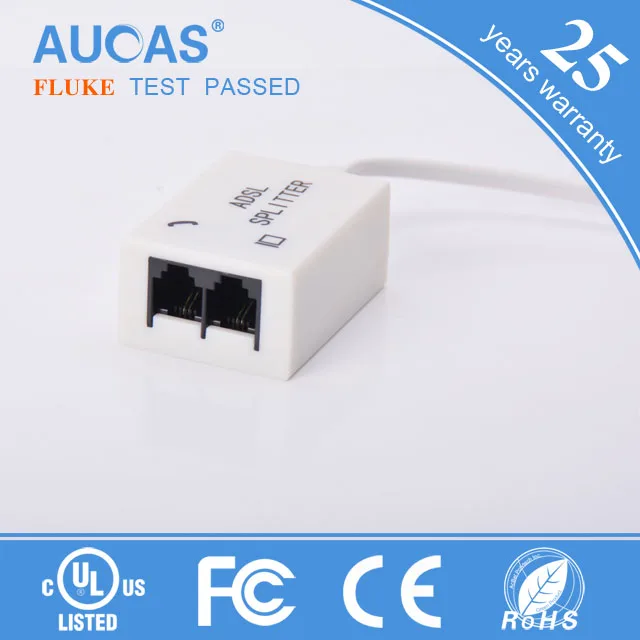

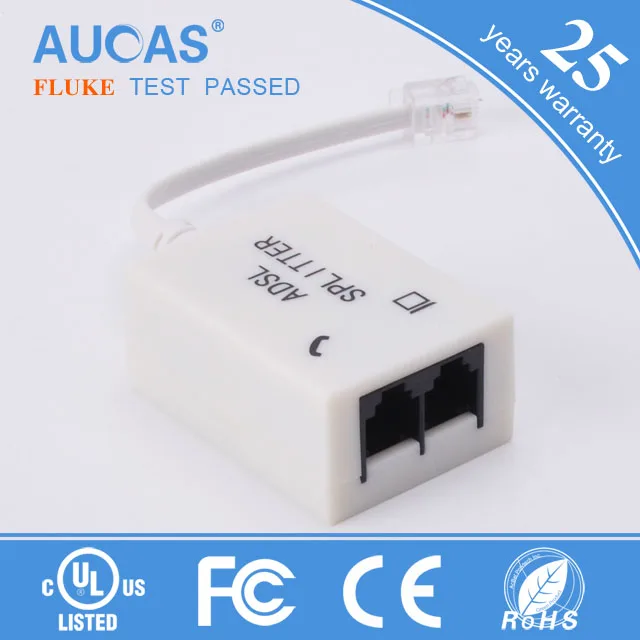

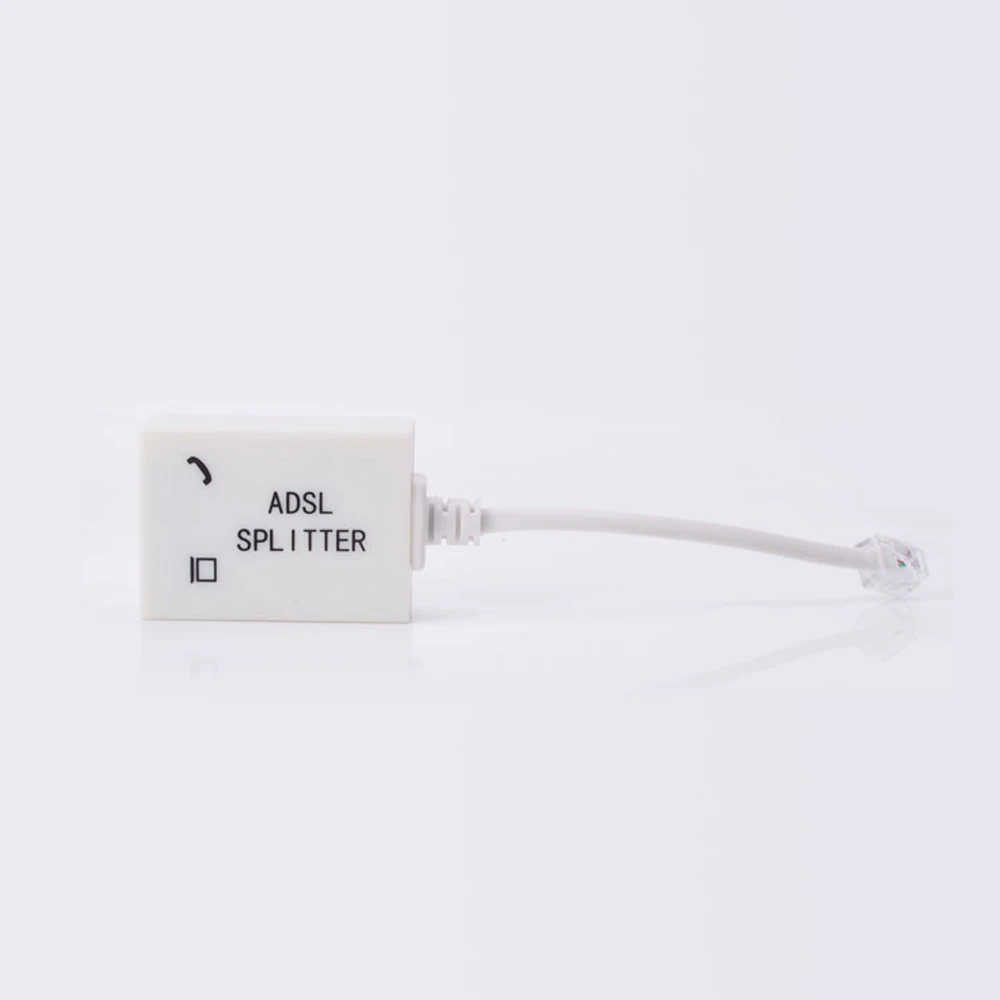

high quality popular and common use telephone telecom adsl spliter

ADSL Splitter Filter For UK

RoHS compliant, CE Compliant,

Meets SIN346, Compact package,

Easy installation, High quality,

Optimum performance.

RTL Reference Impedance::320Ω+(1050Ω//230nF)

Return Loss
300Hz~3400Hz > 15 dB
3400Hz~10kHz > 8 dB

Group Delay Distortion:@ 300~3.400 kHz < -50μS

DC Resistance:Less than 25 Ω

DC Current Range:18mA~120mA

Insulation Resistance:> 10MΩ

High Freq. Insertion Loss
30kHz~100kHz > 18dB
100kHz~300kHz > 25dB
300kHz~1104kHz > 40dB

Ringing Frequency:Voltange drop < 2.0Vrms

Impedance:25Hz > 40kΩ
