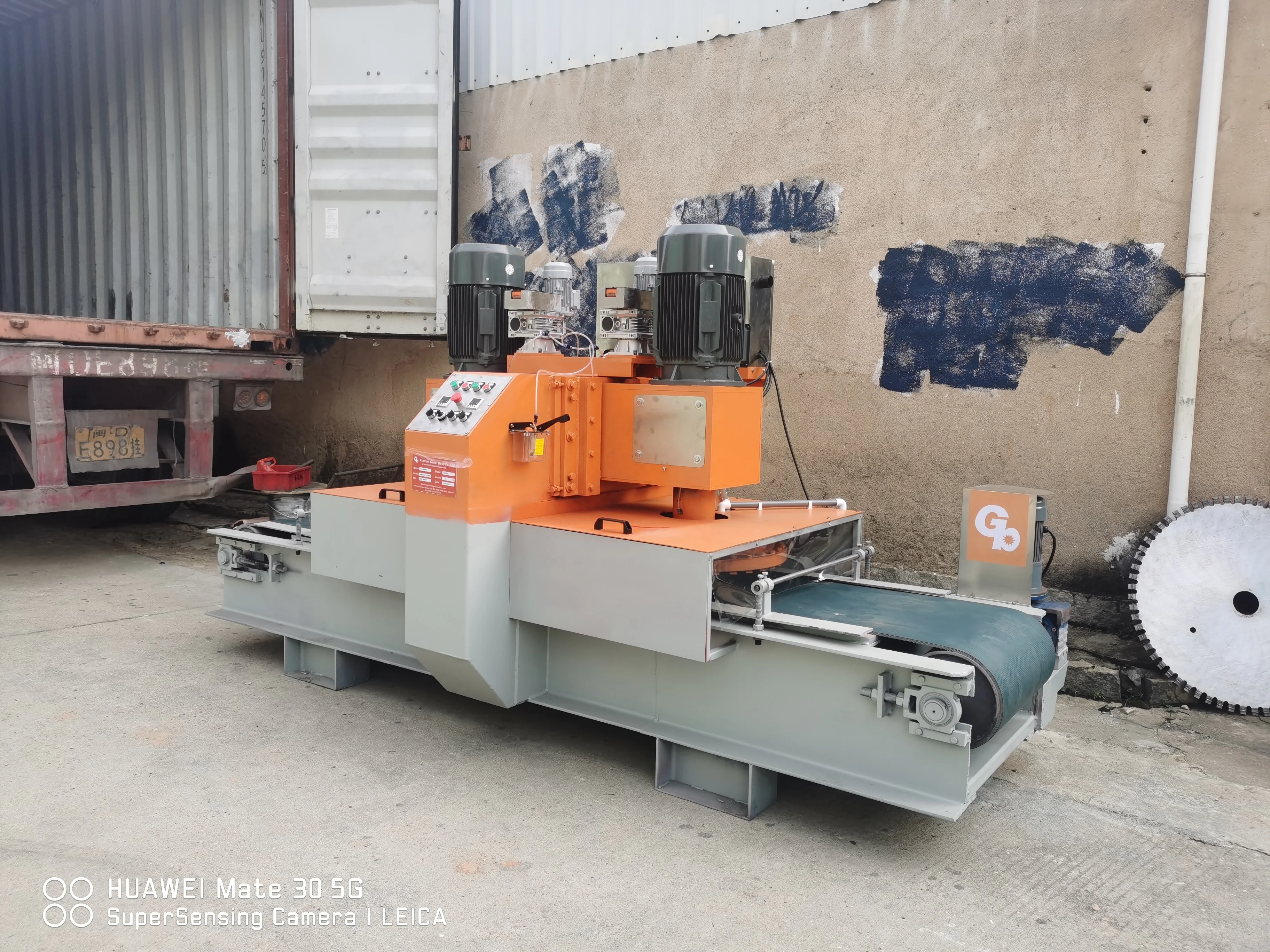

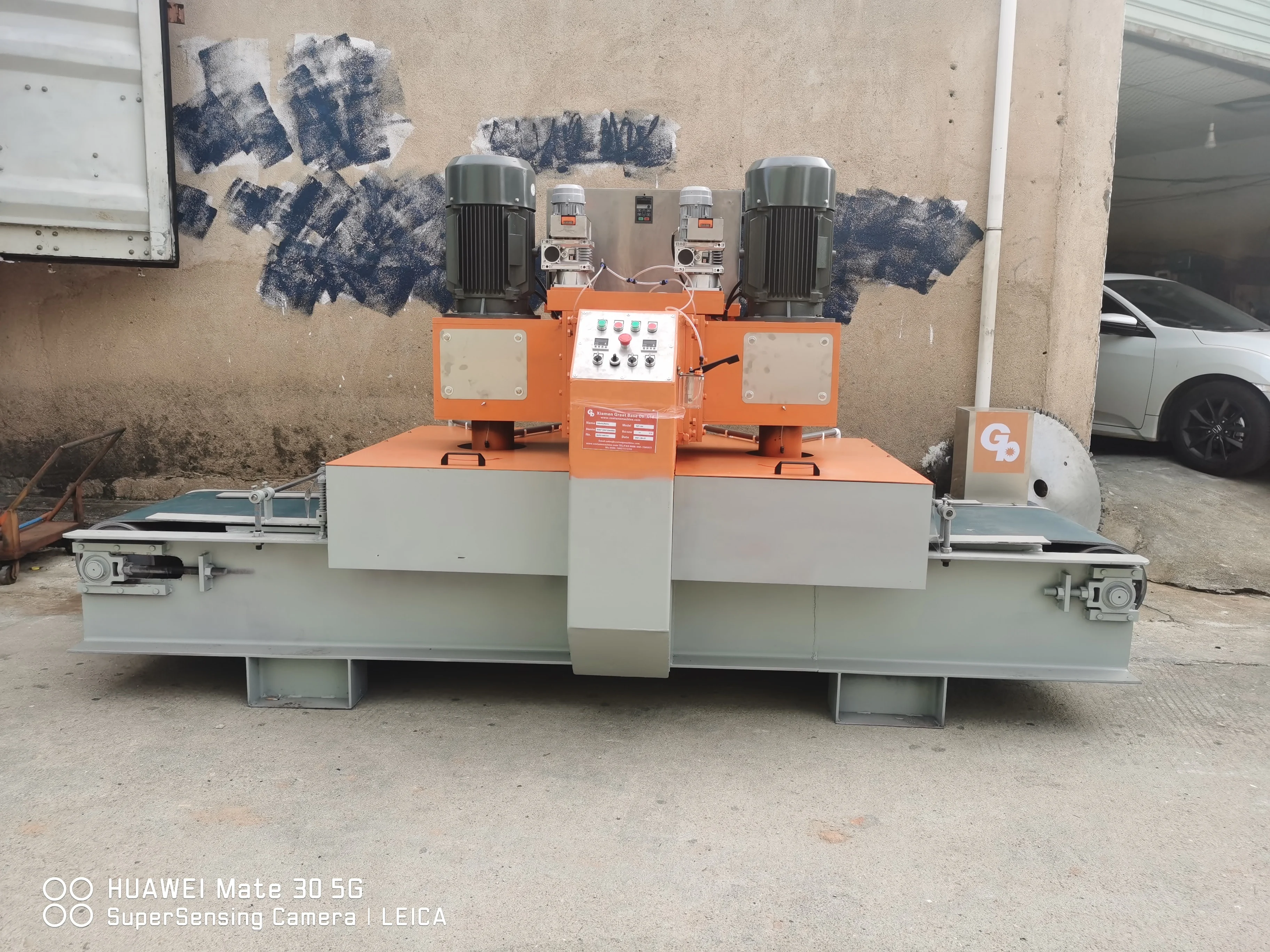

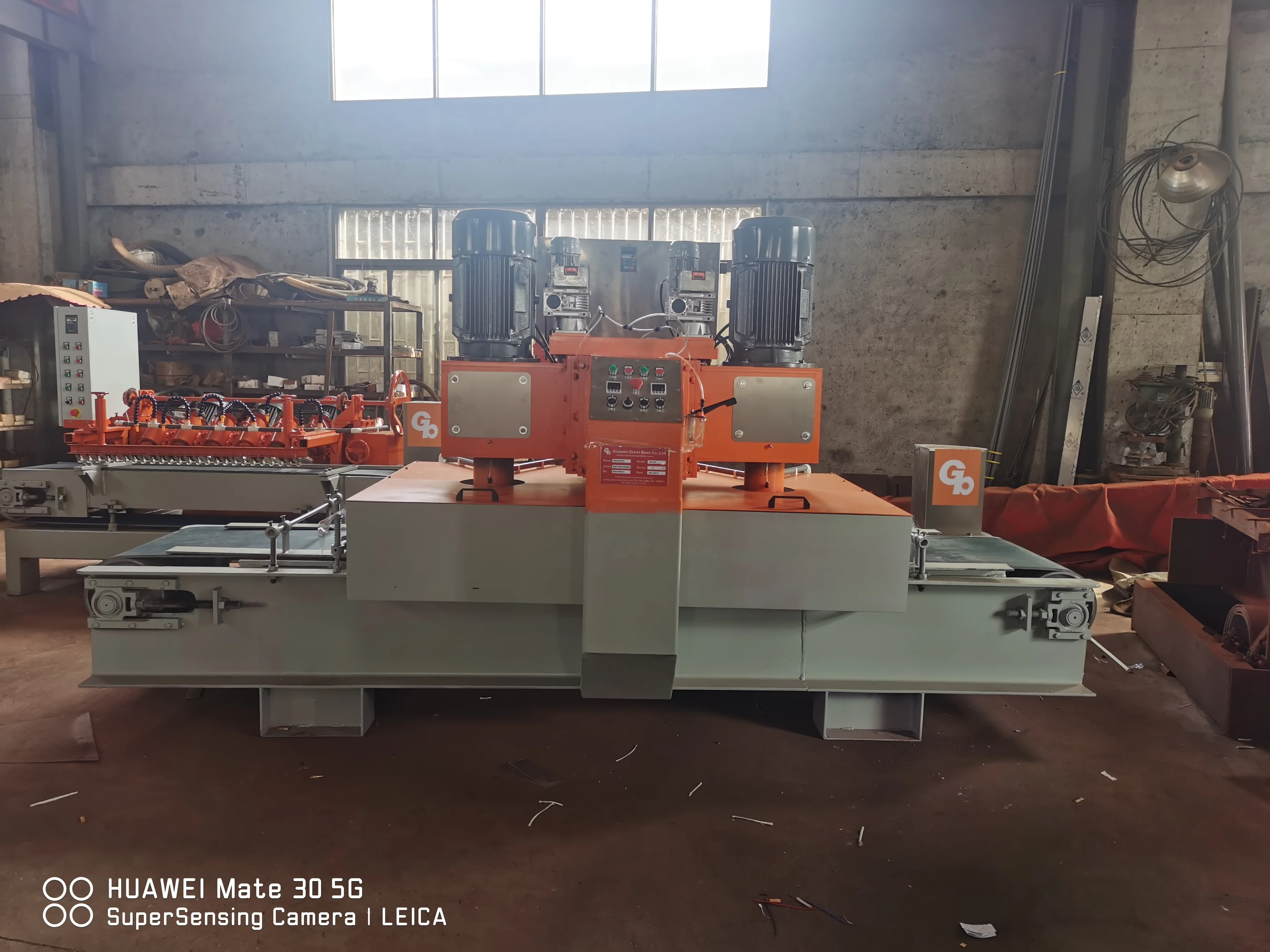

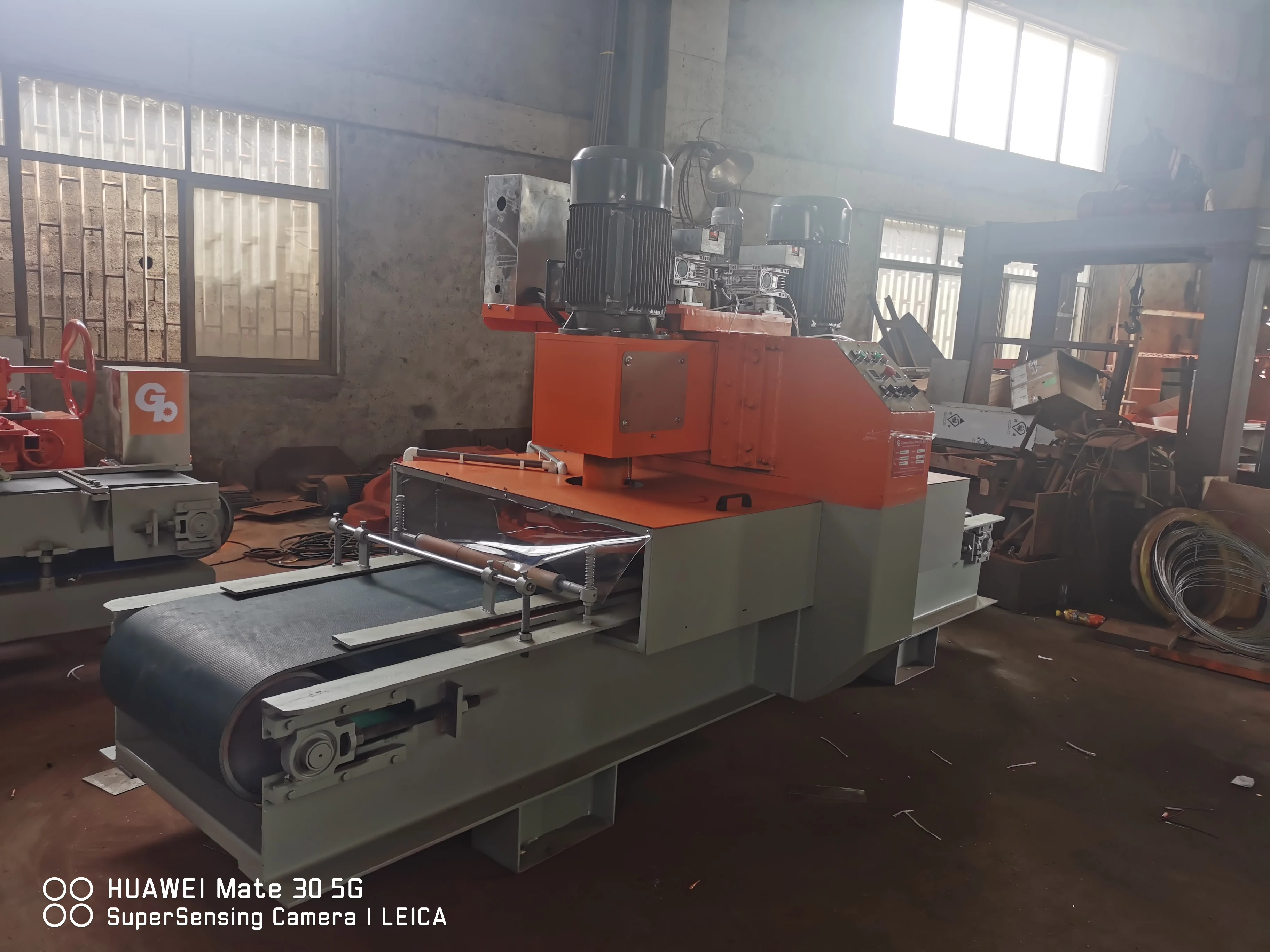

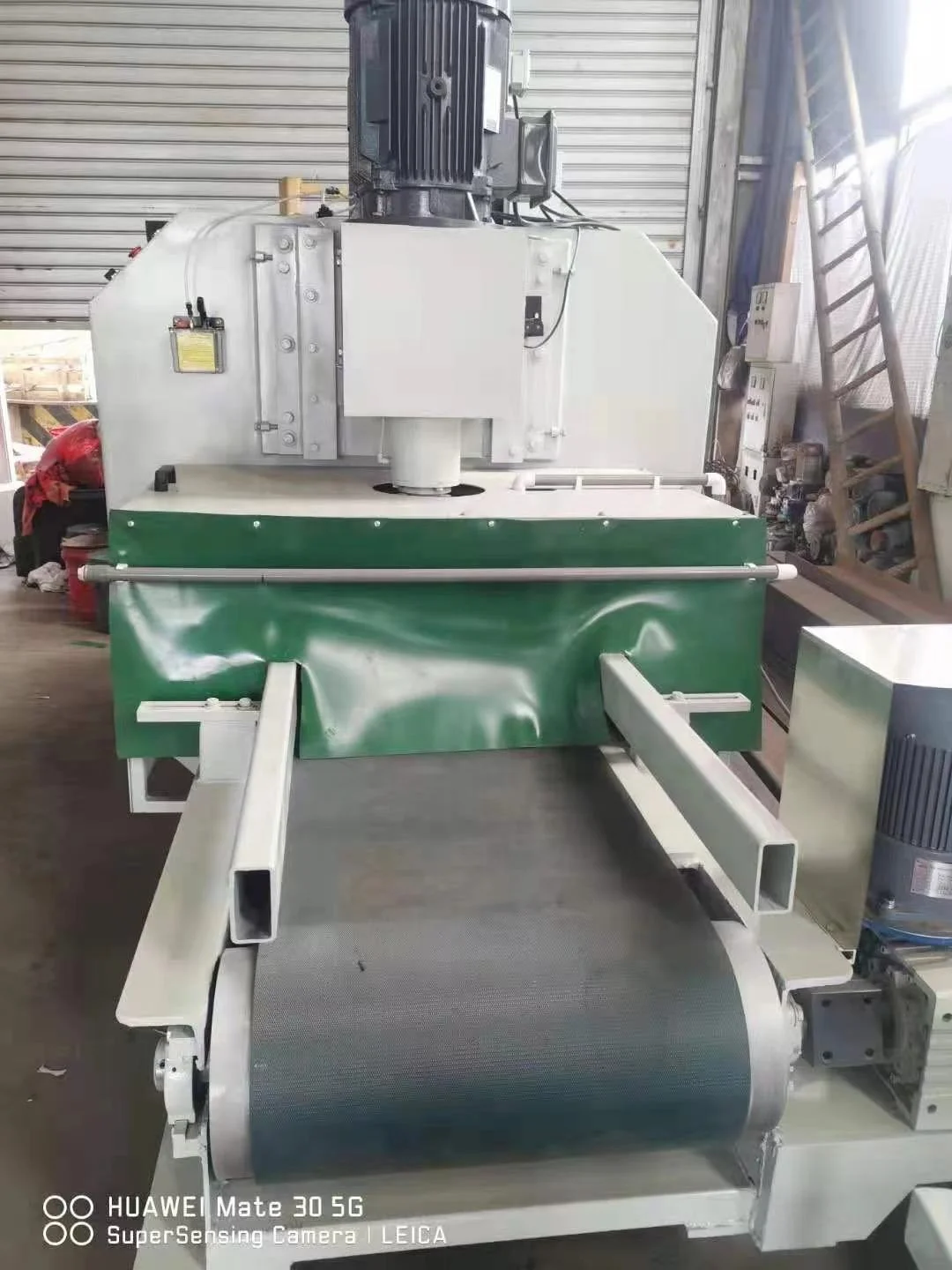

Granite Stone Mosaic Calibrating Cutting Machine

Product Overview

Description

The series full automatic calibration machines are suitable to apply for the calibrating of stone slab /tile/ mosaic.

Features & Adavantage

* This machine adopts  simple and practical grinding head structure

* Gantry structure

* Zero vibration, low noise

* High working precision

* High  efficiency

Technical Data

Name	Unit	GBPG-400D	GBPG-600D	GBPG-800D	GBPG-1000D
Spindle head	pcs	2	2	2	2
Belt width	mm	450	650	850	1050
Calibration pad diameter	mm	¢450	¢650	¢850	¢1050
Max. processing width	mm	400	600	800	1000
Max. processing thickness	mm	60	60	60	60
Main motor power	kw	15	18.5	18.5	18.5
Belt motor power	kw	1.5	1.5	1.5	1.5
Total power	kw	32.6	39.6	39.6	39.6
Total weight	kg	2100	2100	2500	2900
Dimension	mm	3400*1800*2000	4400*2000*2000	4800*2200*2000	5200*2400*2000
