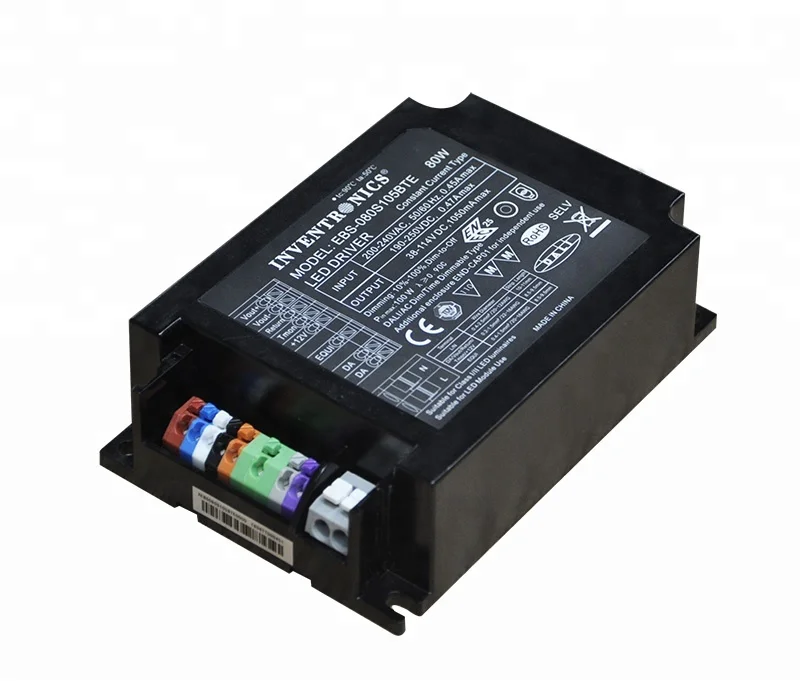

Inventronics 80w 700ma 0 10v dimmable constant current led driver

Product Overview

Description

Inventronics 80w 700ma 0-10v dimmable constant current led driver







Features:

•  Ultra High Efficiency (Up to 93%)


•  Full Power at Wide Output Current Range (Constant Power)


•  Thermal Sensing and Protection for LED Module


•  0-10V/PWM/Timer Dimmable (3 Timer Modes)


•  Dim-to-Off with Standby Power ≤ 0.5 W


•  Always-on Auxiliary Power: 12Vdc, 200mA (Transient PeakCurrent up to 400mA)


•  Output Lumen Compensation


•  Long Lifetime Over 100k Hours at 75°C Case Temperature


•  Input Surge Protection: DM 6 kV, CM 10 kV


•  All-Around Protection: OVP, SCP, OTP


•  IP20 Design and Suitable for Outdoor Applications inLuminaires with IP>54


•  SELV Output


•  Suitable for Luminaires with Protection Class I and II


•  Complies with Zhaga Interface Specification Book 13


•  7 Years Warranty

Description:
The EBS-080SxxxDTE series is a 80W, constant-current, programmable LED driver that operates from 176-305Vac input with excellent power factor. Created for street, area and industrial lights, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and better thermal design enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature of both the driver and the external LED array.

Models:

Adjustable Output Current Range	Default Output Current	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency	Power Factor	Model Number

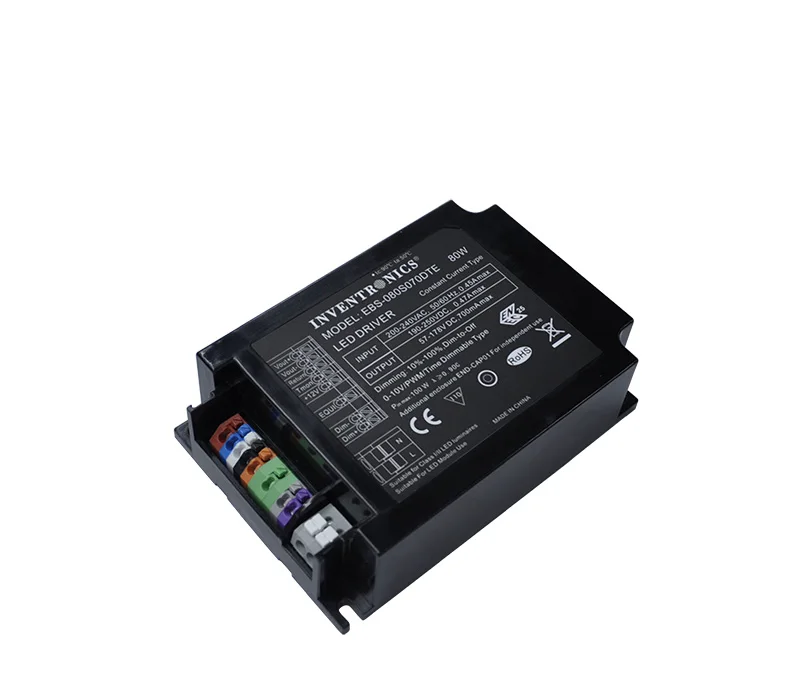

45-700 mA	450-700 mA	530mA	176~305 Vac	57~178Vdc	80W	93.0%	0.98	EBS-080S070DTE
70-1050 mA	700-1050mA	700mA	176~305 Vac	38~114Vdc	80W	92.5%	0.98	EBS-080S105DTE(4)

 Notes:

(1) Output current range with constant power at 80W
(2) Certified voltage range: 200-240Vac or 190-250Vdc (except CCC and KS)

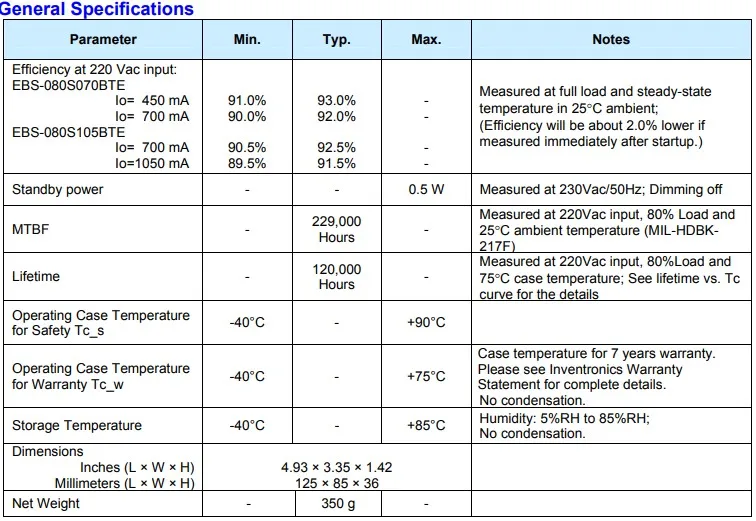

(3) Measured at full load and 220Vac input (see below “General Specifications” for details).
(4) SELV Output.
