Big Round and Square Tin Barrel Can Sealing Seamer Machine
- Category: >>>
- Supplier: Jiujiang Gaoxin Metals Packing Mechanism Co. Ltd.
Share on (60728330243):
Product Overview
Description
Big Round and Square Tin Barrel Can Sealing Seamer Machine
Product Description
4A19Q Pneumatic Big Round and Square Barrel Seamer Machine
Technical Parameter
| Applicable thickness of tinplates | ≤0.4mm |
| Production capacity | 12-18cans/min |
| Applicable can diameter or diagonal | 50-330mm |
| Max. applicable can height | 420mm |
| Motor power | 2.2KW |
| Air pressure | 0.4-0.6MPa |
| Dimension | 1000*917*1885mm |
| Weight | about 800kg |
This machine is mainly applied for sealing the round and square cans,power capacitors and other shaped cans.
OTHER TIN CAN SEAMER MACHINES:

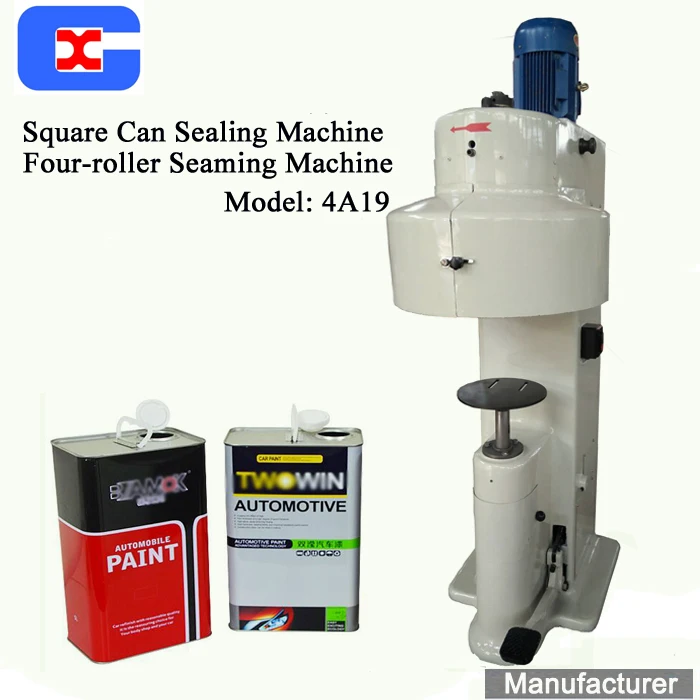

Model: 4A19 Four-roller Sealing Machine,Can Seamer Machine
Technical Parameter:
| Productivity | 8-20 cans/min |
| Applied Sheet's Thickness | ≤0.5mm |
| Applied Can's Drive and Diagonal | 50-320mm |
| Applied Can's Height | 370mm |
| Motor Power | 2.2KW |
| Size | 1000*917*1885mm |
| Weight | 800KG |
The machine can be used for sealing of round and special-shapes cans of can-manufacturing and capacitor industry or other industries.

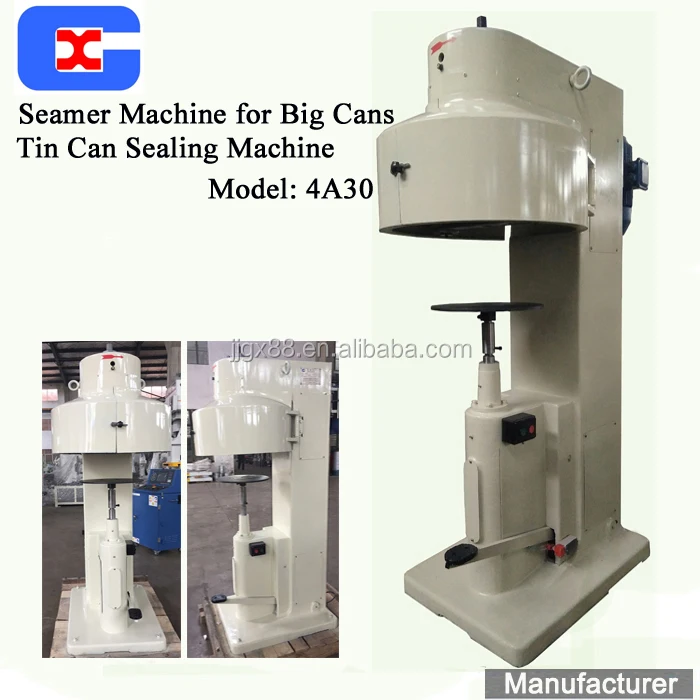

Model: 4A30 Tin Can Seamer Machine,Can Seaming Machine
| Applicable thickness of tinplates | ≤0.8mm |
| Production capacity | 8-14cans/min |
| Applicable can diameter or diagonal | 100-510mm |
| Max. applicable can height | 400mm |
| Motor power | 2.2KW |
| Dimension | 1250*750*1800mm |
| Weight | 1300kg |
This machine is mainly used for sealing the round cans, power capacitors and other shaped cans.

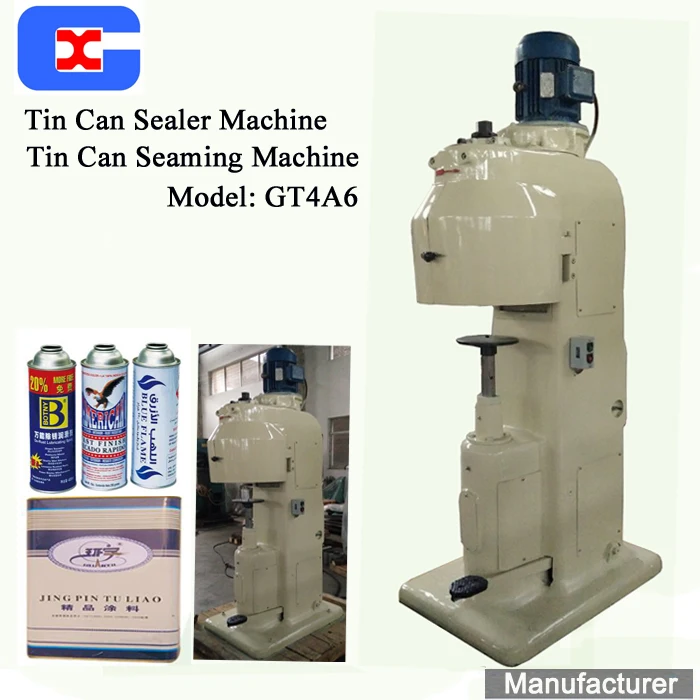

Model: GT4A6 Tin Can Sealing Machine,Can Seamer Machine
| Production capacity | 25-30 round cans/min 15-20 square cans/min |
| Applied can's drive and diagonal | 28-170mm |
| Motor power | 1.5KW |
| Dimension | 785*650*2000mm |
| Weight | 550kg |
This machine is mainly used for sealing round cans or other special-shaped cans in can-manufacturing industry.

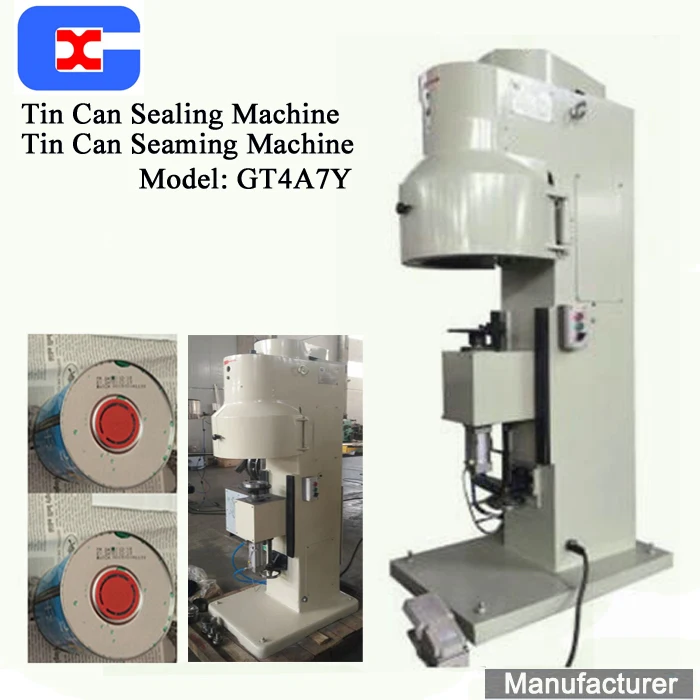

Model: GT4A7Y Tin can seamer machine,tin can sealer machine
| Applicable thickness of tinplates | ≤0.4mm |
| Production capacity | 35-45cans/min |
| Applicable can diameter | 40-180mm |
| Max. applicable can's height | 350mm |
| Air pressure | 0.4-0.6MPa |
| Motor power | 1.5KW |
| Dimension | 800*500*1650mm |
| Weight | about 500kg |
The machine is used for sealing round tin cans or other round metal cans in can-manufacturing industry.

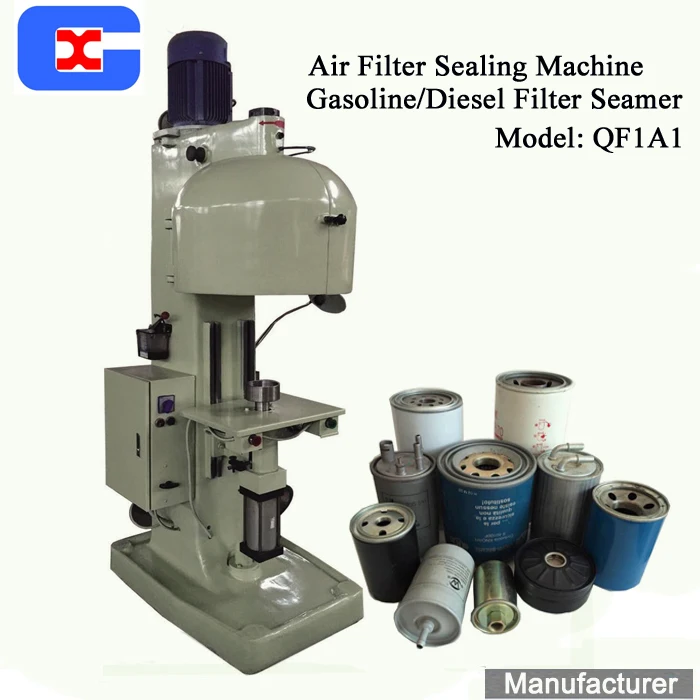

Model: QF1A1 Thick iron sheet sealing machine(filter sealing machine)
| Productivity | 12cans/min(up to 25 cans/min after restructuring) |
| Applied can's drive | 50-130mm(up to 280mm after restructuring) |
| Applied can's height | 60-325mm(up to 450mm after restruturing) |
| Iron sheet thickness | 0.3-1.8mm |
| Motor power | 4KW 380V 50HZ |
| Size | 900*640*2150mm |
| Weight | 900kg |
Usage:
The machine is also known as filter sealing machine,used for sealing 0.3mm-1.8mm shell,special equipment for gasoline,diseal and air filter.
Model: 4A10 Semi-automatic Tin Can Sealing Machine
| Productivity | 10-15cans/min |
| Applied can's diameter and diagonal | 40-350mm |
| Motoe Power | 1.1KW |
| Size | 800*650*2000mm |
| Weight | 400kg |
This machine is mainly used for sealing round cans or other special-shaped cans in can-manufacturing industry or other industries.
Model: 4A13 Manual Sealing Machine
Technical Parameter:
| Productivity | 25-30 cans/min |
| Applied can's drive | 30-160mm |
| Applied can's height | 32-300mm |
| Motor Power | 0.37KW |
| Size | 790*600*1360mm |
| Weight | 200KG |
Usage:
The machine is manual sealing equipment, used for sealing tin, paper round cans.

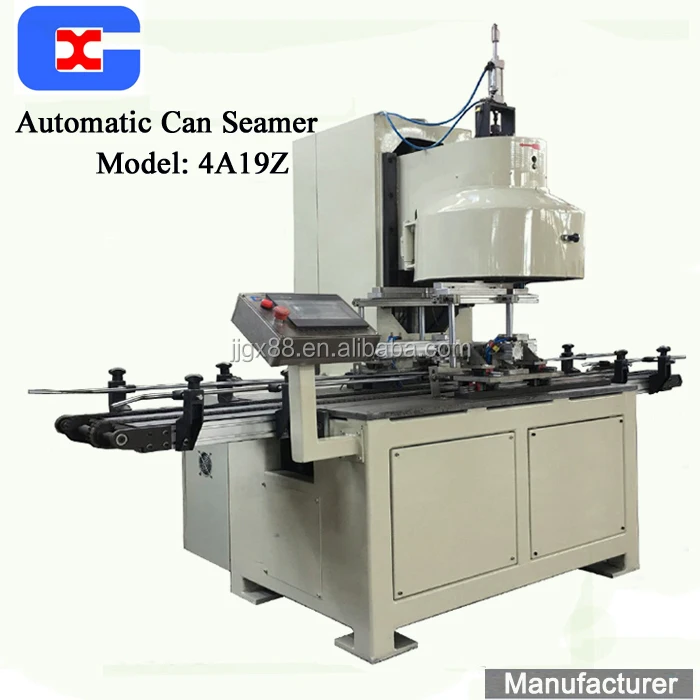

Model: GT4A19Z Automatic Sealing Machine, Seamer Machine
| Production capacity | 13-16 square cans/min,14-18 round cans/min |
| Max. applicable diagonal | 330mm |
| Max. applicable can height | 420mm |
| Total power | 4KW |
| Dimension | 2450*1080*2000mm |
| Weight | about 1000kg |
This machine is mainly applied for sealing the square and other shaped cans.
Packaging & Shipping
Packaging: Packed into Wooden Case
Shipping: By Sea or Train
Company Information
Jiujiang Gaoxin Metals Packing Mechanism Co., Ltd is one of the leading metal packaging machinery manufacturers in China.The range of machinery made in our company includes cap making machines /production lines( aluminum caps,twist off /lug caps,EOE and other metal caps); can making machines /production line ( round,square and other shaped metal cans) ;NC punching machines;curling & sealing machines for capacitors,filters and other metal containers.Our company has strong technical force and provides to all the customers equipments' matched molds,spare parts,maintenance and technical support all along.
Our company is located in a place with perfect transportation conditions which is only about 2 kilometers to the Jiujiang High-speed railway station, 200 meters to Silver-Fu (Changjiu) freeway, less than one hundred kilometers to the Changbei International Airport.
Welcome to our company for business! We will provide satisfying products and service with good quality and competitive price for you!
Our Services
1. Warranty: One year after shipment.
2. Delivery Time: 15-30 working days after receiving the advanced payment.
3.Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)
4. Installation and commissioning
Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and air into the machines, then we shall send 2-3 technicians to install the production line.
