High quality domestic ro spares 200 gpd ro membrane manufacturer
- Category: >>>
- Supplier: Tianjin Tian Gong New Material Technology Co. Ltd. [Tianjin China]Tianjin
Share on (60728338901):
Product Overview
Description
Product Description

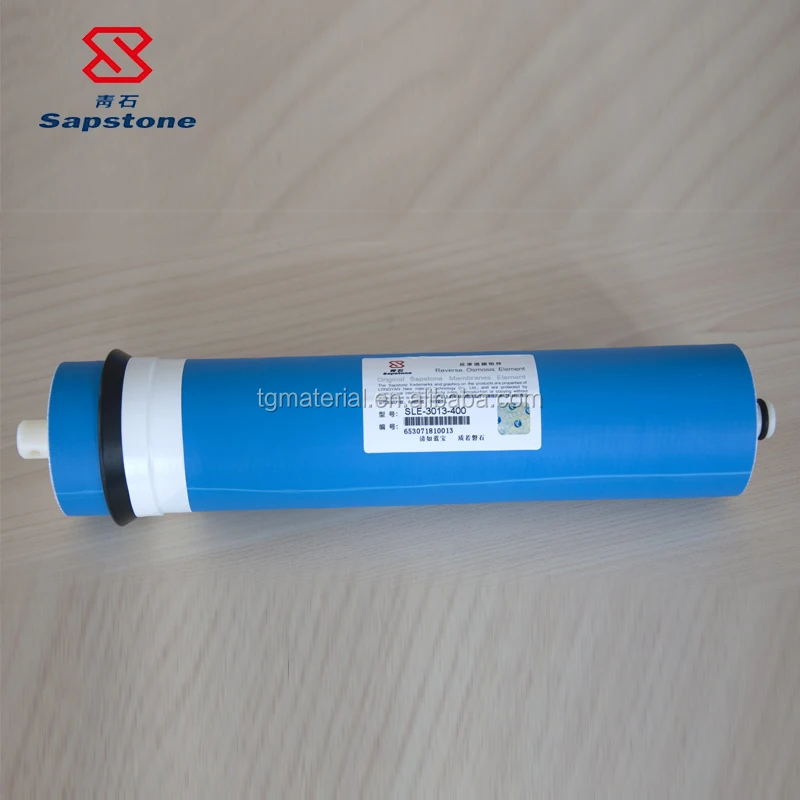

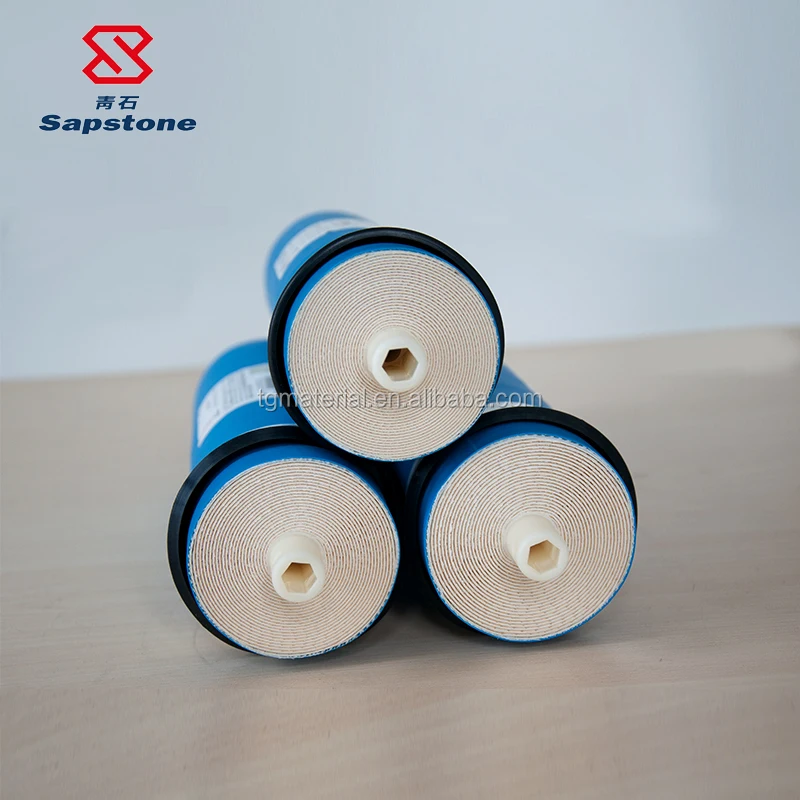

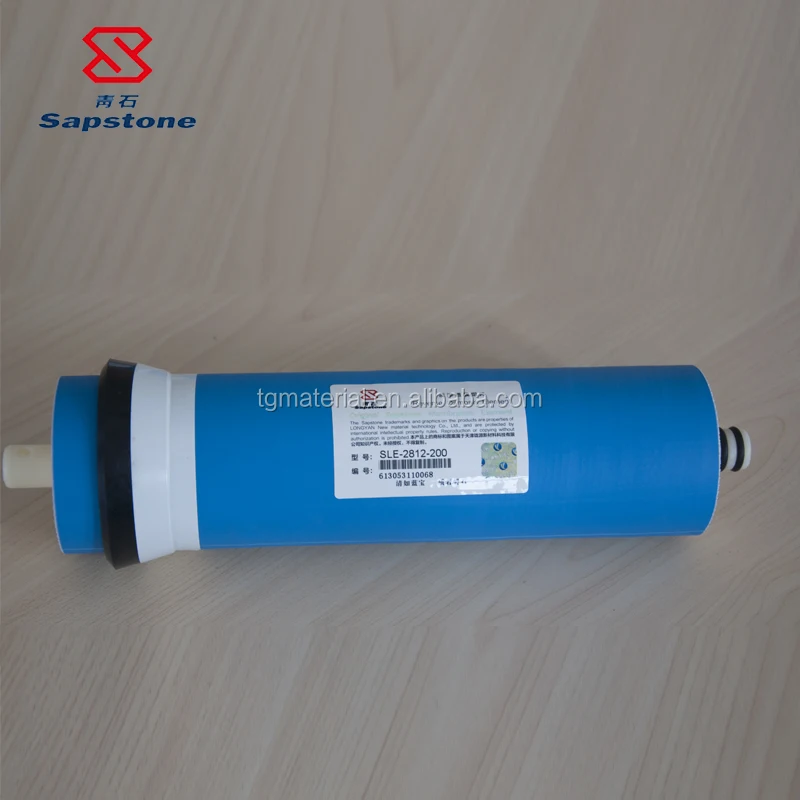

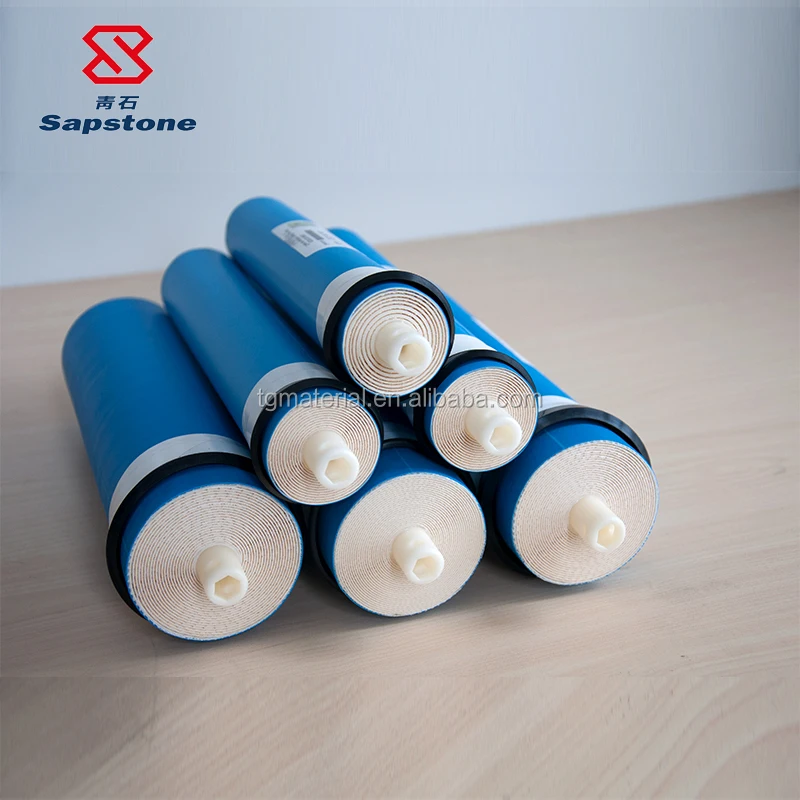

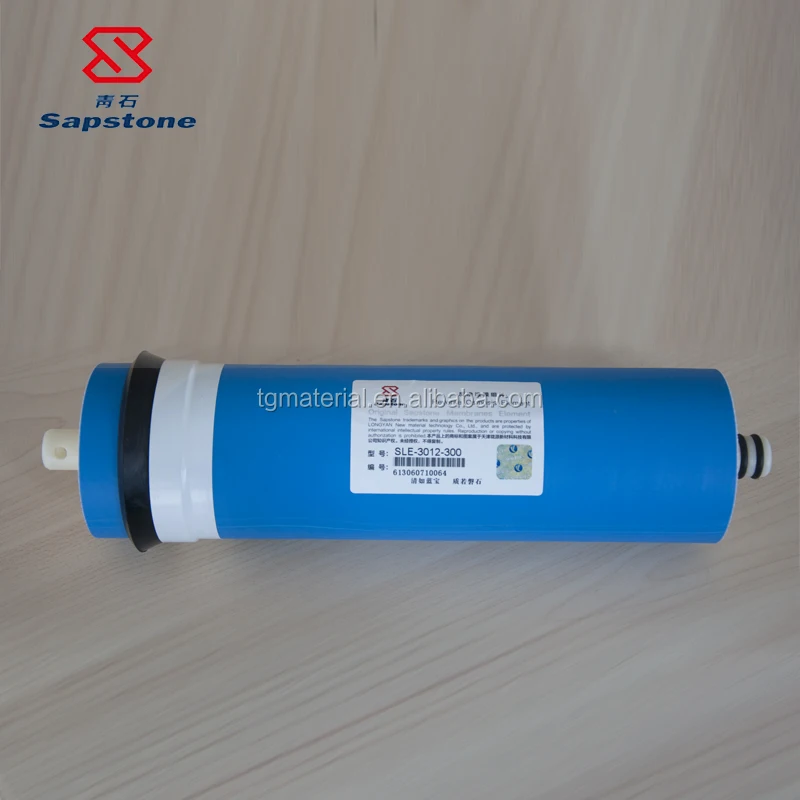

High quality domestic ro spares 200 gpd ro membrane manufacturer
Product advantage
1. SLE Series Product Performance Stability.
2. SLE Series is dry membrane elements, so it is easy to transport and storage time extend.
3. SLE Series be used for Rural and Urban tap-water or low salinity water due to it’s High Stable rejection and low pressure Advantage.
RO Membrane Performance
Model | Performace | |||
Stable Rejection /% | Average permeate flux /gpd(m3/d) | Recovery /% | ||
(Sapstone) Low Pressure domestic/commercial membrane element | SLE-1810-50 | 97.0 | 50(0.20) | 20 |
SLE-1812-50 | 97.0 | 50(0.20) | ||
SLE-1812-75 | 96.5 | 75(0.28) | ||
SLE-2012-100 | 96.0 | 100(0.40) | ||
Testing Conditions: |
| |||
Testing Concentration(NaCl) | 250 mg/L | |||
Testing Pressure | 60 psi(0.4 MPa) | |||
Temperature of Testing Solution | 25℃ | |||
pH value of testing solution | 7.5 | |||
Operation Limits and Conditions: | ||||
Membrane Type | Polyamide Thin-film Composite | |||
Max. Working Pressure | 300 psi(2.07 MPa) | |||
Max. Inflow Temperature | 45℃ | |||
Max. Inflow SDI15 | 5 | |||
Residual Chlorine Concentration of Feed Water | <0.1 mg/L | |||
PH Range of Feed Water During Continuous Operation | 3~10 | |||
PH Range of Feed Water During Chemical Cleaning | 2~12 | |||
Max. Pressure Drop of Single Membrane Element | 10 psi(0.07 MPa) | |||
Measurement of membrane element
Model | Size/mm(inch) | ||||
A | B | C | D | E | |
1810 | 256.0(10.1) | 44.5(1.75) | 17.0(0.67) | 25.0(0.98) | 15.0(0.59) |
1812 | 298.0(11.7) | 44.5(1.75) | 17.0(0.67) | 21.0(0.83) | 21.0(0.83) |
2012 | 298.0(11.7) | 48.2(1.9) | 17.0(0.67) | 21.0(0.83) | 21.0(0.83) |
Use Tips For Household RO Membrane
1)The water production rat in the form is Average value,The more or less will within 15% For one membrane unit.
2)Once the membrane elements is wetted, keep it wet.
3)The Water produced in the first hour should be discharged, undrinkable or used as a cooking water.
4)If the system in a state of shutdown for a long time, to prevent the inner part breeding of microorganism, it is recommended to soak the membrane components in protection liquid, clean the protection liquid before use.
Packaging & Shipping
Company Information
commercial
Why choose us
1. Adanvced Automatic production line.
2. Stable and large-scale produce capacity.
3. Strong R&D Team.
4. customize service provided as customer's required.
