RD USB 2.0 UM24 Color LCD Display voltmeter ammeter measure cable resistance USB Tester analog panel Voltage Meter
- Category: >>>
- Supplier: Hangzhou Ruideng Technology Co. Ltd.
Share on (60728350652):
Product Overview
Description
Product Description
1.Technical parameters:
Product Model:UM24
Voltage measurement range:4.50-24.00V
Current measurement range:0.000-3.000A
Capacity accumulation rannge:0-99999mAh
Energy sccumulation range:0-99999mWh
Load impedance range:1.5-9999.9Ω
Temperature range:-10℃~100℃/0℉~200℉
Screen brightness setting:0-5 level
Voltage graphing range:04.5-24.0V
Display screen:1.44 Inch color LCD display

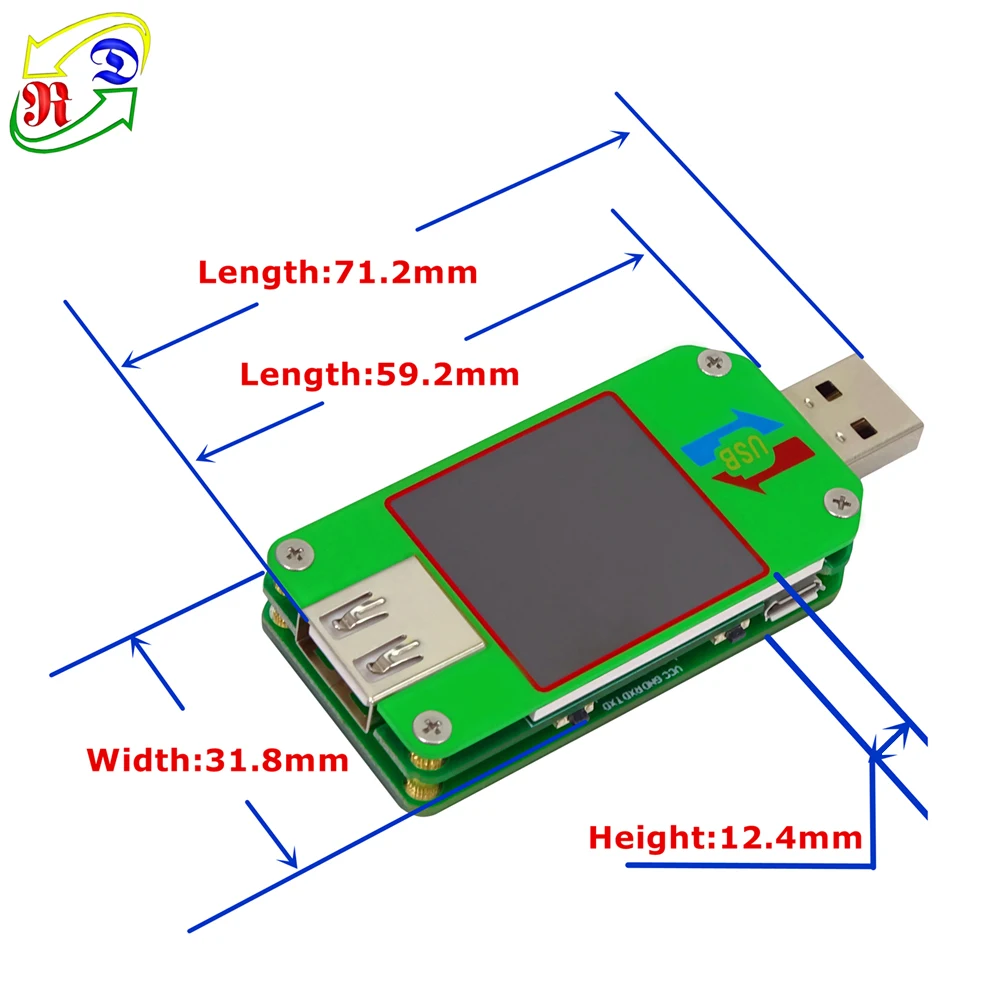

Product size:71.2mmx31.8mmx12.4mm
Voltage measurement range:4.50-24.00V
Current measurement range:0.000-3.000A
Capacity accumulation rannge:0-99999mAh
Energy sccumulation range:0-99999mWh
Load impedance range:1.5-9999.9Ω
Temperature range:-10℃~100℃/0℉~200℉
Screen brightness setting:0-5 level
Voltage graphing range:04.5-24.0V
Display screen:1.44 Inch color LCD display
Product size:71.2mmx31.8mmx12.4mm
Product weight:23.47g
Voltage measurement resolution:0.01V
Current measurement resolution:0.001A
Voltage measurement accuracy:±(0.2%+1 digit)
Current measurement accuracy:±(0.8%+3 digit)
Time measurement range:0-99h59min59s
Temperature measurement error:±3℃/±6℉
Auto screen off time:1-9mins
Current graphing range:0.00A-3.00A
Quick charge recognition mode:QC2.0 QC3.0
Voltage measurement resolution:0.01V
Current measurement resolution:0.001A
Voltage measurement accuracy:±(0.2%+1 digit)
Current measurement accuracy:±(0.8%+3 digit)
Time measurement range:0-99h59min59s
Temperature measurement error:±3℃/±6℉
Auto screen off time:1-9mins
Current graphing range:0.00A-3.00A
Quick charge recognition mode:QC2.0 QC3.0
2.INTRODUCTION DOWNLOAD LINK:
//www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
//www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
3.NOTE
①UM24 is no communication version, UM24C is conmmunication version by Bluetooth connection.
②PC software support PC window (Win 7 and above) and Phone Android and IOS (Android 5.0 and above, IOS 8 and above ,
support 14 kinds language, chinese, english and Russia .... )
4.RELATED PRODUCTS:
UM24C
UM25C
UM34C
5.PRODUCT DESCRIPTION
Button Instruction:
1: Multifunction buttons (4)
2: Micro USB Port
3: USB A Male Port
4: USB A Female Port
5: 1.44 Inch Color LCD Screen
6: Bluetooth Indicator Light: When connected to the host
computer control software, the Bluetooth indicator
changes from flashing to steady state. When connecting,
the Bluetooth icon is displayed on the screen. (Bluetooth
communication version only).

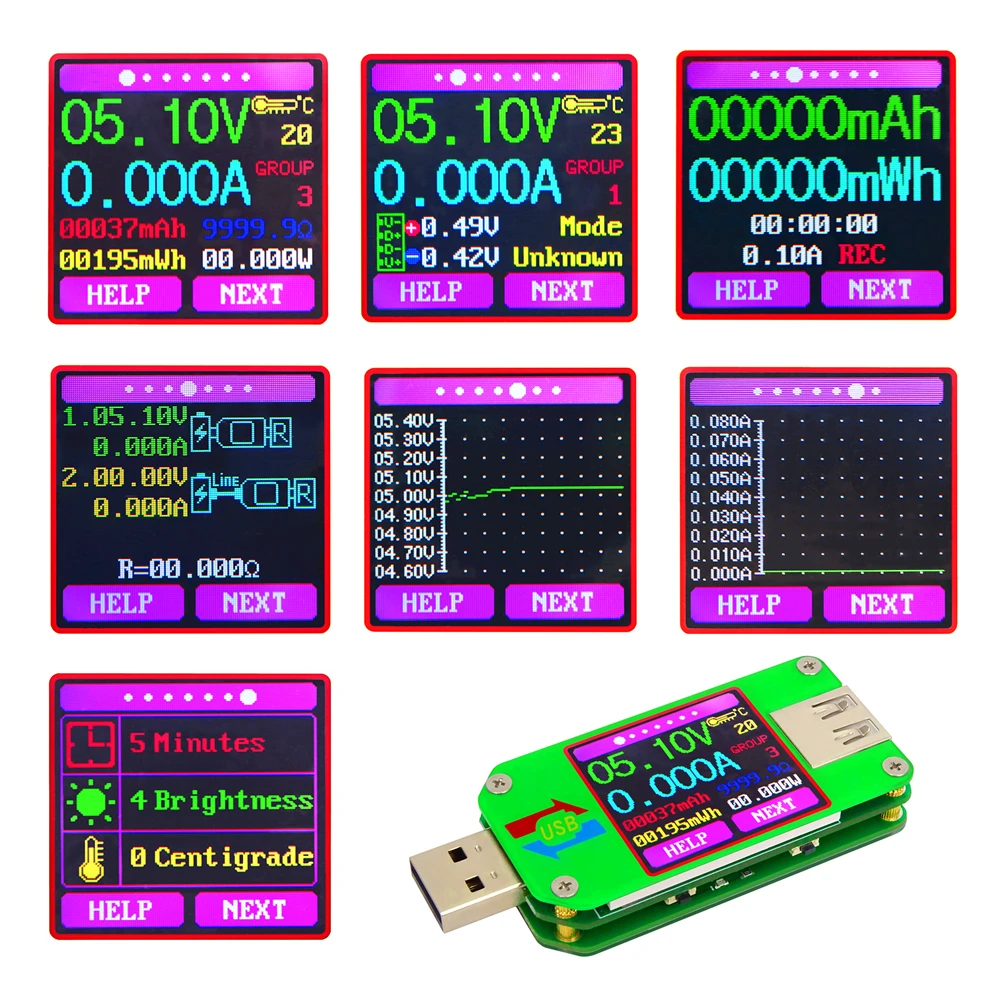

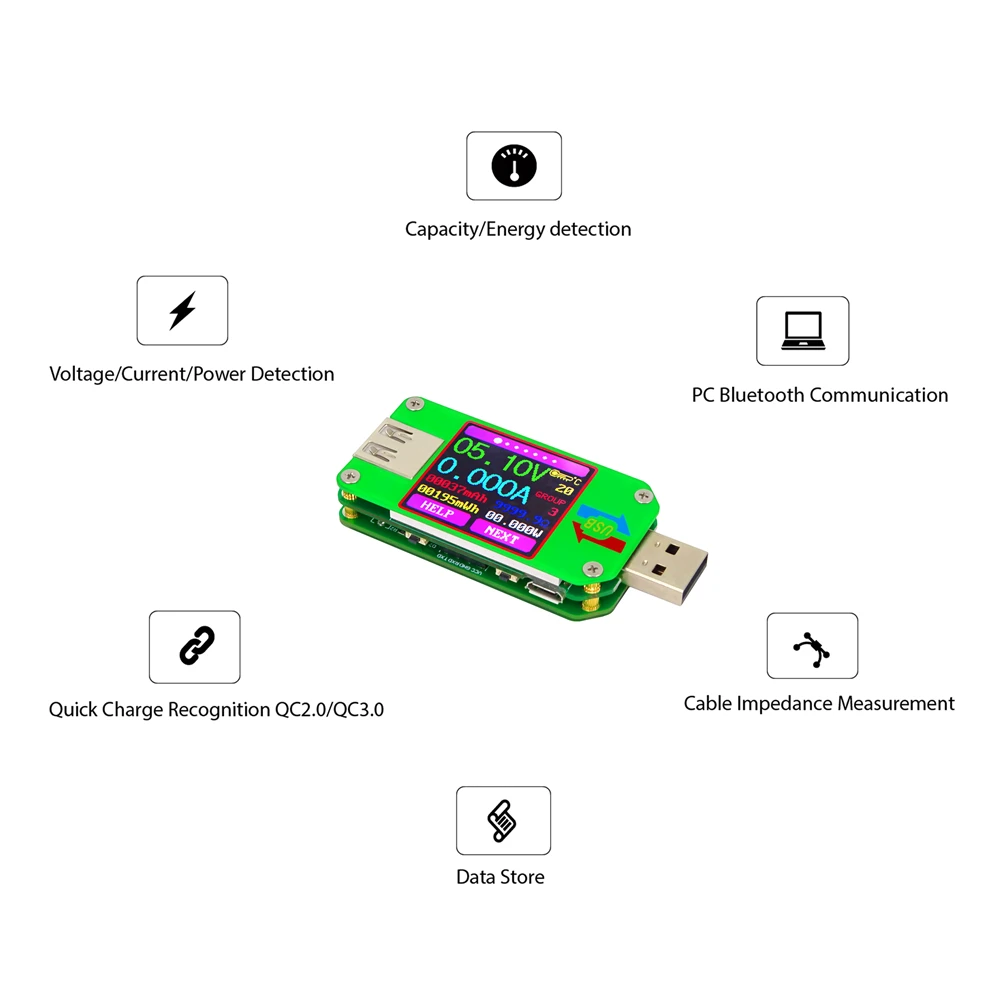

Seven Function Interfaces:
Measurement Main Interface
Quick Charge Recognition Interface
Data Recording Interface
Data Connection Cable
Impedance Measurement Interface
Voltage Graphing Interface
Current Graphing interface

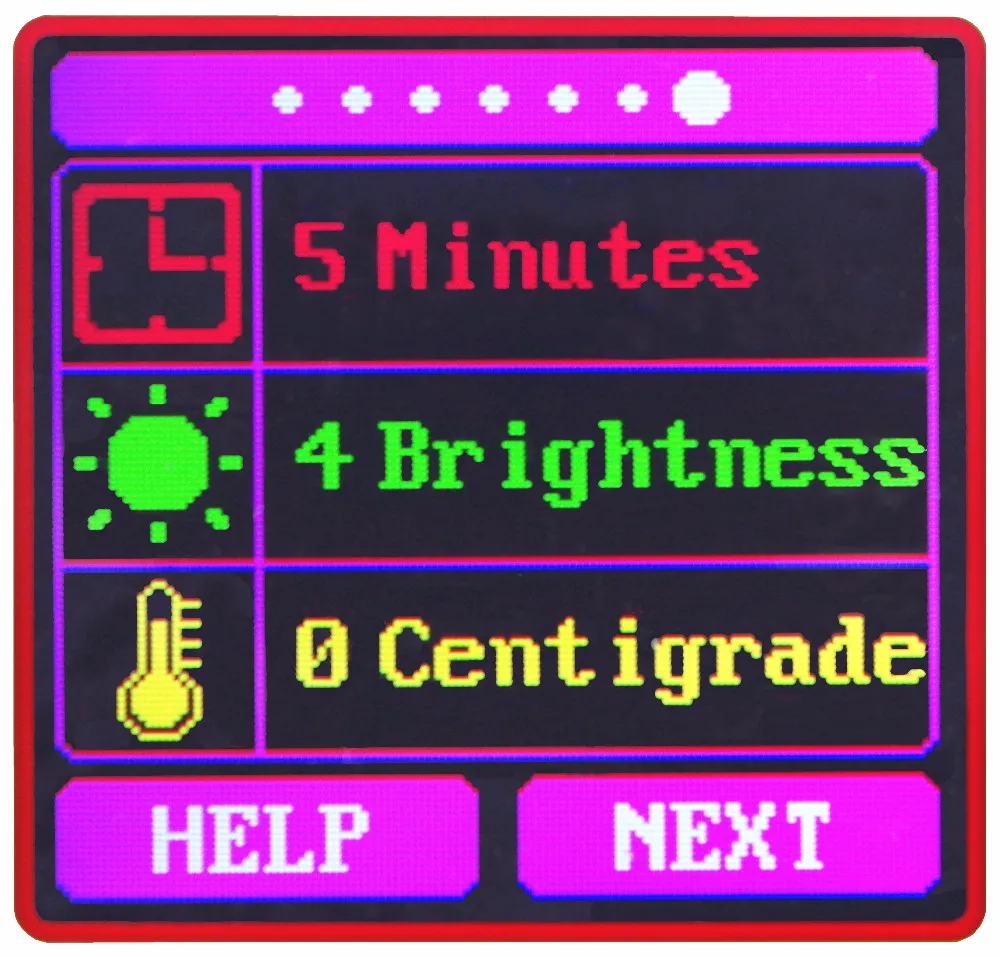

Settings Interface
At this interface we can set auto screen off time/system brightness/switch temperature display unit, if you don't
know how to operate, you can press "HELP" to view how to operate.
COMPARISON CHART:
UM24(C) | UM25(C) | UM34(C) | |||
USB port | USB2.0 | USB3.0 | |||
Voltage measurement range | 4.5-24.00V | 4-24.000V | 4-24.00V | ||
Current measurement range | 0-3.000A | 0-5.0000A | 0-4.000A | ||
Supported fast charge protocol | QC2.0,QC3.0,FCP, AFC,PE2.0 | QC2.0,QC3.0,FCP, AFC,PE2.0 Huawei SCP Huawei40W quick charge OPPO VOOC SuperVOOC flash charge OnePlue DASH quick charge | QC2.0,QC3.0,FCP, AFC,PE2.0 OPPO VOOC flash charge OnePlue DASH quick charge | ||
APP | Support IOS8.0 or above / Android5.0 or above | ||||
PC Software | Support WIN7 or above | NO | |||
Download | IOS APP : search UM meter on iphone APP store to download Android APP : search UM meter at Google play to download or use our file link to down load | ||||
