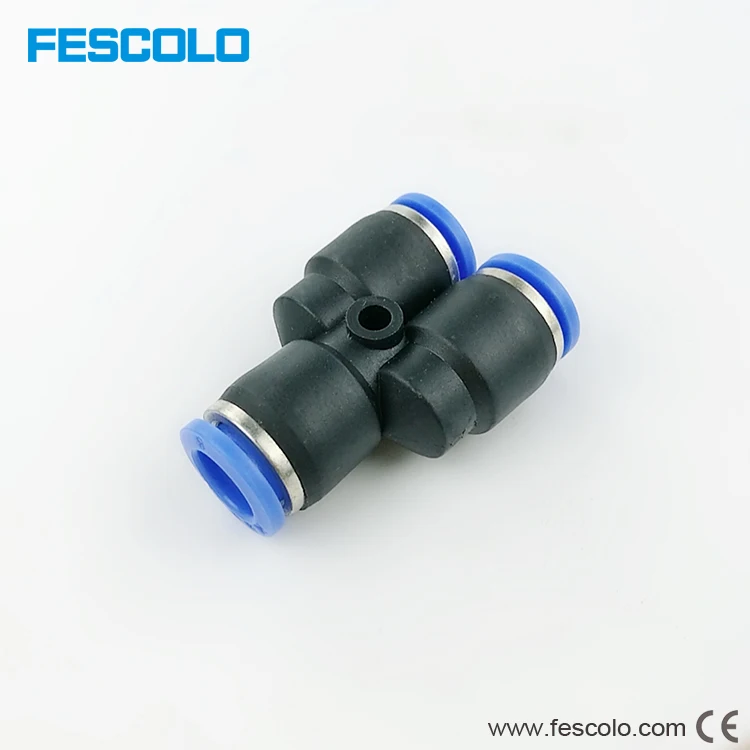

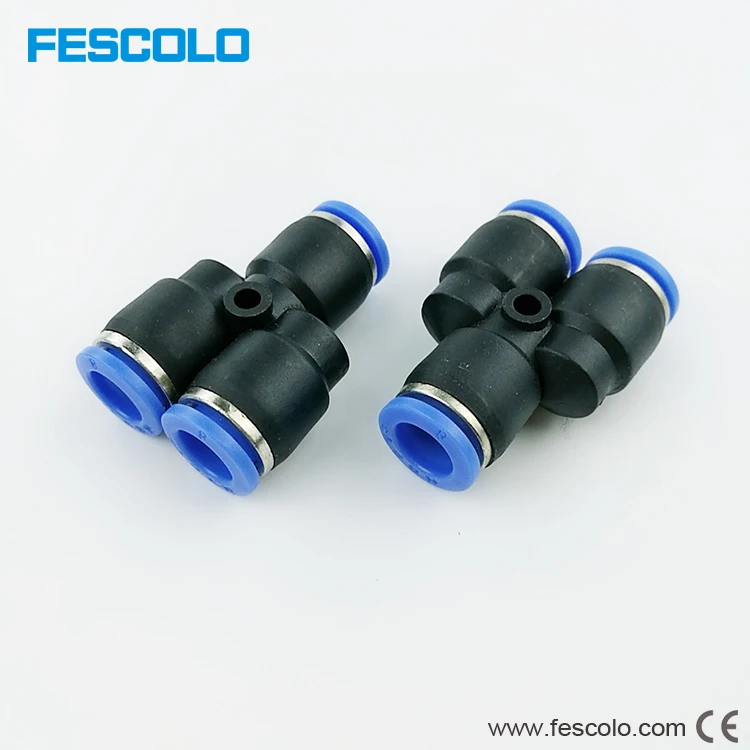

Pneumatic one touch union plastic Y branch pipe fitting hose connector
- Category: >>>
- Supplier: Ningbo Fescolo Pneumatic Manufacturer
Share on (60728354564):
Product Overview
Description
Product Description

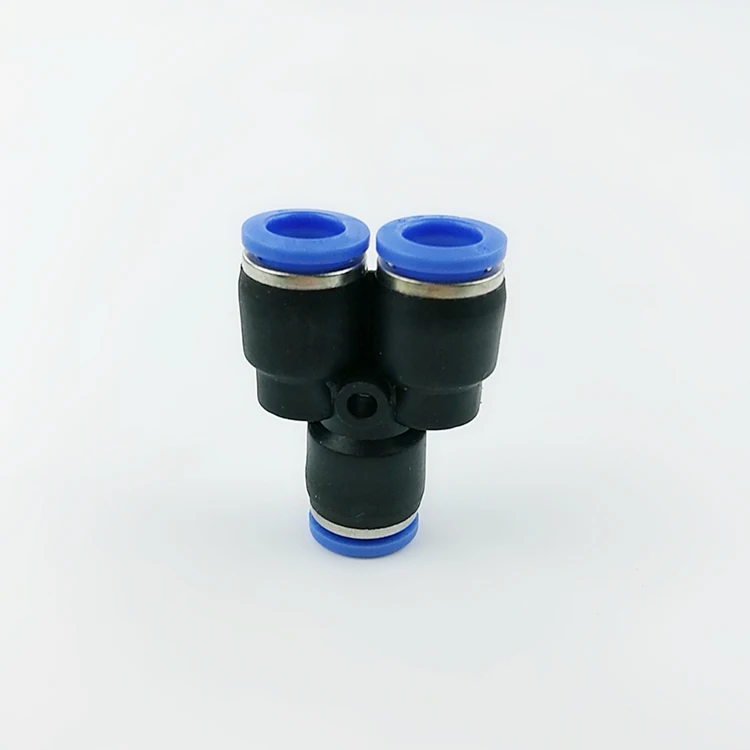

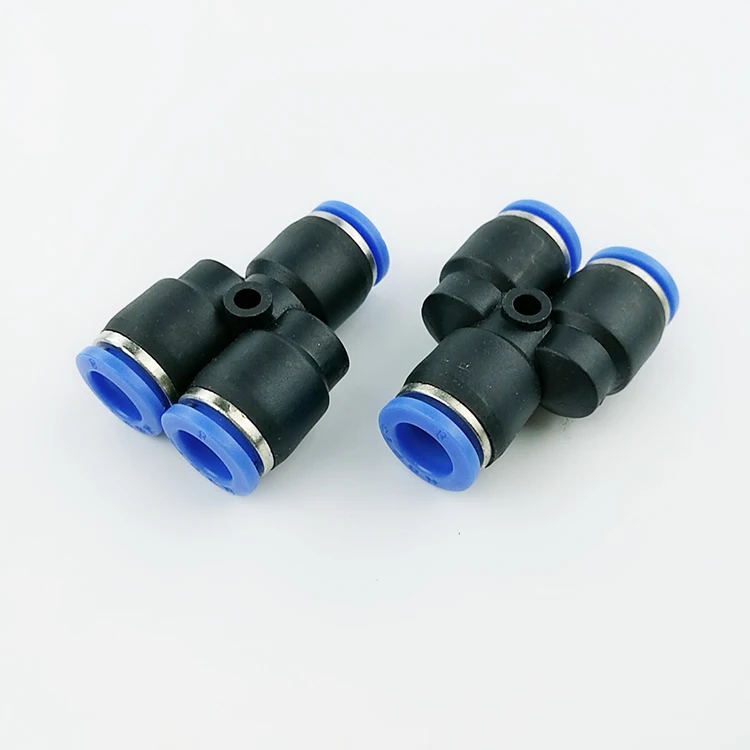

♦ Product name: TPY series pneumatic one touch union plastic Y branch pipe fitting hose connector
♦ Ordering code:
| TPY | 8 | |||||
| ↑ | ↑ | |||||
| Model | O.D. of tube | |||||
| TPC | 4: Φ4mm | |||||
| TPCF | 6: Φ6mm | |||||
| TPL | 8: Φ8mm | |||||
| TPLF | 10: Φ10mm | |||||
| TPE | 12: Φ12mm | |||||
| . | 14: Φ14mm | |||||
| . | 16: Φ16mm | |||||
| . | Or imperial size | |||||
♦ Characteristic:
1) Made in brass material with nickel plated, and sealed with NBR
2) Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
3) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT,PT and Metric
4) Not only metric size, we can also provide imperial size for the tube.
♦ Specification:
| Specification | Parameter | ||||
| Applicable medium | Compressed Air, Vacuum | ||||
| Pressure range | 0~1.0 MPa | ||||
| Proof pressure | 1.5 MPa | ||||
| Negative range | -100kpa (10Torr) | ||||
| Temperature range | 5°C~60°C | ||||
| Applicable tube | PU hose, Nylon hose, PE hose | ||||

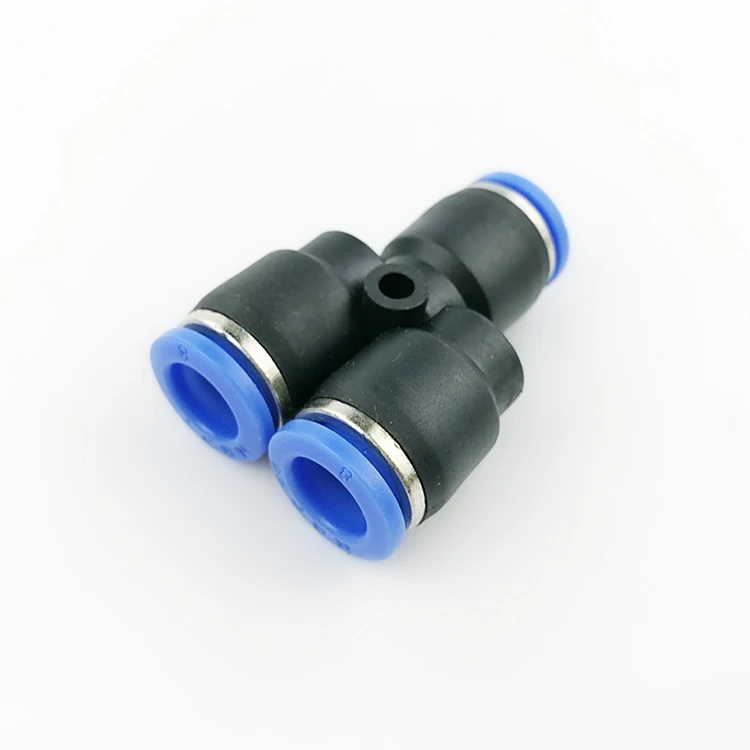

♦ Product details:

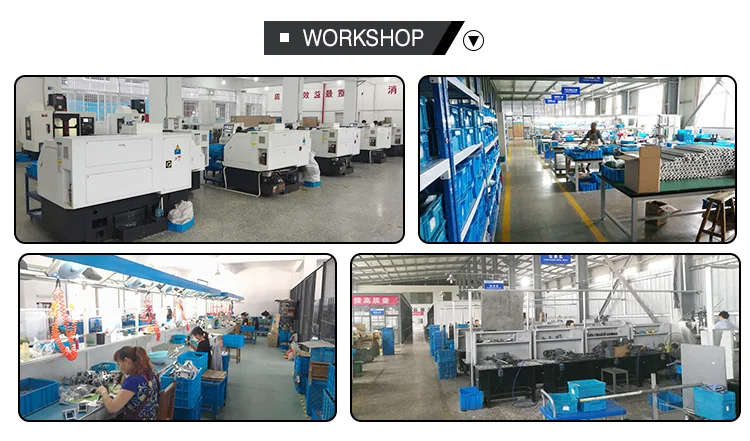

Company Information
FAQ
Q1: Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
Q2: What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
Q3:Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
Q4:Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
Q5:Which port can you delivery:
Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
Q6:Which payment terms can you accept?
Answer: Paypal,T/T,L/C
Q7:Are you a real manufacturer or a trade company?
Answer: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q8:Which city does your company locate in?
Answer: We are in Ningbo city,Zhejiang provience. About 240km away from Shanghai.
