grinding mill for make aluminium paste

Product Overview

Description

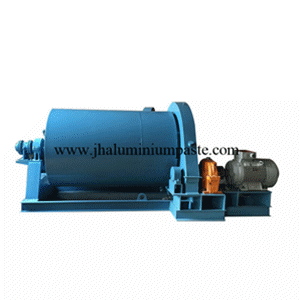

Ball mill  is a  use  for product aluminium paste or aluminium powder

Model	JH-100 1400*2200	JH-200 1100*1200	JH-300 600*3300
Dimension(mm)	4150*2050*1850	2500*1700*1600	4150*2050*1850
Weight(T)	4.2	2.1	8.4
Cylinder Thickness (mm)	16	16	25
Sidewall Thickness(mm)	20	16	30
Lifting Rib Quantity(pcs)	12	10	14
Gear Quantity	136/ 20(160 ZDY)	108/ 17(125 ZDY)	107/20 (250ZDY)
Motor Power(KW)	30	11	90
Converter Power (KW)	30	11
Bearing	23040/ 22312	22226/ 22310	23080/22319
Discharge(kg)	190	90	Circularly
Need Steel Balls(T)	3	1.52



Ball mill is a use for product aluminium paste or aluminium powder

Free sample: Yes. Free samples are for your evaluation.



After sale service: Any problem causes by shan dong jie han metal pigment we will take full responsibility.



Payment Terms: T/T, L/C, Western Union. Payment terms shall be 50% in advance and balance will be paid after shipment.



Delivery Time: Delivery is 15 days upon confirmation of purchasing order and advance payment, whichever is late.

  Tel:0086-18254114470           Web:www.jhaluminiumpaste.com

  Wechat:0086-18254114470    Skype:leyuan55

  Whatapp:0086-18254114470
