shandong brown evaporative cooling pad for greenhouse ,poultry farm

Product Overview

Description

1. Made of corrugated fiber paper with the spatial crossing linking technology: high absorbability, high water resistant and anti-mildew, anti corrosive, high strength with long service life.

2. High hygroscopicity: to absorb water naturally, with fast speed of pervasion and lasting effectiveness. Water drops can diffuse within 4-5 seconds. The natural absorption height is 60-70mm/5 minutes, as 200mm/1.5 hours, reaching the international standard.

3. Specific stereoscopic structure: large evaporation area, and cooling efficiency can be as high as 80%.

4. Low consumption: Compared wth the traditional air-condition, its electric consumption is only 1/10

5. No phenol in the raw material, which is irritant to skin: safe, energy saving, environmental protective, economic and durable.

6. Frame Material: galvanized, aluminum alloy or stainless steel can be chosen, and the dimensions can be customized according to customer’s requirements.

7. Various colors for your selection: Brown, Green, Green/Brown color, Black coated-single side(washable),Green coated-single side (washable),Yellow coated-single side (washable).

8. Strict production as per standard, width of 600mm cooling pad involves 85 sheets; raw material adopt imported kraft paper(100GSM, thickeness:0.18-0.20mm, tension resistance at 70N, absorbability height as 45mm/10min , moisture at 5-8%, humidity at 18N)



Suggestion in choosing the cooling pads:



1.Model 5090 cooling pad is widely use in air cooler.

Model 7090 coolign pad is widly used in poultry farm, greenhouse, industry woskshop cooling system.

2. Flute angle 45*45 is better than 30*30, have better cooling efficiency.

3.Thinckess: 200>150>100mm.

200mm can improve the cooling effiency to 90%, but pressure drop increase apparently,

need more fan air flow and power,out of the cost requirements.





7090 cooling pad is widly used in greenhouse, poultry farm and industry workshop.

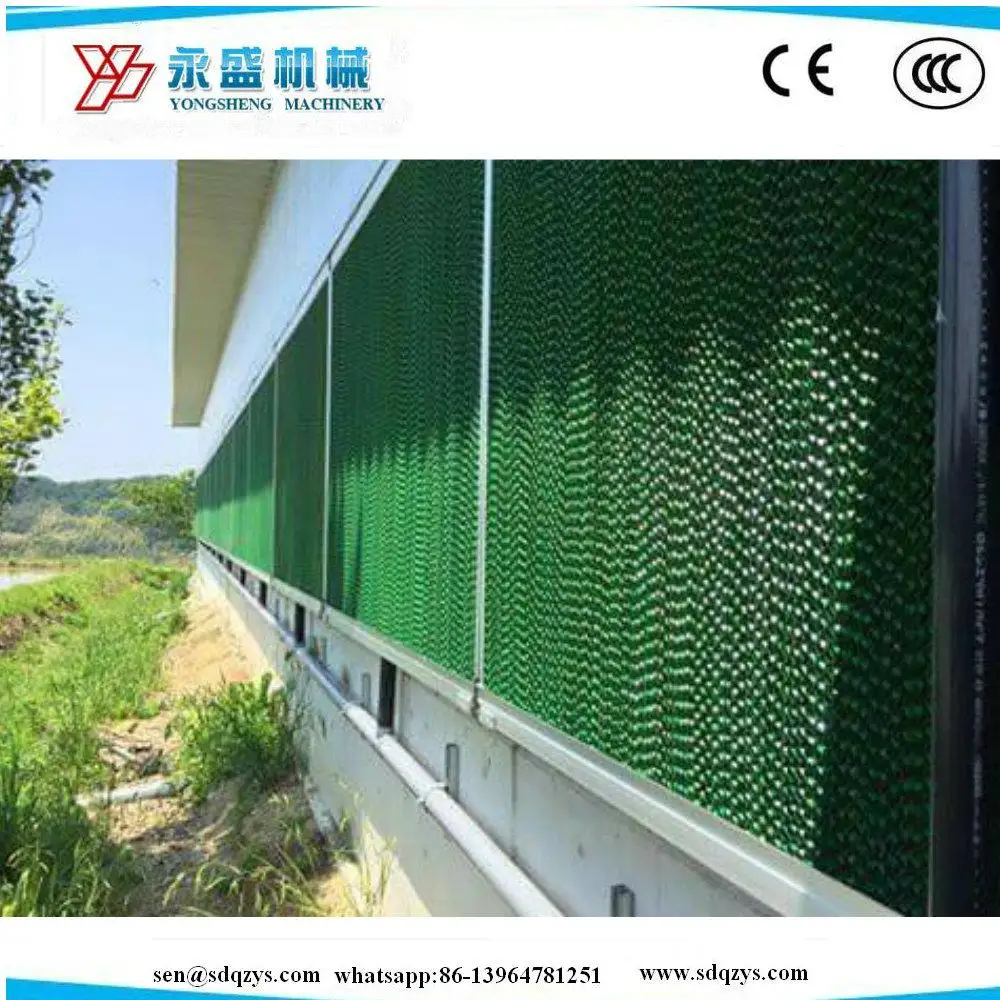

7090 Cooling Pad in Greenhouse Project.

FAQ

• When can I get the price?

Within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or contact me by email.

• How can I get a window opener sample to check your quality?

After price confirmation, you can inquire for samples to check our quality.

• Can you accept our own design, logo and pattern for window opener packing ?

Yes. We can produce the box with your design, logo and pattern.

• Are you manufacturing or Trading company?

We are greenhouse manufacturing,we can supply you all the products about greenhouse agriculture.
