600KGS precast concrete magnet box permanent magnet shuttering magnets and magnetic systems for prefabricated building industry

Product Overview

Description

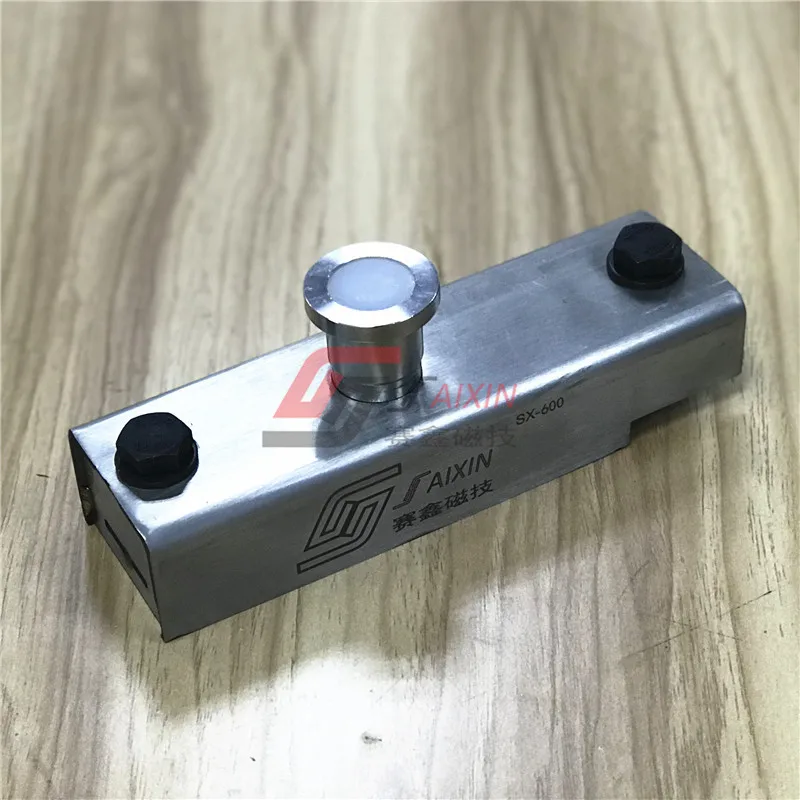

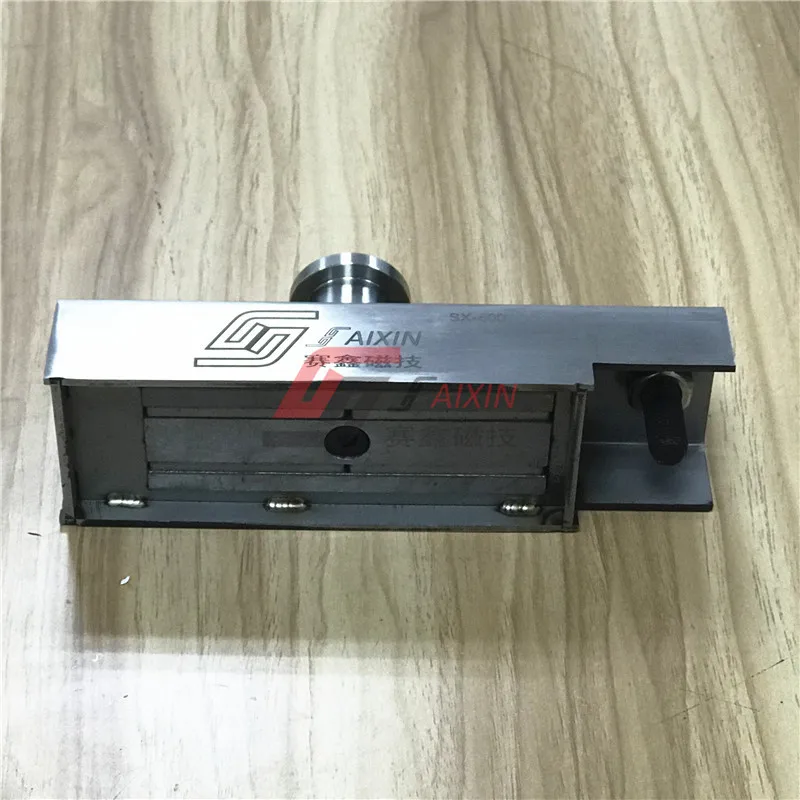

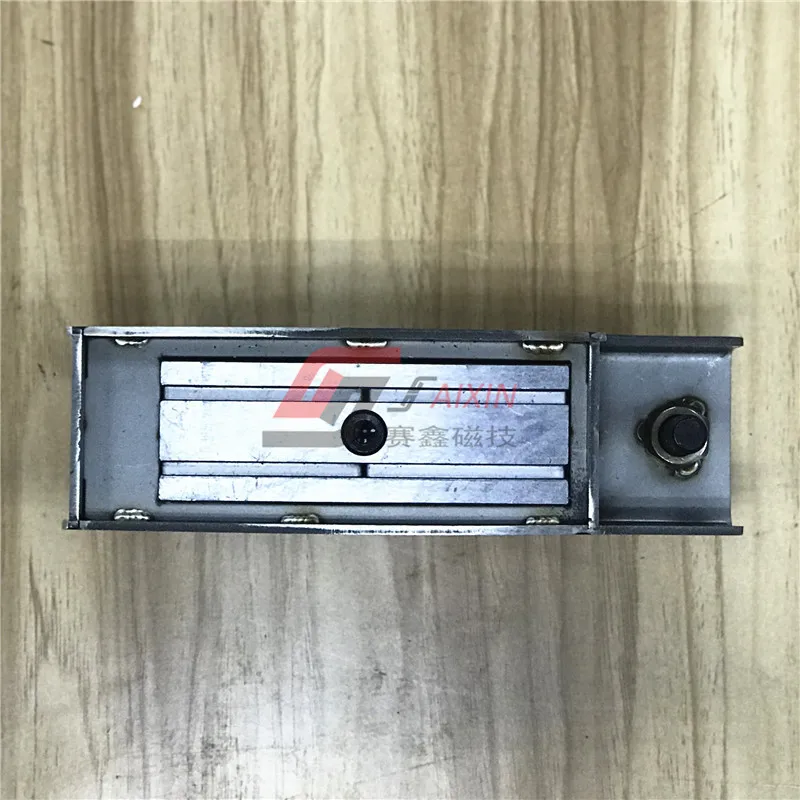

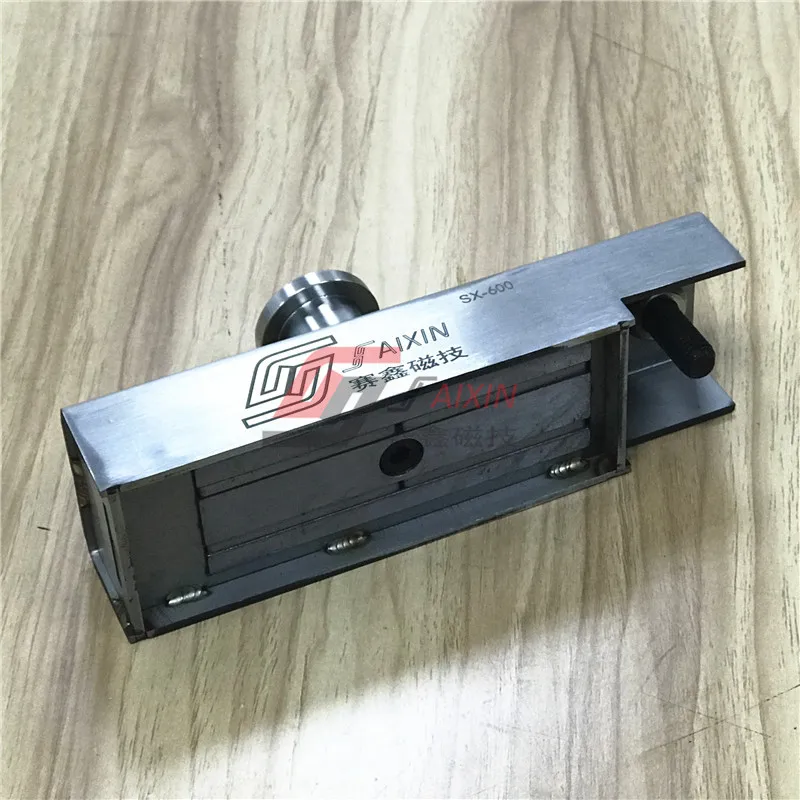

SX-600B SHUTTERING MAGNET



Vertical suction:  ≥600kgs

Size: 17 x 6 x 4 cm

Box material: stainless steel

Be suitable for fixing sandwich panel mold with rebar out of mold

suitable mold height recommended: 40-70mm



KEY BENEFITS OF SHUTTERING MAGNETS:

1. Reducing the complexity and time of the installation of formwork (up to 70%).

2. Universal use for mass production of concrete products, and piece products of all forms on the same steel table.

3. Eliminates the need for welding, shuttering magnets does not damage the steel table.

4. Makes it possible to produce radial products.

5. A small cost of a set of magnets. The average payback of about 3 months.

6. The main advantage of the shuttering magnets is that you do not need to have a lot of different forms for different products, you need to have a set of magnets, adapters for different height boards and steel table.

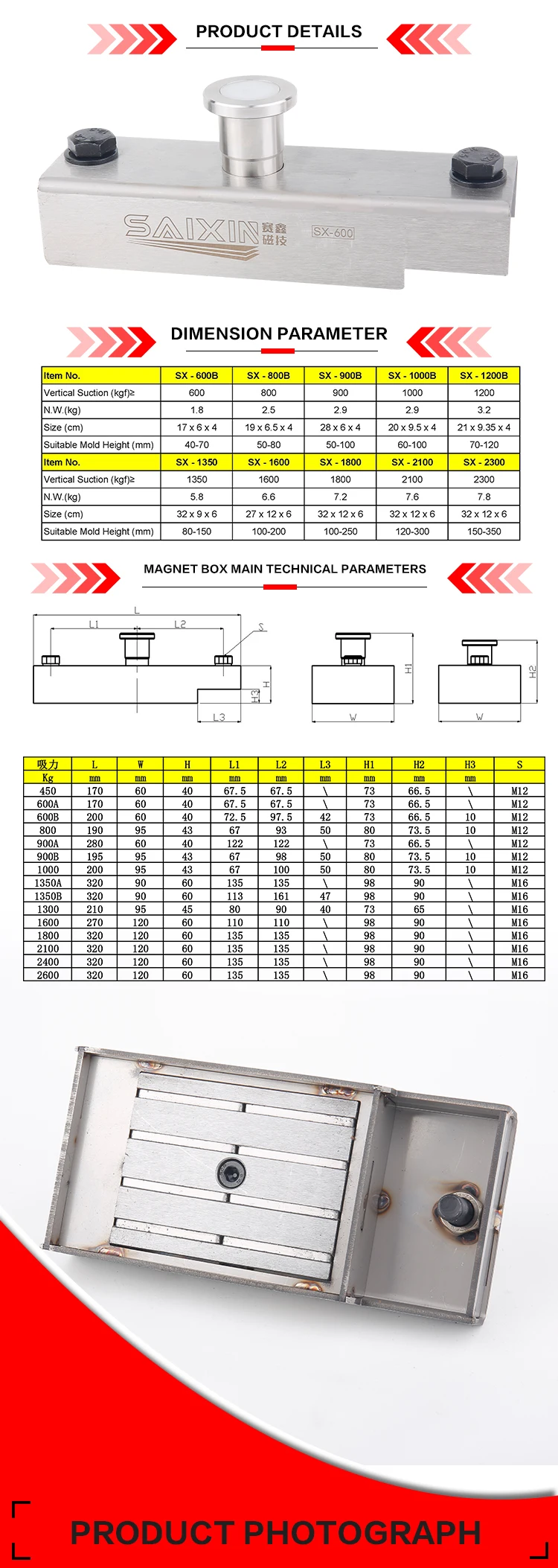

 SAIXIN®magnet box main technical parameters
