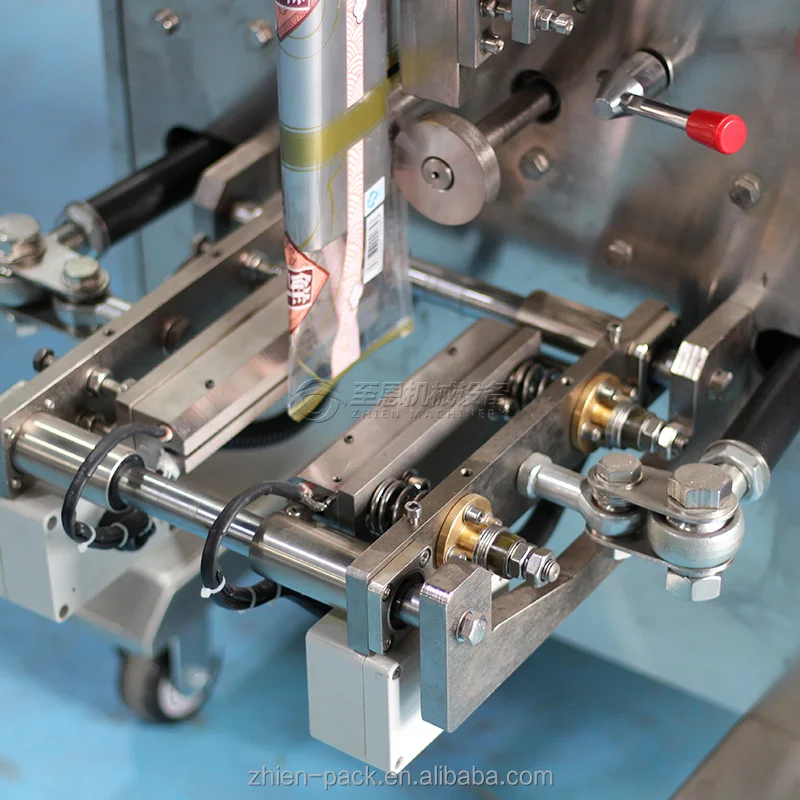

Automatic Sachet Vitamin C/Gelatin Powder Packing Machine

Product Overview

Description

Automatic Sachet Vitamin C/Gelatin Powder Packing Machine

Specification
Type	ZE-160	ZE-160L
Film Width	120-320MM	180-380MM
Bag Length	50-200MM	60-280MM
Bag Width	50-150MM	60-180MM
Range of Measurement	50-250ML	50-500ML
Film Roll Diameter	Max.320MM	Max.320MM
Packaging Rate	35-70Bag/Min	35-70Bag/Min
Power	220V 50/60HZ  2.4KW	220V 50/60HZ 2.4KW
Machine Size	980*774*1900mm	1100*800*2150mm
Machine Quality	300KG	450KG

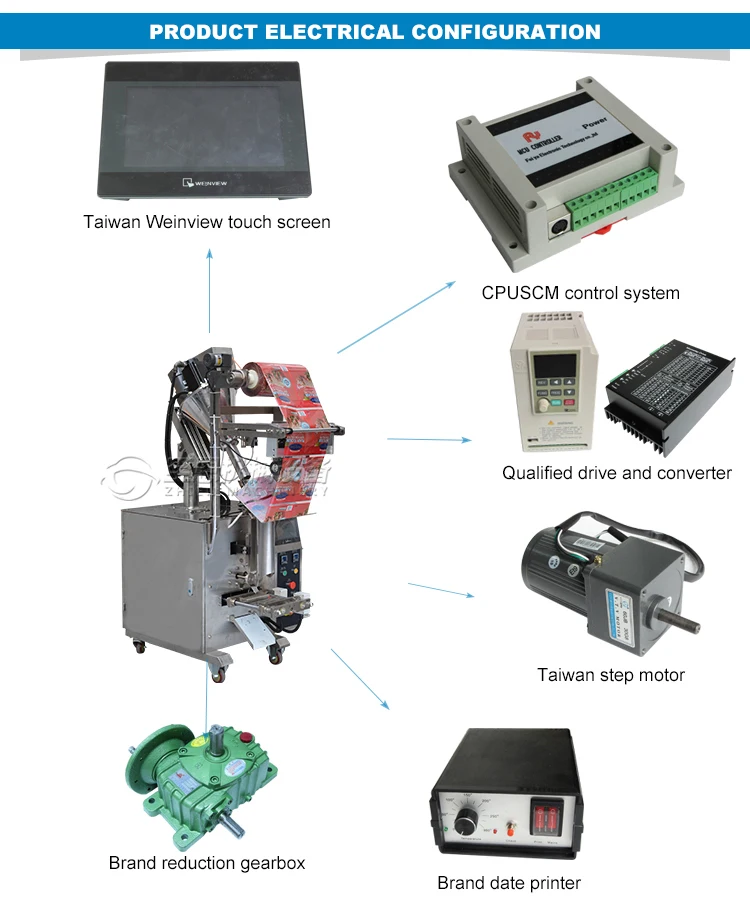

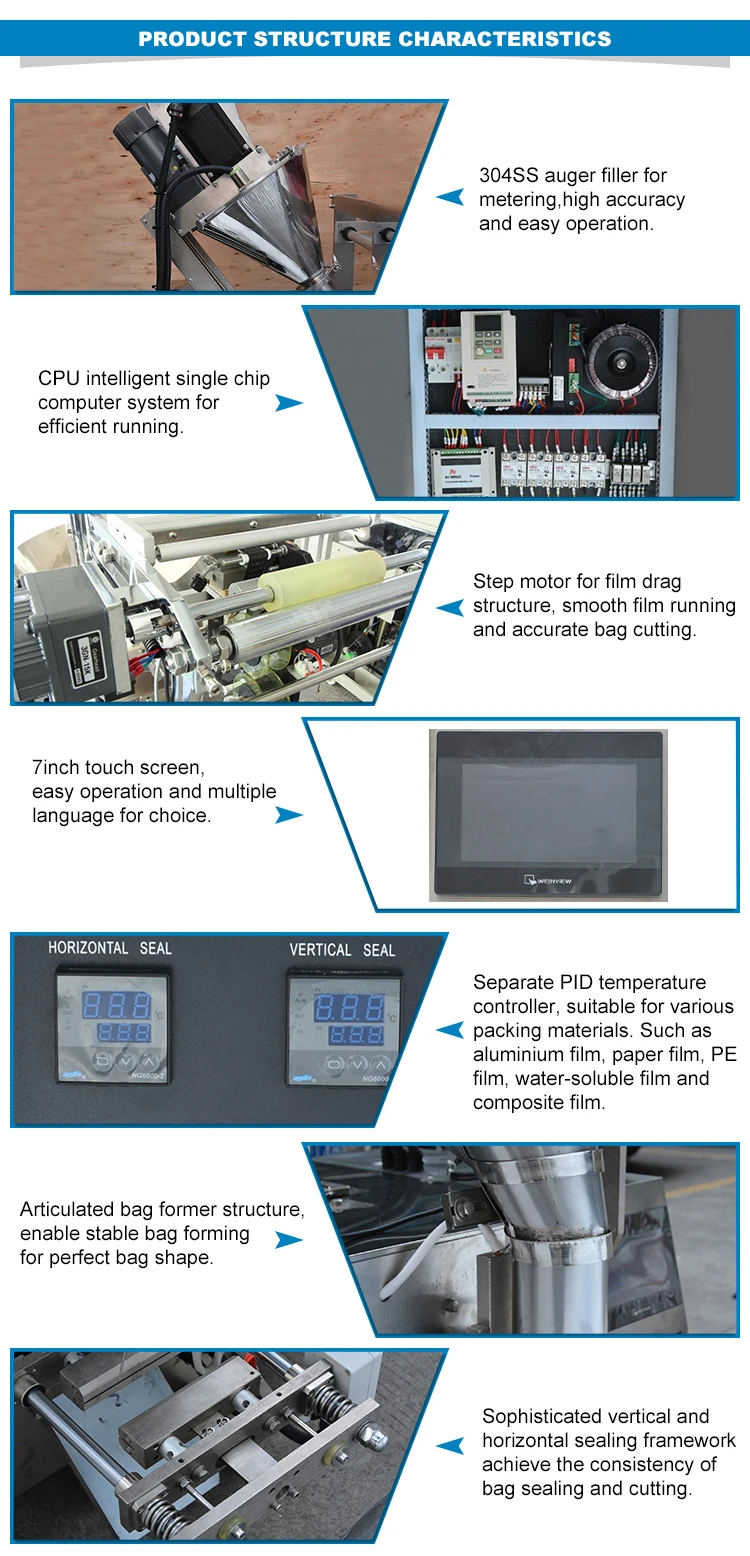

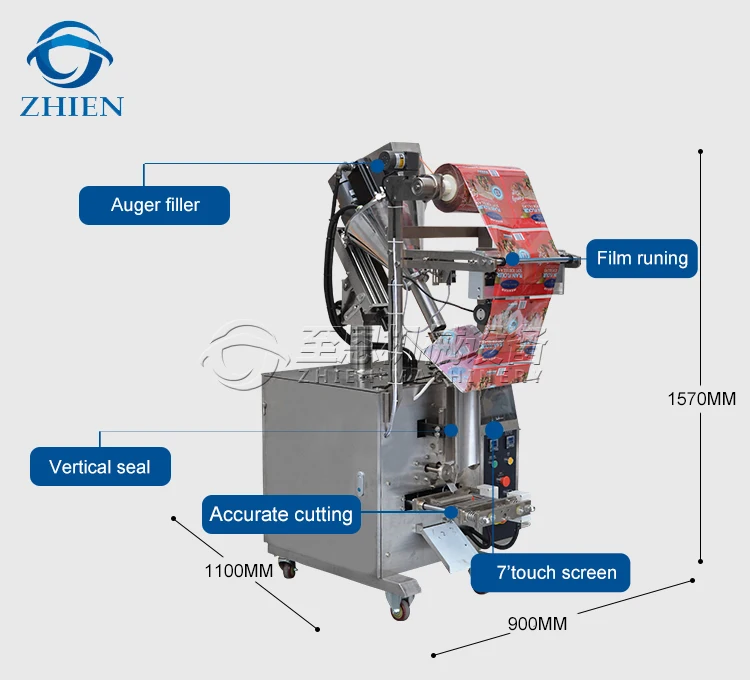

Main features:

A. 304SS auger filler for metering, high accuracy and easy operation.

B. CPU intelligent single chip computer system for efficient running.

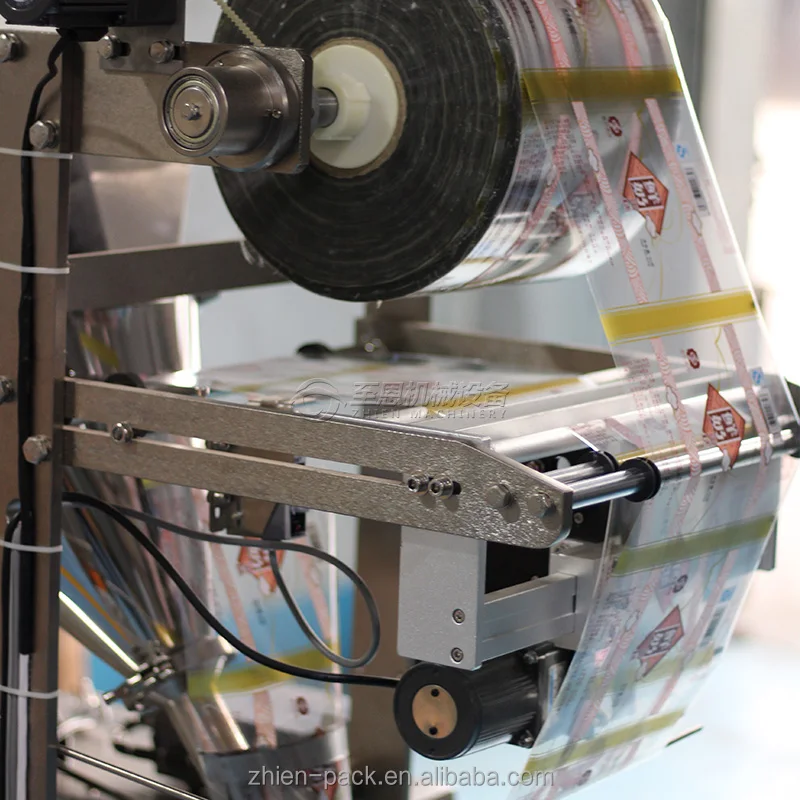

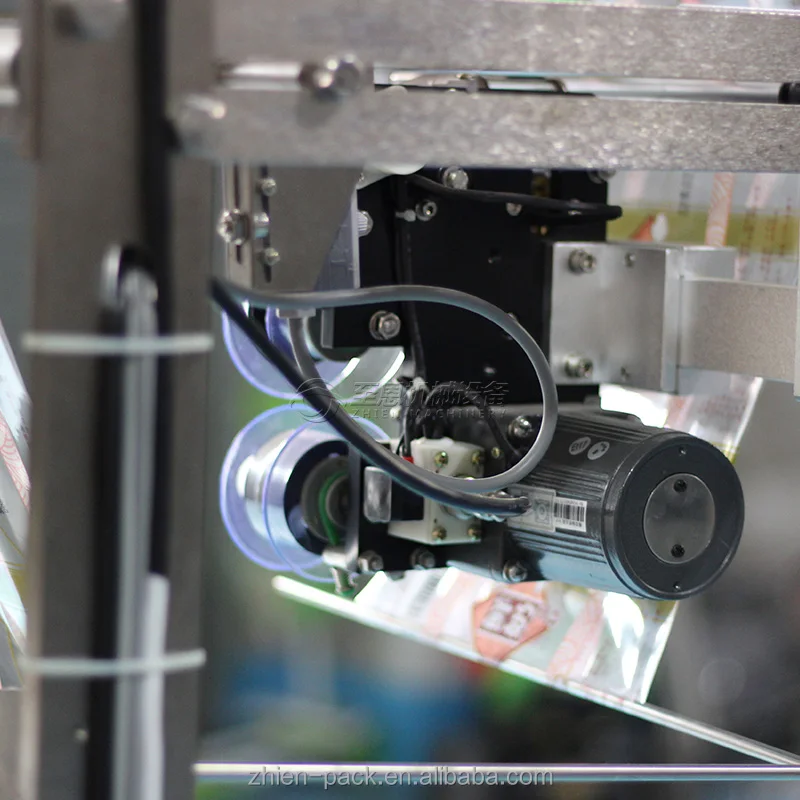

C. Step motor for film drag structure, smooth film running and accurate bag cutting.

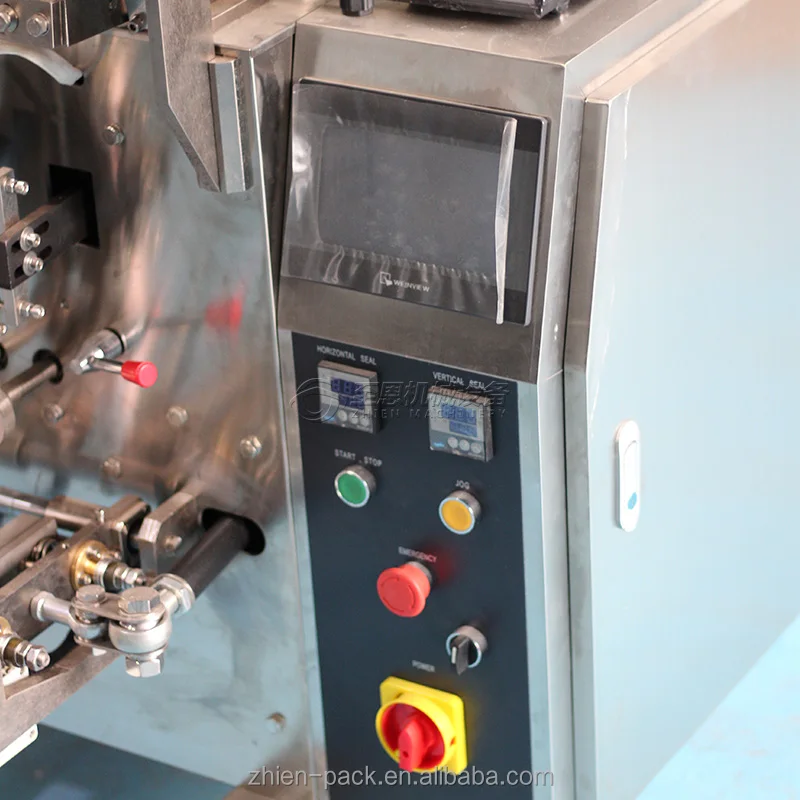

D. 7inch touch screen, easy operation and multiple language for choice.

E. Separate PID temperature controller, suitable for various packing materials. Such as aluminium film, paper film, PE film, water-soluble film and composite film.

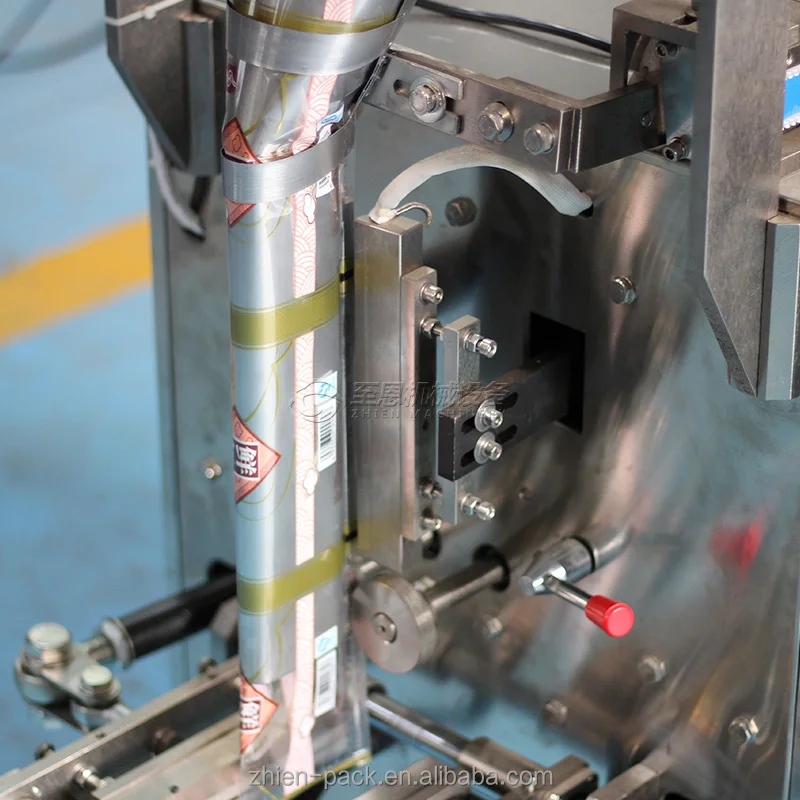

F. Articulated bag former structure, enable stable bag forming for perfect bag shape.

G.Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing and cutting.

H.Machine automatically finish the process of filling, metering, bag forming, air exhaust, sealing, packing and date printing.

I.  Machine is simple operation, holding small space and easy moving.
