3 Layer Corrugated Cardboard Production Line
- Category: >>>
- Supplier: Dongguang Hairuibao Carton Machinery Co. Ltd.
Share on (60728561585):
Product Overview
Description
3 Layer Corrugated Cardboard Production Line
Configuration table
| specification | Equipment name | UNIT | QTY |

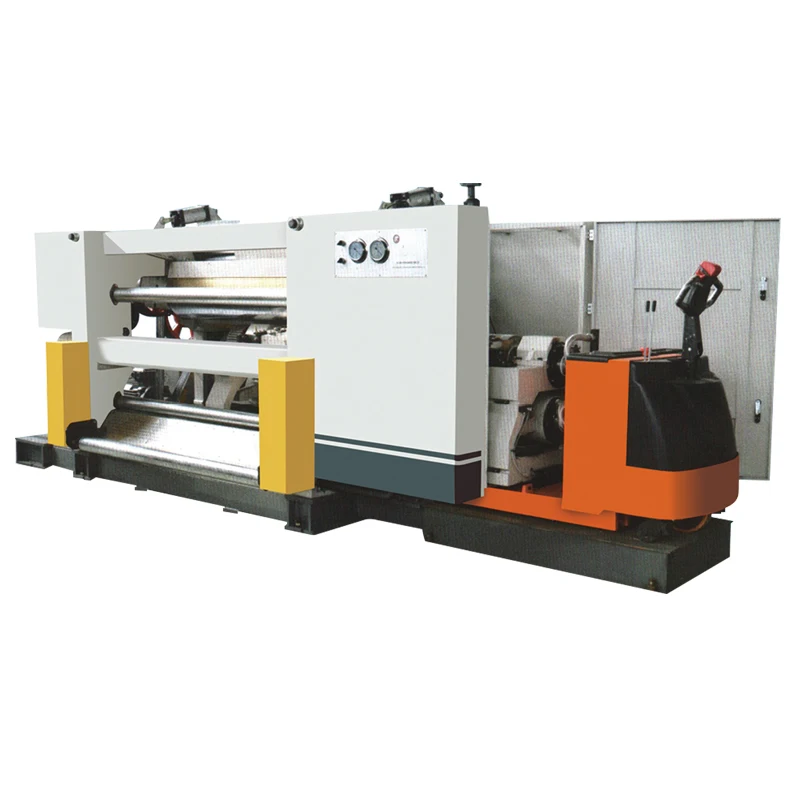

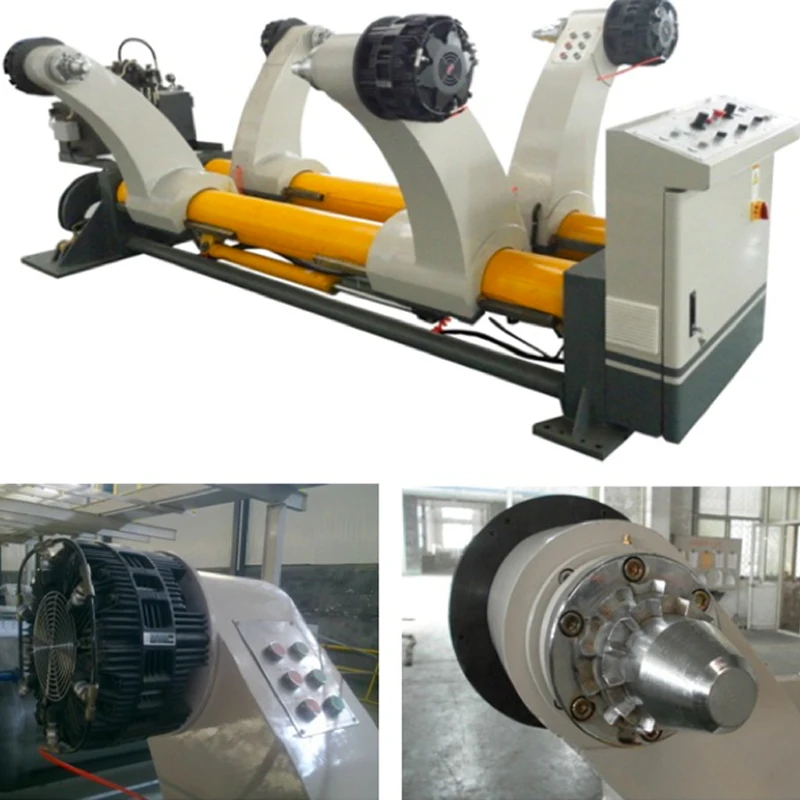

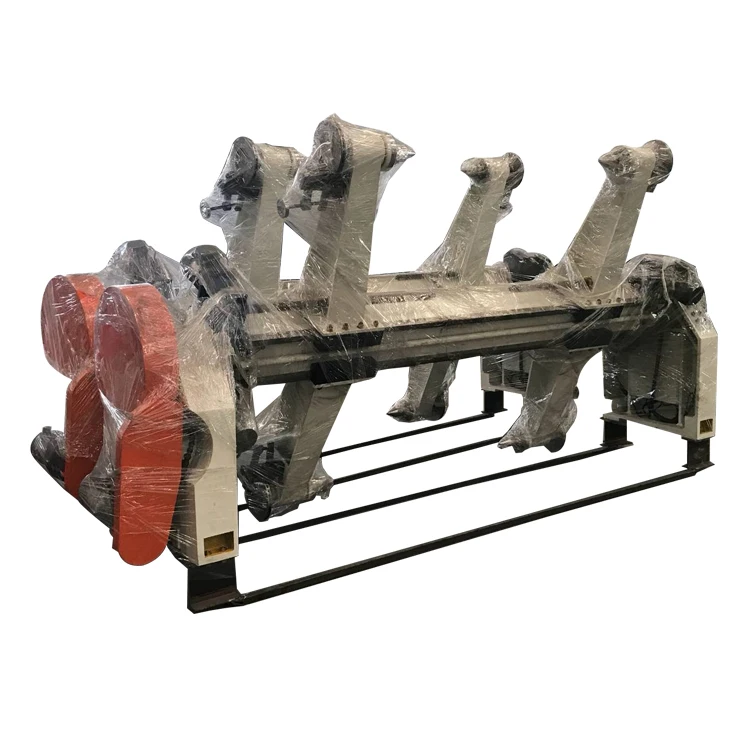

| YV5B | Hydraulic shaftless mill roll stand | a | 3 |
| / | Paper trolley | a | 6 |
| RG-1-900 | Top paper preheat cylinder | a | 1 |
| RG-1-900 | Top paper preheat cylinder | a | 1 |

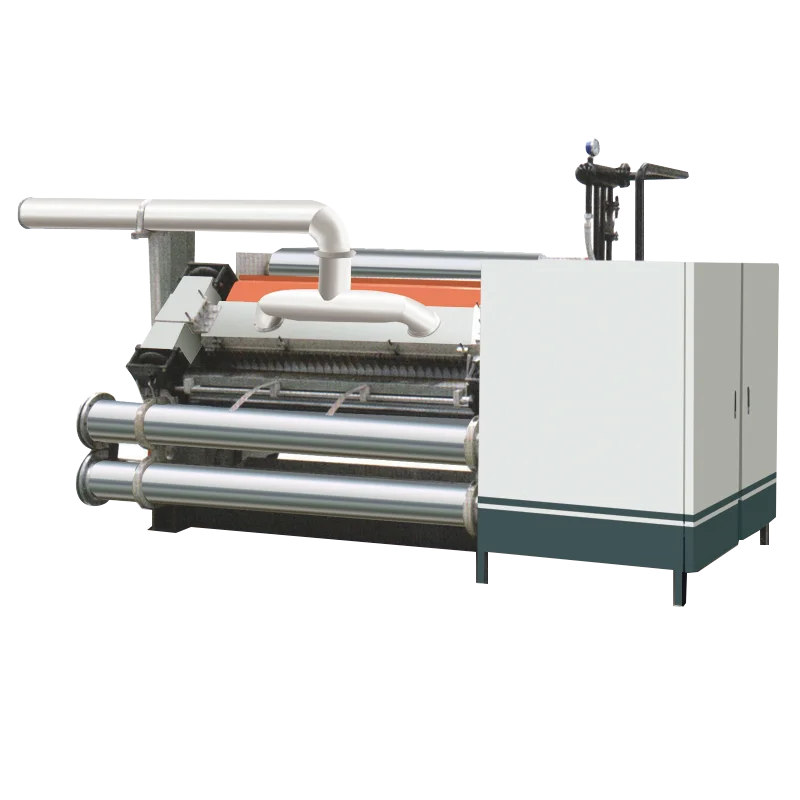

| SF-320C | Fingerless type single facer | a | 1 |
| RG-2-900 | Triple preheater | a | 1 |
| GM-20 | glue machine | a | 1 |
| ZDF | Conveyor bridge | set | 1 |
| SM-F | Double facer | set | 1 |

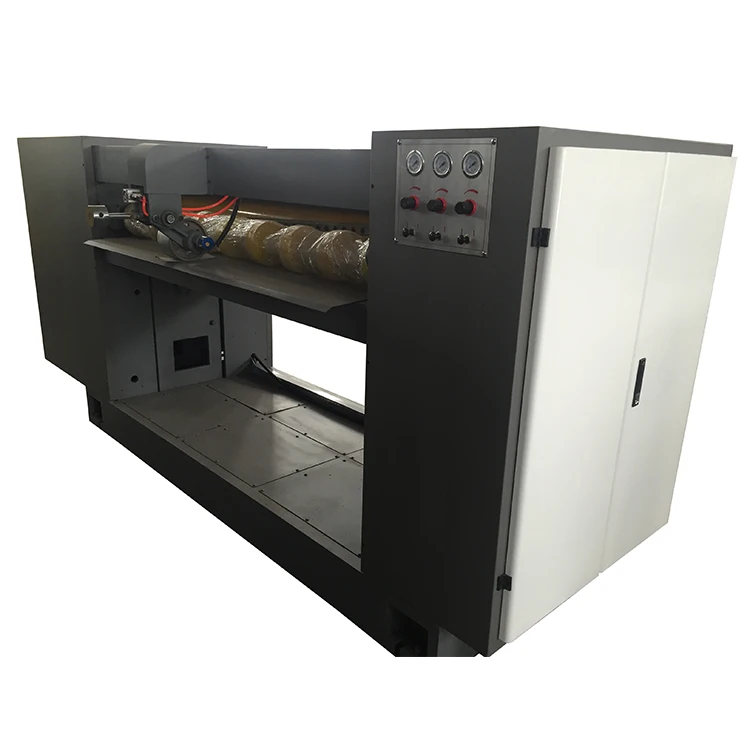

| NCBD | NCBD thin blade slitter scorer | a | 1 |
| NC-150 | NC cutter helical knives | a | 1 |

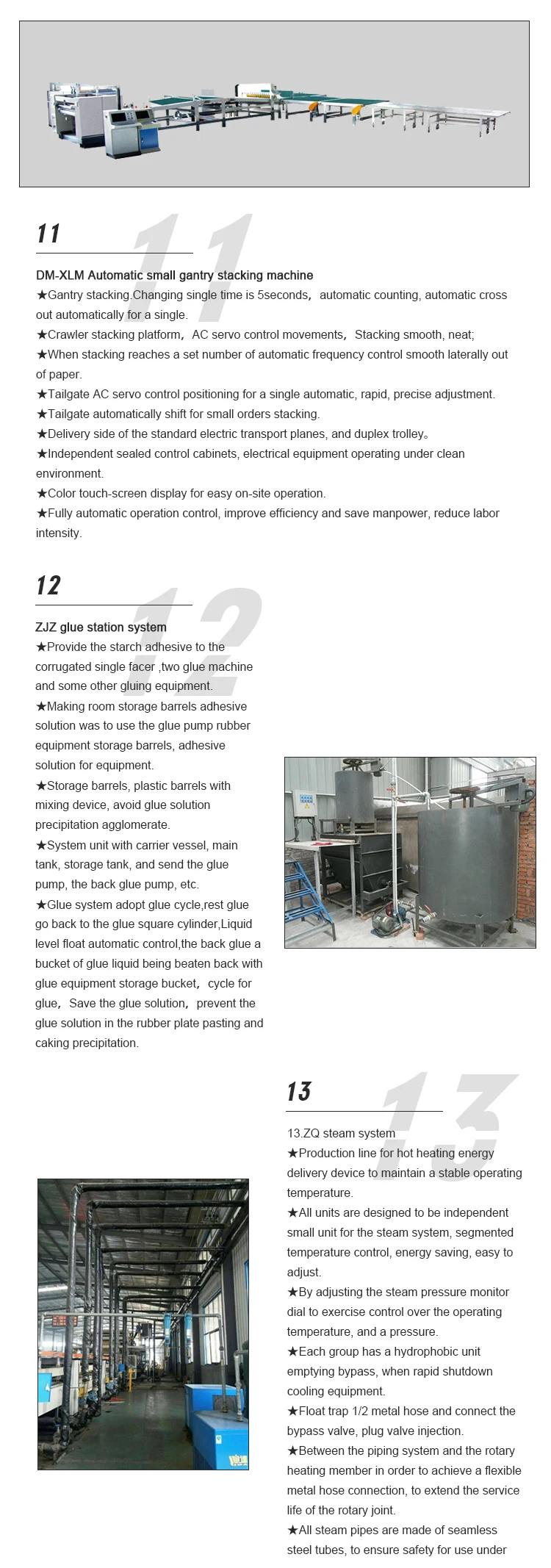

| DM-XLM | Automatic small gantry stacking machine | a | 1 |
| ZJZ | Glue station system | set | 1 |
| QU | Gas source system | a | 1 |
| ZQ | Steam system | set | 1 |
| DQ | Electrical control cabinet system | set | 1 |

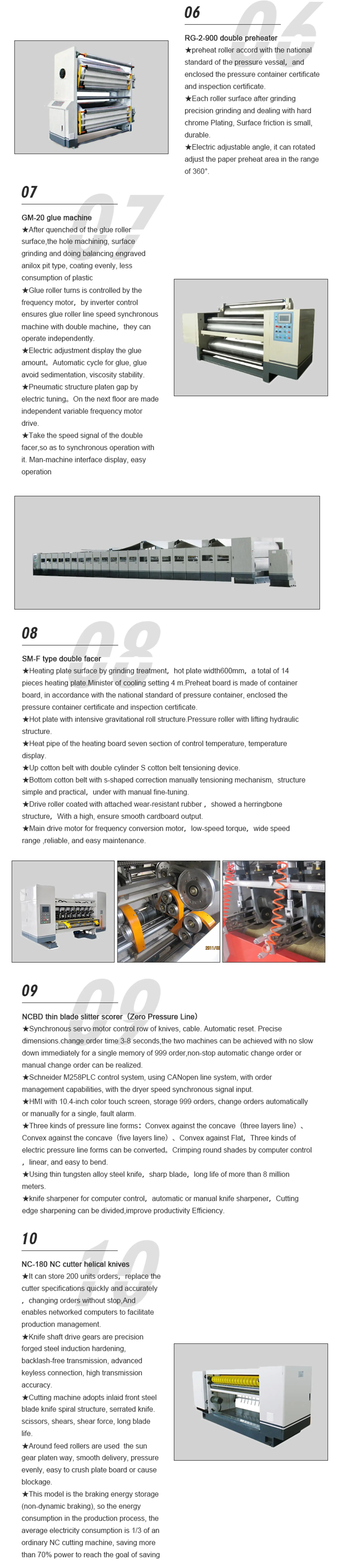

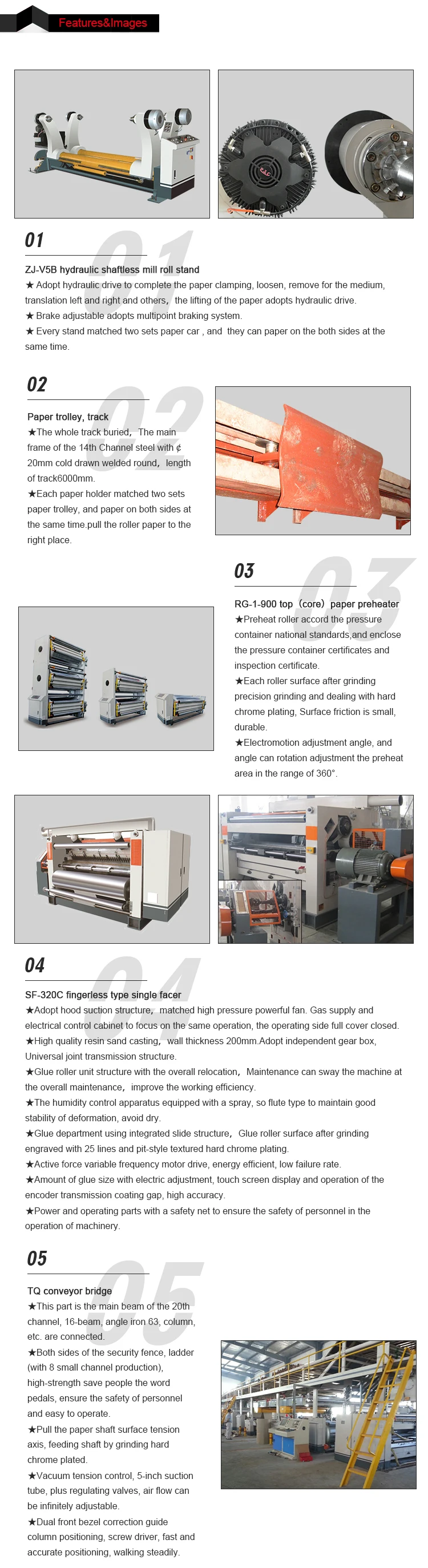

Features&Images
Technical Parameters
Main technical parameters and requirements in production line

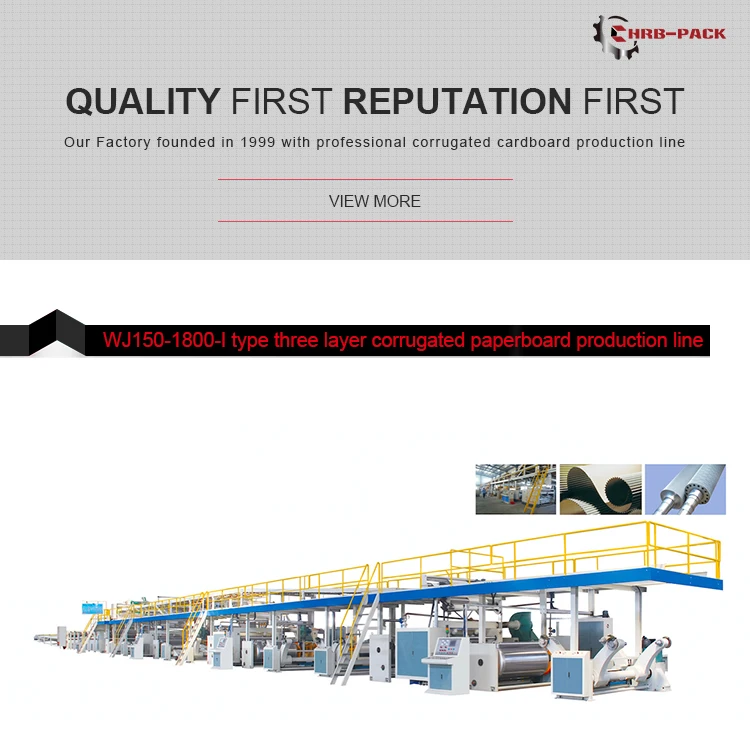

1.Type:WJ150-1800-I type three layer corrugated paperboard production line:
2.The maximum production width of the corrugated cardboard:1800mm
3.Design speed:150m/min
4.Economic speed:80-120m/min
5.Note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)
6.Paper rating of not less than B grade
7.Paper moisture content of about:11%±2%
8.Top paper:100—250g/m2
9.Core paper:100--250g/m2
10.Corrugated paper:100—150g/m2
11.Flute-type combination:A ,C, B, E(as customers’ requirement)
12.Steam the necessary requirements:
Amount of steam 1500—2000Kg/Hr
The highest pressure:1.2Mpa
Common pressure:0.8-1.1Mpa
13. Power supply:380V 50Hz
14. Three-phase four-wire system
15.Equipment installed total power:about150KW
16.The actual power consumption:about 80KW(full speed)

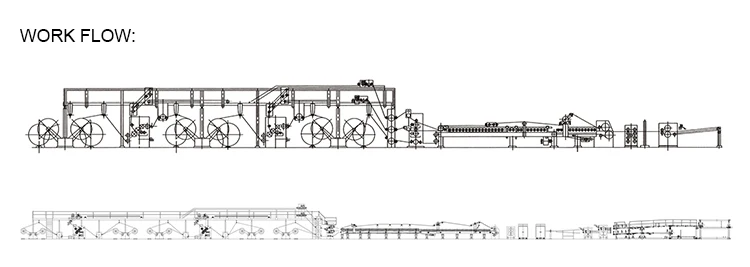

17.Equipment covers:about52m×10m×5m(Specific length of foundation Figure prevail)
18.Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position
19.Equipment applicability,Available in A, B, C class domestic or imported paper Paper

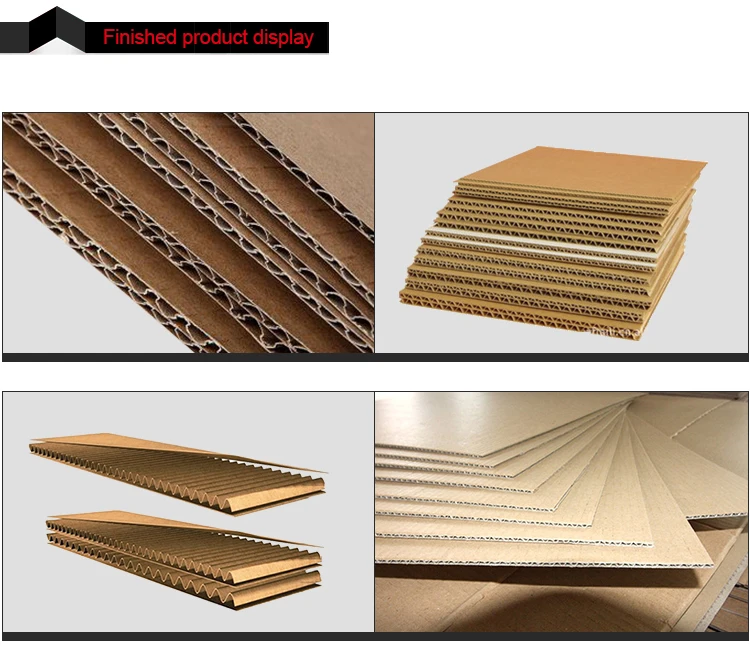

Finished Products
