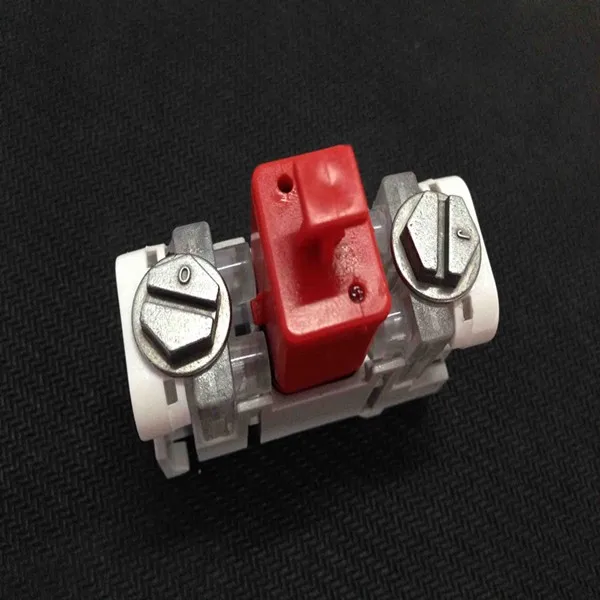

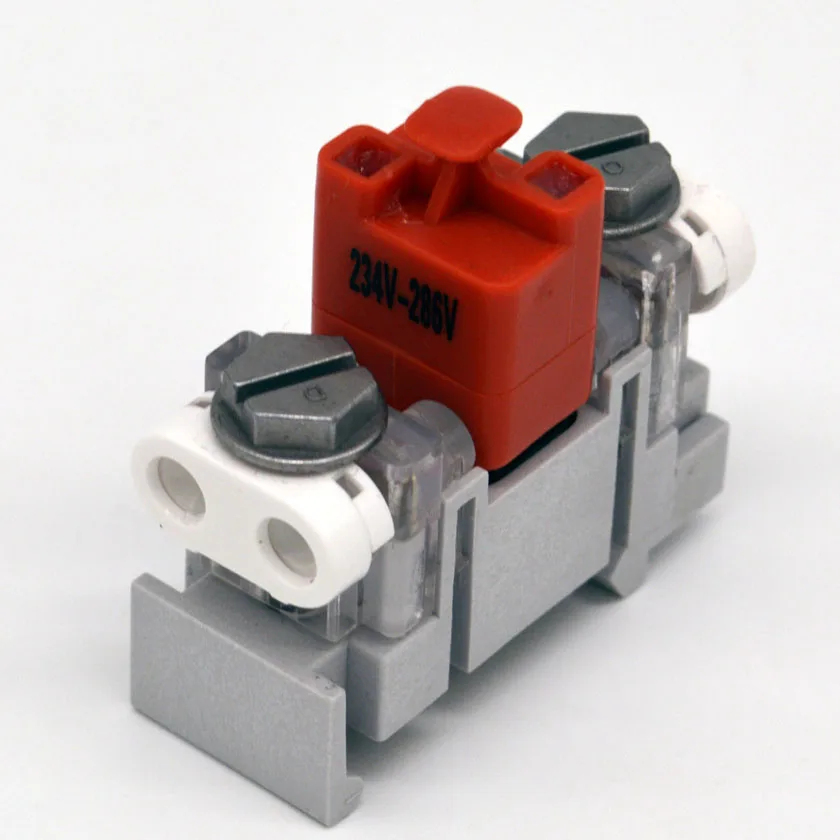

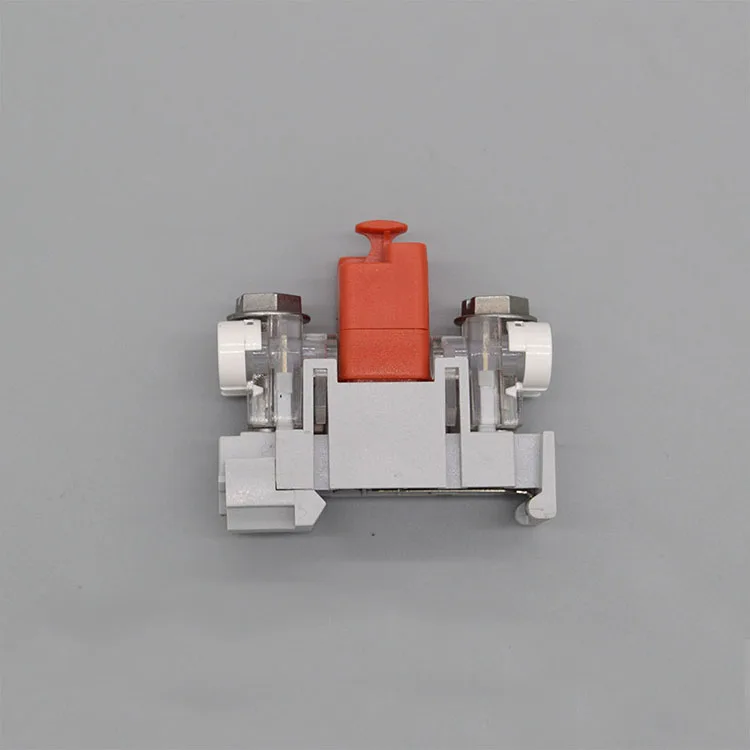

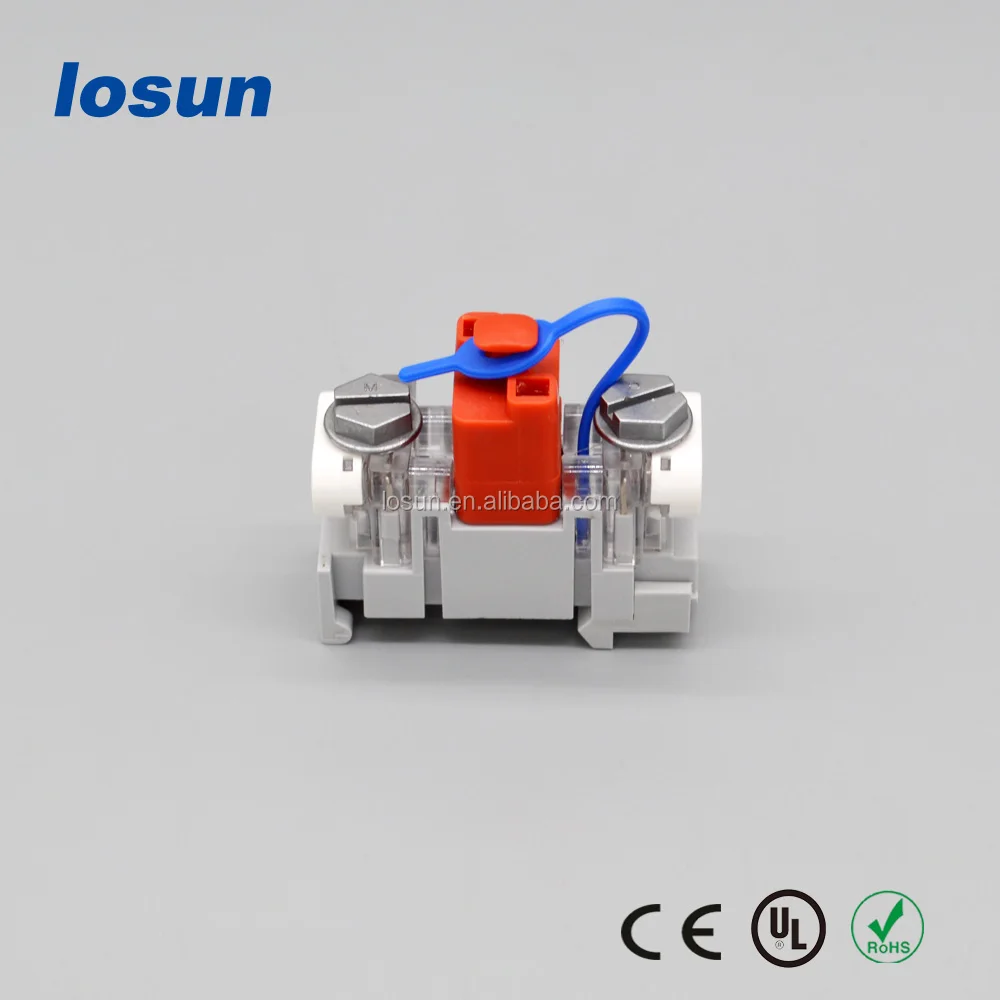

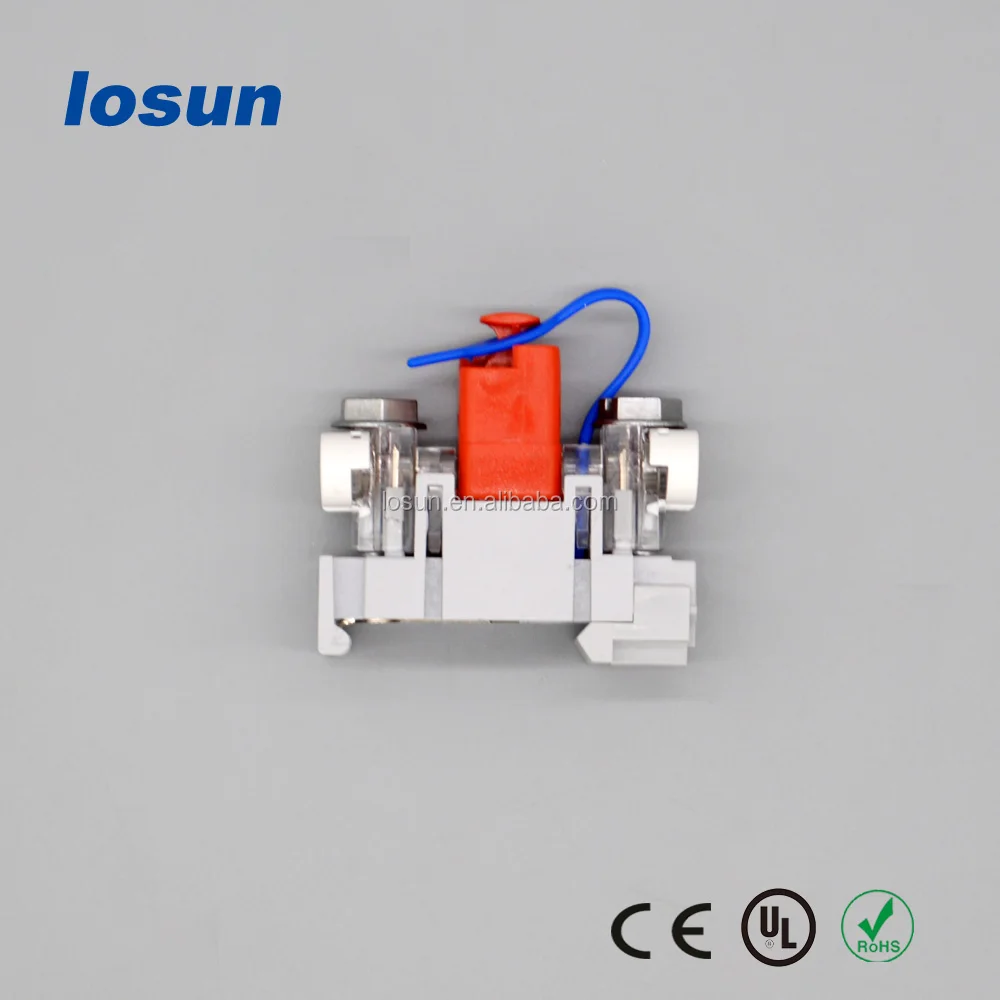

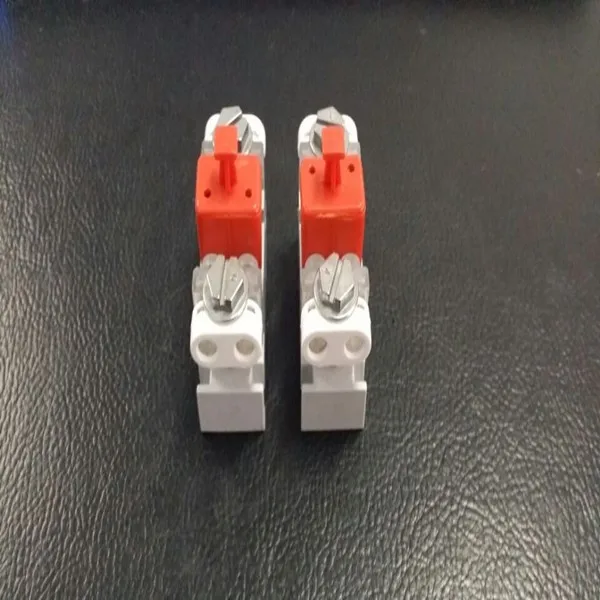

1 pair stb module dropwire module with protection

Product Overview

Description



Product Discription

Detailed Product Description

1 pair stb module dropwire module with protection



Contact characteristics
Drop wire connector
Gauge range	0.4 to 1.05 mm Ø
Insulation diameter	5 mm max. Ø
Pair connector
Gauge range	0.4 to 1.05 mm Ø
Insulation diameter	3 mm max. Ø



Current conducting capacity 20 A, 10 A per conductor for 10 minutes at least without causing deformation of the module       (If > 20 A up to 30 A is required,this is possible using a different GDT)



Insulation resistance
Dry atmosphere	> 1012Ω
Damp atmosphere (ASTM D618)	> 1012Ω
Salt fog (ASTM B117)	> 1010Ω
Immersion in water (15 days in 3 % NaCl solution)	> 1010Ω
Contact resistance
Rmaterial + Rbridge contacts   Rwire contacts	< 10 mΩ
Increase in contact resistance
After climatic tests		< 2.5 mΩ
After 50 reinsertions		< 2.5 mΩ
Dielectric strength		> 3.000 Vdc for 1 minute
Pair/drop wire housing screw		Special passivated direct +lacquered Zamac alloy
Housing body		ABS Flame retardant
Stb module		Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Insertion contacts		Tinned phosphor bronze
Ground contacts		Cu - Zn - Ni - Ag alloy
Continuity contacts		Tinned hard brass
Lower sealant		Polymeric resin
Upper cable sealant		Silicone fluid
Pair/drop wire bearing cover		Polycarbonate
Plug-in module body		Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Plug-in module sealant		Gel
“O”-ring		EPDM
Spring		Stainless steel
Cable/drop wire membrane		Thermoplastic rubber



Packing & Delivery





Delivery:



1.Most samples: 2~3 days.

2.wholesales orders:15~20 days.

3.OEM orders:30~40 days after confirming the samples and receiving payments.

FAQ

Can I have my own logo on the product ?

Yes,you can have your logo on the products with a required order quantity.Please just send the us the information of your logo.

Do you have CE/ROHS/UL certificates of your products?

Yes ,the goods with these certificates approved to be of great quality.

What makes your company different?

1)LOSUN’s service:for a quick ,customer’s normal quote sent to us will be replied in 24hours.

2)LOSUN’s factory :we have our own factory with effective production department rather than just a commercial company .So ,we will carefully deal with every problem through all the process .

Related Products



If you want to see other products which are also hot series ,please click the pictures below :



Company & Certificates





Ningbo Losun Electronic Science &Technology Co.,LTD was founded in the year of 2007.
Since the year of establishment, it has been focusing on manufacturing and developing products applied in the field of telecommunication system.



Our major products cover majority of telecommunication accessories parts, including fiber optic related products (fiber pigtails, fiber patch cords, fiber distribution box etc.) and copper related products (rj11 telephone connecting box, stb modules, stub modules, distribution box, protector unit etc).
Our end customers are all over the world,  including Telefonica, OI, CLARO, ICE, STC, PTCL and INNOVE etc.
