CCTV channel 4K RS 232 8 port HDMI Switch RJ45 video switcher with IR
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (60728582448):
Product Overview
Description
Product Description
8x1 HDMI Switch
# HSW0801A10
The 8 ports allows up to 8 Ultra HD sources to be routed to one Ultra HD display. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.Features
⭐With EDID emulators in each input port, keep PCs always having correct display information
⭐Support hot plug, connect or disconnect devices to the HDMI switch at any time without turning off devices
⭐Support auto switching to monitor computers in a specified time interval

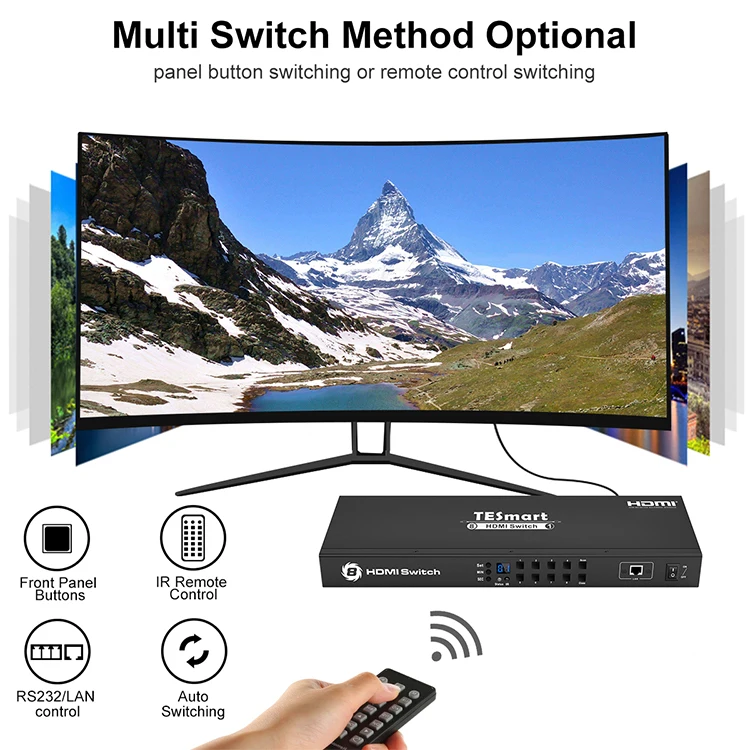

⭐Support front panel buttons, IR signals, RS232 serial commands or IP commands to control HDMI switch
⭐Support resolution up to 3840*2160@30Hz
⭐Auto input detect and switch

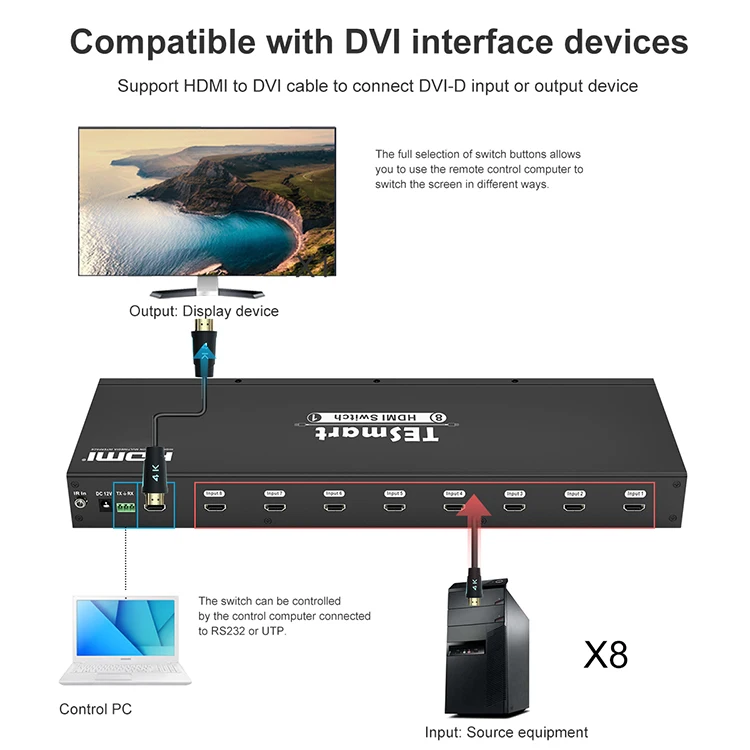

⭐Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list
1 * 8x1 HDMI Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector(For RS232)

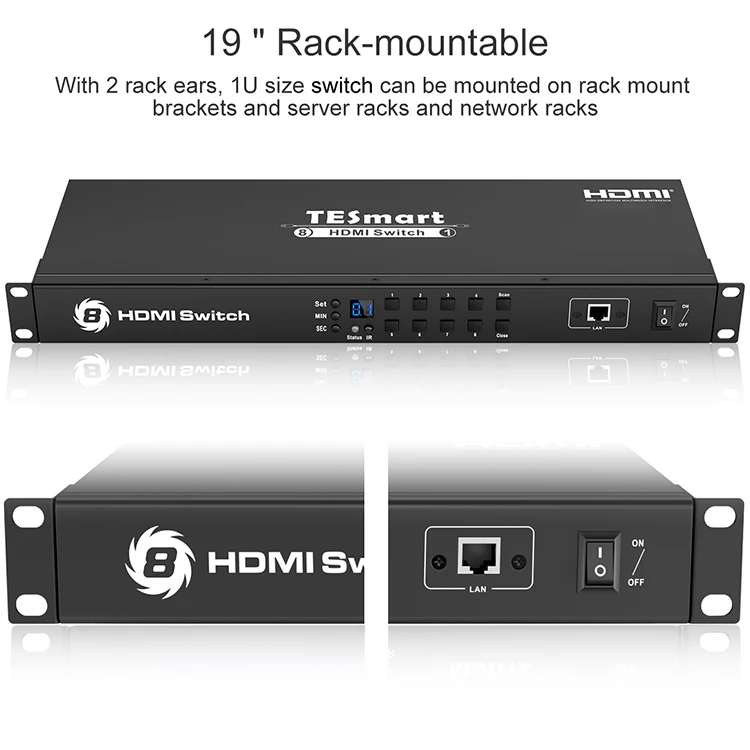

2 * Rack-ears
1 * Quick-Start Guide
⭐With EDID emulators in each input port, keep PCs always having correct display information
⭐Support hot plug, connect or disconnect devices to the HDMI switch at any time without turning off devices
⭐Support auto switching to monitor computers in a specified time interval
⭐Support front panel buttons, IR signals, RS232 serial commands or IP commands to control HDMI switch
⭐Support resolution up to 3840*2160@30Hz
⭐Auto input detect and switch
⭐Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list
1 * 8x1 HDMI Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector(For RS232)
2 * Rack-ears
1 * Quick-Start Guide
Specification
HSW0801A10 | 8x1 HDMI Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | No | |||
IR remote control | Yes | |||
Console commands | RS232 / IP | |||
Technical: | ||||
Max. Resolution | 3840x2160@30Hz | |||
Auto to get EDID | Yes | |||
Data rate | 10.2 Gbps | |||
Auto scan interval | 5~3600 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Console ports | RS232 | 1 * 3 Pins jack | ||
LAN (TCP/IP) | 1 * RJ45 | |||
IR extension input | 1 * AUX | |||
Input | 8 * HDMI Type A | |||
Output | 1 * HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Metal | |||
Product | Dimension | 440 (L) x 150 (W) x 44.5 (H) mm | ||
Weight | 1668g | |||
Item | Dimension | 488 (L) x 123 (W) x 186 (H) mm | ||
Weight | 2188g | |||
Carton | Dimension | 505 (L) x 280 (W) x 395 (H) mm | ||
Quantity | 4pcs | |||
Total Weight | 9.502kg | |||
