OEM ODM High Power LED Module LM301B LM281B SMD 3030 2835 / Led Circuit Board of PCB Kit mixed IR UV LEDs for indoor

Product Overview

Description

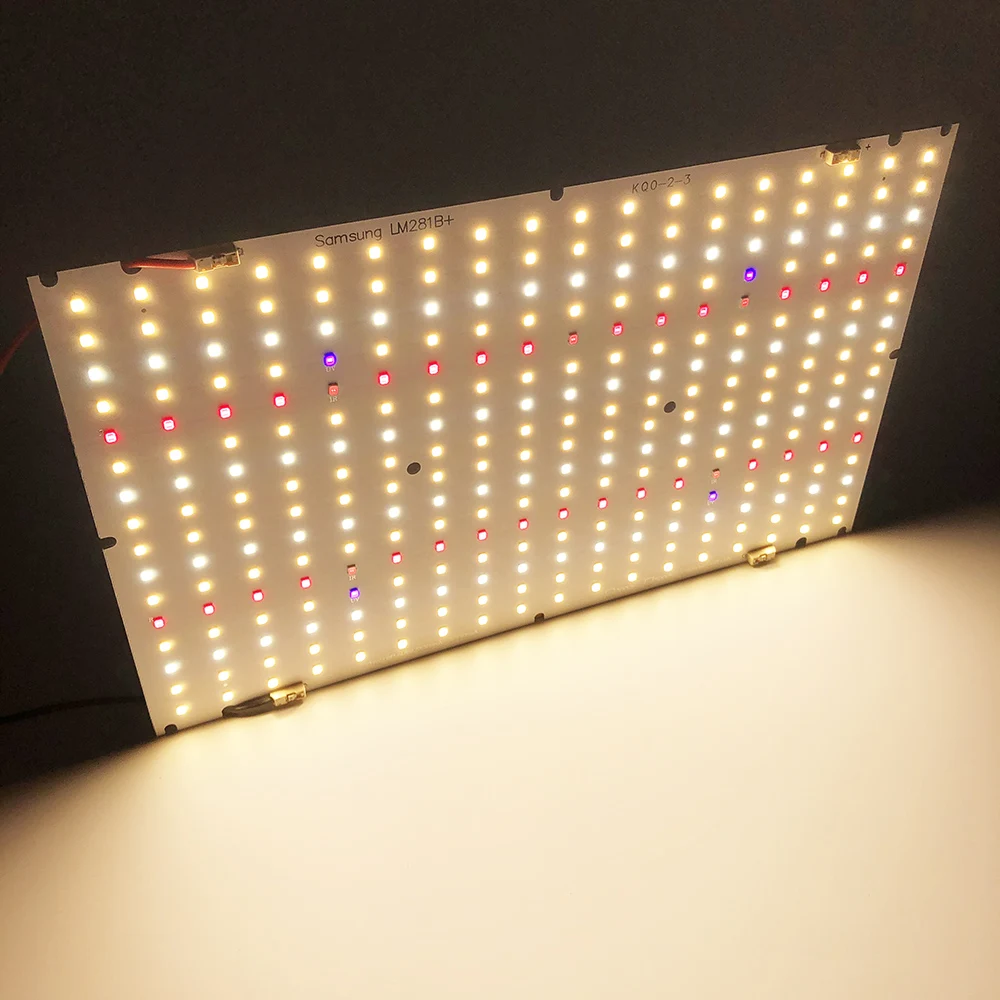

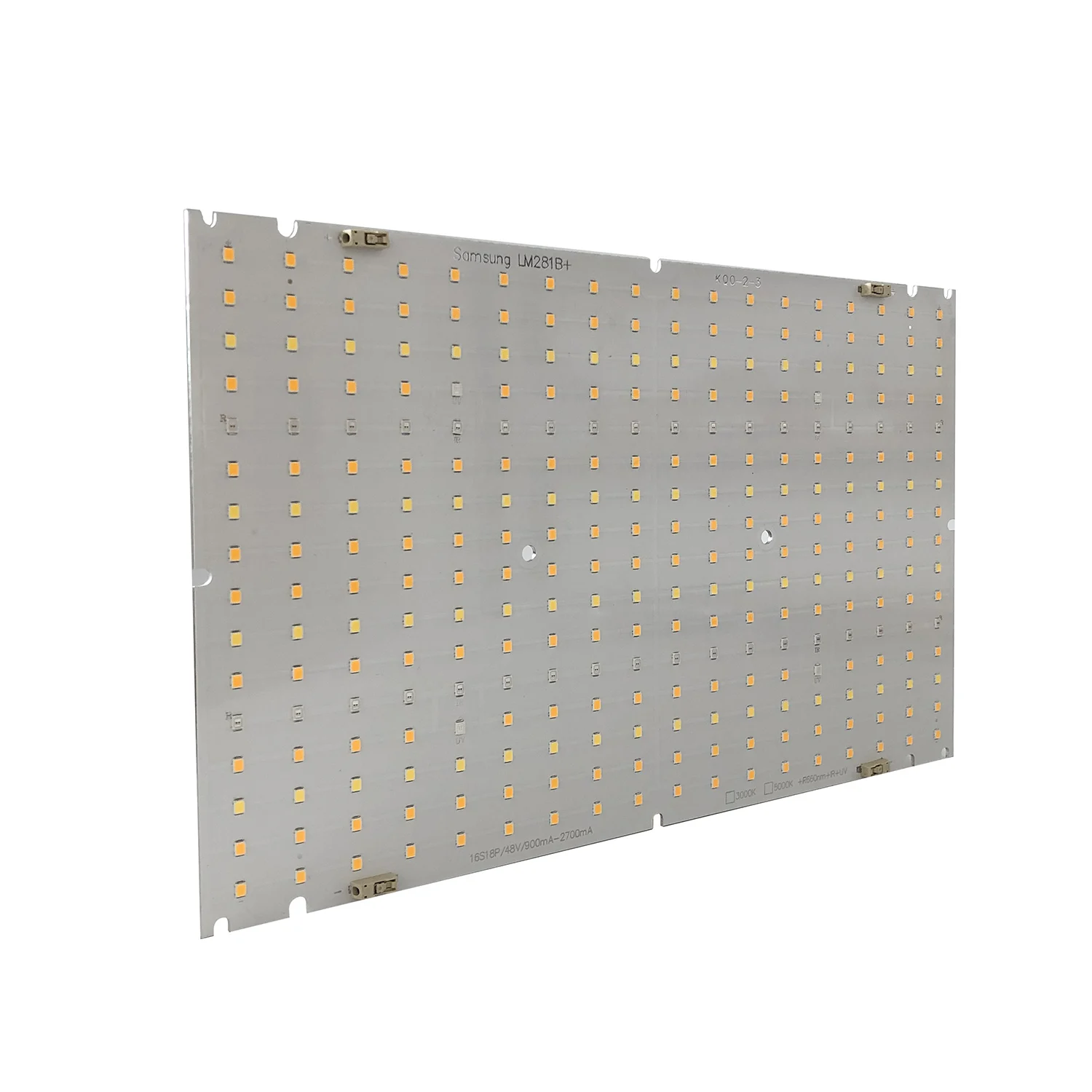

The New Quantum board with Samsung LM281B+ online mixed Red + IR + UV leds

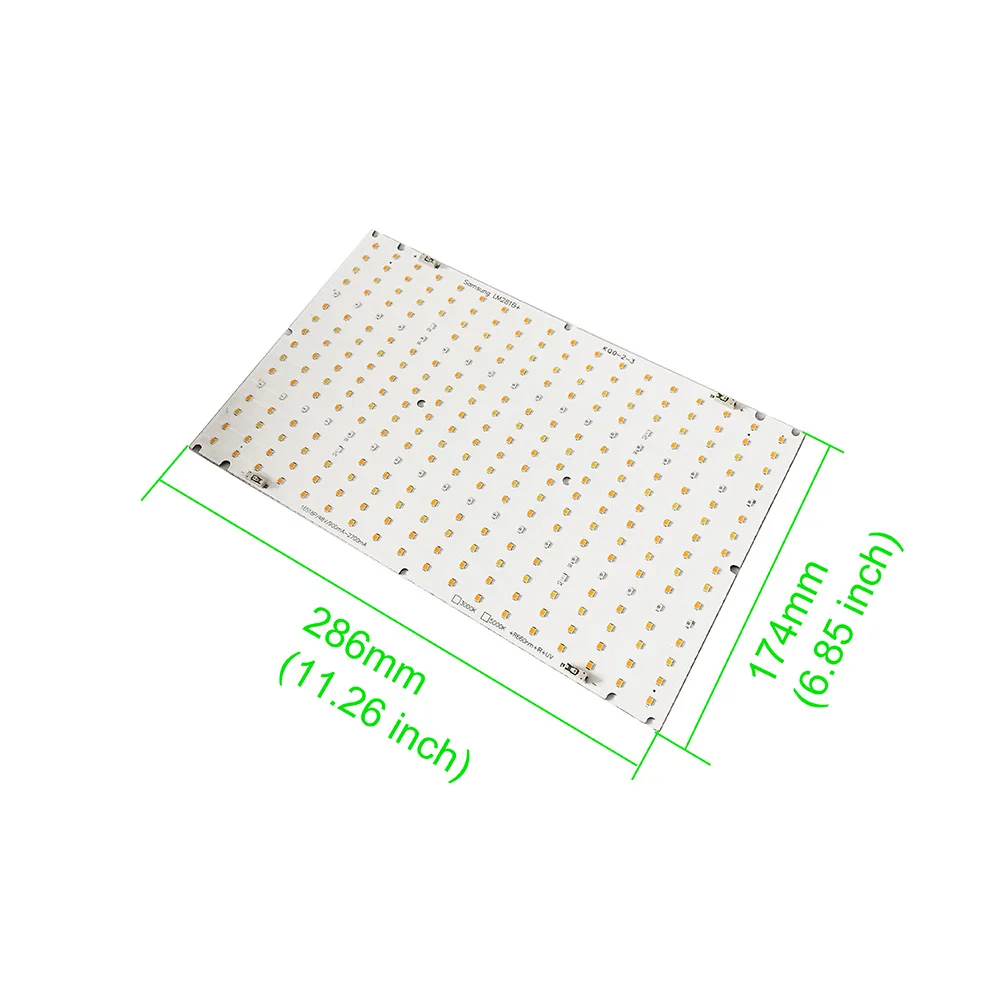

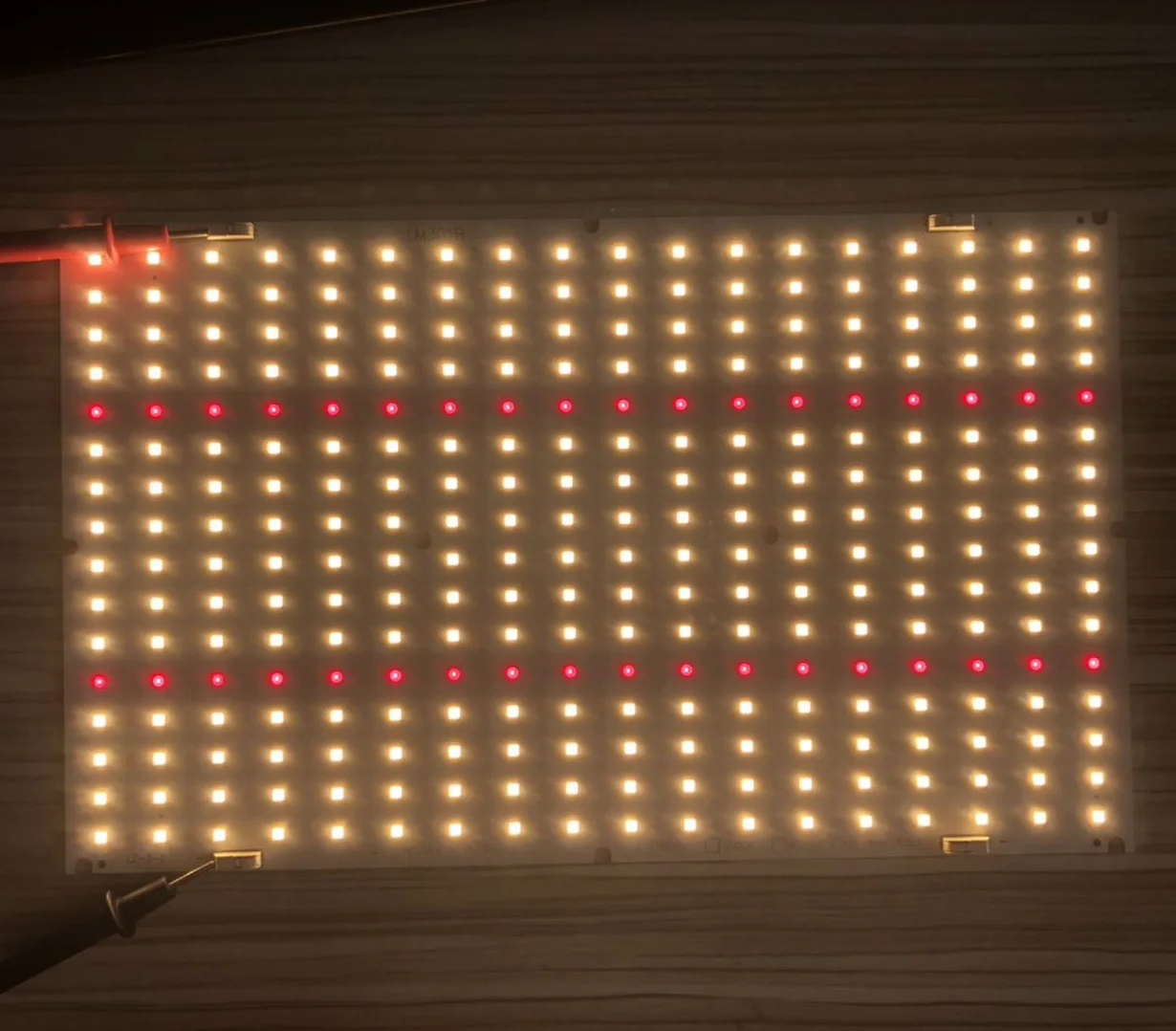

This panel is designed base on the Samsung high efficiency LM281B+ SMD 2835 LEDs(176pcs 3000K+72pcs 5000K), mixed 660nm Red LEDs (32pcs) and less UR /IR LEDs (4pcs each).

This combination will be suitable for the entire growth process of most plants from seeding, germination, flowering to fruiting

The advantage of 3000K has plenty blue for full cycle, if will be very good if you want to make veg/flower rooms.

The advantage of of 5000K for veg is that your get tighter internodes, which gives you a more balanced distribution of light over the colas later.

Red light (660nm) Does its best work in the flowering phase. A higher intensity of red promotes a higher yield.

UV has been shown to increase the amounts of THC, CBD, and terpene production in plants. But no need high power.

Far IR light is made up of hot wavelengths. This type of IR light is used in grow lighting to help plants like og kush and sour diesel bloom and thrive.

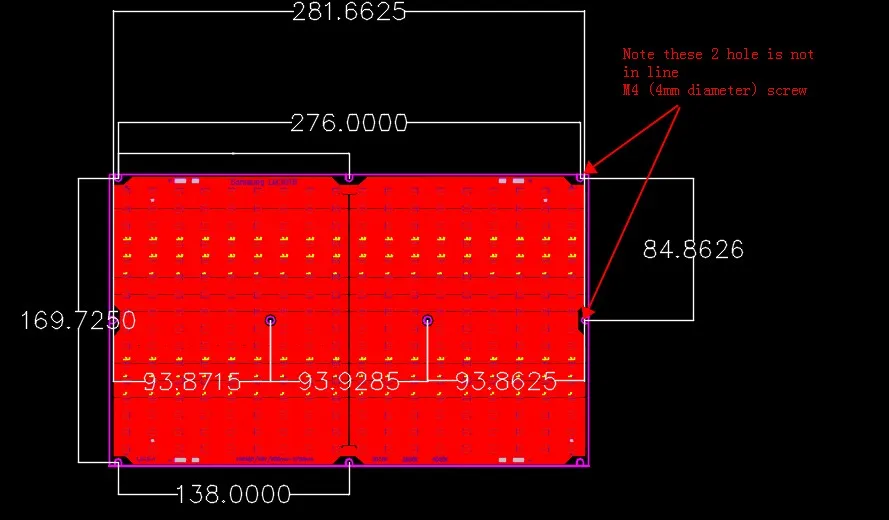

How to install



PCBA Capabilities

Turnkey PCBA	PCB+components sourcing+assembly+package
Assembly details	SMT and Thru-hole, ISO SMT and DIP lines
Lead Time	Prototype: 15 work days. Mass order: 20~25 work days
Testing on products	Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity	Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed	PCB: Gerber files(CAM, PCB, PCBDOC)
	Components: Bill of Materials(BOM list)
	Assembly: Pick-N-Place file
PCB Panel Size	Min size: 0.25*0.25 inches(6*6mm)
	Max size: 20*20 inches(500*500mm)
PCB Solder Type	Water Soluble Solder Paste, RoHS lead free
Components details	Passive Down to 0201 size
	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
Component package	Cut Tape,Tube,Reels,Loose Parts
PCB assembly process	Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
