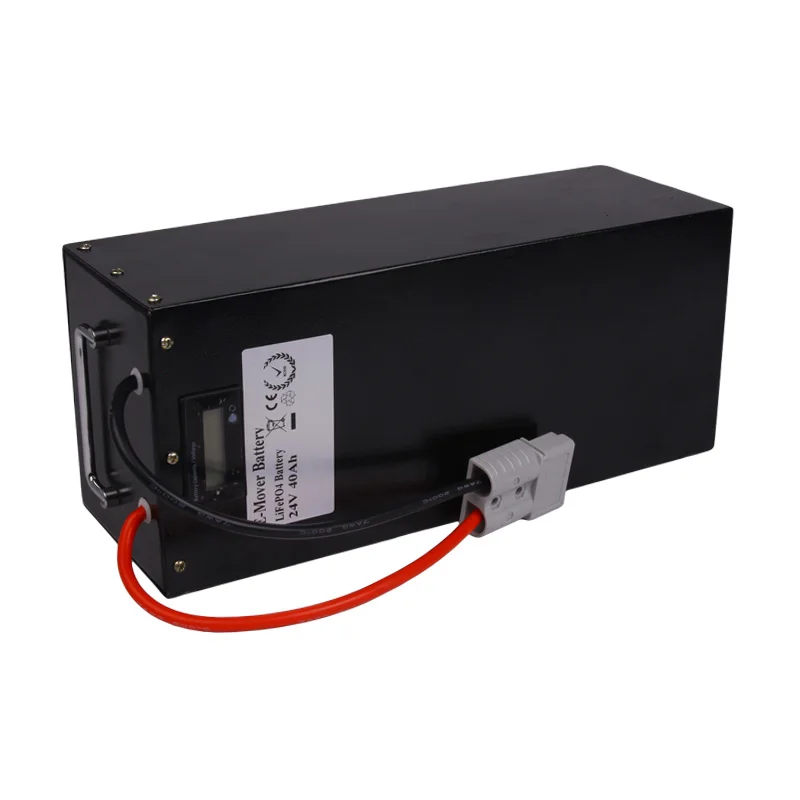

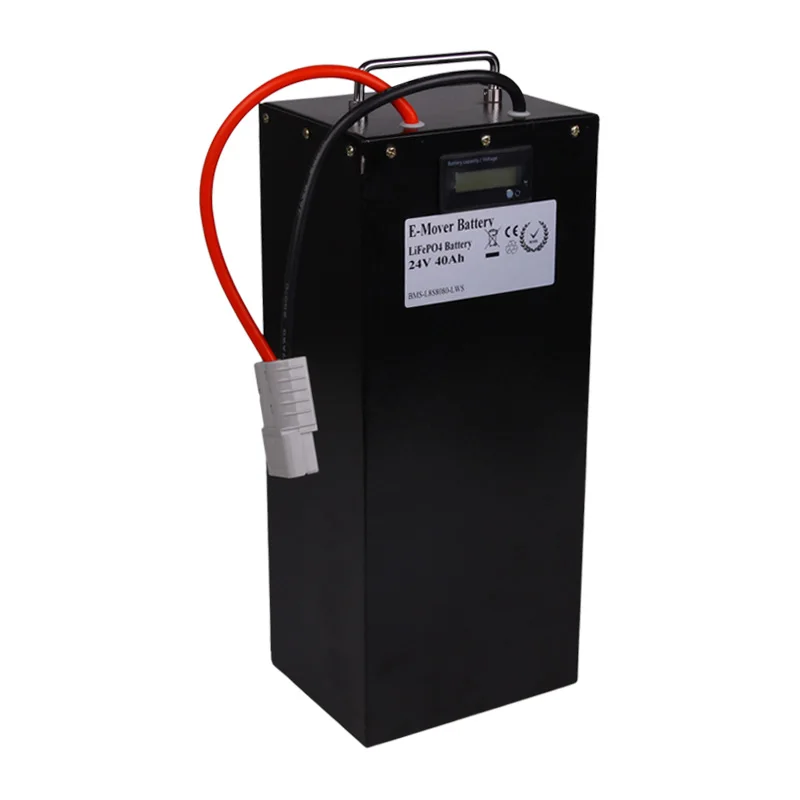

KOK POWER 24V40Ah Lithium ion Battery Pack For Off Grid Power System Home
- Category: >>>
- Supplier: Shenzhen Kokpower Investment And Development Co. Ltd.
Share on (60728814047):
Product Overview
Description
Product Item:KOK POWER 24V40Ah Lithium ion Battery Pack For Off Grid Power System Home
Product Details
We use the best quality Lifepo4 cell to make 24v40Ah ,with long cycle life ,safety and high performance.

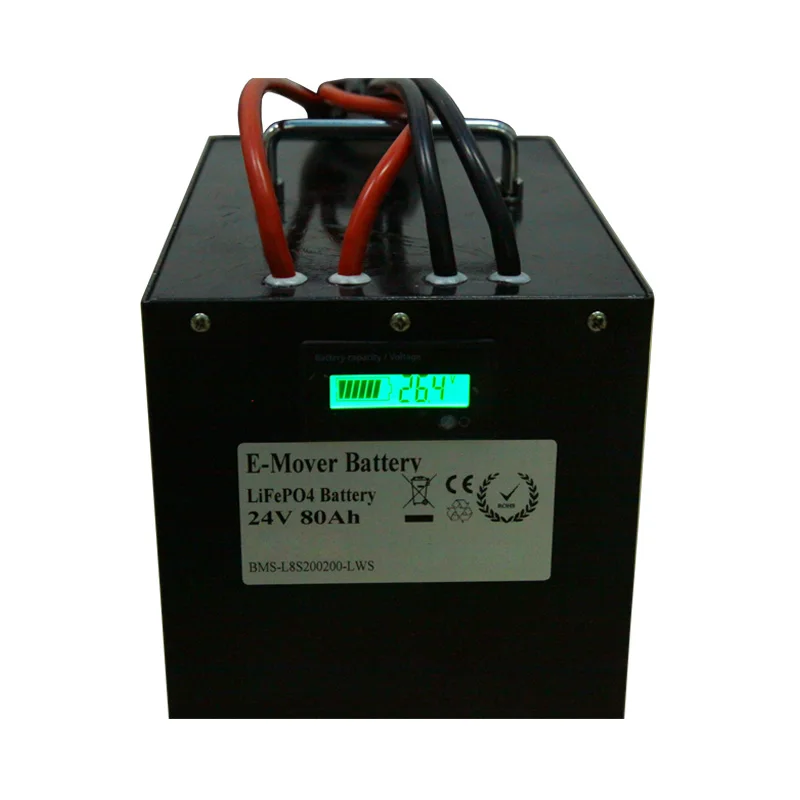

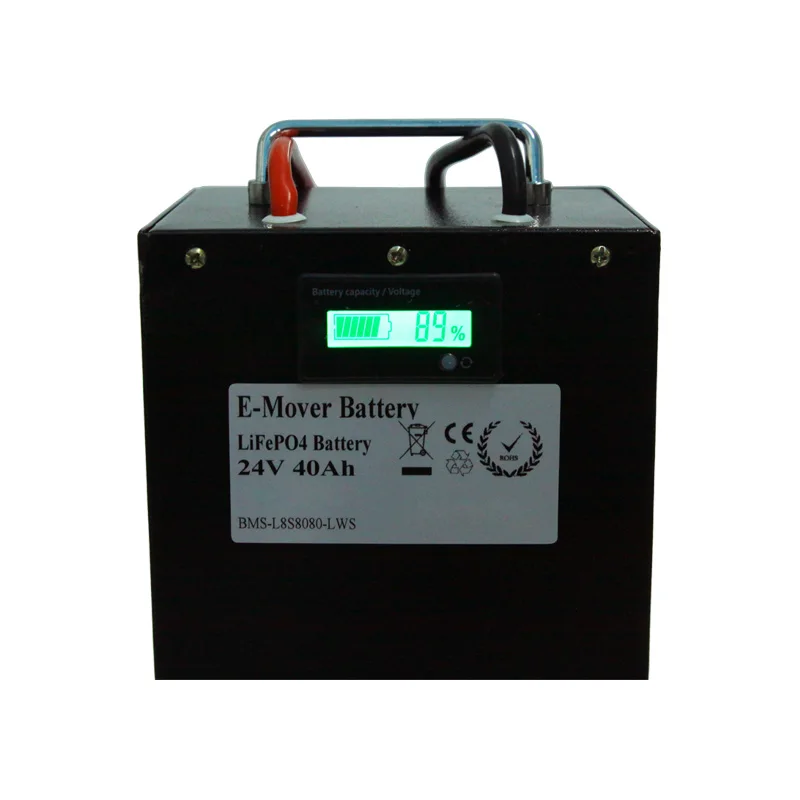

Battery with power display ,can show voltage and capacity of battery pack .
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
Features
- Widely used for many applications ,such as scooters ,AGV ,solar panel etc.
- Multifunctional BMS with full protection
- No memory effect, low self-discharge rate; Environment-friendly;
- Super long cycle life up to 1000 time of 100%DOD
- Prolonged warranty of 18months
- Optional Smart system to show battery data via APP
Specifications
No. | Items | Specifications |
1 | Nominal Voltage | 25.6V |
2 | Nominal Capacity | 40Ah |
3 | Cell Inside | LiFePO4 26650 3.2V 3300mAh |
4 | Configuration | 8S12P |
5 | Standard Charge Current | 8A(0.2C) |
6 | Max. Charge Current | 40A (1C) |
7 | Battery management System (BMS) | BMS-ZL8S120120 (172*60*25mm) |
8 | Continuous Discharge Current | 120A |
9 | Peak Discharge Current | 240A |
10 | Full Charged Voltage | 29.2V(3.65V per cell) |
11 | Charge Cut-off Voltage | 27.5V (3.9V any single cell) |
12 | Discharge Cut-off Voltage | 16V (2.0V per cell) |
13 | Net Weight | 11.24kg |
14 | Dimensions | 373*160*129mm(265*156*125mm) |
15 | Connector | Anderson connector |
16 | Operating Temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
17 | Storage Temperature | (Recommended to store 20 ± 5°C for long term storage) |
18 | Cycle Life | 2000 times (80% of initial capacity at 0.2C rate, IEC Standard) |
QC (Quality Control):
Automatic testing for performances of battery packs before delivery;
Each battery pack with unique series number and barcode for traceability;
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
Application: mobility scooter ,motorboat scooter ,electric motorcycle,wheelchair,AGVsolar panel,UPS etc
Pakage: OEM gift box. We can baranding OEM design for you
If you are interested in saving money on any of the above brands feel free to email us or give us a call 0086-755-2937 1122, and one of our knowledgeable and friendly staff will be happy to assist you.
Company Information
KOK POWER LIMITED (KOK), founded in 2011, is pioneer of smart lithium-ion battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power intelligently with a patented built-in battery management system (BMS) via blue-tooth or other communications through APP or on screen.
KOK is strong in R&D and manufacturing of smart battery systems, widely used in fields such as E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/caravan,marine,etc.), Energy Storage Systems (solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system) and engine starter batteries. KOK batteries can readily replace the outdated, bulky and pollutant Lead-Acid / AGM/ GEL/SLA batteries with the latest smart lithium battery technology.
Following are our company production manufacturing
KOK staff, from senior management to direct operators, have over 8 years’ experience of building batteries for many applications.All assembling operators are trained to high standards;and our sales team are good communicators. We will work with you to find a custom power solution for your applications and will provide you with complete design, build and test solutions tailored to your specific needs.
KOK has been awarded as Hi-Tech Company of Guangdong Province, and products are designed to be safe, reliable and competitively priced. All our products are designed and manufactured to the highest standards and meet or exceed industry safety and environmental standards including: ISO9001, IEC62133, UL1642 / UL2054,CE,RoHS.
