High Quality 7 inch bnc cctv camera test security lcd monitor

Product Overview

Description

High Quality 7 inch bnc cctv camera test security lcd monitor

The 7 inch LCD test monitor supports HD-TVI, HDCVI, AHD, and CVBS cameras up to 5MP. Includes HDMI, DVI, and VGA video inputs and a CVBS BNC loop out. A camera type indicator provides information on your camera (type and resolution) with a guideline indicator to allow adjustment of the camera angle. UTC control is also provided for compatible cameras. Powered by a removable li-ion battery for up to 3 hours of usage or add in a second battery to increase usage up to 6 hours

Features

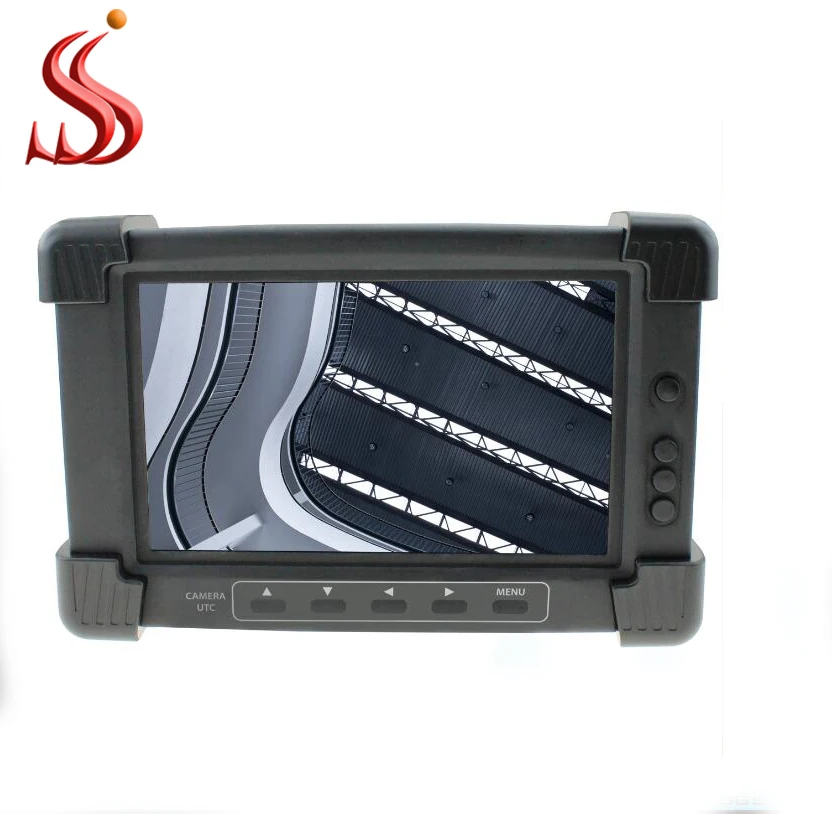

• 7 inch TFT LCD monitor
• Supports HD-TVI, HDCVI, AHD, and CVBS cameras
• Supports resolutions up to 5MP
• NTSC / PAL
• OSD menu
• UTC control
• Camera type indicator. Shows the type of camera used and resolution
• Color bars provide display indication
• Guideline indicator to adjust camera angle

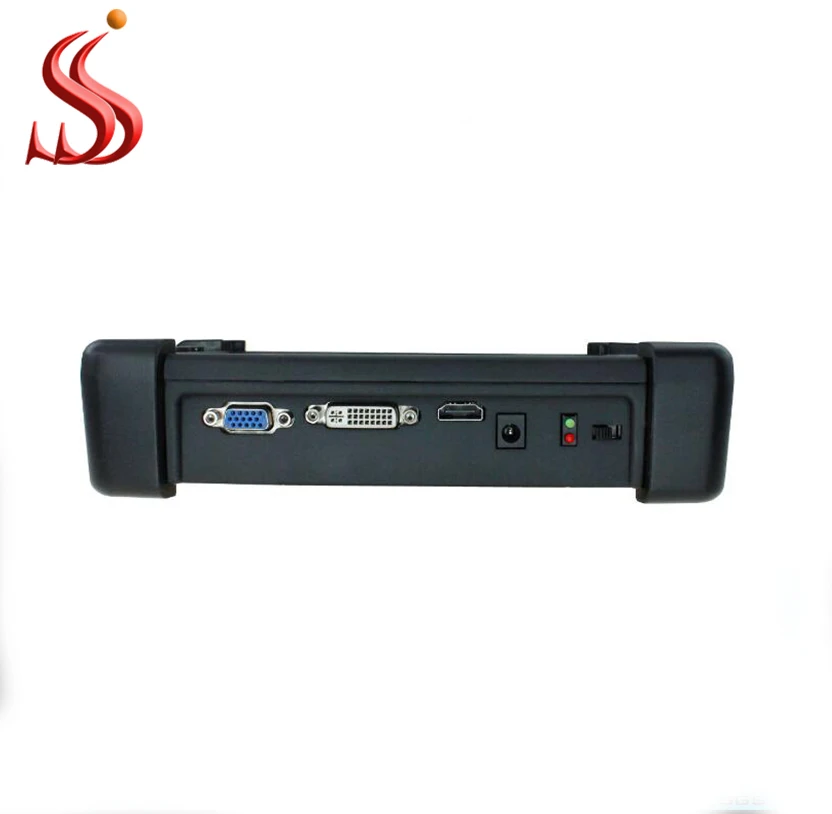

• HDMI, DVI, VGA video inputs
• CVBS BNC loop out
• 12V DC 2A input provides charging for the monitor
• 12V DC 1A output provides power for the camera
• Removable 18650 Li-ion battery provides up to 3 hours of on-screen use. Add in a second optional battery to increase usage up to 6 hours
•
