Beer digital coriolis mass flow meter cheap china factory
Beer digital coriolis mass flow meter cheap china factory
Beer digital coriolis mass flow meter cheap china factory
Beer digital coriolis mass flow meter cheap china factory

Beer digital coriolis mass flow meter cheap china factory

Share on (60728939214):


Price:

Quantity:


Product Overview

Description


Product Description

OVERVIEW

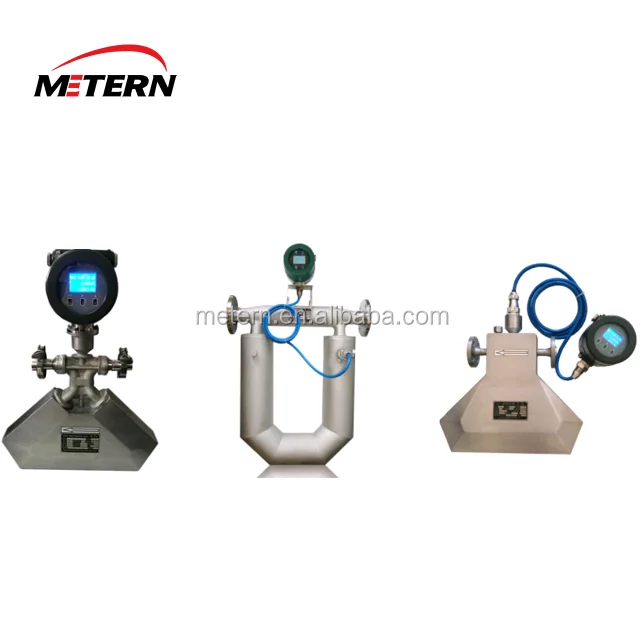

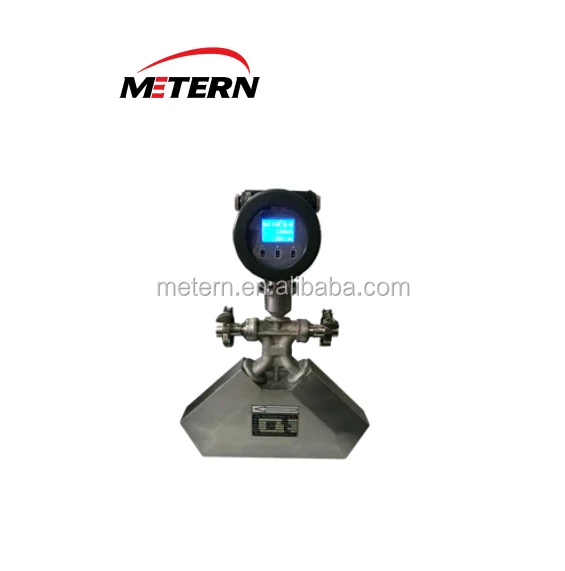

Digital mass beer flow meter cheap from china

Coriolis mass flow meter (MTCMF) is a type of flow meter which is designed according to Micro Motion and Coriolis principle.This kind of new flow meter can measure the fluid directly in a sealed pipeline. It consists of two sections: Sensor and Signal Transmitter.


Flow rate:

\t
DN (mm)
\t
Flow range(kg/h)
\t
3
\t
0~96~144
\t
6
\t
0~540~810
\t
8
\t
0~960~1440
\t
10
\t
0~1500~2250
\t
15
\t
0~3000~4500
\t
20
\t
0~6000~9000
\t
25
\t
0~9600~14400
\t
32
\t
0~18000~27000
\t
40
\t
0~30000~45000
\t
50
\t
0~48000~72000
\t
80
\t
0~120000~180000
\t
100
\t
0~192000~300000
\t
150
\t
0~360000

 Parameters

Digital mass beer flow meter cheap from china

\t
Accuracy
\t
±0.2%, ±0.1% optional
\t
Repeatability
\t
±0.1~0.25%
\t
Density measurement range
\t
0.5~2g/cm3, Accuracy: ±0.002 g/cm3
\t
Operating temperature
\t
-50~+200℃
\t
Ambient temperature
\t
 -20~+55℃
\t
The measuring tube material
\t
SS316L; The housing material: SS304
\t
Nominal pressure
\t
4.0MPa
\t
Ex-proof
\t
Exd (ia)ⅡC T6Gb
\t
Protection grade
\t
IP67

 Transimitter parameters

Digital mass beer flow meter cheap from china

\t
Display
\t
128x64 LCD display, Window size: 54x40mm (WxH) Φ80mm
\t
Display Accuracy
\t
0.02%
\t
Unit
\t
Mass flow rate: g/h、kg/h、t/h、g/m、kg/m、t/m

Total flow: g, kg, t

Volume flow rate: cm3/h、dm3/h、m3/h、cm3/m、dm3/m、m3/m

Total volume: cm3 、dm3、m3

Density: kg/m3、g/cm3

Temperature: ℃、K、℉
\t
Ambient Temperature
\t
-20~+60℃
\t
Output signal
\t
0~10000Hz pulse frequency signal flow signal (open collector signal)

Equivalent pulse signal flow signal

4~20mA Current signal choose one signal from flow rate, density, temperature

Current output load capacity is not less than 750Ω（24VDC power supply）

Accuracy: Pulse signal 0.05%

Current signal 0.2%

Communication signal: RS485, MODBUS protocol

Hart
\t
Power Supply
\t
18~36VDC power≥7W
85~265VAC power: 10W
\t
Protection
\t
Protection: IP67
Ex-proof: Ex d [ia]ⅡCT6Gb
\t
Dimension
\t
Φ125×180mm
Digital mass beer flow meter cheap from china

Digital mass beer flow meter cheap from china

Company introduction

Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia,  Malaysia, ect.\t


Exhibition

Have two separate flow rate calibration devices
Have four  sets of digital industrial electronic scales
Have 10 experimental pipeline, which can calibrate maximum flow rate of 450000kg/h

System accuracy: 0.03%


 Working Pictures:

Digital mass beer flow meter cheap from china
