Acedrills DTH Water Well Drill Pipe Best Price Heavy Weight Drill Pipe or Drilling Tools

Product Overview

Description

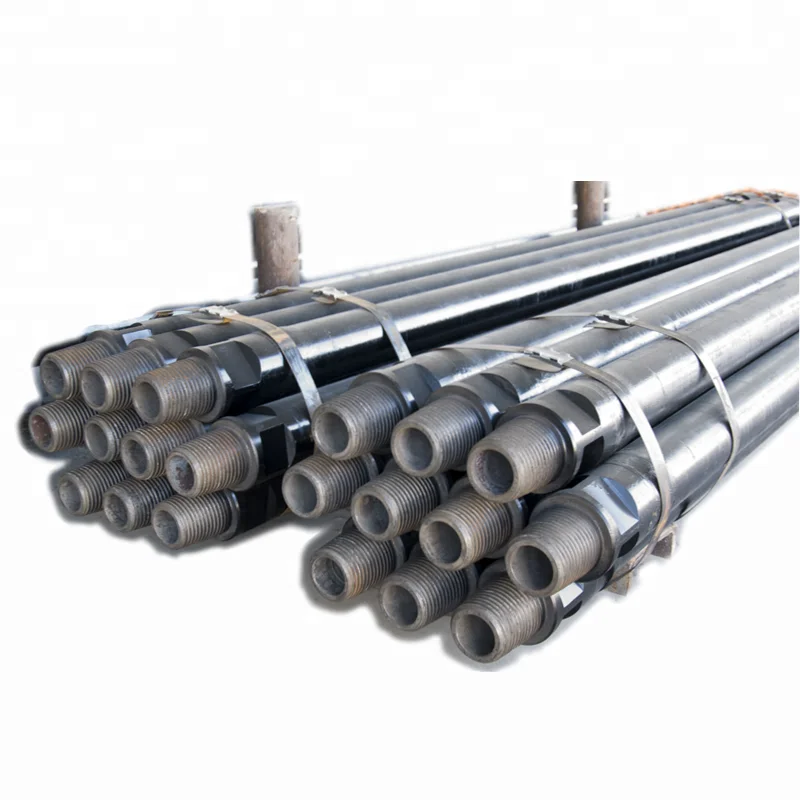

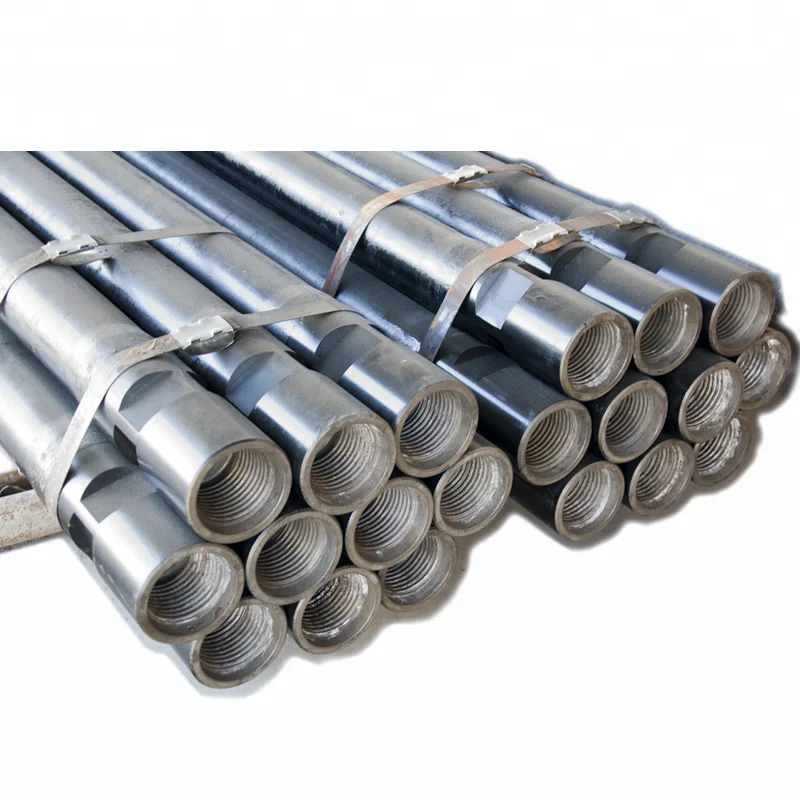

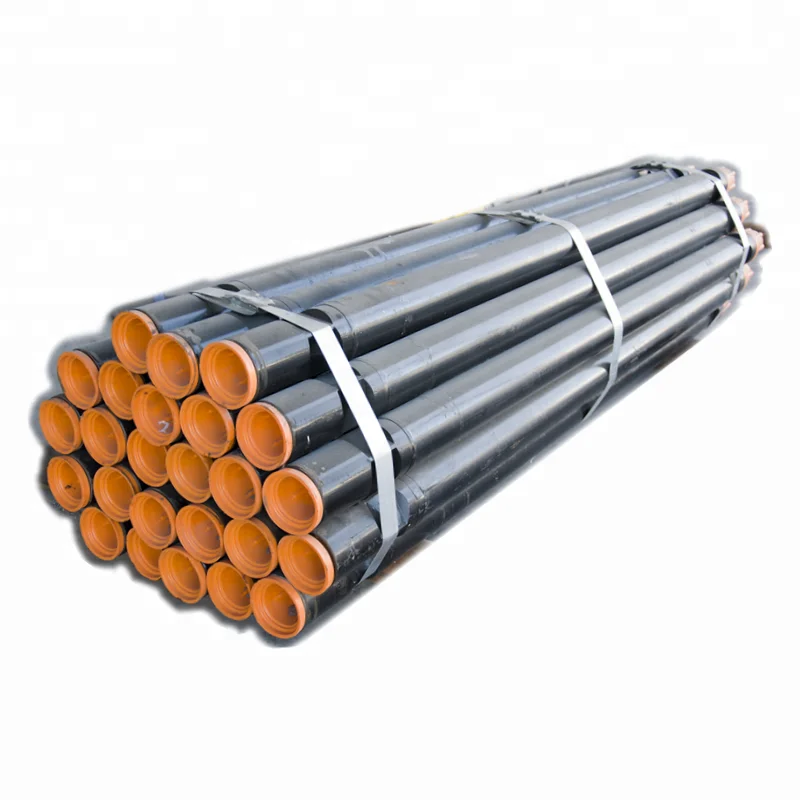

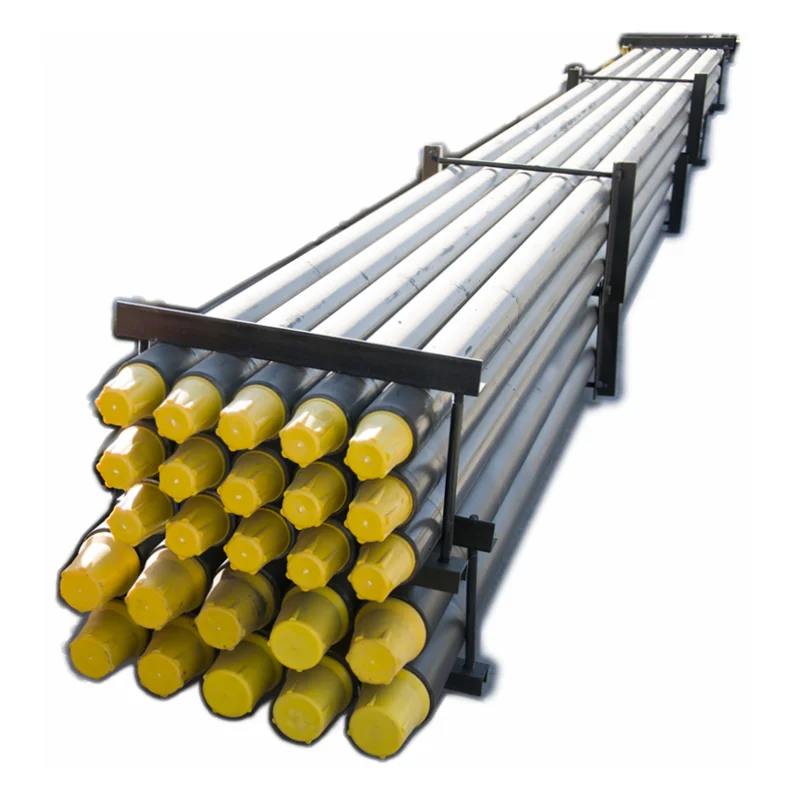

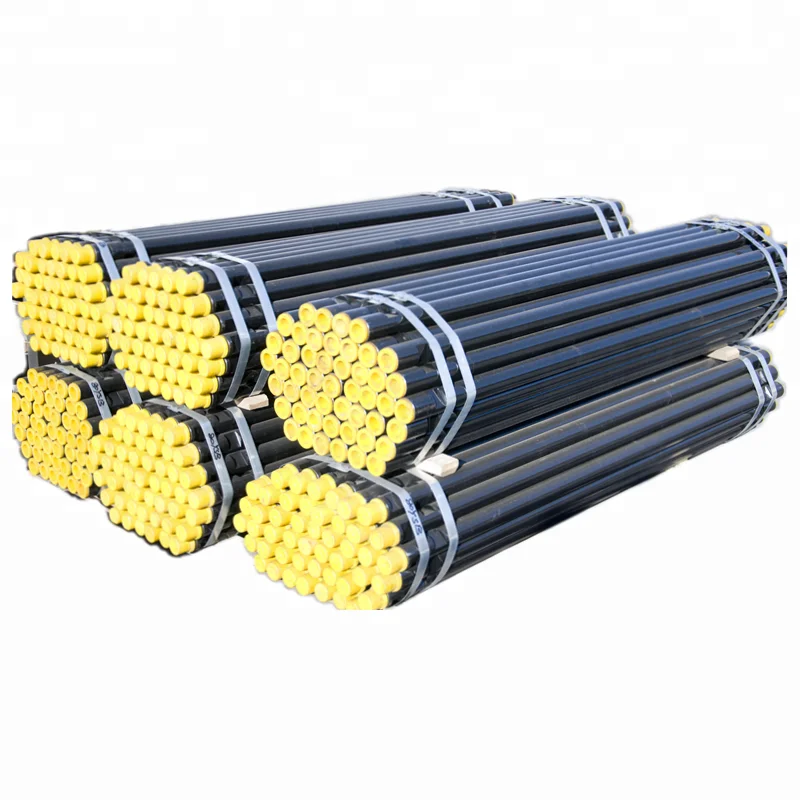

Acedrills DTH Water Well Drill Pipe Best Price Heavy Weight Drill Pipe or Drilling Tools



• DTH Drill Rods (Tubes/Pipes) and Sub Adaptors: different thickness designs for each diameter, made from different grade steels for selection.
• under different condition, there may be in need of different kinds of drill rods for particular application. For example, the thicker ones with general high quality grade steel for drilling hole of average depth, such as blasting holes; and the thinner ones with better grade steel for drilling hole of very deep, such as drilling for ground thermal.
• Acedrills’ DTH drill rods are well heat-treated, precision manufactured, and friction-welded.



	Diameter
	60~89mm
	102~108mm
	114~152mm
Length
1000~7620mm
1000~9140mm
1000~10670mm

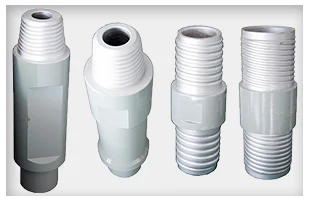

	Sub Adaptors
	Pin to Box
	Pin to Pin
	Box to Box





PRODUCT SPECIFICATION

DTH Drill Rods:

Diameter		Length		Connection Thread	Wall Thickness
mm	inch	mm	Foot		mm	inch

60	2 3/8	1,000~4,500	3 3/8 ~ 14 3/4	T42×10×2	5~8	13/64~5/16
76	3	1,000~4,500	3 3/8 ~ 14 3/4	2 3/8” API REG	5~8	13/64~5/16
89	3 1/2	1,000~7,620	3 3/8 ~ 25	2 3/8” API REG/IF	5~12	13/64~15/32
102	4	1,000~9140	3 3/8 ~ 30	2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG	6.5~20	1/4~25/32
108	4 1/4	1,000~9140	3 3/8 ~ 30	2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG	6.5~20	1/4~25/32
114	4 1/2	1,000~10,670	3 3/8 ~ 35	2 7/8” API IF, 3 1/2” API REG	6.5~20	1/4~25/32
127	5	1,000~10,670	3 3/8 ~ 35	3 1/2” API REG	8~20	5/16~25/32
133	5 1/4	1,000~10,670	3 3/8 ~ 35	3 1/2” API REG	8~20	5/16~25/32
140	5 1/2	1,000~10,670	3 3/8 ~ 35	3 1/2” API REG	10~22	25/64~7/8
146	5 3/4	1,000~10,670	3 3/8 ~ 35	3 1/2” API REG	10~22	25/64~7/8
152	6	1,000~10,670	3 3/8 ~ 35	4 1/2” API REG	10~22	25/64~7/8



Sub Adapters:

Type	Diameter		Length		Connection Thread
	mm	inch	mm	inch	API REG/IF

Pin to Box	59~146	2 3/8 ~ 5 3/4	120~235	4 23/32 ~ 9 1/4	2 3/8”, 2 7/8”, 3 1/2”, 4 1/2”
Pin to Pin	90~115	3 1/2 ~ 4 1/2	70~97	2 3/4 ~ 3 5/8	2 3/8” , 2 7/8”, 3 1/2”
Box to Box	77~205	3 ~ 8 1/8	200~270	7 7/8 ~ 10 5/8	2 3/8”, 2 7/8”, 3 1/2”, 4 1/2”, 6 5/8”

Specification Notice



Notes: 1. For more product informaton, please contact us.   2. How to order?      DTH Drill Rods:              Length + Diameter + Connection Thread + Wall Thickness    Sub Adapters:              Type + Connection Thread + Length + Diameter   For brochure and more product information, please click here  to tell us the detail.



To Chose the Right Products



DTH drill rods (also called as drill tubes or drill pipes) are the mechanism to transmit impact force and rotation torque to DTH hammers and bits, as well as offer pass for the air flow.



In principle, the lighter the rod is, the better it is for the drilling operation. So a thinner one is always preferable than a thicker one if other parameters were the same. While in the mean time, the yield strength and the tensile strength must also be taken into accounts, which means relatively rod wall thickness would be needed to obtain enough strength. Of course, once the thickness is rigidly requested as thin as possible to minimize the drill string weight, there is also another method to get optimum drill tubes that using better grade steels.
