Product Overview
Description

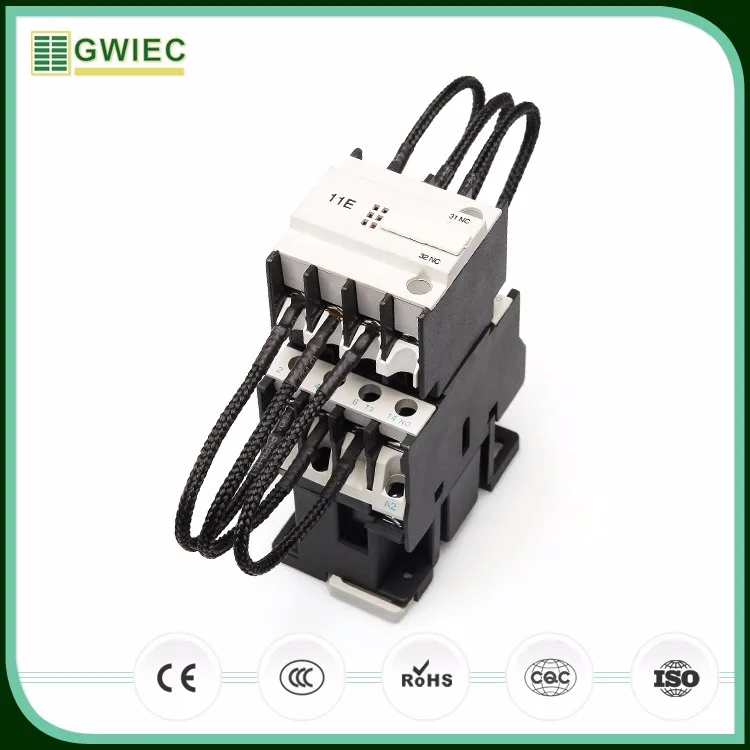

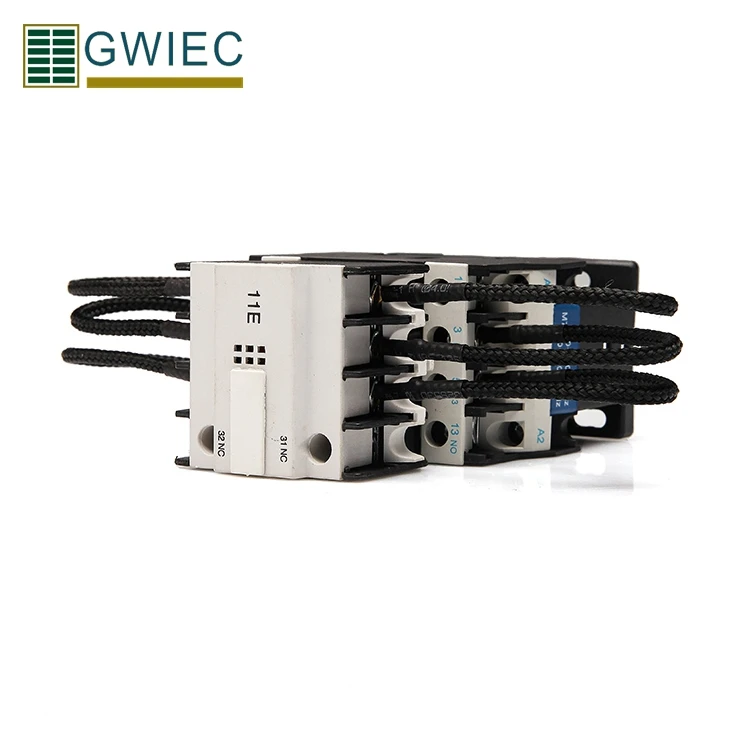

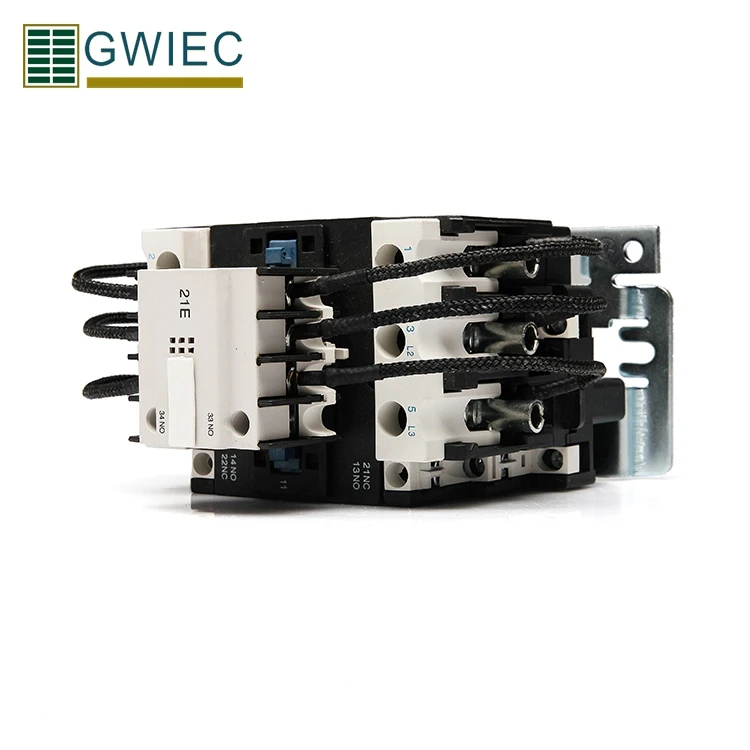

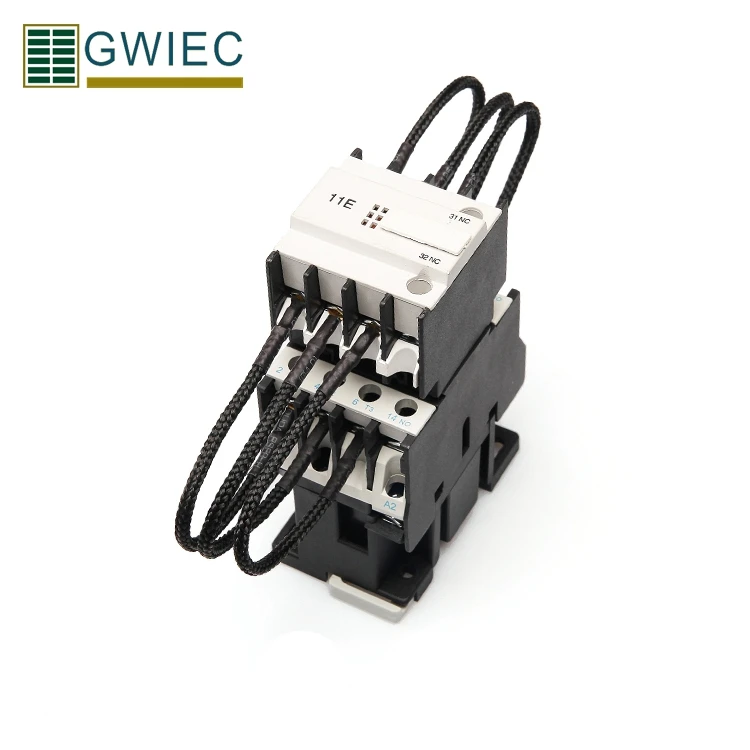

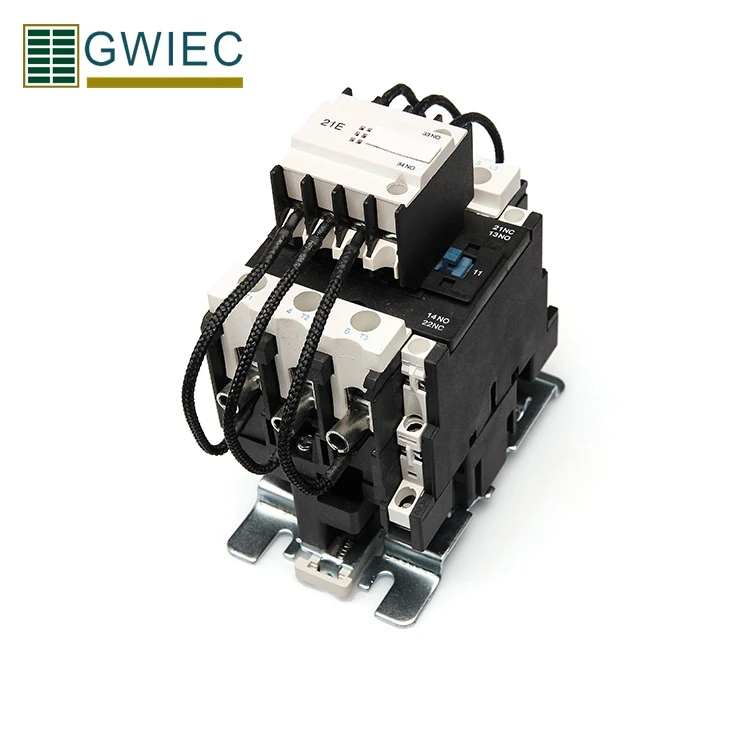

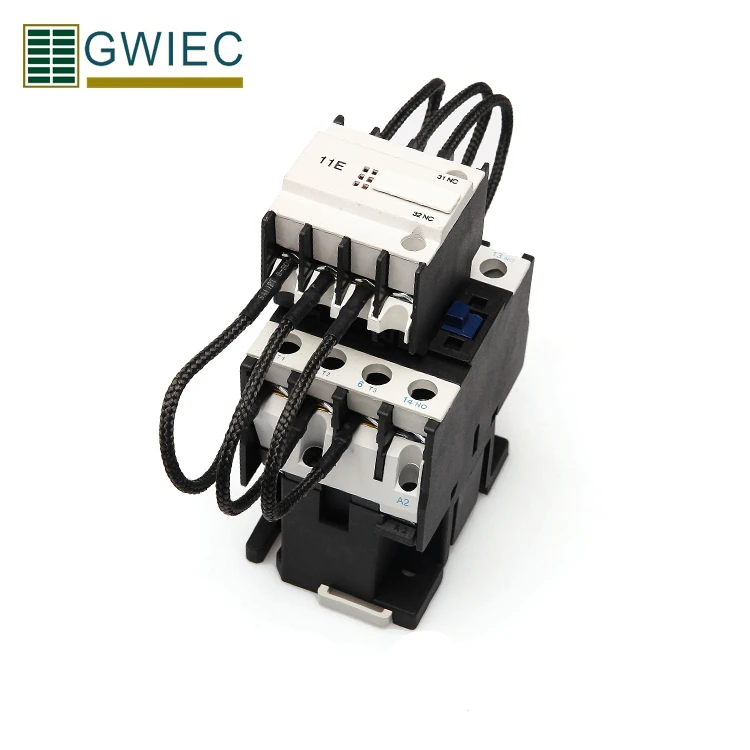

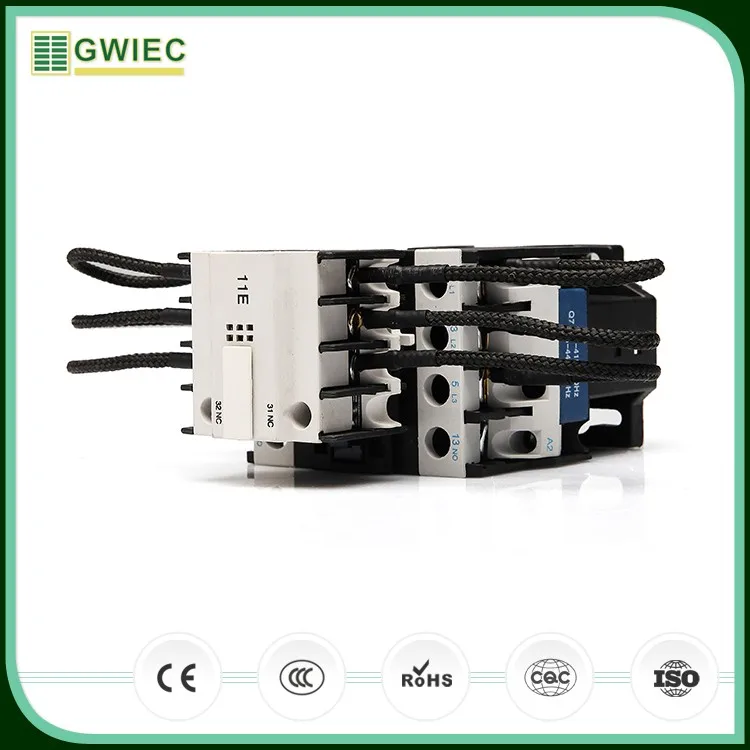

GWIEC High Demand Products Low Voltage 380V Cj19-32 Switch-Over Capacitive Ac Contactors
Product Description
Application:
- CJ19 series changover capacitor contactor is mainly applicable to a power line of AC 50Hz or 60Hz,rated working voltage up to 380V
- It is Used to put a low voltage parallel connected capacitor in operation or switch it off in a low voltage reactive power compensation device
- The contactor is equipped with a surge suppressor.which can effective reduce the surge current passing through the capacitor at weitching on and suppress the over-voltage at switching 0ff
- The product is in conformity with the standards IEC947-4-1
Specification:
| Model | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-95 | |
| Electrical life(×103) | 100 | 100 | 100 | 100 | 100 | |
| Rated current le(380V)A | 17 | 23 | 29 | 43 | 63 | |
| Power of controlled capacitor | 220/230V | 6 | 9 | 10 | 15 | 22 |
| 380/400V | 12 | 18 | 20 | 30 | 40 | |
| Rating insulation voltage Ui(V) | 500 | |||||
| Rating operational voltage Ue(V) | 380 | |||||
| Restrained surge capacity | 20le | |||||
| Operation range | Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us | |||||
| Coil power(VA) | Start-up | 70 | 110 | 110 | 200 | 200 |
| Holding | 8 | 11 | 11 | 20 | 20 | |
| Control capacity of auxiliary contact | AC-15 360VA; DC-13 33W | |||||
| Weight(Kg) | 0.44 | 0.63 | 0.64 | 1.4 | 1.5 | |
outline and mounting dimension:
| Type | Amax | Bmax | Cmax | Dmax | E | F | Note |
| CJ19-25C | 80 | 47 | 124 | 76 | 34/35 | 50/60 | Screw mount/35mm rail mount |
| CJ19-32C | 90 | 58 | 134 | 86 | 40 | 48 | |
| CJ19-43C | 90 | 58 | 136 | 86 | 40 | 48 | |
| CJ19-63C | 132 | 79 | 150 | ||||
| CJ19-95C | 135 | 87 | 158 |
Related Products
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.

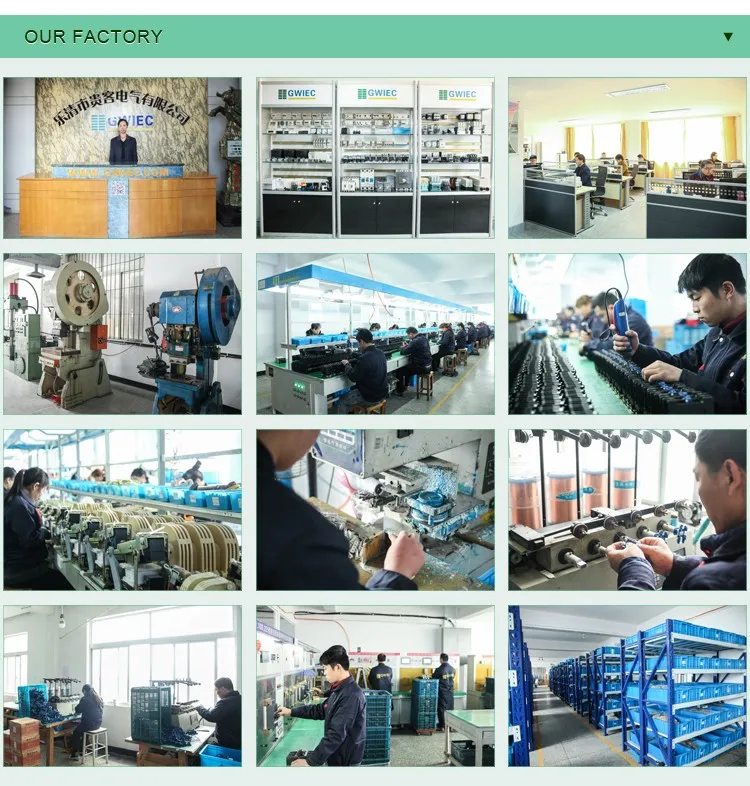

Company Information
