New design architecture tensile structure roof membrane doom structure

Product Overview

Description

New design architecture tensile structure roof membrane doom structure

Brand name	Andy
Model	1.Single slope, Double slope, Multi-slope.
	2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1.Material Q345(S355JR)or Q235(S235JR) steel.
	2.All bolts connecting.
	3.Straight cross-section or Variable cross-section.
Fabrication	Advanced Automatic Welding Machines
Quality control	GB/T19001-2000----ISO9001:2000
Surface	Hot-dip galvanized or painted
Roof and wall panel	1.EPS ,PU ,Rockwool sandwich panel.
	2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide).
	3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width.
Carrying capacity	1.Resisting winds and seismic impacts.
	2.Bearing heavy snows.
Drawing	1.Making the design and quotation according to your requirements very soon.
	2.Making the quotation according to your drawings.
	3.Giving you the satisfying opinion to your project.



Ⅰ. Material grade

 1.Carbon structural steel: Q235.

 2.High-strength structural steel :Q345

 3.Special purpose steel t

ⅡQuality standard

 1.Certificate: ISO9001:2000

 2.Code for design of steel structure: GB 50017-2003

 3.Technical code of cold-formed thin-wall steel structure: GB50018-2002

 4.Load code for the design of building structures. GB 50009-2006

 5.Construction quality acceptance of steel: GB50205-2001

 6.Code for design, construction and acceptance of high strength for steel  structure, JGJ82-2011

 7.Technical specification for welding of steel structure building: JGJ 81-2002

 8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

Ⅲ. Structure Assembly

1.Steel Framework:

   Component: H-Column, H-Beam & C/Z-Purlin

   Connection of steel structure method: Welding, Bolted

2.Surface treatment: Painting, Galvanized

3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per request

4.Doors: Rolling or Pushing, as reques.

IV Steel characteristics

1.Environmental protection

2.Higher reliability of steel work

3.Strong quakeproof

4.Higher degree of industrialization

5.Quick to be assembled accurately

6.Larger interior space



Product picture



Customize for you,customize for your house ,ANDY is your best  choice!



 We can Packaging&Shiping as required

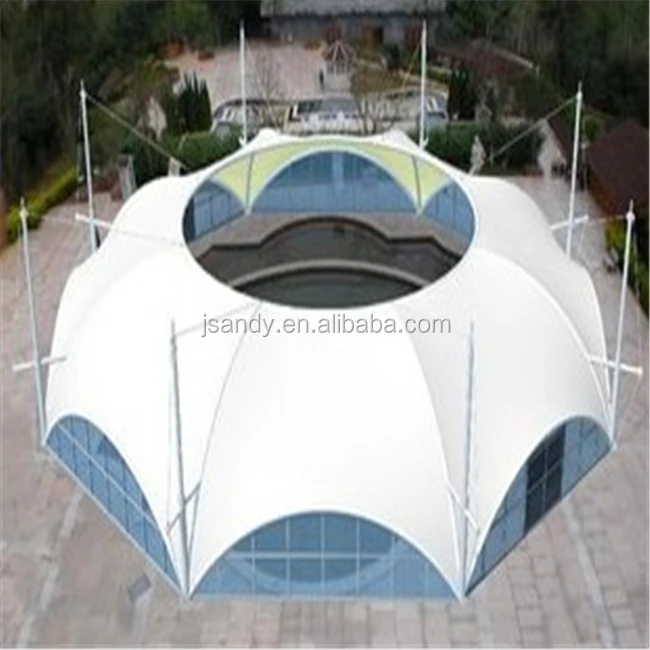

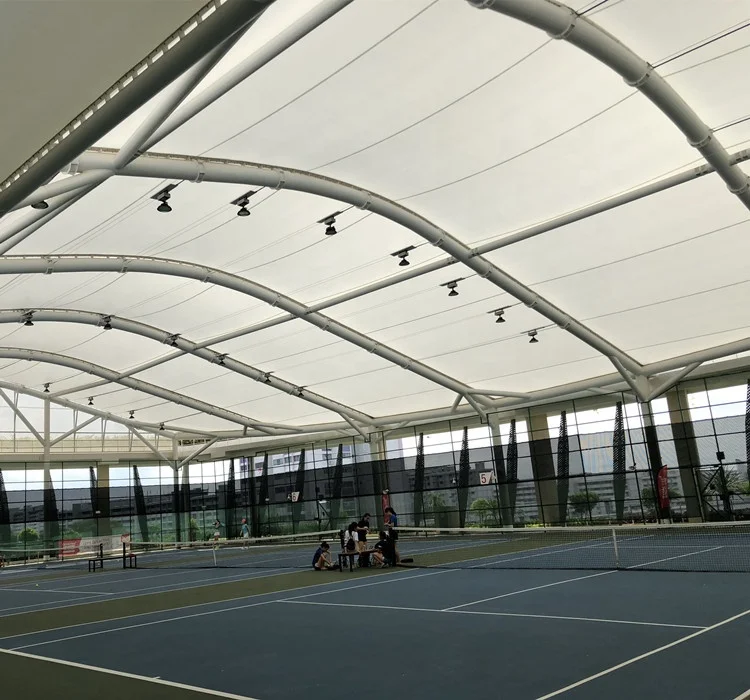

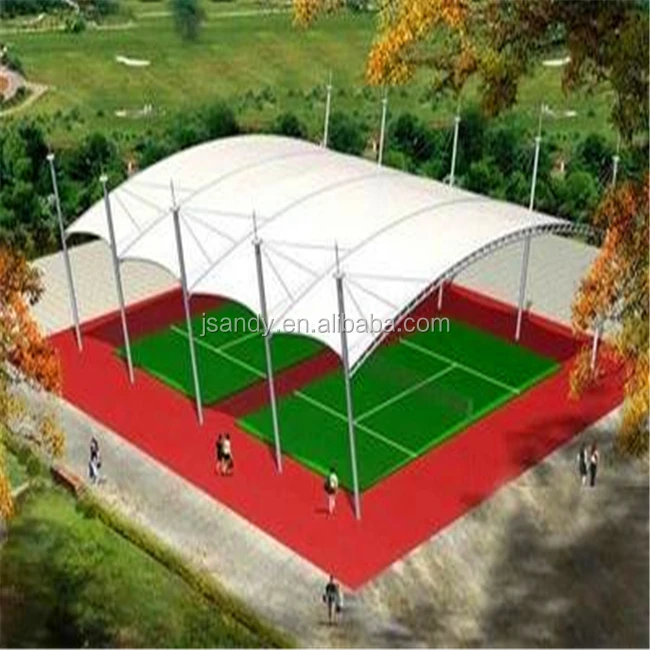

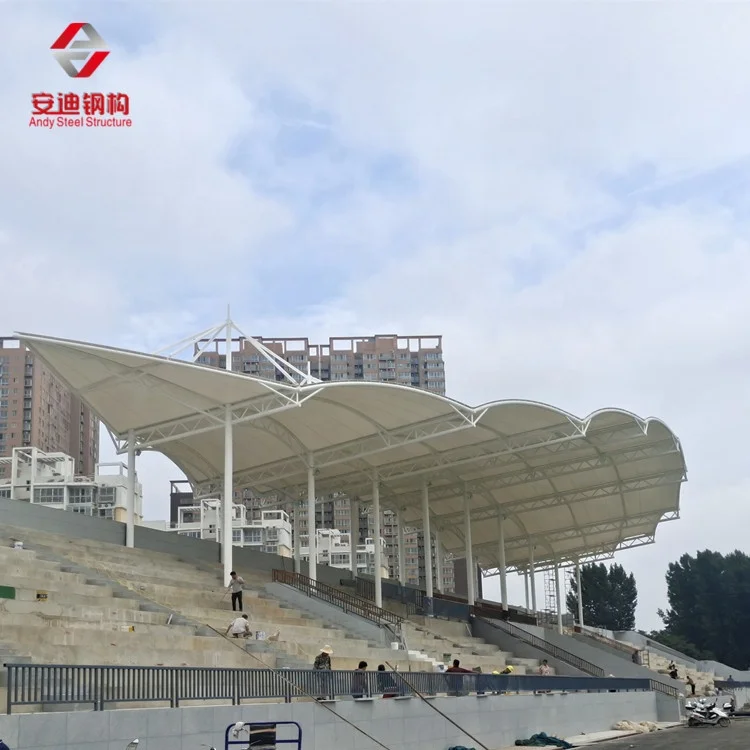

New design Architecture Tensile structure roof membrane doom structure

Membrane structure
