24V vehicle tailgate hydraulic power unit hydraulic power pack
24V vehicle tailgate hydraulic power unit hydraulic power pack
24V vehicle tailgate hydraulic power unit hydraulic power pack
24V vehicle tailgate hydraulic power unit hydraulic power pack

24V vehicle tailgate hydraulic power unit hydraulic power pack

Share on (60728992220):


Price:RUB 19,964.55

Quantity:


Product Overview

Description

Product Description

Product Application

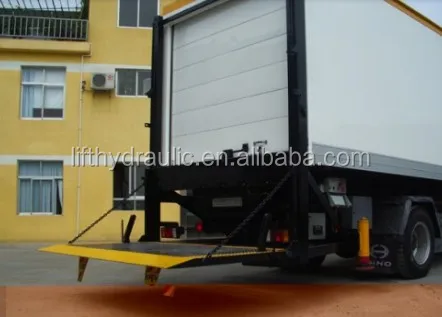

24V vehicle tailgate hydraulic power unit hydraulic power pack with a closed architecture,this power unit is used to control the opening/closing and lifting/lowering of tailgates of trucks.The pressure compensated flow control valve is to regulate the opening and lowering speed auto matically.

SPECIFICATIONS FOR 24V vehicle tailgate hydraulic power unit hydraulic power pack
Model
Motor Volt
Motor Power
Rated Speed
Displacement
System pressure
Tank  Capacity
YD-DC24DE24WCFI(11)07DS3
24V
2.2KW
3000RPM
2.5mL/r
16Mpa
11L

Special Notes

1) The duty if this hydraulic power unit is S3 duty,which can only be worked intermittently,ie.,1 minute on and 9 minutes off.

2) Clean all the hydraulic parts concerned before mounting the power unit.

3) Viscosity of the oil should be 15-68cst,which should also be clean and free of impurities.N46 hydraulic oil is recommended.

4) OIl changing is required after the initial 100 operation hours,afterwards once every 3000 hours.

5) The power unit should be mounted horizontally.

Certifications
Detailed Images

Hydraulic power unit Parts

Name: Motor

Brand: LIFT

Original: China

DC motor,International standard steel casting motor with CE & SA certificntion.

Center Manifold Features

Name: Center manifold
Brand: LIFT
Original: China
According to customers requirement,We designed for the usages in different flow and mounting condition.

Hydraulic power unit Parts

Name: Spare part
Brand: FELIFT
Original: China
 Solenoid valve: Max pressure:300bar

                            Max flow:20L/min

                            Coil power:18W

Oil Tank Main Features

Name: Oil tank
Brand: LIFT
Original: China

International standard palstic tank

Colour:Black

"W" type:Horizontal    "L" type:Vertical

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* One year warranty

* Our experienced engineers would give you the best technical support as they can

Packing & Delivery
Packaging
Size
1100 (L) * 1000(W) * 1200(D)mm
Weight
1.2 T



Packaging Details
The normal package is pallets(Size:1100 (L)*1000(W)mm).
