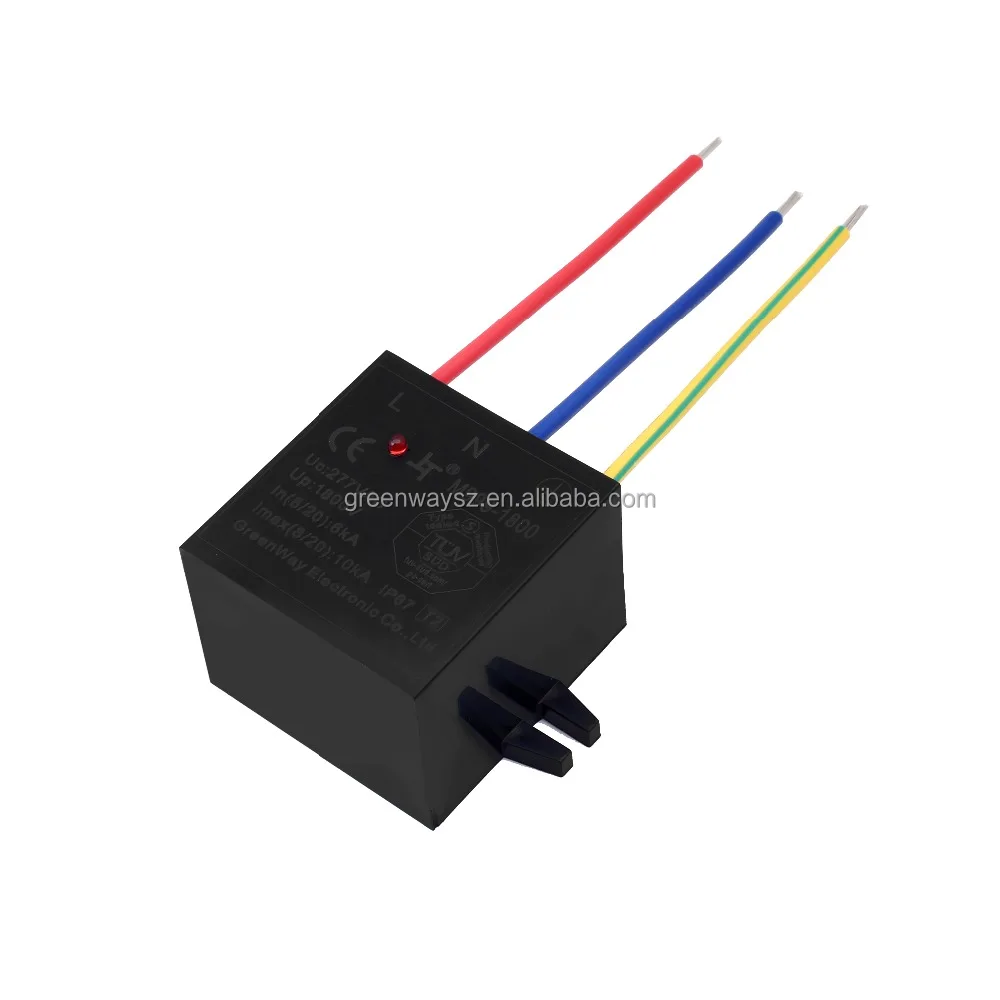

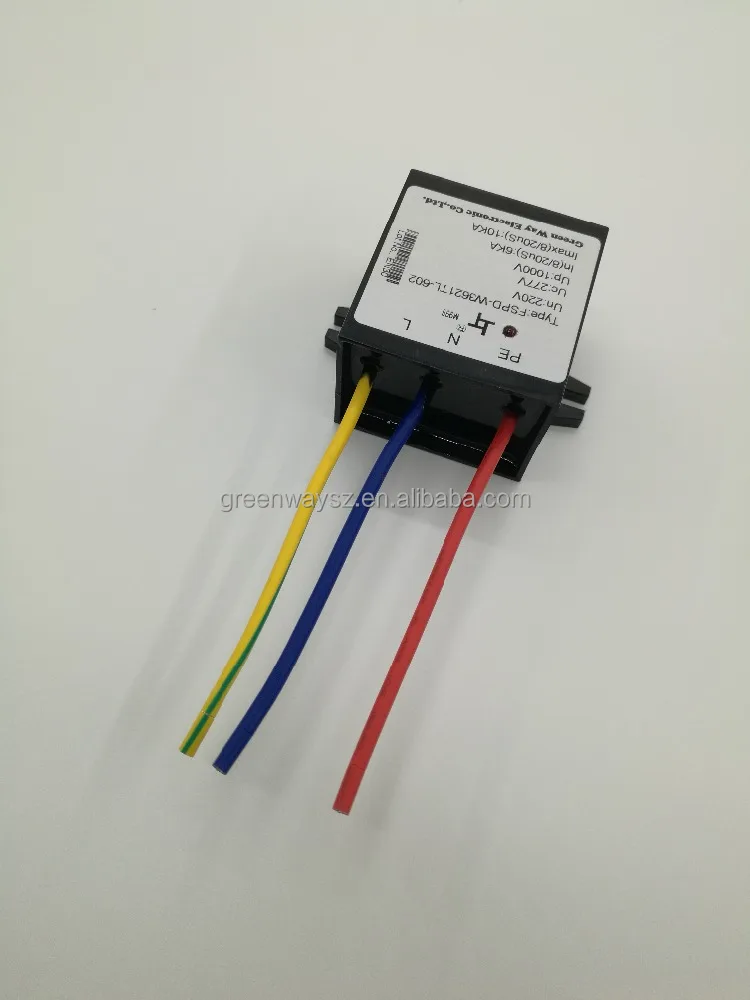

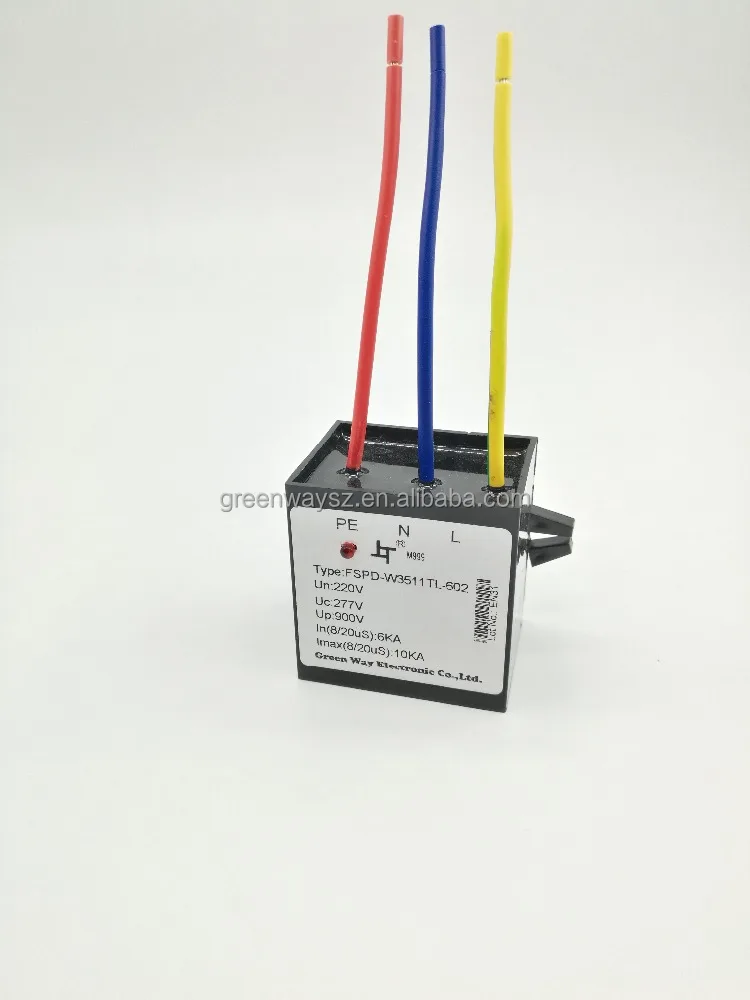

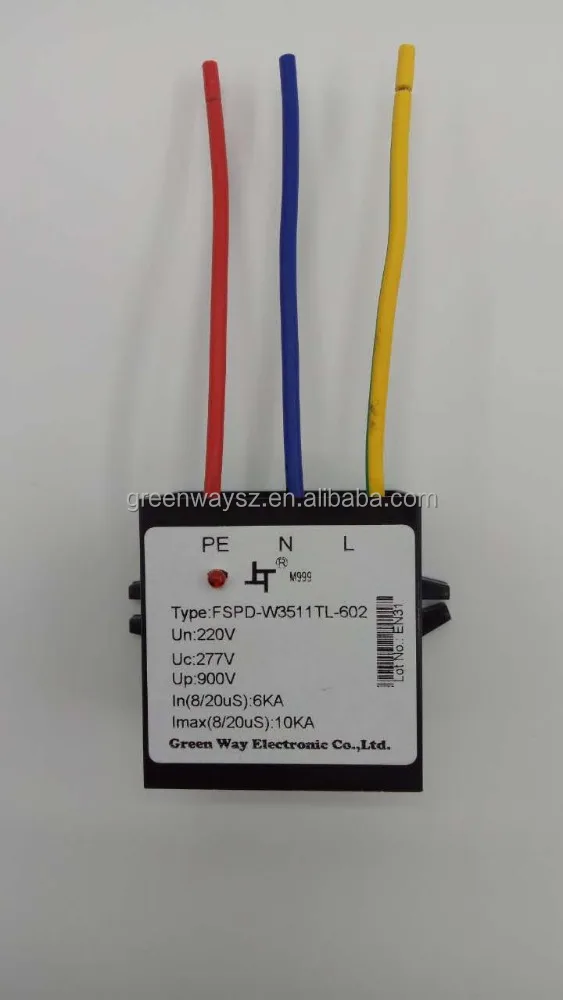

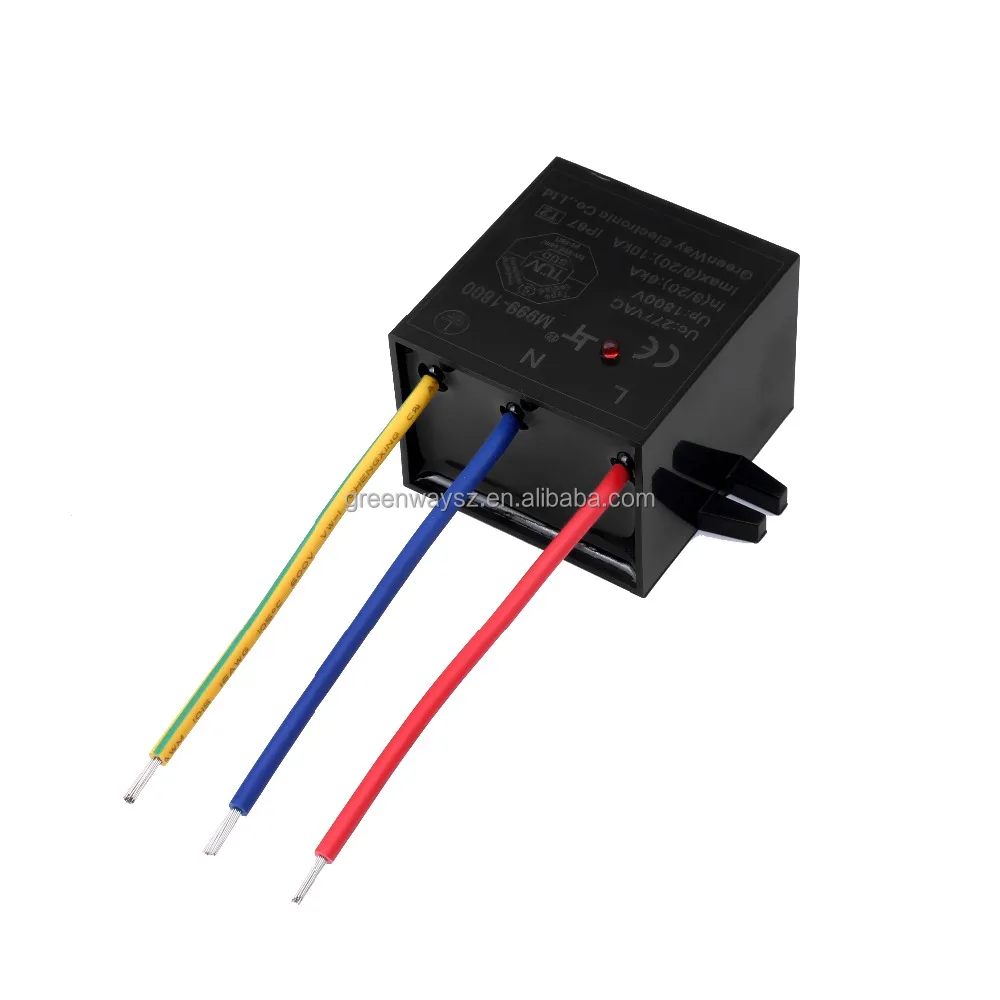

10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications

10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications

Share on (60729033715):


Price:

Quantity:


Product Overview

Description

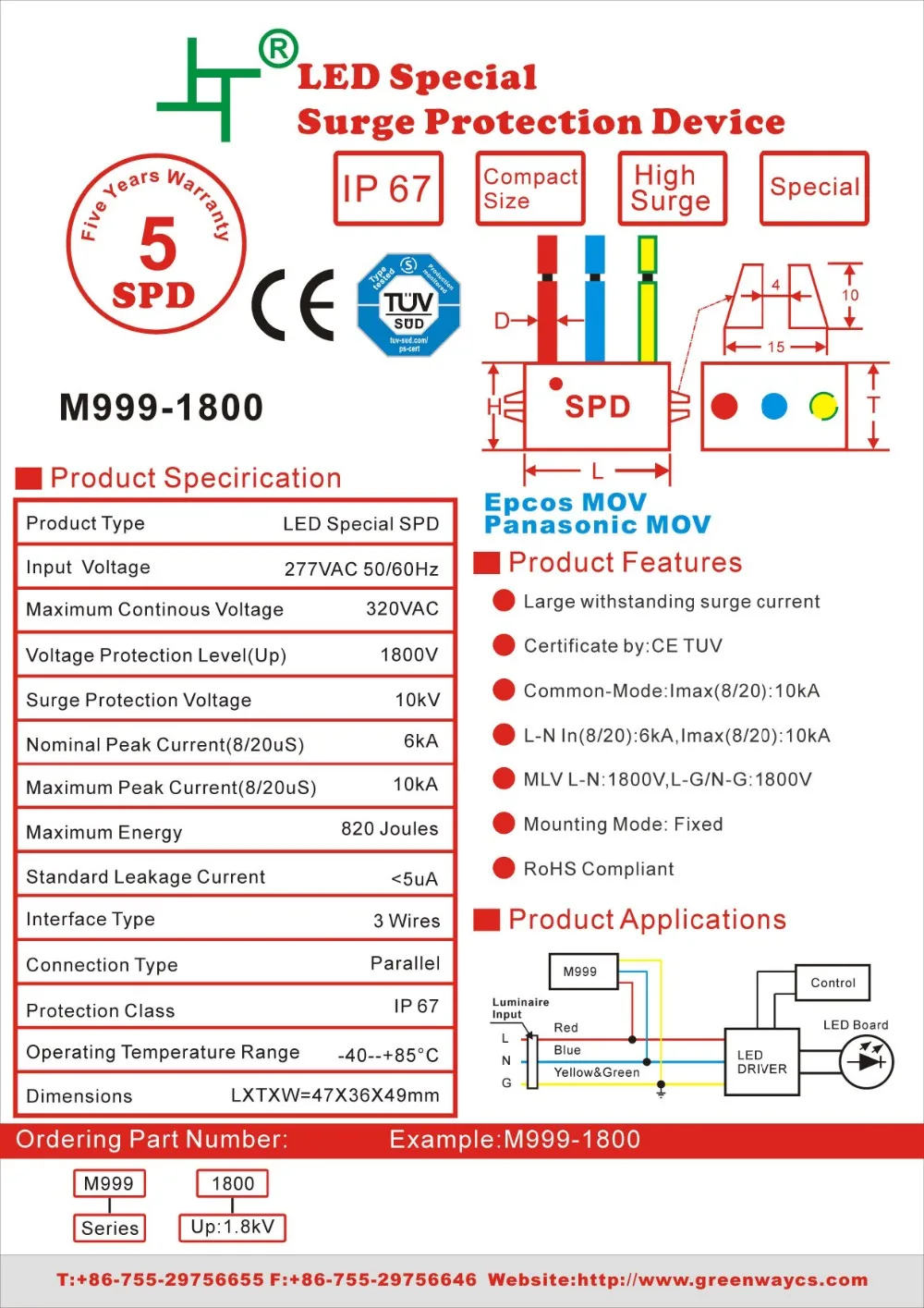

SPD Description

Surge protective devices (SPD) connected between the power supply and the LED light in serial/shunt connection for protection of LED light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems. Customized products are also available.

\t
10kA 10kV Surge Protection Device LED Street Light SPD with TUV/UL/CE Certifications
\t
Input Voltage
\t
277VAC 50/60Hz
\t
MCV
\t
320VAC
\t
VPL(Up)
\t
1800V
\t
Maximum Energy
\t
820 Joules
\t
SLC
\t
＜5uA
\t
Color
\t
Black
\t
OEM
\t
Acceptable
SPD Features

IP67 SPD series

1.TUV / CE / Rohs certificates.

2.Wire: 1015 # 16AWG 105C 600V

3.Customer's drawings and designs are welcome.

4.Easy adjustment. competitive price, fast delivery and considerate after class service.

5.High protection level protect long life of the product.
