Product Overview

Description



Product Description


48v MPPT Solar Charge Controller 20a Solar Panel Energy System with 150V DC





Product Features


System Voltage: DC 12V/24V/36V/48V Automatic Recognition

Rated Current: 20A 30A 40A 50A 60A

Maximum PV(VOC) Voltage: 150V









Specification


GYOPO ES Series MPPT Charge Controller
ES4820
ES4830
ES4840
ES4850
ES4860
                               Product Category
Controller Properties
MPPT(maximum power point tracking)
MPPT Efficiency
≥99.5%
Standby Power
0.5W~1.2W
System Voltage
12V/24V/36V/48V Automatic Recognition
Heat-dissipating Method
Intelligent Fan Cooling
                                                                        Input Characteristics
Max.PV Input Voltage(VOC)
DC150V
Start the Charge Voltage Point
Battery Voltage + 3V
Low Input Voltage Protection Point
Battery Voltage + 2V
Over Voltage Protection Point
DC150V


Rated PV Power
12V System
260W
390W
520W
650W
780W
24V System
520W
780W
1040W
1300W
1560W
36V System
780W
1170W
1560W
1950W
2340W
48V System
1040W
1560W
2080W
2600W
3120W
                          Charge Characteristics
Selectable Battery Types  (Default Gel Battery)
Sealed lead acid,Gel battery,Flooded
(Other types of the batteries also can be defined)
Charge Rated Current
20A
30A
40A
50A
60A
Charge Method
3-Stage:Constant Current(fast charging),
Constant Voltage,Floating Charge
       LOAD Characteristics
Load Voltage
The same as the battery voltage
Load Rated Current
40A
60A
Load Control Mode
ON/OFF mode,PV voltage control mode,Dual-time control mode,PV+Time control mode
Display & Communication
Display Mode
High definition LCD segment code backlight display
Communication Mode
8-pin RJ45 port/RS485/Support PC software monitoring/Support WiFi module to realize APP cloud monitoring
                                                                                        Other Parameters
Protection Function
Input-output over/under voltage protection,Prevention of connection reverse protection,battery shedding protection etc
Operation Temperature
-20℃~+50℃
Storage Temperature
-40℃~+75℃
IP(Ingress Protection)
IP21
Max.Connection Size
20mm²
30mm²
Net Weight(KG)
2.5
3.0
Gross Weight(KG)
3.5
4.0
Product Size(mm)
240*170*70
270*180*90
Packing Size(mm)
290*210*100
330*230*140

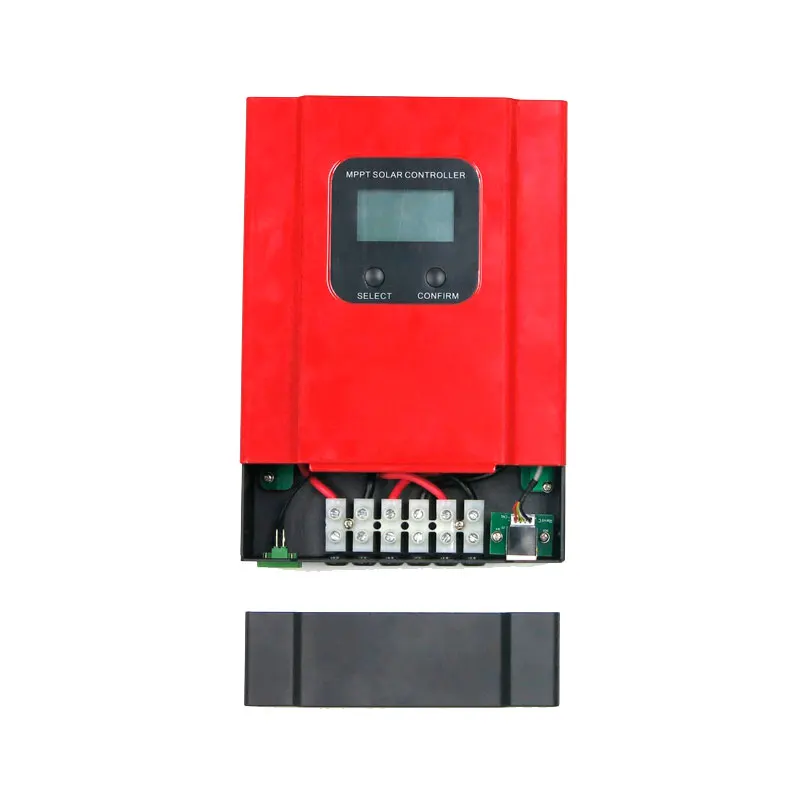

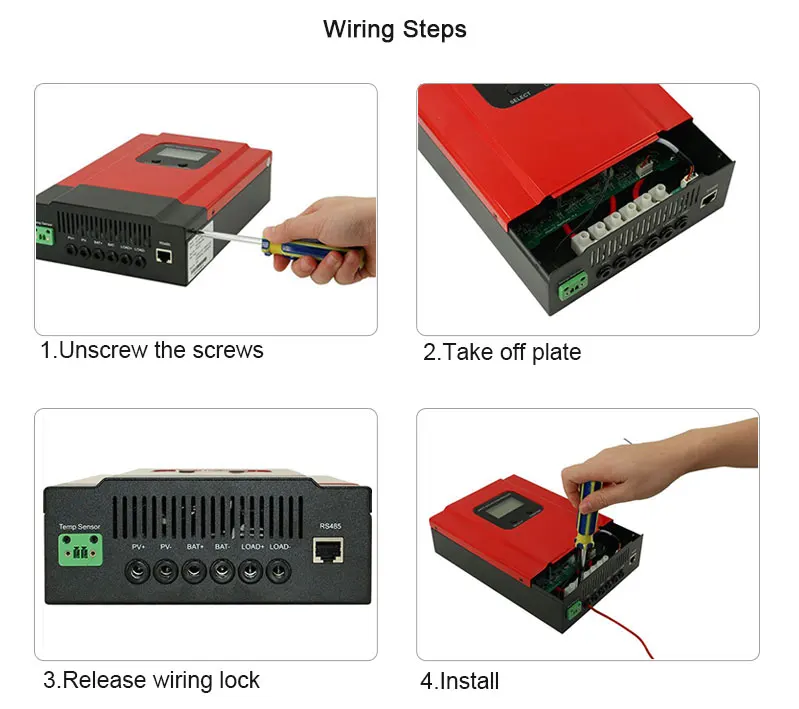

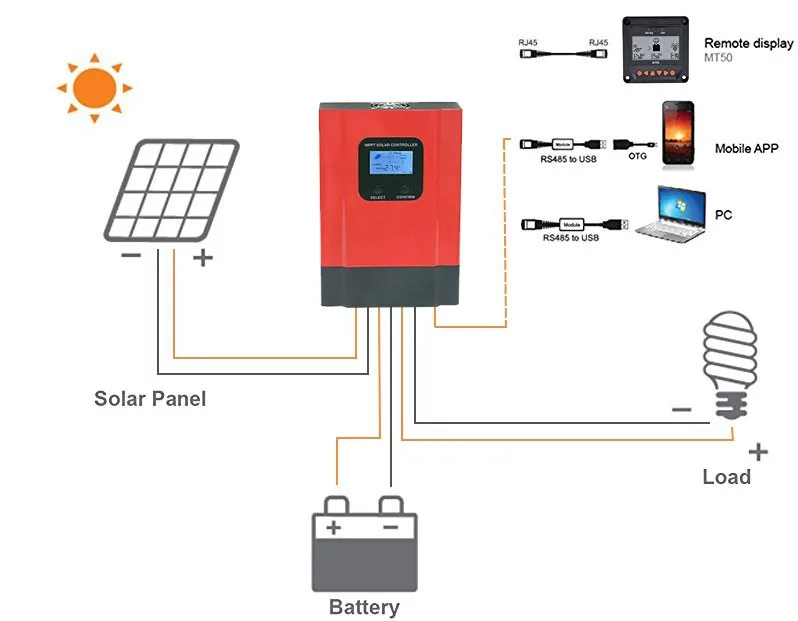

Wiring Steps

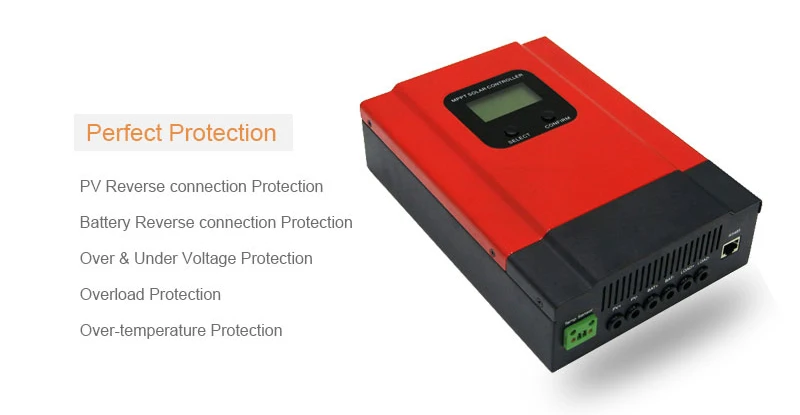

Protections

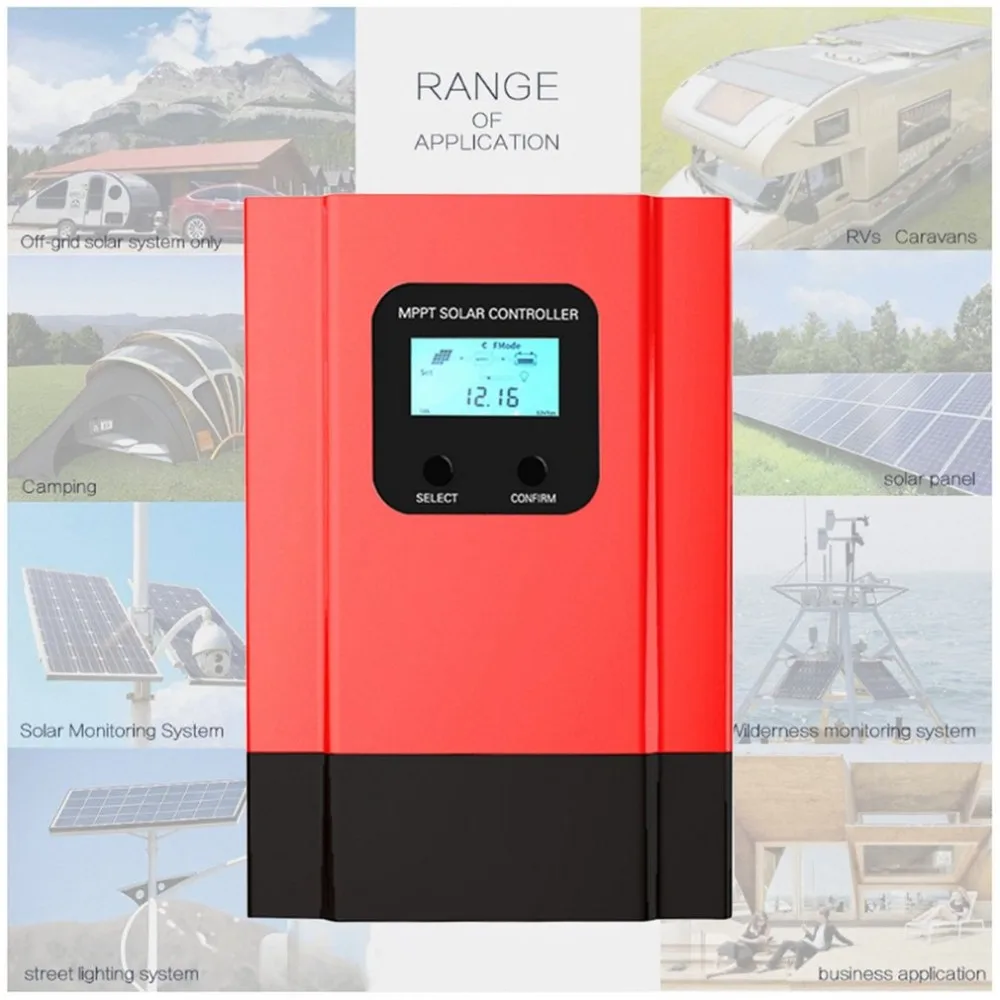

Applications
