Automatic Curved Roll Forming Machine Roof Sheet Metal Steel Bending Machine
Curving Machines
Technical Parameters
Size
1500*1000*1800mm
Weight
1000KGS
Voltage
380V/50HZ/3PH
Hydraulic Motor Power
5.5KW
Curved Thickness for Aluminum
0.6-1.0mm
Curved Thickness for Steel
0.6-0.8mm
Width of roofing to curve
325mm, 400mm, 433mm;
Working Speed
3-5m/min
Min. Convex Curved Radius for
Roofing
1m
Main usage

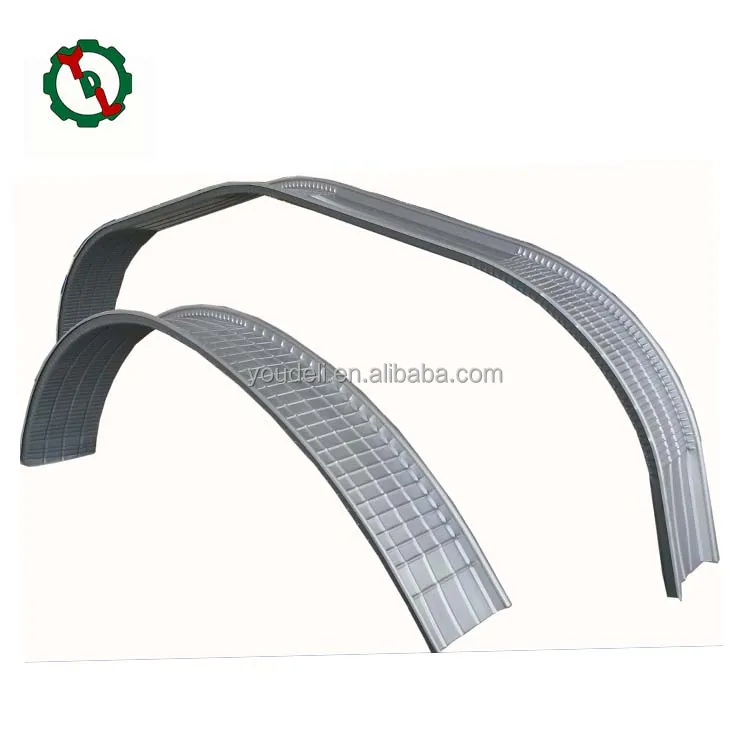

Curving the roofing with Crimping Convex shape
Painted Color
Blue or Customization
Main Accessories
No
Items
Quantity
Remarks
1
Main curving machine
1set
2
Main forming machine
Feeding device
1set
Hydraulic system
1set
Hydraulic Punching Die
1set
Up to customer
3
PLC control system with touch screen
1set

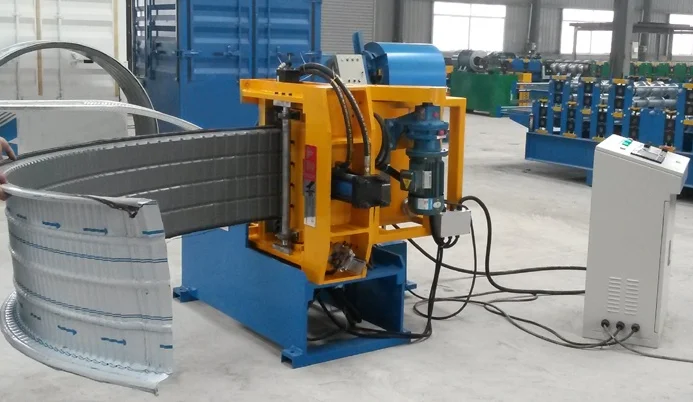

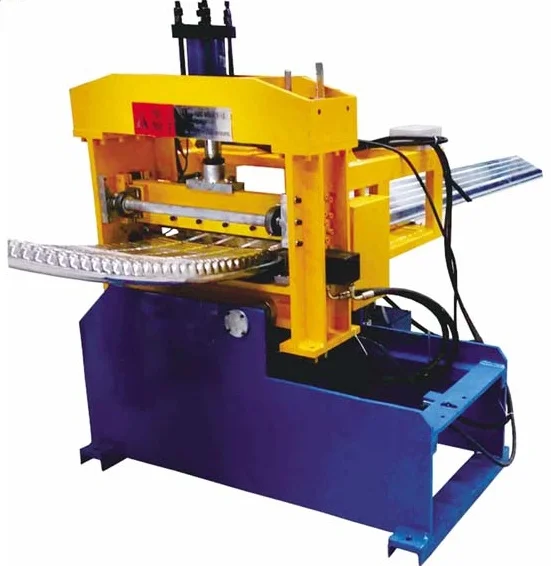

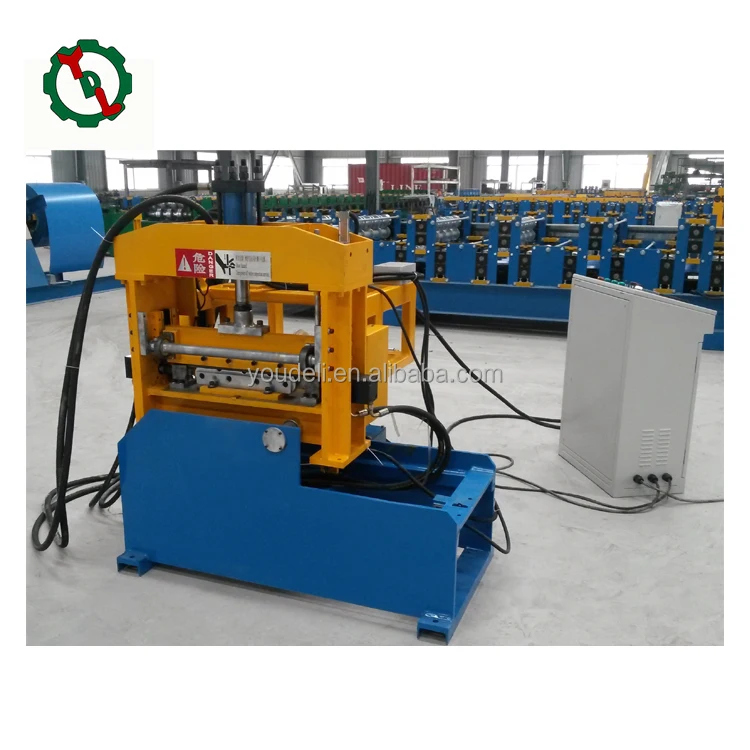

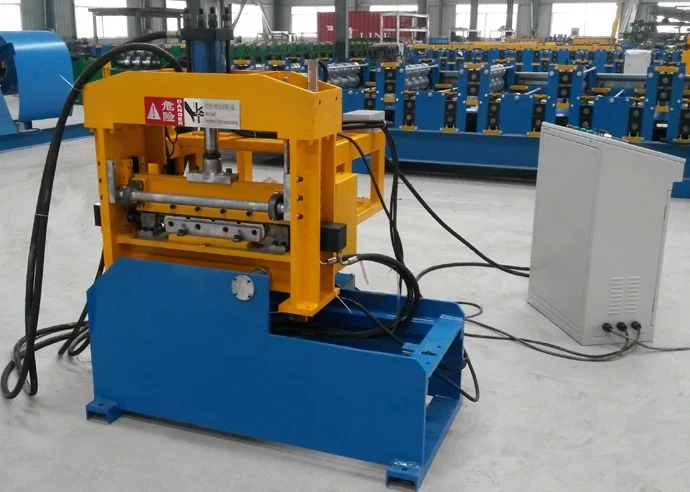

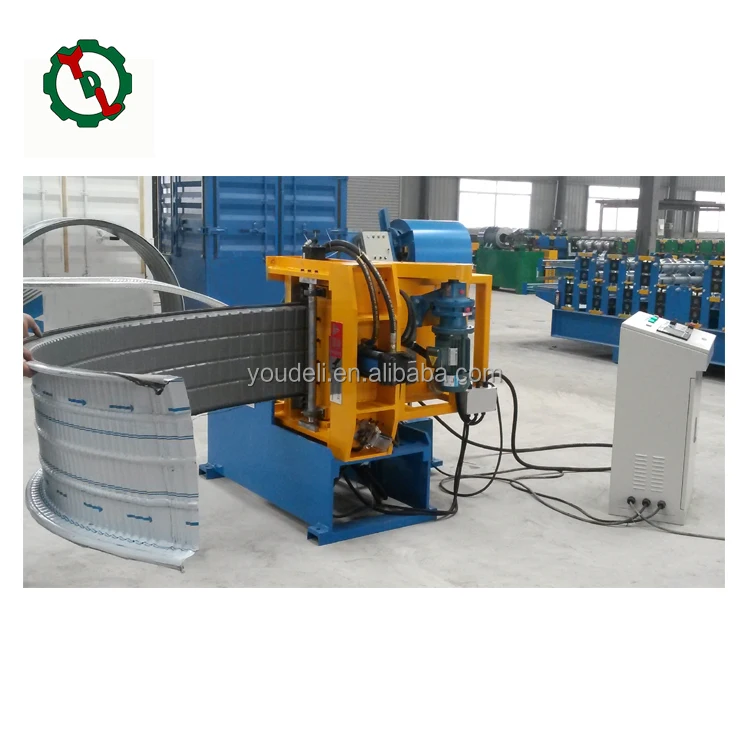

Product Show
FAQ
1. Are you the trade company or factory?
We are professional manufacturer for making cold metal roll forming machines.
2. How to visit your factory?
We can pick up you at the Xiamen International Airport or Xiamen North Railway Station
to our factory.
3. Do you provide customized machines?
Sure, we can design and make the machines as per your requests. We are the professional
designer and manufacturer for cold metal roll forming machines.
4. Does one machine can only produce one size?
Not exactly, it depends on the machine.
5. Is there quality control when manufacturing the machines?
Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.
6. Why your price is higher than others?
Because we insist on that every company must attach importance to the quality at first
place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.
7. What can you do if the machine broken?
The warranty period of our machines is one year.
If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines. Anyway we can promise to provide our technology supports for the whole life of our machines.
8. Do you have after technology support?
Yes, we are glad to give suggestions and also have skilled technicians available to service
machinery oversea if you needed.
9. Do you have oversea engineers?
Yes, we can supply not only good skilled technicians to oversea, and also provide
technology training.
10. Can you response for the transport of machines?
Yes, please check us your destination port or address, we have good services of
