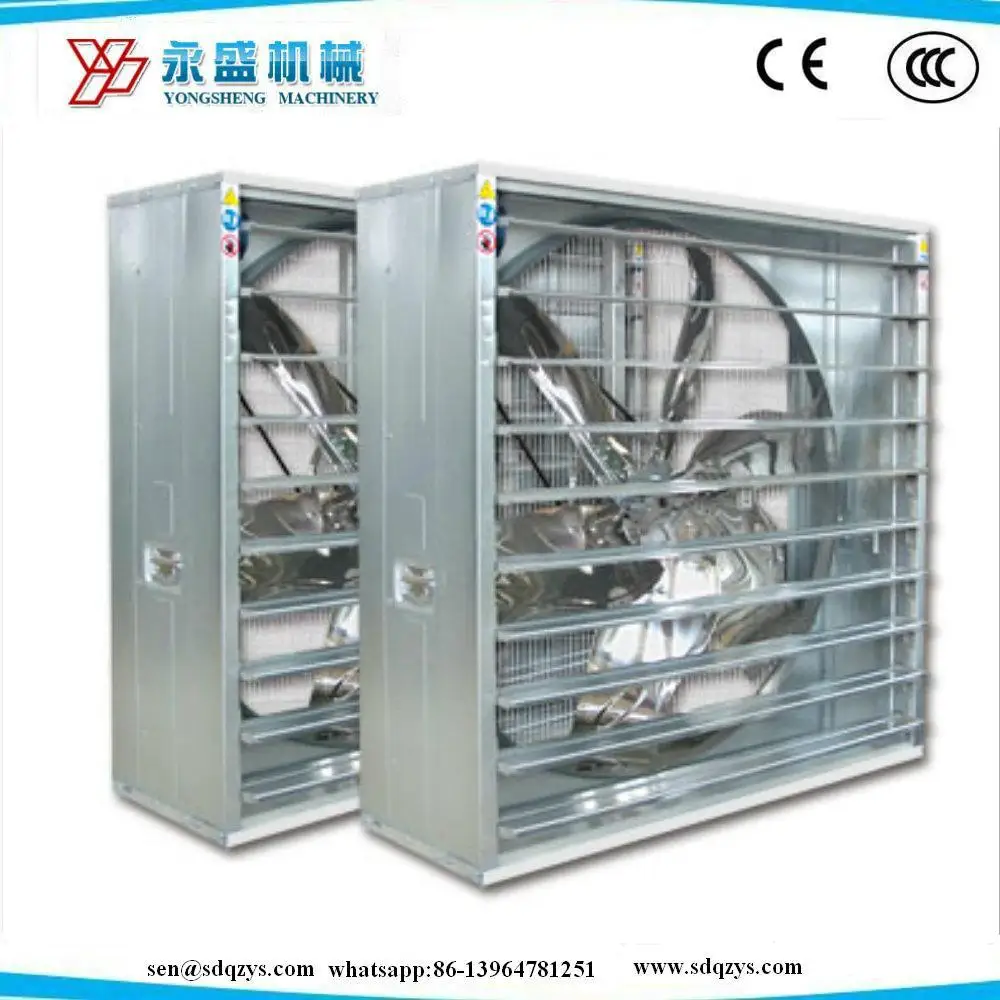

Exhaust Fan 54 Inch for Poultry Farm Shed

Product Overview

Description

54Inch Push-pull Exhaust Fan:

1.Centrifugal push-pull system can open the shutters completely, to ensure the lowest air resistance and large air volume. Centrifugal push-pull system is made of high quality nylon, high tensity and long service life.

2.The fasteners of the centrifugal push-pull system are all copper rivets,wear-resisting and no rust.

3.Stainless steel blades are made by punch forming,no deformation, no broken,elegant in appearance and durable. Fan blades are checked and adjusted by high-accuracy dynamic balance tester. Ensure the fan smooth running,lower vibration, less noise, and improve the fan life span.

4.Recessed type plastic handlers make the fan easy to carry, convenient to load. It will not affect fan installation and appearance.

5.Big fan pulley and AL flange are made of high strength aluminum-magnesium alloy by die-casting,light weight, high strength.

6.Fan belt can be customized to A or B type to meet different customers’ needs.

7.Imported Belt, no distortion and long work time,free maintain during the whole using period.

8.High efficiency and energy saving motor passed the 3C certificate, Protection class IP55, Insulation Grade F. Voltage and frequency can be customized.



Technical Parameter:

Fan size	1530mm×1530mm×450mm
Frame	Hot galvanized sheet, high anti-corrosive durability
Motor	Siemens motor, Other motor accordingly, CE certificate
Motor technical data	1.5 Kw     380 V     50 Hz   three phase  (Customized)
Motor RPM	1400r/min
Noise	≤70db
Blade diameter	φ1400 mm
Blade No	6
Blade material	Mirror face stainless steel, avoid dust accumulation
Blade RPM	440r/min
Blade instruction	Balance test after assembled which can assure steady running and even airflow.
Shutter	Centrifugal system opening, spring close system, shutter can be opened at 90 degree.
Belt	Mitsuboshi belt
Airflow	55800 m³/h



  Fan Detailed Info:

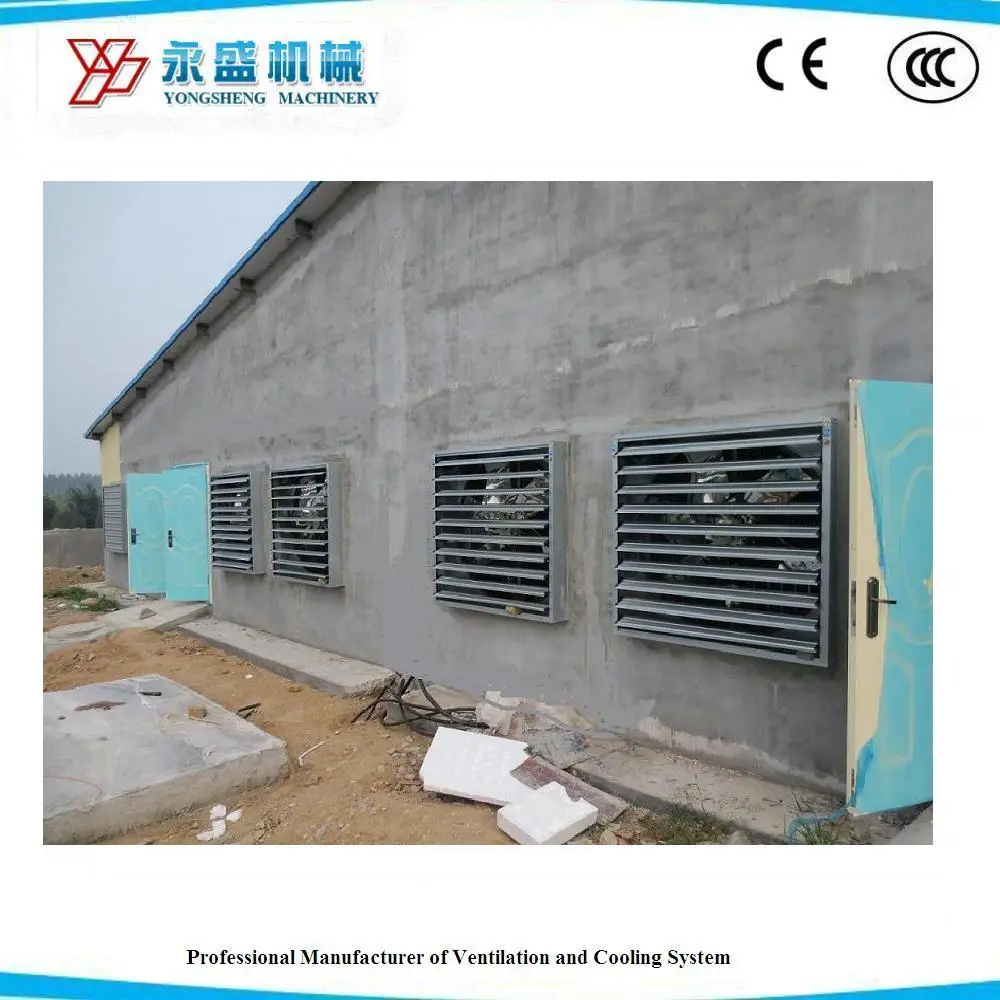

   Widely used in greenhouse,poultry farm and industry workshop.
