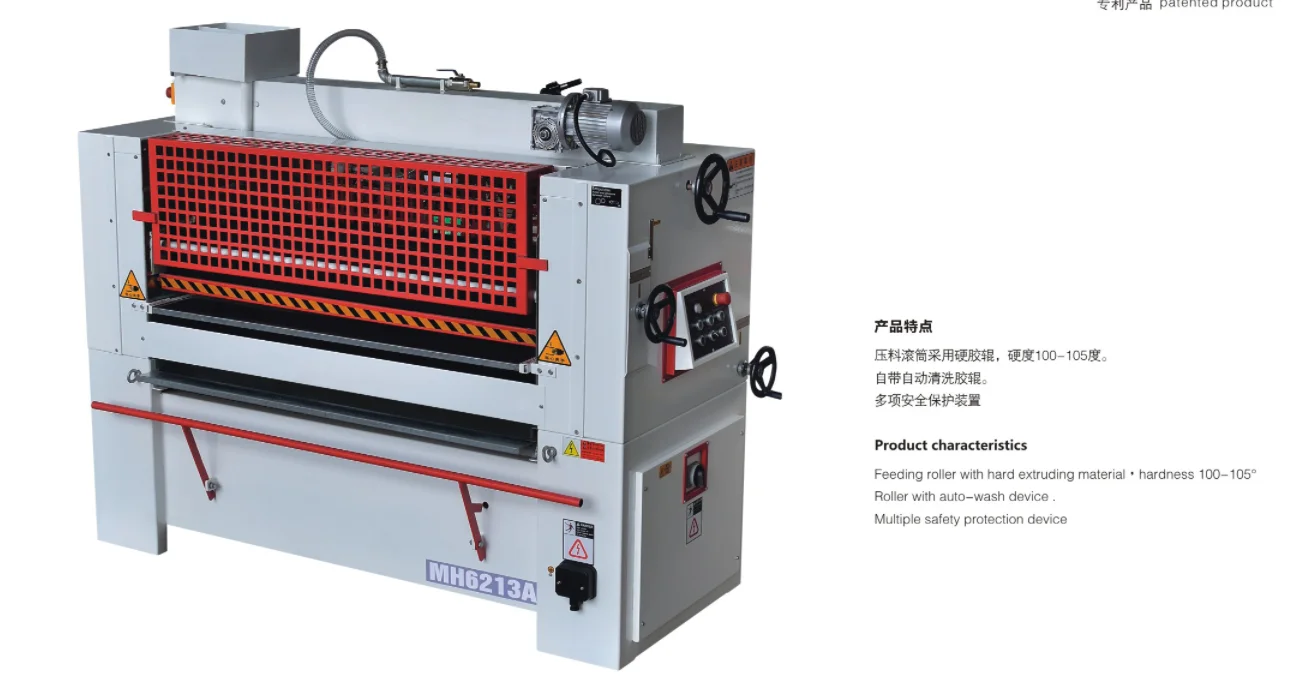

MH6113 Woodworking Double Side Plywood Glue Spreader Machine Gluing Machine

Product Overview

Description

       MH6113 Woodworking Double Side Plywood Glue Spreader Machine Gluing Machine





Model	MH6113
Max gluing width	1300mm
Gluing speed	33rpm
Max gluing thickness	100mm
Installed power	2.2kw
Overall size	2300*1250*1400mm
Weight	980kg

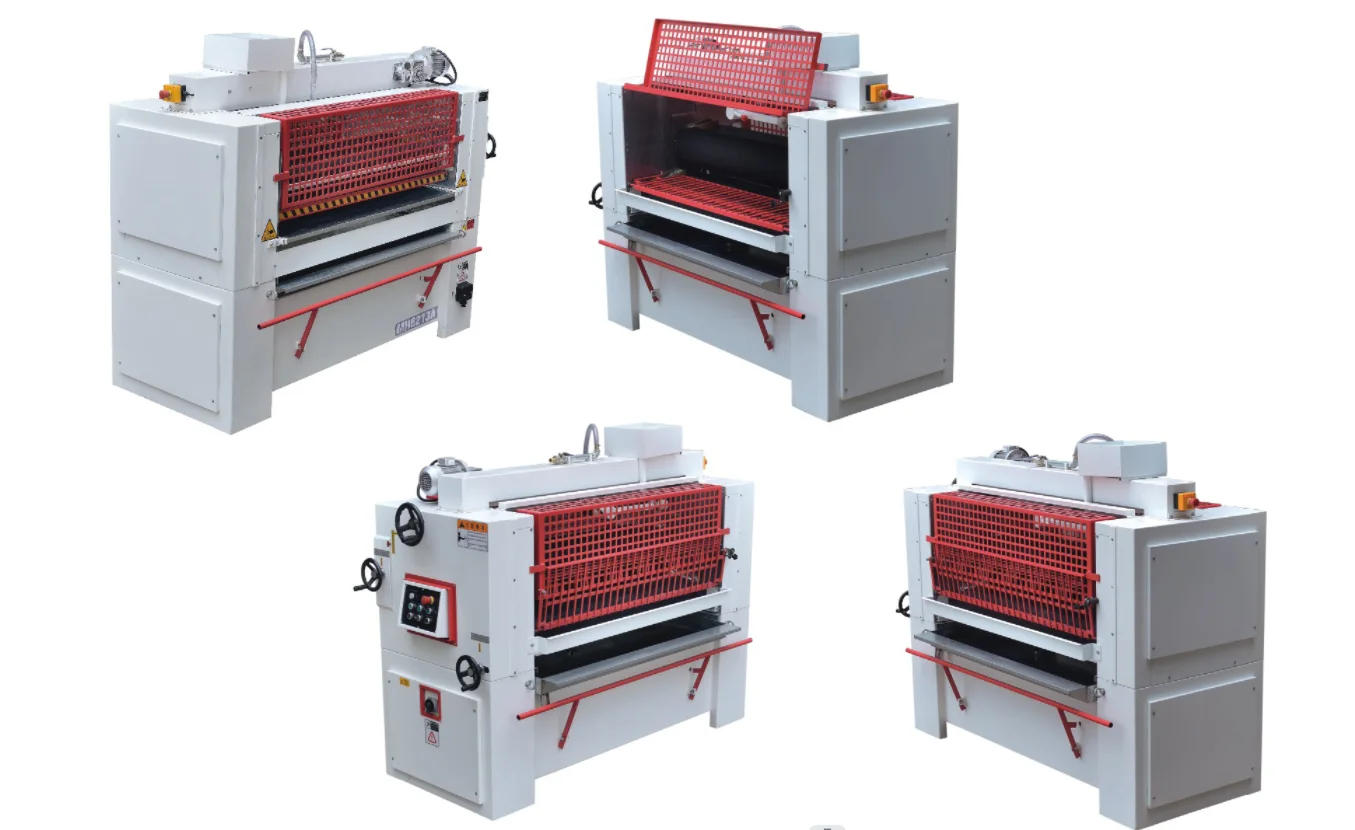

MH6213 Double Face Glue Spreader Machine

I. Main feature and using of the machine

 This machine is mainly use to adhibit Veneer,cabinetwork cord board ,corde board of furniture board and PVC or Double faces timber lamination .It can be use every kinds Gluewater which is no fierceness caustic .It is widely used in the veneer factory ,furniture manufacturer ,Acoustics device factory.

II,This machine just only can be used the no volatility, flammable gluewater.

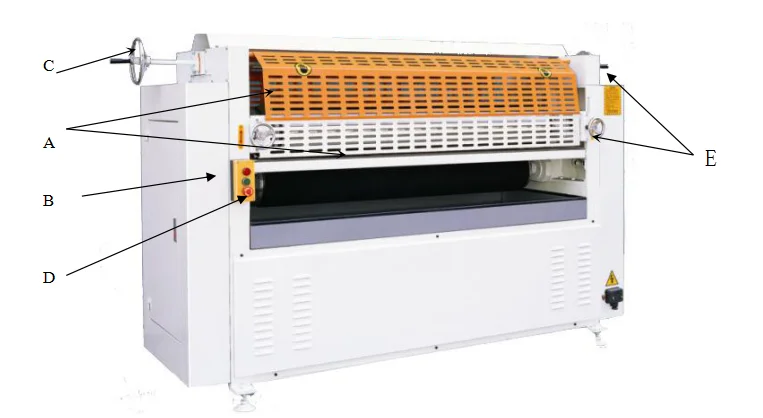

Overall & Structure of Machine



A—Safety protection section

B—body section

C—Workpiece thickness adjustable wheel

D—Electrical section

E—Adjustable wheel of glue quantity



Main Structure of Machine





III,Gluing Section

The machine is compose of Gluing section , Workpiece thickness adjustable wheel, Electrical section, Driving section ,Gluing section ,body section and Safety protection section.

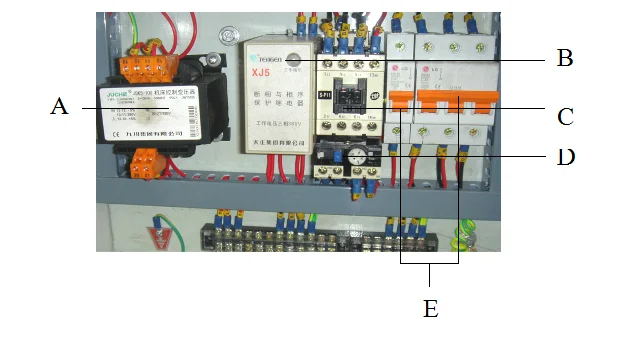

IV. Electrical Section

A——Control transformer

B——break phase and phase sequence protection relay

C——Roller start AC connector

D——Hot relay :To protect the motor

E——Breaker ;To protect the short circuit

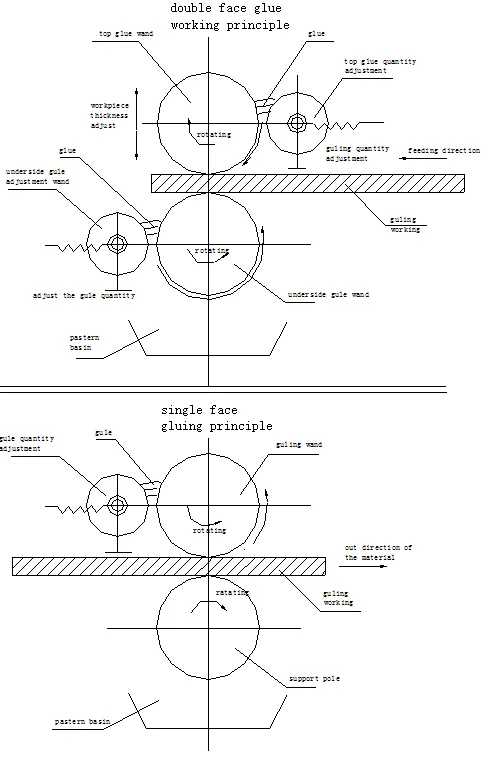

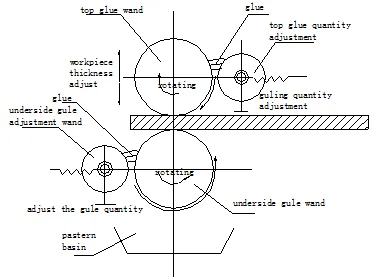

V,Gluing Working Principle
