Co2 Laser Cutting Machine Control Board Laser Engraver Controller RDC6442G

Product Overview

Description

          Co2 Laser  Cutting  Machine Control Board  Laser Engraver Controller RDC6442G

RDC6442G system is the lastest laser engraving & cutting control  system has better stable hardware with antistatic, resistance to high pressure. Based on 3.5-inch colorfull screen human-machine operation sysytem, with better operation interface and stronger functions, exellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable laser power control interface, strong comopatible U disk drive program, multiple ways gerneral/dedicated IO control.

Functions:

•


  The controller has better resistance to high voltage and antistatic ability





•


  One-way 24V power supply(compatible with 36V, but not recommended)





•


  Support all brands and capacities of U disks, quick and strong compatible copy ability





•


  256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size





•


   Capable of self-checking defective track, can format memory, good in fault tolerance





•


  10/100M Ethernet + USB2.0 communication mode for optional





•


  Multi-way general large-current IO, convenient for function extension





•


  Display processing path, file preview





•


  Display processing progress bar





•


  Communication mode can be chosen automatically





•


  The max. four-axis stepper/servo motor open-loop control





•


  Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface





•


  Soft/hard limit coordinates protection for optional





•


  Support linear/circular arc/B-spline interpolation function





•


  Online update mainboard program, convenient for maintenance and functions customization.





•


  Auto-feeding, up and down, rotating engraving,left-right pushing plate, etc.




  Support feeding line by line, slope engraving function





•


  Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)





•


  Support machines backlash compensation function





•


  Increase Z axis linkage function





•


  System Power-on resetting or not resetting for optional





•


  Support multiple positioning points logic





•


  All manufacturer/user parameters can be backup and restored





•


  Support double laser heads automatic layout and multiple virtual arrays automatic layout, leftover material function

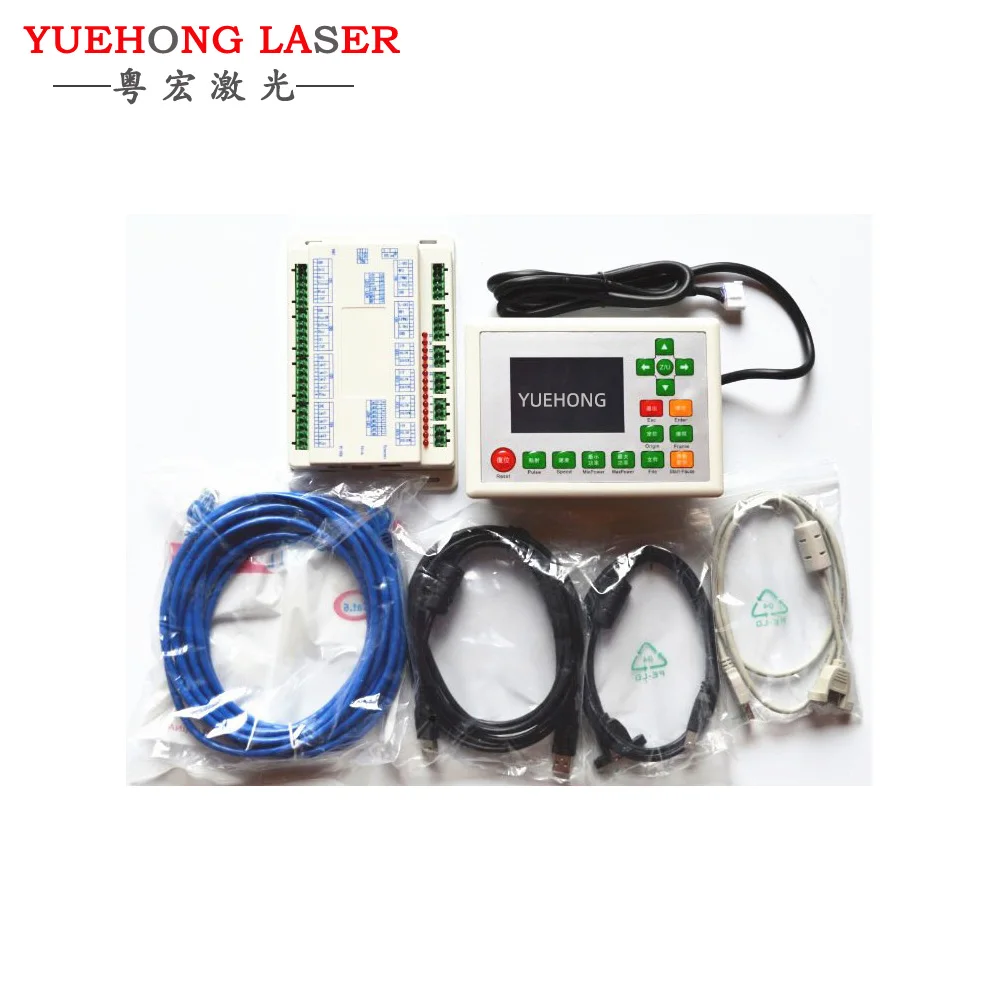

Application area: laser cutting, laser engraving, laser welding etc. RDC6442G laser controller photo:



1.1 Laser engraving cutting system introduction

Laser engraving cutting system through a computer numerical control machine tools to achieve effective control, according to the user’s different requirements of the completion of processing tasks.

       The system including control board and control panel, and supporting software. This manual describes how to use the software to complete the task of laser processing.( Motherboard wiring and control panel operations, see the accompanying manual and control panel wiring board operating instructions)

1.2 Software supported file formats

Vector format:dxf, ai, plt, dst, dsb…etc.

Bitmap format:bmp,jpg,gif,png,mng,…etc.
