Dry food fish cocoa bean scale bone grinding mill machine
- Category: >>>
- Supplier: Taizhou Telang Machinery Equipment Co. Ltd.
Share on (60729202409):
Product Overview
Description
Product Description

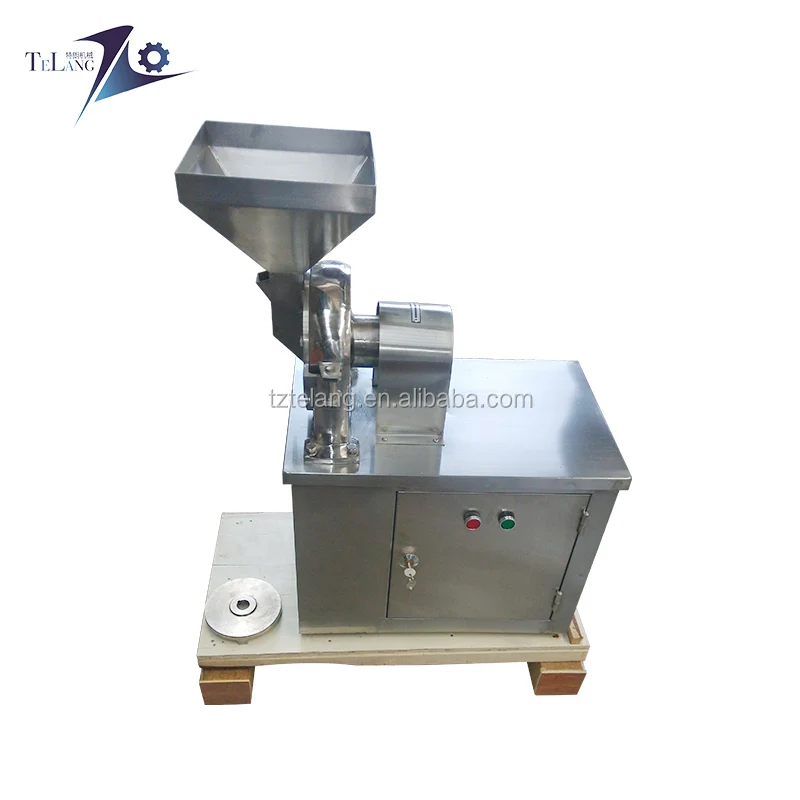

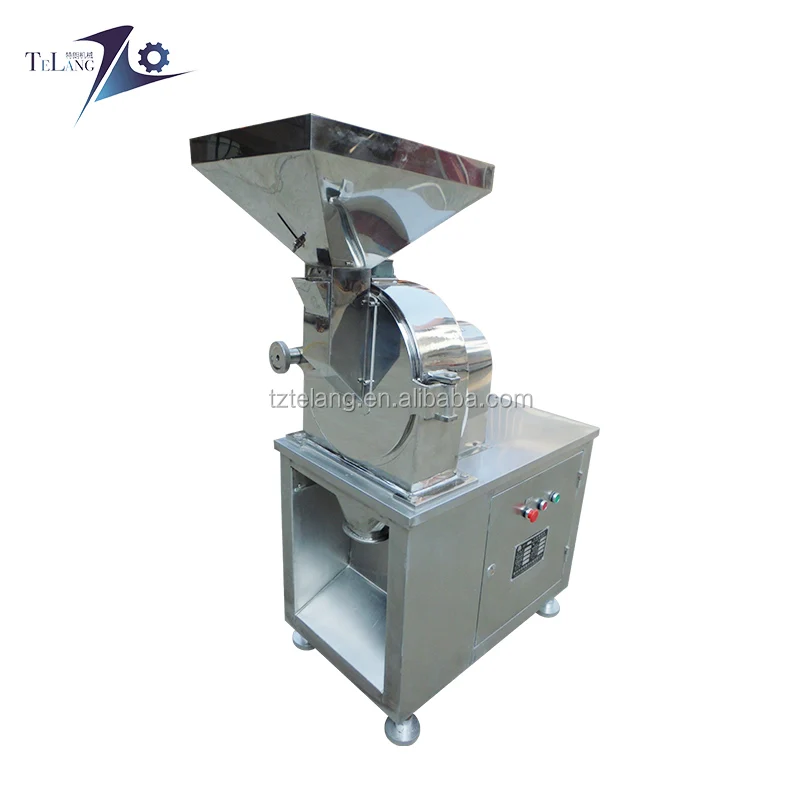

Dry food fish cocoa bean scale bone grinding mill machine
This kind of powder grinding machine features simple structure, firm and stable running, nice grinding milling effect, has wide application for pulverizing different kinds of material into different size of powder, by changing diverse grinding part.
Working Mode:
The high speed relative motion between moving fluted disc make the material in chamber cutted, crushed, impacted under high strengh friction, then the fine powder come out through discharge opening. Different size of powder could be made by change the various size of sieve screen.
Feature of SF model:
- simple structure, easy operation and convenient maintenance
- smooth surface inside the crushing chamber, ensure no residual or powder piled up inside.
- different size of powder could be made just by simple changing various size of sieve screen.
- water cooling and propeller can be setted for special grinding material
Technical data:
Model | SF130 | SF180 | SF250 | SF320 | SF420 | SF520 |
Capacity(kg/h) | 2-5kg/h | 10-30kg/h | 50-250kg/h | 80-300kg/h | 200-400kg/h | 300-800kg/h |
Speed of main axis (r/min) | 4200 | 4200 | 4200 | 4200 | 4200 | 3200 |
Working noise (db) | <85 | <85 | <85 | <85 | <85 | <85 |
Fineness of powder (mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Power of motor(KW ) | 1.5 | 2.2 | 5.5 | 7.5 | 11 | 18.5 |
Overall size(mm) | 400*700*800 | 400*700*880 | 630*490*1160 | 810*500*1230 | 700*500*1500 | 1170*750*1800 |
Weight(kg) | 75.00kgs | 85.00kgs | 155.00kgs | 208kgs | 258kgs | 500kgs |

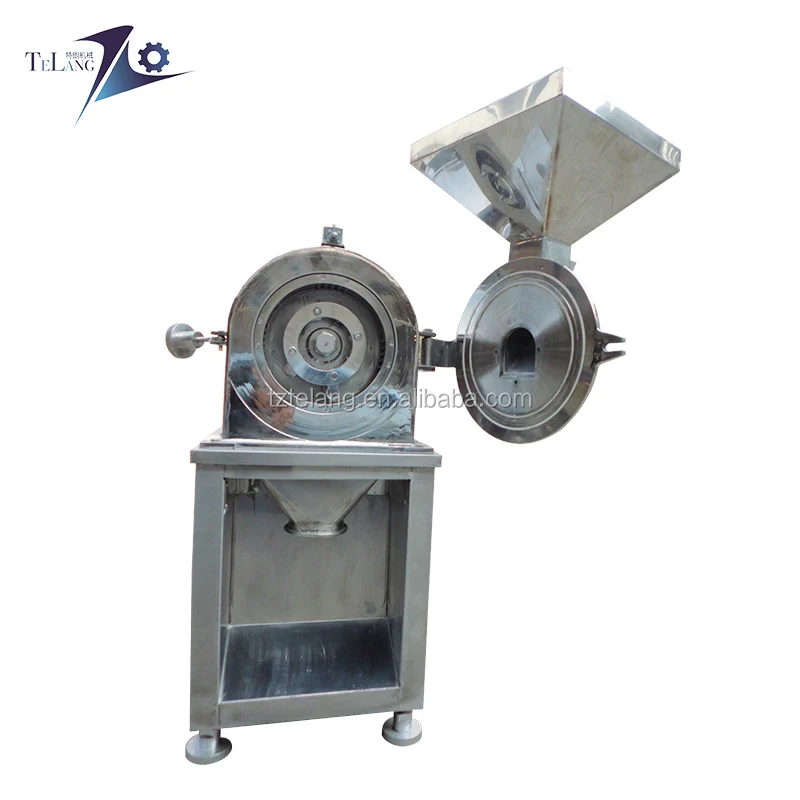

Product Show
Different Grinding Parts for choice :
Machine Application :

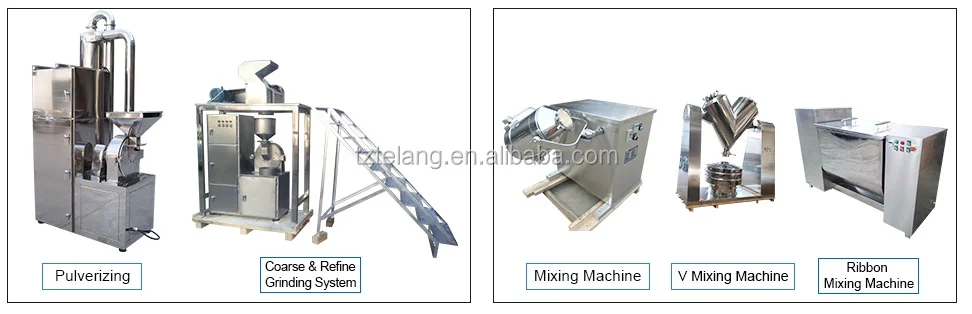

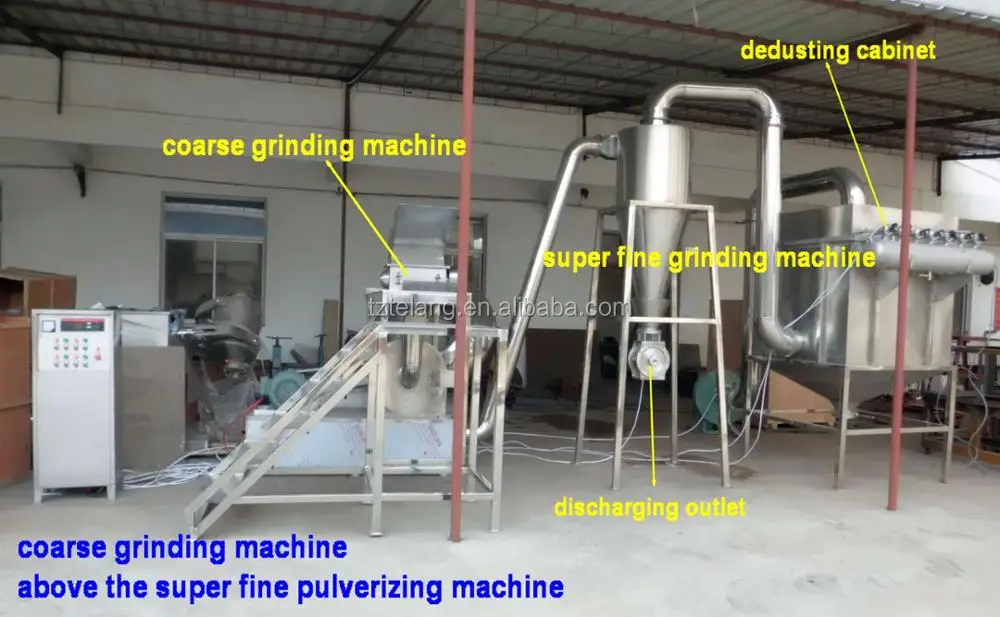

Machine Related
Package & Delivery
♦ Package: wrapped with plastic film, packed inside the wooden case, and fixed with sea-worthy pallet ♦ Delivery: By sea / air / courier would be suppored according to buyer's location, just tell us where you wanna send and when you wanna get, the best solution would be suggested. |
Company Profile
FAQ
1. How to choose proper machine / equipment .
Please reply us the following items,
-what the product like you would produce, size, shape, etc.
- raw material
- the production capacity, how much kilogram per hour or per day
- power supply, such as Voltage, Hz, and Phase
Our technical engineer would suggest the proper model with necssary information for your reference. And the production line with workshop projection design could also be supplied as per your inquiry.
2. Quality Assurance
· We support SAMPLE PRE-PROCESSING in machine
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you pay visiting to our workshop, which would be well arranged and confirmed with you in email
3. After sale service.
We supply operation training for workers, and sport installation would be supplied for production line and workshop design.
Regular inquiry in the email would be supplied for machine running and usual maintenance.
