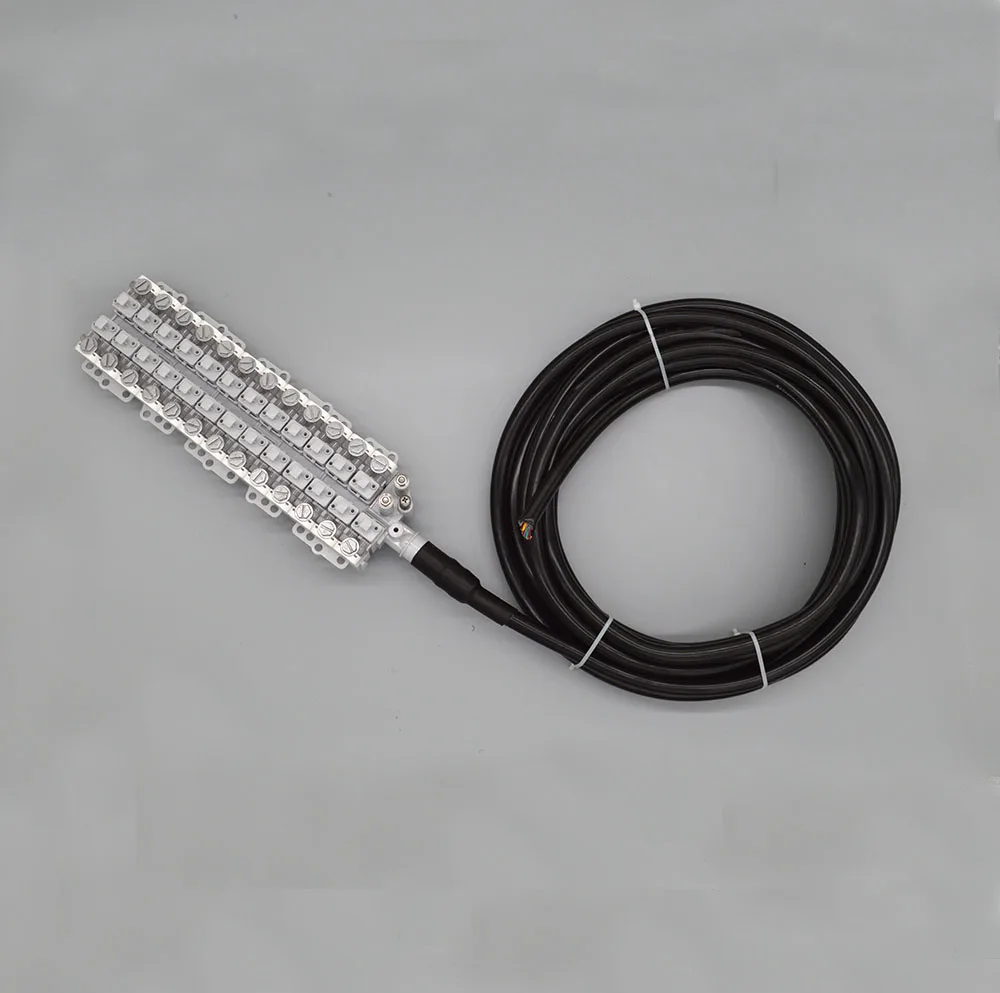

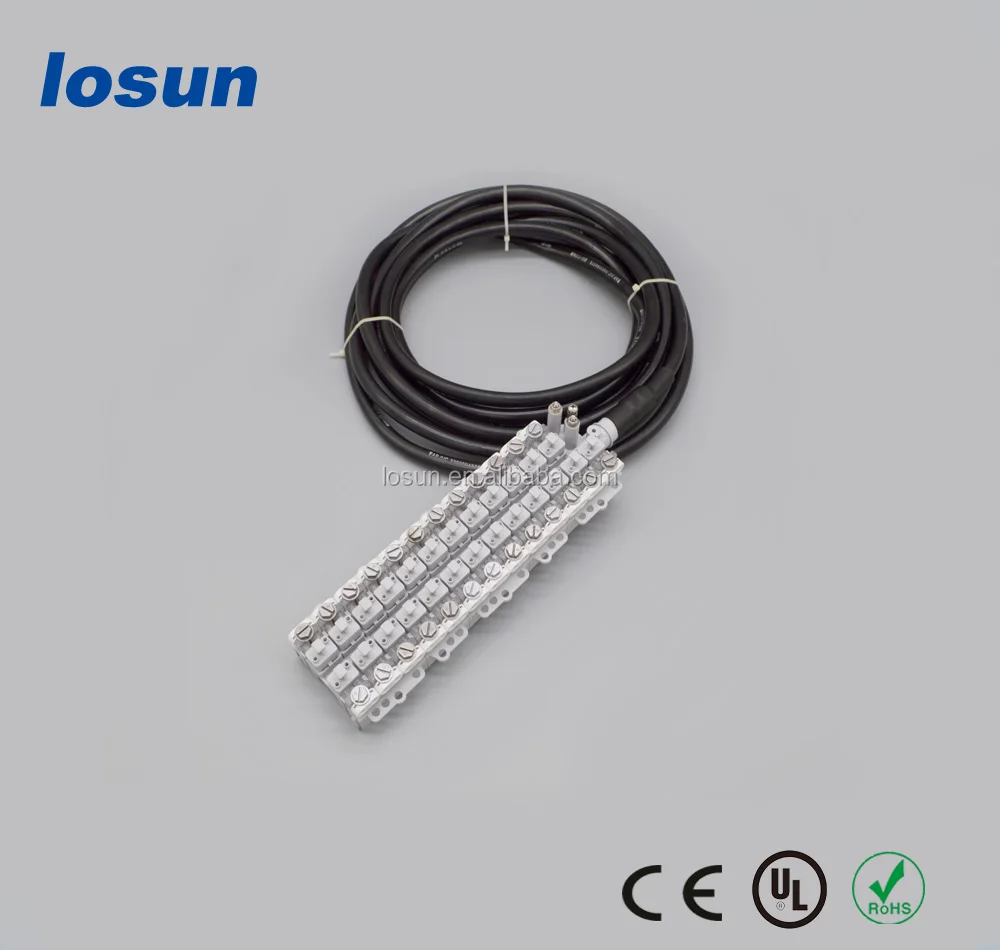

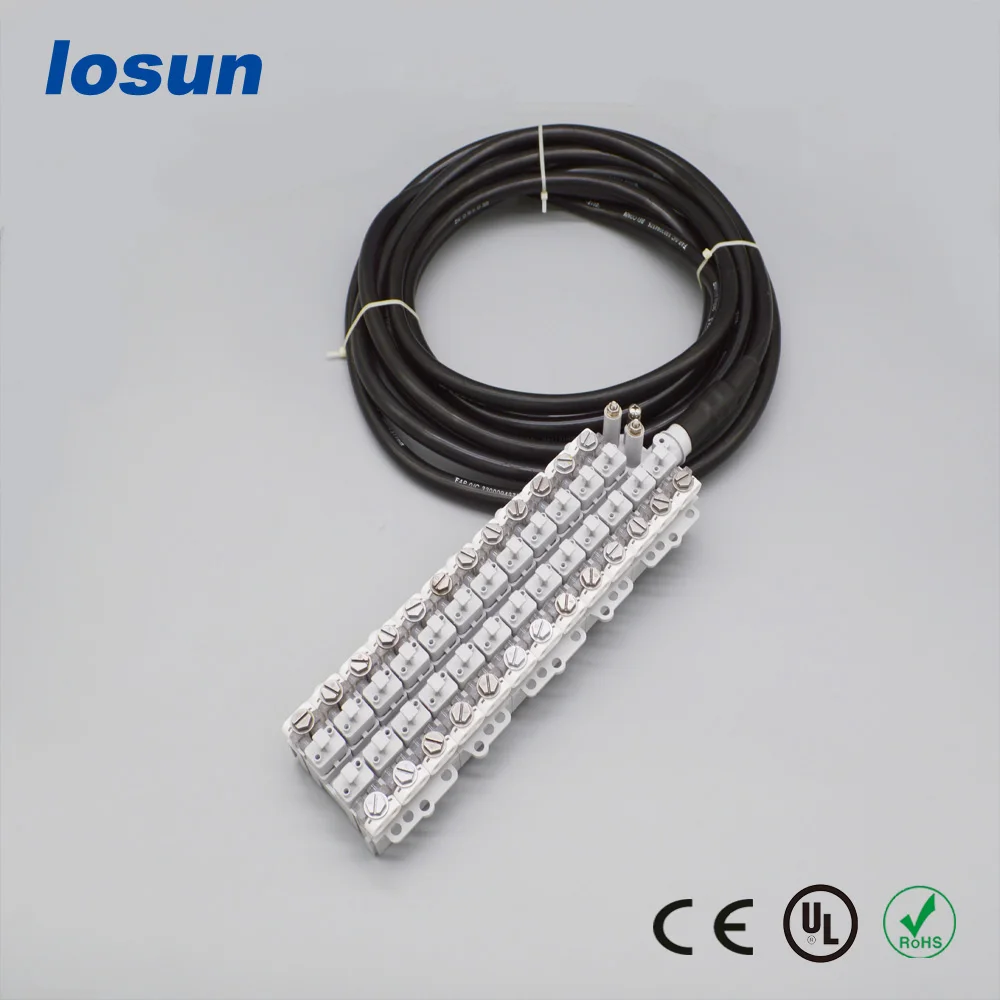

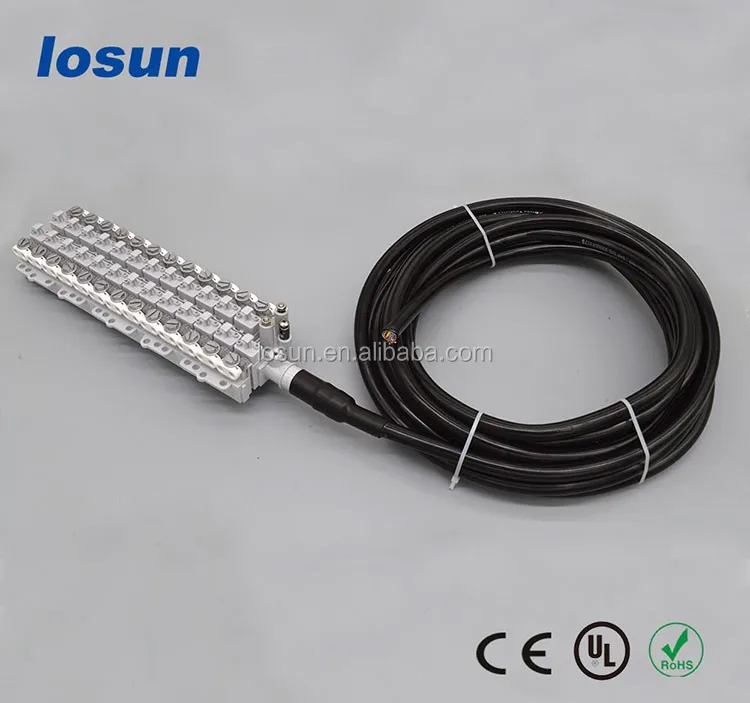

stub block terminal box

Product Overview

Description

Product Discription





stub block terminal box



Detailed Product Description

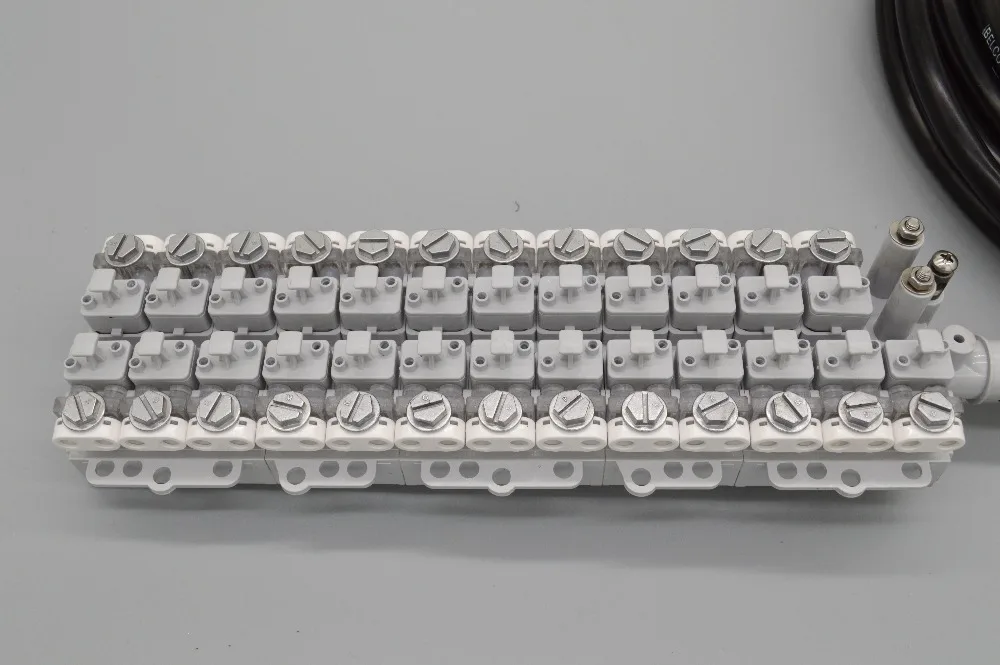

1. 10/20 pairs terminal box

2. Contain 10/20 pairs terminal blocks

3. Without protectors

4. 2.8m cables

5. Test access for pins



Contact characteristics
Drop wire connector
Gauge range	0.4 to 1.05 mm Ø
Insulation diameter	5 mm max. Ø
Pair connector
Gauge range	0.4 to 1.05 mm Ø
Insulation diameter	3 mm max. Ø





Insulation resistance
Dry atmosphere	> 1012Ω
Damp atmosphere (ASTM D618)	> 1012Ω
Salt fog (ASTM B117)	> 1010Ω
Immersion in water (15 days in 3 % NaCl solution)	> 1010Ω
Contact resistance
Rmaterial + Rbridge contacts Rwire contacts	< 10 mΩ
Increase in contact resistance
After climatic tests	< 2.5 mΩ
After 50 reinsertions	< 2.5 mΩ
Dielectric strength	> 3.000 Vdc for 1 minute
Mechanical characteristics
Pair/drop wire housing screw	Special passivated direct +lacquered Zamac alloy
Drop wire housing body	Transparent polycarbonate
Body	Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Insertion contacts	Tinned phosphor bronze
Ground contacts	Cu - Zn - Ni - Ag alloy
Continuity contacts	Tinned hard brass
Lower sealant	Polymeric resin
Upper cable sealant	Silicone fluid
Pair/drop wire bearing cover	Polycarbonate
Plug-in module body	Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Plug-in module sealant	Gel
“O”-ring	EPDM
Spring	Stainless steel
Cable/drop wire membrane	Thermoplastic rubber



Packing & Delivery







Delivery:



1.Most samples: 2~3 days.

2.wholesales orders:15~20 days.

3.OEM orders:30~40 days after confirming the samples and receiving payments.

FAQ

Can I have my own logo on the product ?

Yes,you can have your logo on the products with a required order quantity.Please just send the us the information of your logo.

Do you have CE/ROHS/UL certificates of your products?

Yes ,the goods with these certificates approved to be of great quality.

What makes your company different?

1)LOSUN’s service:for a quick ,customer’s normal quote sent to us will be replied in 24hours.

2)LOSUN’s factory :we have our own factory with effective production department rather than just a commercial company .So ,we will carefully deal with every problem through all the process .
