3/5/7 Layer Corrugated Cardboard Production Line

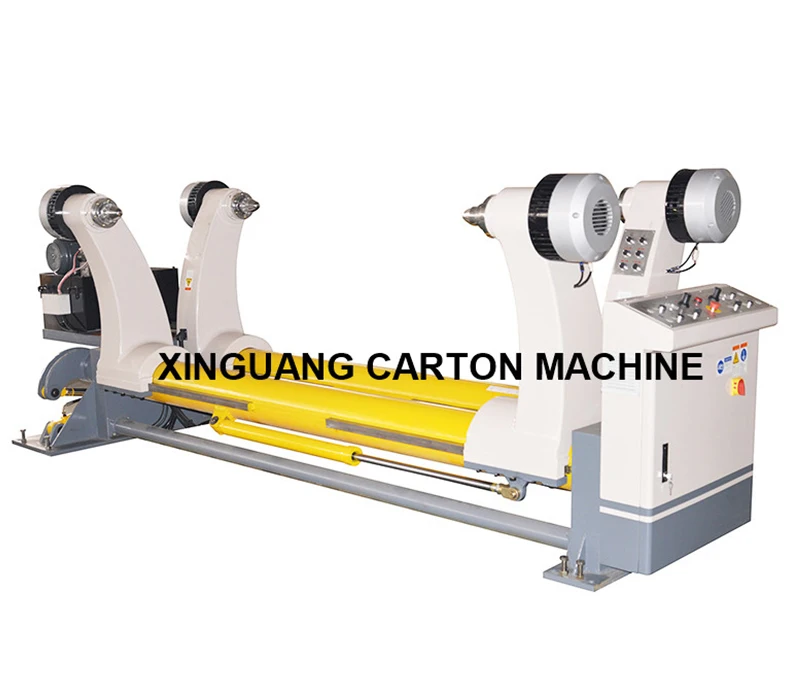

Equipment name: Hydraulic shaftless mill roll stand

Specification: ZJ-V6

Structural feature: Spindle ¢ 240mm, hyperbolic heavy rocker,Tooth type paper clip , Ventilated disc type multi point brake , hydraulic drive lifting, panning left and right on the middle.Pneumatic push paper.

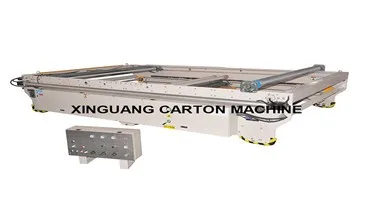

Equipment name: Automatic splicer

Specification: JZJ

Structural feature: Automatic splicer keep corrugating cardboard assembly line uninterrupted work，reduce paper consumption，greatly improve productivity.

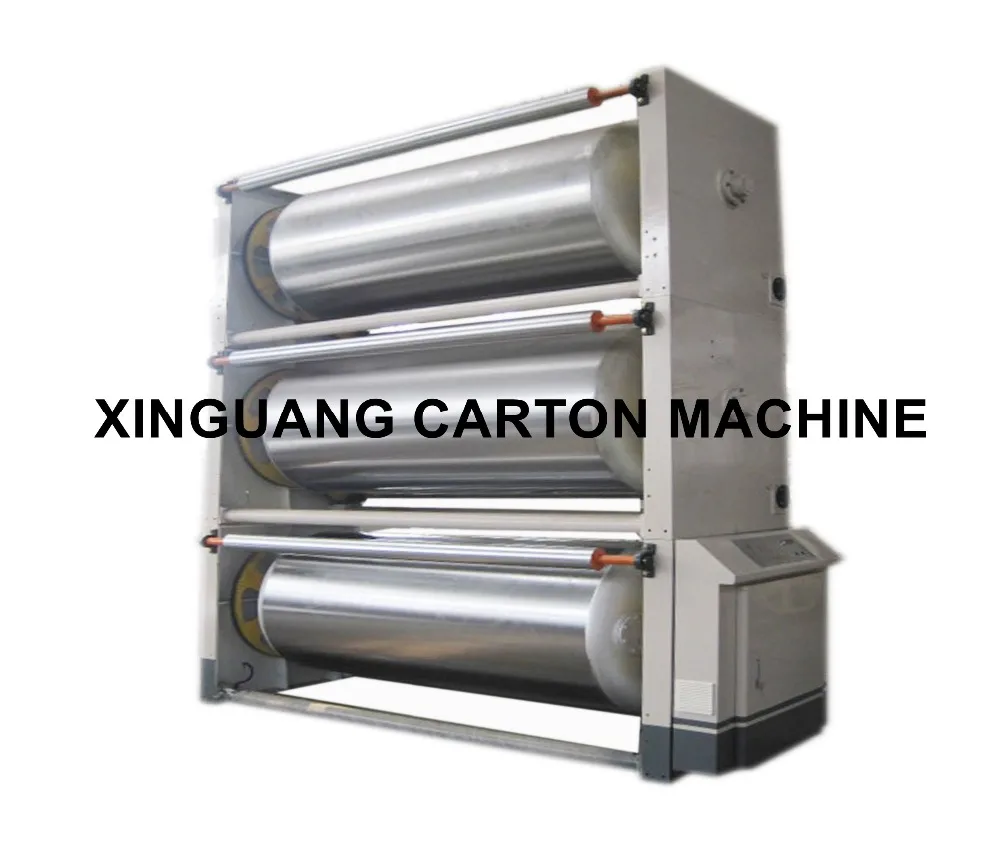

Equipment name: Preheater

Specification: R06B/R09B/R10B

Structural feature: Roller ￠600/900/1000mm，including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.With the automatic speed adjustment angle, touch screen display wrap angle, parking automatic zero return easy to wear paper.

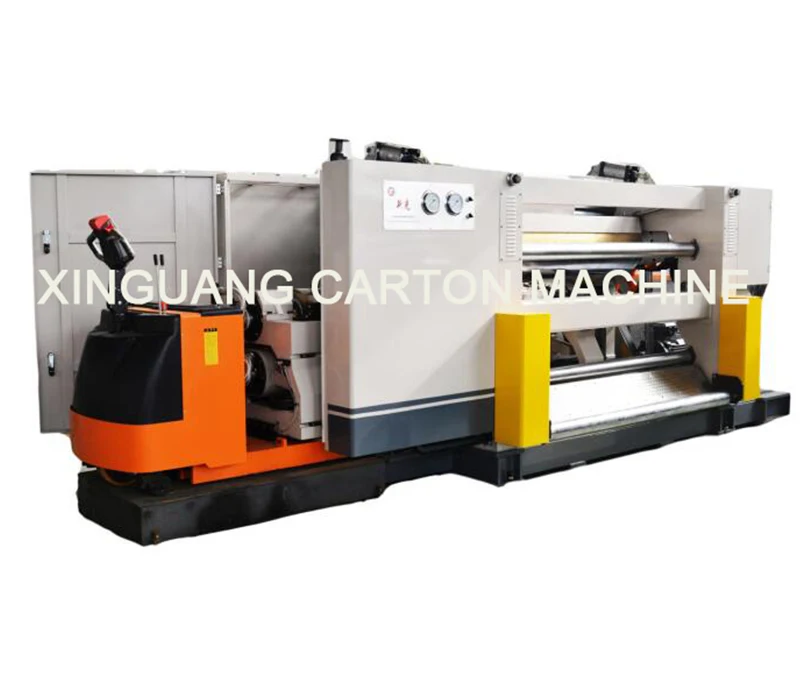

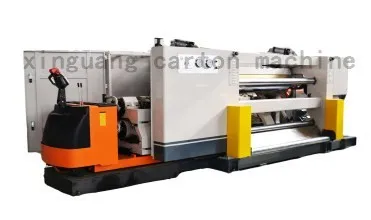

Equipment name: Fingerless type single facer

Specification: SF-405C

Structural feature: Main corrugating roller ￠405mm，corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.Adopt maintenance-free airbag pressurize,PLC automatic control glue, touch screen display HMI, Breaks automatic parking relief.

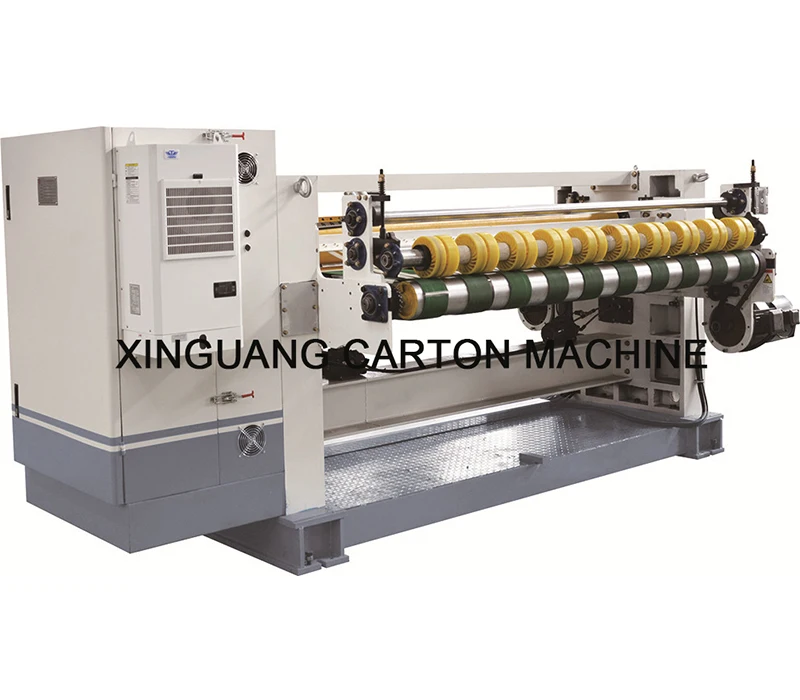

Equipment name: NC thin blade slitter scorer

Specification: NCBD

Structural feature: Tungsten alloy steel, five knives eight lines，zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.

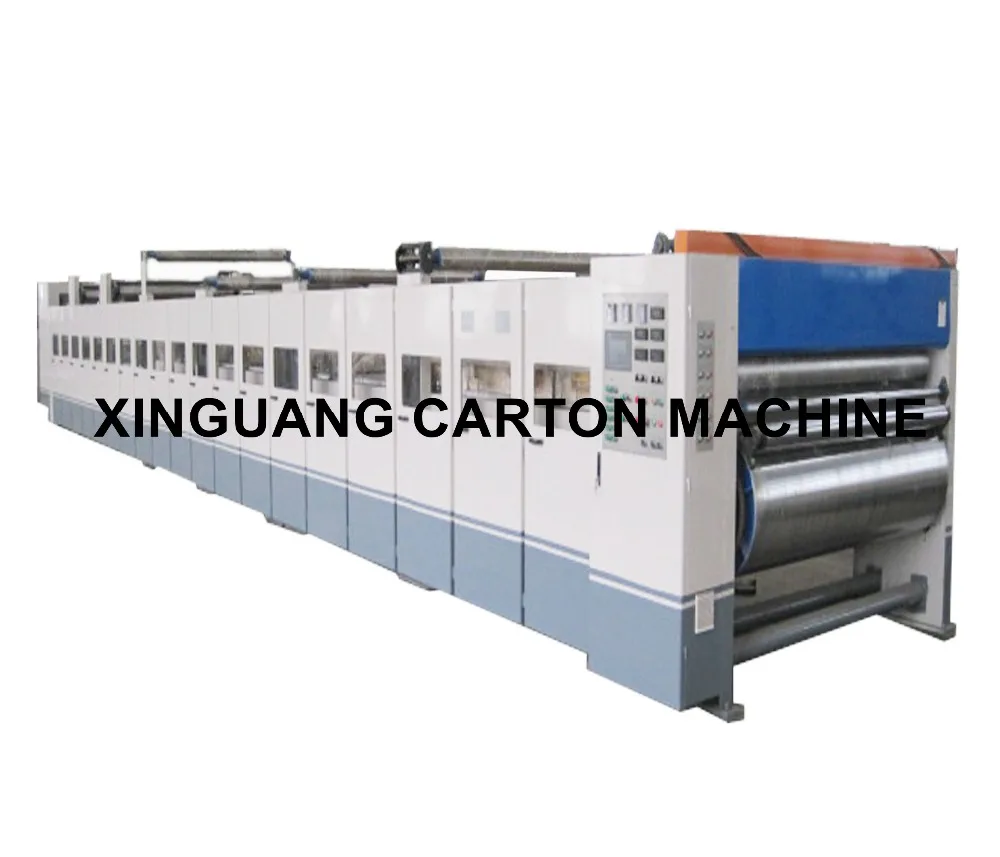

Equipment name: Double facer

Specification: SM-E

Structural feature: Rack 400 mm GB channel，Chrome hot plate600 mm *20pieces，entrance ¢ 400mm hot cylinder of top paper speed raised temperature，16groups whole contact plate design construction.PLC automatic control press plate.Up and down with automatic correction, temperature display, frequency motor.
