Product Description
Specifications
GAVR 8A universal ac regulator avr GAVR-8A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.
Products Name | 8A AVR | ||
Sensing/Power input | Voltage | 110/220/400Vac,1 phase ,2wires | |
Frequency | 50/60 Hz jumper selectable | ||
Output | Voltage | Max 95Vdc,240Vac input | |
Current | Continuous 8A | ||
Apply for | Output | 100KW below generator | |
Detailed Images
MODEL | SENSING INPUT | POWER INPUT | MAGNETIC FIELD OUTPUT | ||
Voltage | Voltage | Voltage | Current | ||
GAVR-8A | 110/220/400VAC | 95-270VAC,1 phase，2 wire | max 95VDC，240VAC | Continuous 8A | |
GAVR-12A | 190-240VAC | 180~240VAC, 1phase 2wire | 95VDC | Continuous 12A | |
GAVR-15A | 220/400VAC | 170-270VAC,1 phase，2 wire | max 95VDC，240VAC | Continuous 15A | |
GAVR-15B | |||||
GAVR-20A | 220/400VAC | 170-270VAC,1 phase，2 wire | max 95VDC，240VAC | Continuous 20A | |
GAVR-20B | |||||
GAVR 25A | 220/400VAC | 180-240VAC, 1 Phase 2 wire | max 90V dc ，240VAC | Continuous 15A | |
GAVR-35A | 220VAC | 170-270VAC,1 phase，2 wire | max 95VDC，240VAC | Continuous 35A | |
GAVR-50A | 220VAC | 90-180VAC,1 phase，2 wire | max 95VDC，240VAC | Continuous 50A | |
Other Products
Gasoline Type AVRS | ||||||||
Kipor type AVRS | ||||||||
Brushless AVRs for Different type of alternators | ||||||||
More Products
Our Company
Why Choose Us
Real Transactions
Five Stars Comments always. we will use our best to support every customer!
Shipping Policy Delivery Time
USA, Canada ,Australia, West and North Europe 4-7 Business Days, Other country 5-8 Business Days
Shipping address:Please, make sure to provide us with correct, precise, and detailed shipping Address.

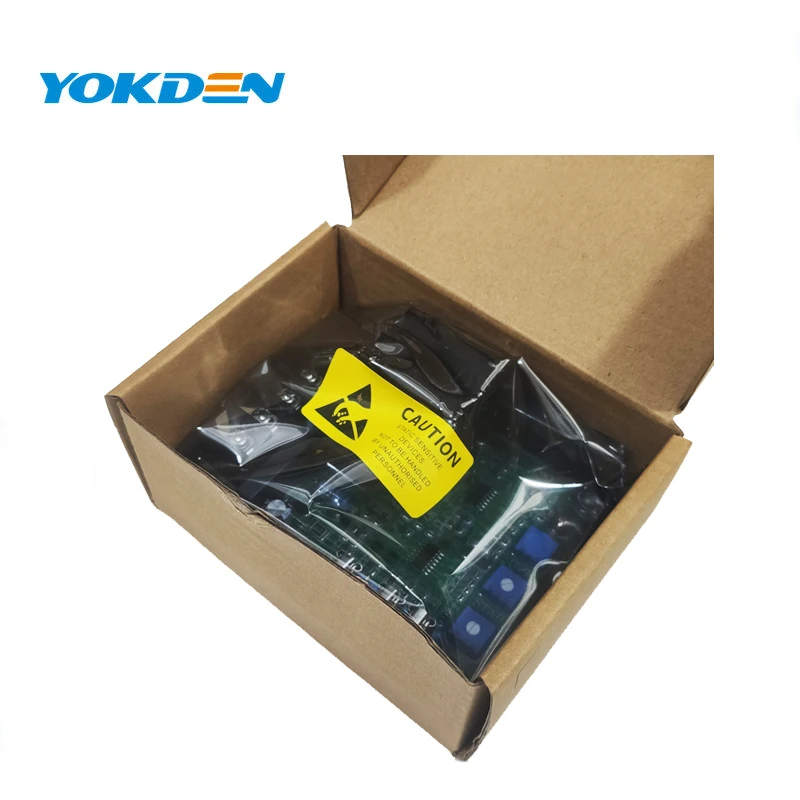

Product packaging
