YOUNIO Brand R160 Multi jet water meter with high quality

Product Overview

Description

Feature:

1.Magnetic drive, protected against external magnetic tampering;
2.Vacuum sealed register, frost resistant, keeps clear reading for long time;

3.Brass body  can be painted
4.External adjusting device,;
5.For  cold water;
6.Remote transmission device can be added upon request
7.Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request 8.Pulse output may be 1l/pulse ,10l/pulse ;
9.The meters conform to ISO4064 Standard Class B



Working condition:

Available for cold water 0~30℃ and hot water30℃~90℃

Water pressure≤1MPa

(PN:1.6MPa/16bar)



Accuracy:

From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%

From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%

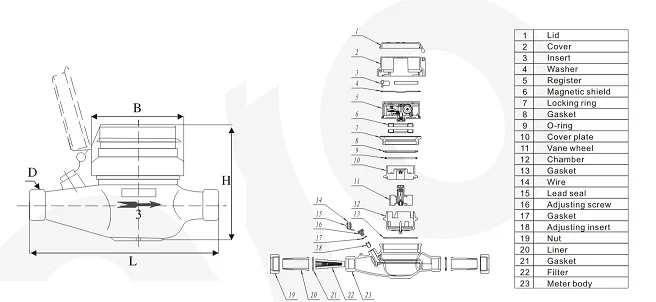

Dimension:

Feature:

1.Magnetic drive, protected against external magnetic tampering;
2.Vacuum sealed register, frost resistant, keeps clear reading for long time;

3.Brass body  can be painted
4.External adjusting device,;
5.For  cold water;
6.Remote transmission device can be added upon request
7.Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request 8.Pulse output may be 1l/pulse ,10l/pulse ;
9.The meters conform to ISO4064 Standard Class B



Working condition:

Available for cold water 0~30℃ and hot water30℃~90℃

Water pressure≤1MPa

(PN:1.6MPa/16bar)



Accuracy:

From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%

From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%



Dimension:

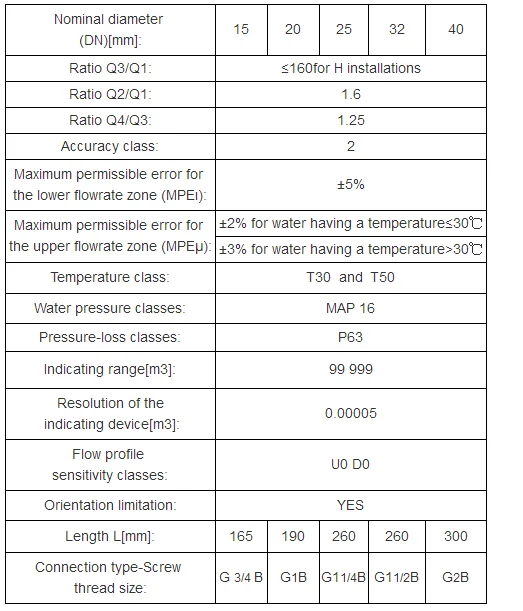

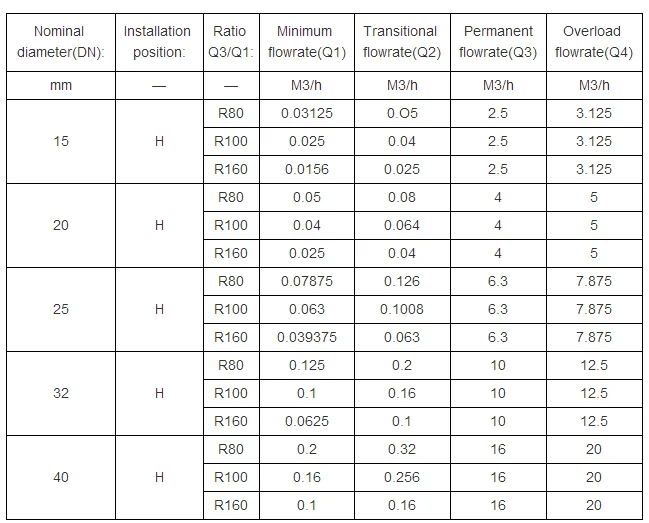

Technical Data:
