Stainless Steel Sanitary level gauge valve

Product Overview

Description

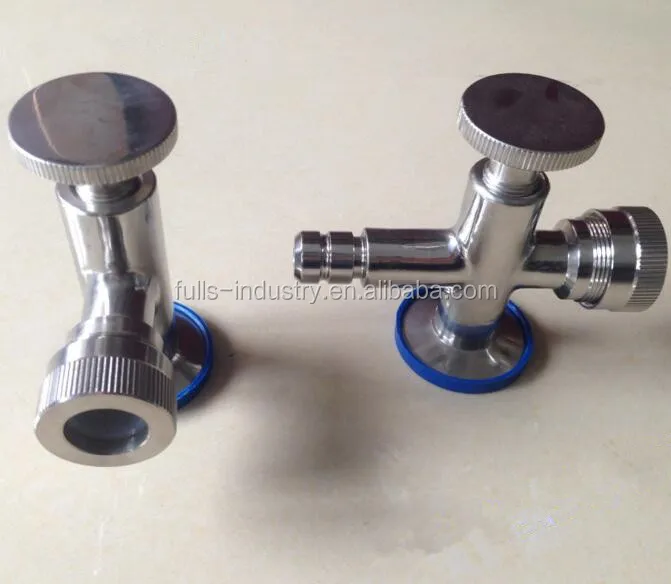

Stainless Steel Sanitary Liquid Level Control Valve/ liquid level gauge valve

Body Materials:	AIS1-304 or AISI-316L
Gasket Material:	Silicon,EPDM Seatandgasket complywith FDA21CFR177.2600
standard Design
Available in size BSP or NPT male thread 1/4",3/8",1/2" 3/4" clamp diameter 25 4mm or 50 .5mm
Standards:	DIN,3A,SMS,ISO /IDF,BS /RJT,ASME /BPE.
End connections.thread,clamp,or others upon request

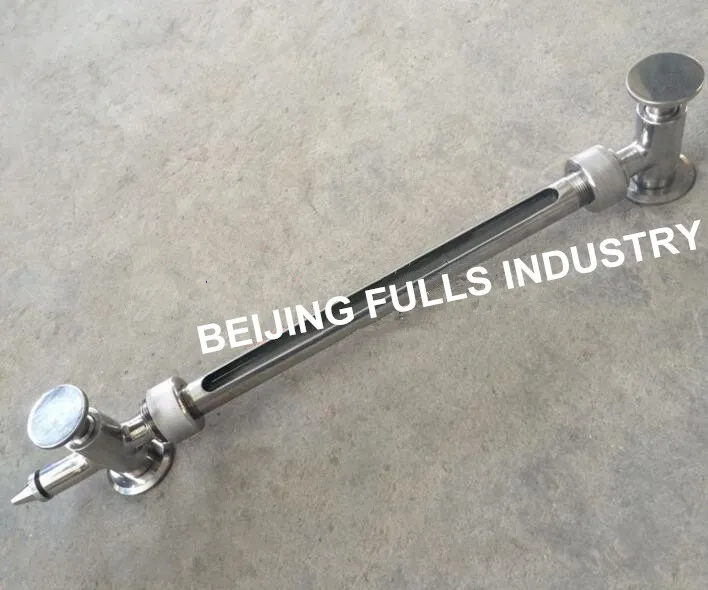

Transparent glass tube for liquld observation is upon request
Technical Specification
Temperature range:	-4~ 2759F (-20~ 135%C).EPDM
Working Pressure:	14.5-145Psi (1-10Bar)
