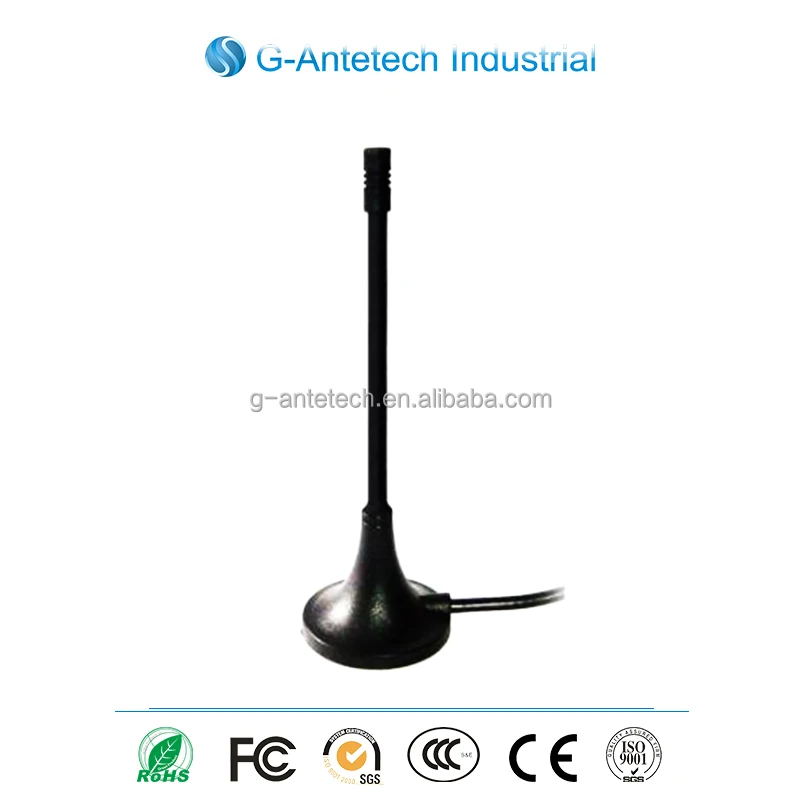

(Factory) low price 850 1900mhz external gsm magnetic antenna with sma, gsm cdma modem with external antenna
- Category: >>>
- Supplier: Guangzhou G-Antetech Telecom Antenna Factory
Share on (60729343739):
Product Overview
Description
Product Description

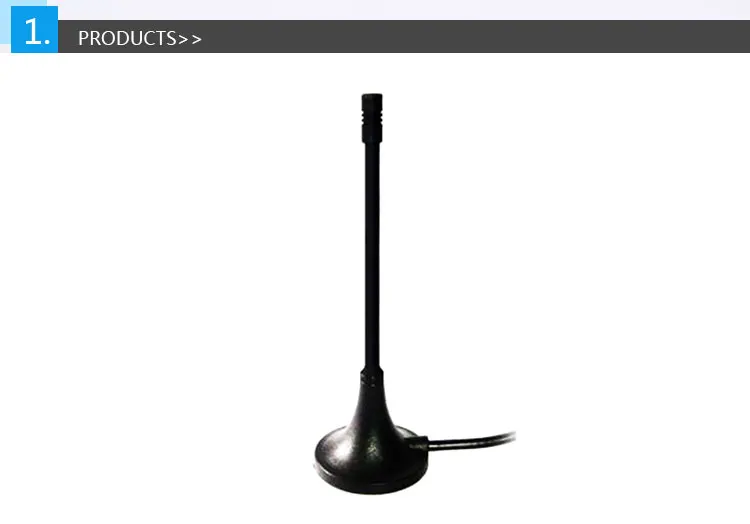

(Factory) low price 850-1900mhz external gsm magnetic antenna with sma, gsm modem with external antenna
Antenna Electrical
| Frequency | 850/900/1800/1900MHZ |
VSWR | ≤1.5 | |
Gain | 3.5dBi | |
Polarization | Vertical | |
Rated power | 50w | |
Input Impedance | 50Ω | |
Cable Length | 3 Meter or customized | |
Cable Type | RG174 or others | |
Connector Type | SMA/SMB/SMC/MMCX etc. | |
Mounting Method | Magnet | |

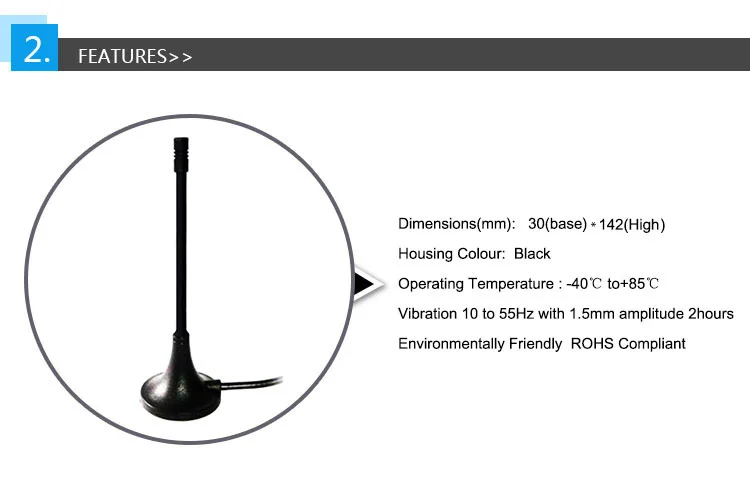

Mechanical | Dimensions(mm) | Φ30(base)×142(High) |
Housing Colour | Black | |
Operating Temperature | -40℃ to+85℃ | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant |
