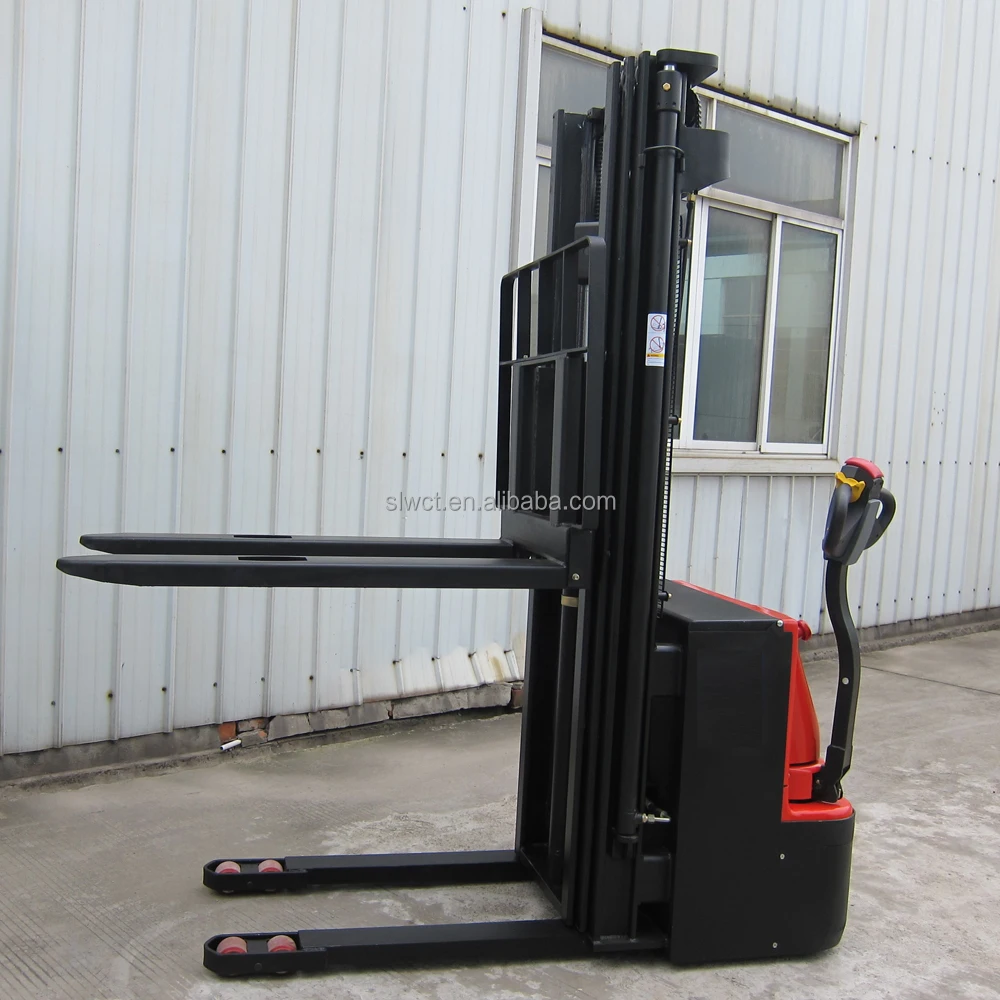

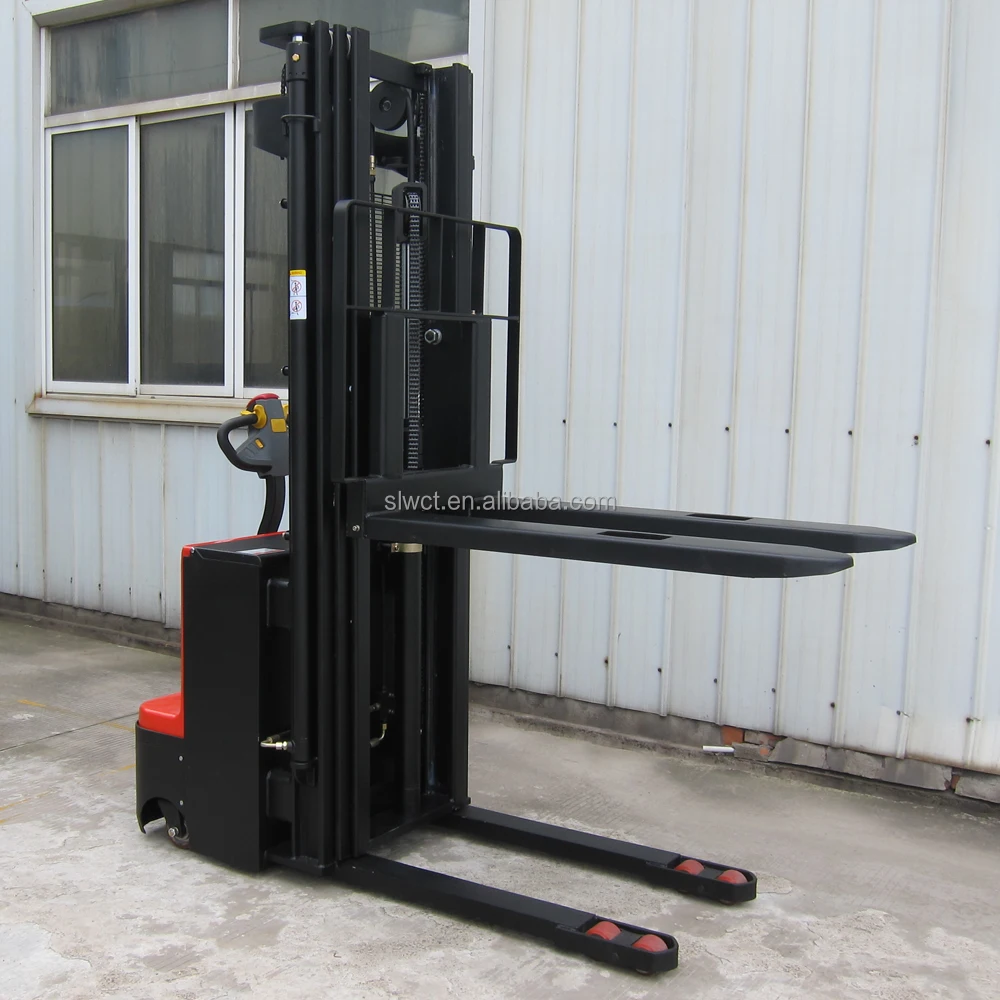

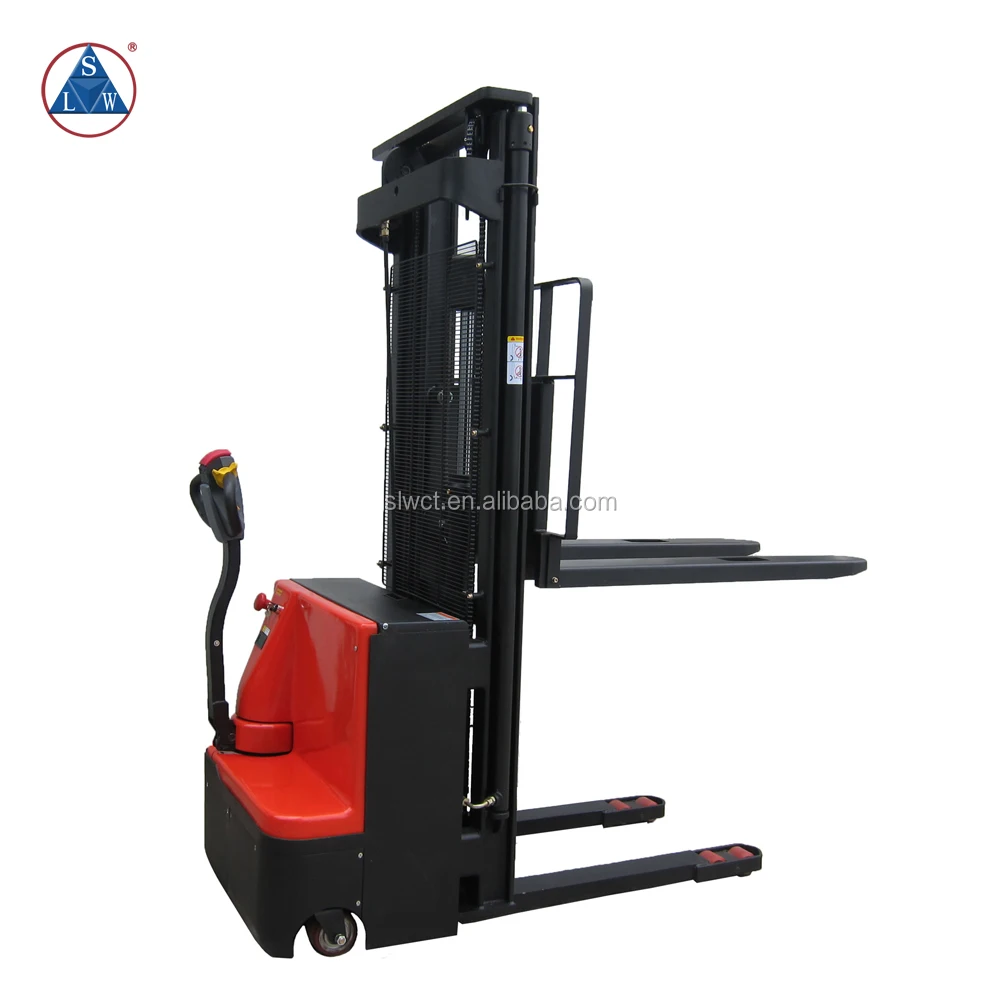

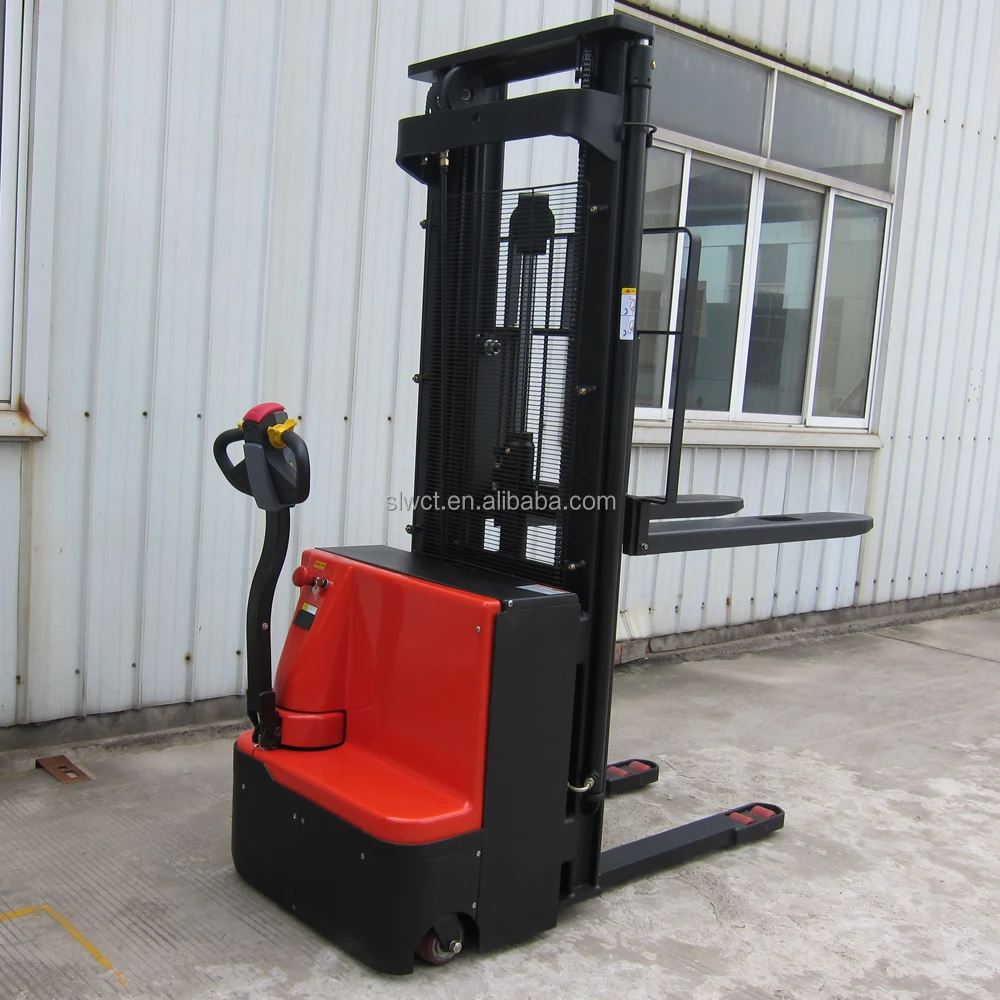

Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker
- Category: >>>
- Supplier: Guangdong Shiliwang Machinery Co. Ltd.
Share on (60729358405):
Product Overview
Description
Product Description
Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker
The Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker has been designed to be as operator friendly as possible with smooth drive, lift and lower control to provide effortless manoeuvrability
in the tightest corners of the warehouse or production floor.
Main specifications
| Model | EW-1516-A | EW-1525-A | EW-1530-A | |
| power | electric | electric | electric | |
| operator type | pedestrian | pedestrian | pedestrian | |
| load capacity | kg | 1500 | 1500 | 1500 |
| load center | mm | 600 | 600 | 600 |
| lift height | mm | 1600 | 2500 | 3000 |
| lowered height | mm | 90 | 90 | 90 |
| fork size - th/w/l | mm | 60 / 160 / 1150 | 60 / 160 /1150 | 60 / 160 /1150 |
| overall fork width | mm | 540 / 680 | 540 / 680 | 540 / 680 |
| mast collapsed height | mm | 2110 | 1820 | 2060 |
| mast extended height | mm | 2110 | 3050 | 3480 |
| overall length | mm | 1950 | 1950 | 1950 |
| overall width | mm | 875 | 875 | 875 |
| ground clearance | mm | 30 | 30 | 30 |
| turning radius | mm | 1660 | 1660 | 1660 |
| work aisle width - 800x1200 | mm | 2520 | 2520 | 2520 |
| battery voltage | V/Ah | 24 / 165 | 24 / 165 | 24 / 165 |
| traction motor | kW | 1.50 | 1.50 | 1.50 |
| lift motor | kW | 2.20 | 2.20 | 2.20 |
| travel speed - w./w.o. load | km/h | 3.5 / 4.0 | 3.5 / 4.0 | 3.5 / 4.0 |
| weight - less battery | kg | 570 | 650 | 680 |
Features and Benefits
• Virtually maintenance-free DC traction motor provides strong acceleration
• Ergonomic safety control handle for one-hand operation of lifting and lowering
• Built-in digital battery level gauge
• Heavy duty C section mast frame for extra strength
• Key-operated On/Off control for safety and security
• Heavy duty tandem load wheels
• Sideways battery charger for rapid charging operation.
• Manual handle for steering.
• AC 110V-220V / 50-60Hz battery charger available
• Standard equipment - VRLA Battery
• Straddle-leg model for double-face pallets available
Detailed Images

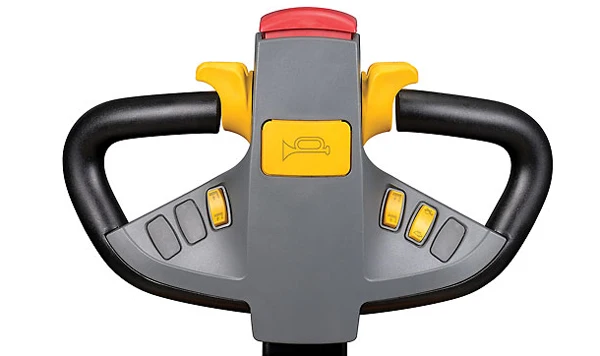

Multifunctional control handle.

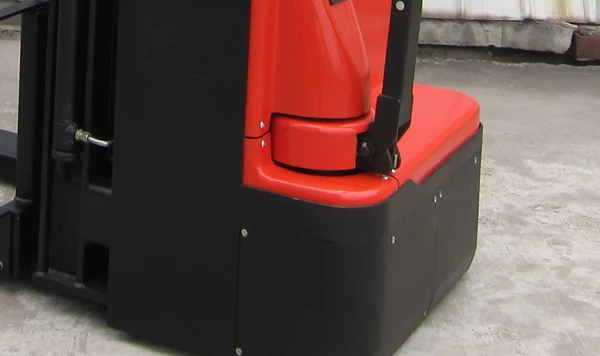

maintenance-free DC traction motor.

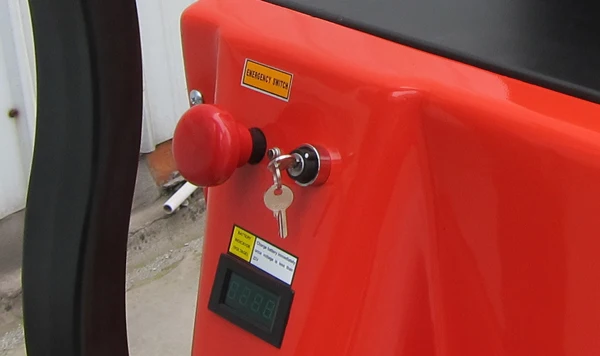

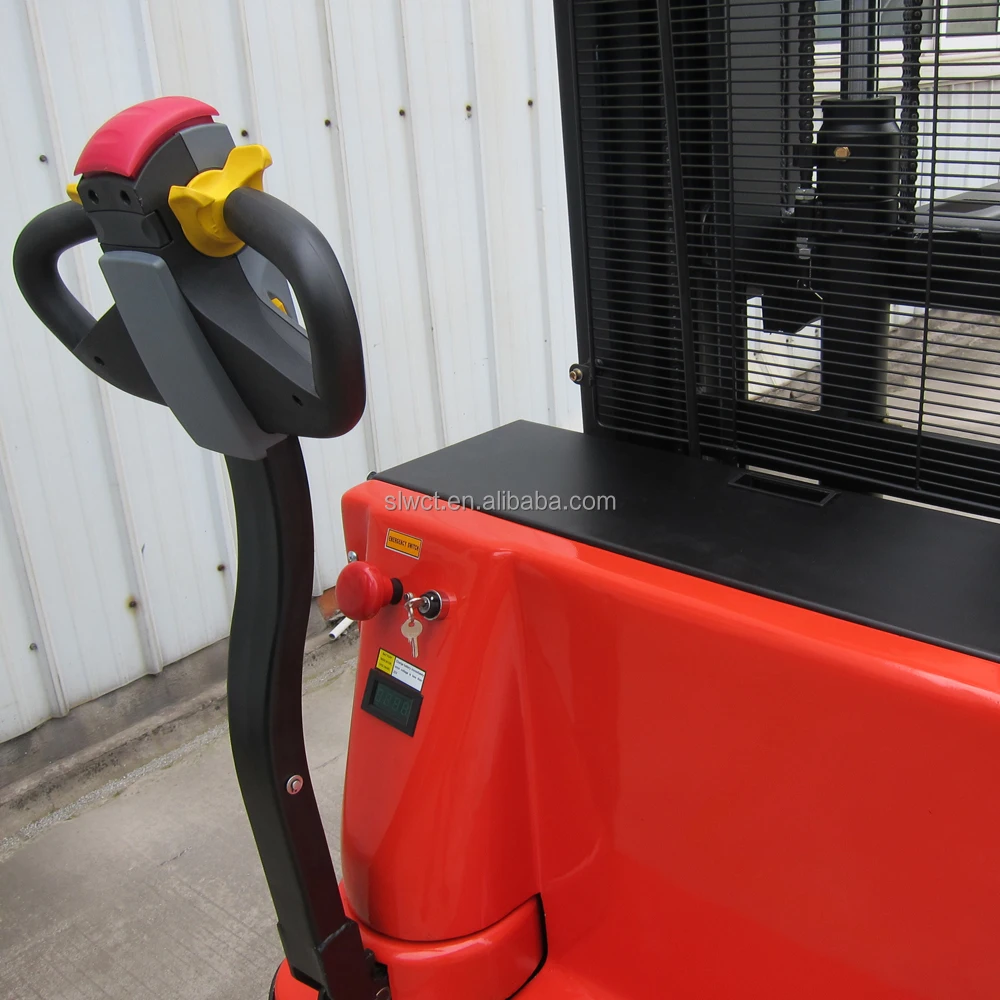

Built-in digital battery level gauge.

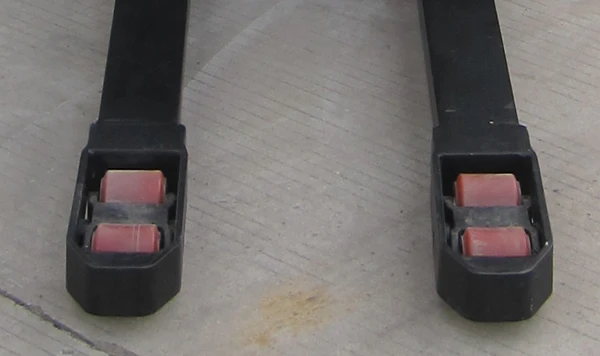

Heavy-duty tandem poly-on-steel load wheels.
Product Applications
The powered pedestrian 4m lifting battery full electric pallet stacker provides a quick, easy, fully-powered way to move heavy loads around a store, factory, warehouse, garage or other area.
Packaging & Shipping
The normal package is Carton and Plywood case (Size: L*W*H).
Related Products
Slwct offers a full line of electric pallet stackers and other material handling equipments.

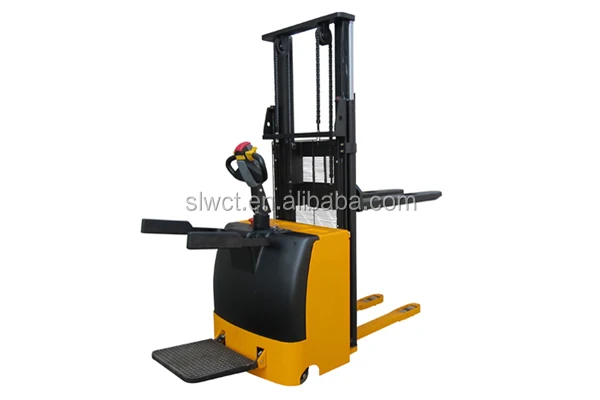

* AC powered full electric rider stacker - ES-H
* battery-operated rider electric stacker - ES-B

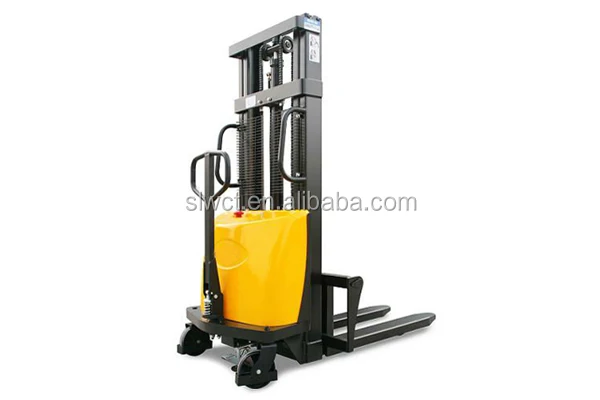

* semi electric pallet stacker - EA-A
