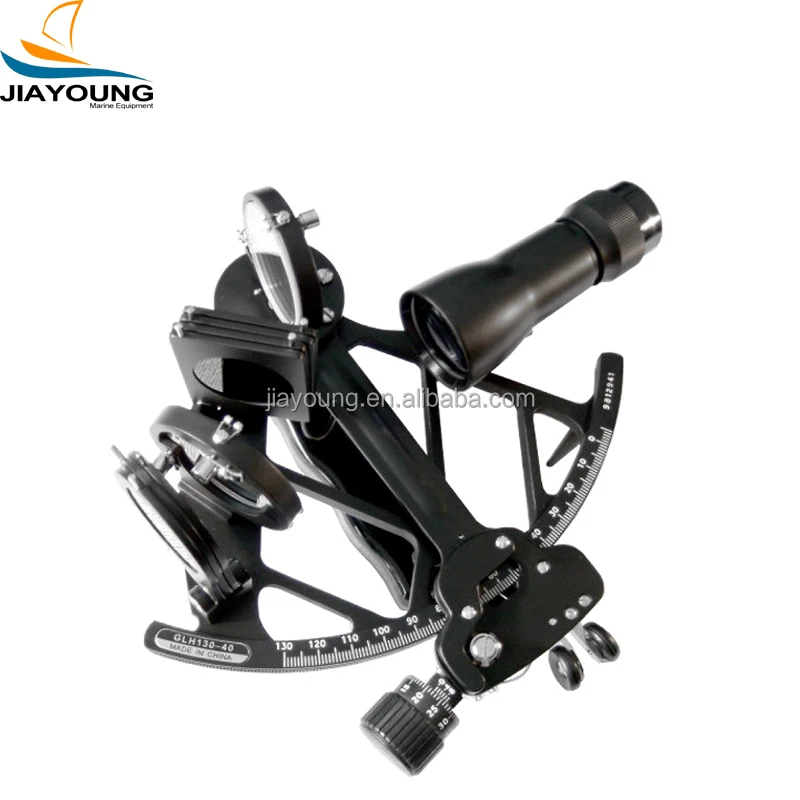

GLH130-20 Nautical Sextant With Wooden Box For Sale

Product Description

A sextant is an instrument for measuring the angle between two objects by bringing into

coincidence to the eye of the observer, rays of light received directly from one object and reflected from the other.

Its principal use is to measure the altitudes of celestial bodies above the visible sea horizon.

Available in various types. When ordering, specify telescope (magnifying & lens diameter) and

whether the sextant should be with or without illumination. Furnished with a wooden or plastic case

TypeGLH130-40

GLH130-20

Measuring range

-5°~130°

-5°~130°

Accuracy

±20’’

±10’’

Detectability

8.75’’

8.75’’

Field of viewV

Objective the optical Diameter

40mm

40mm
Exit pupil diameter

11mm

11mm

Temperature range

-30°~+50℃

-30°~+50℃

Telescope

3.5×40

3.5×20

Lamp voltage

3V

3V

Net weight

1.2kg

1.8kg

Supply voltage

12V

12V

Size

162mm

16mm

Measurement Accuracy

±20″

±10″

Name

quantity

Sextant  Frame

1

 Monocular Telescope

1

Standby Bellows

1

 Spare Bulb

1

 Calibration Wrench

1

Oil pot

1

Screw whorls

1

Brush

1

 Flannelette

1

Instruction Material

1

Certification

1

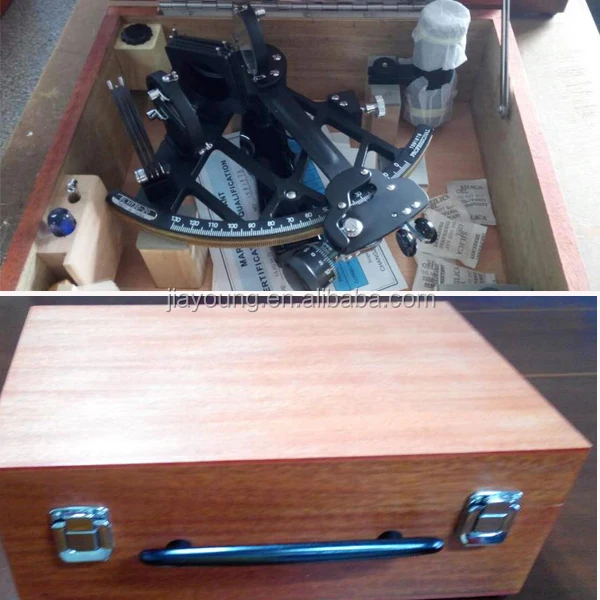

Packaging & Shipping
