MM2215B Woodworking Automatic Lift Hand Stroke Belt Sander For Wood Horizontal Belt Sanding Machine

Product Overview

Description



MM2215B Woodworking Automatic Lift Hand Stroke Belt Sander For Wood Horizontal Belt Sanding Machine

I,MM2215B Horizontal Belt Sander

This machine is mainly use to sanding the wood surface and the max sanding area is 3000x1250mm .It can sanding good quality hight effect .It is commonly use in furniture manufacturer and working wood .

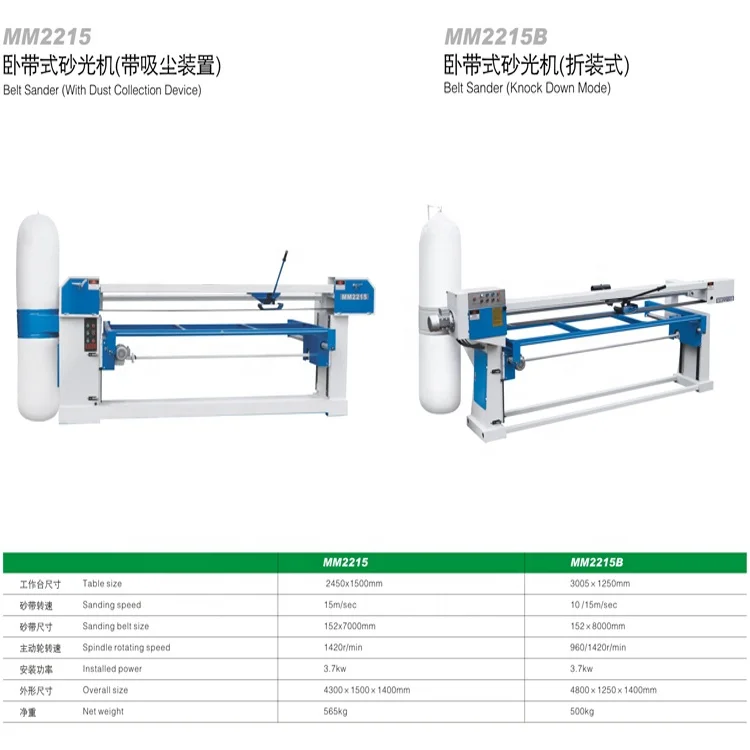

Model	MM2215B
Sanding speed	10/15m/s
Belt size	152x8000mm
Spindle Rotating speed	960/1420m/min
Installed power	3.7kw
table size	3005*1250mm
Overall size	4800x1250x1400mm
Net weight	500kg



II,Overall of Machine

1. Body Section

2. Lifting Worktable Section

3. Tighten Seat Section

4. Sanding Belt Driving Section

5. Electricity Control Section

6 . Dust Collect Section



III,MM2215 Horizontal Belt Sander

1,This machine is compose of body section ,lifting worktable section ,dust collector section electric control section ,sanding belt drived section ,tighten seat section etc .

2,The body is welded by steel ,it has firmly structure ,good strong feature .

3,The lifting table section is compose of kinetic table ,lifting motor ,worm wheel case ,gear wheel case ,gear belt ,driving spindle etc .

4,The worktable installed on the two leading orbit directly .then installed on the gear wheel case via 4 eccentric wheel to make the worktable moving front and back nimble .

5,The worktable lifting is finished by two AC-contractor and a motor which is 370 W to rotating positive and negative to control ,and installed two limited travel switch to make the  worktable limited moving up and down safety .In order to satisfy working different thickness work piece .

6,The dust collector section is compose of air blower which motor is 1.1 kw and there are two cloth bag installed on the up and down of the dust barrel .The dust can be sunk into the bag .It can realize protect the environment .





Our Customers:







Our Big Family:







Warranty?

Mechanical parts one year,Electrical parts three months





Any aftersale support available?

Yes we have, Engineers available to service machinery overseas





Payment:

TT 30% advanced payment,70% balance remitted before shipment.

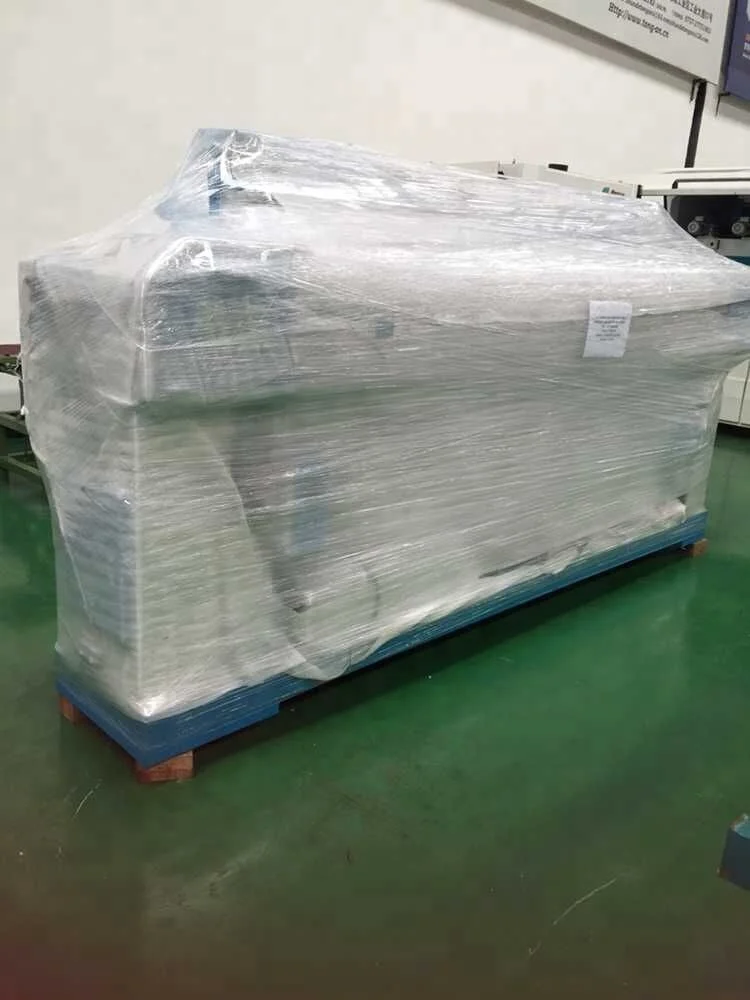

Shrink film,plywood case packing will have extra cost.













Shanghai FumaWoodworking Machinery & Equipment Co., LTD is specialized in making woodworking machine,and also run as an agent for various brands and their plentiful models, so we can give you the most professional service with acompetitive price. If you have interest in our production, please let me know.
