Edison DC24V 120 degree Beam Angle White Flex LED Strip Elite 2835 HE Series High Luminous Efficacy with CE & Rohs
- Category: >>>
- Supplier: Shenzhen Superlighting Electronics Co. Ltd.
Share on (60729433478):
Product Overview
Description
Product Description
INTRODUCTION

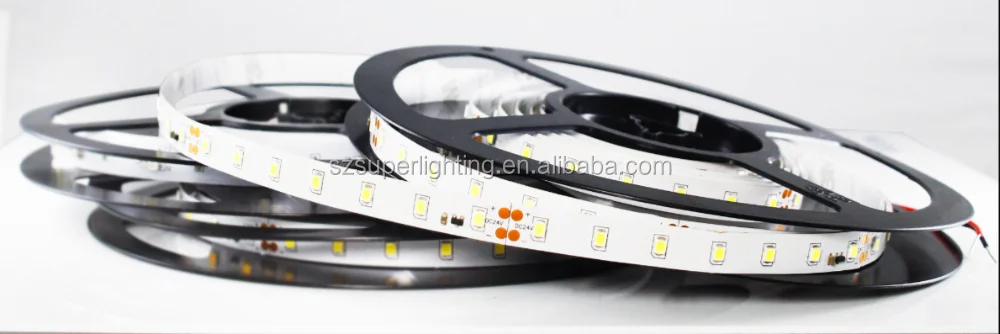

High elliciency Lightbar is a strip of lighting module available in varying colors. Its flexible circuit board not only enables novel design thinking with bendable light source, but also offers a wide range of applications with dicidable lighting segment. Luminous efficacy over 130lm/W.
150LM/M
Order Code | QTY.LEDs(m) | Colour | Power(w/m) | Typ.Flux(lm/m) |
6LBR1CWJE0S07001 | 70 | Cool White | 15 | 2250 |
6LBR1NWJE0S07001 | 70 | Neutral White | 15 | 2180 |
6LBR1WWJE0S07001 | 70 | Warm White | 15 | 2100 |
Order Code | QTY.LEDs(m) | Colour | Power(w/m) | Typ.Flux(lm/m) |
6LBR1CWJE0S14001 | 140 | Cool White | 30 | 4500 |
6LBR1NWJE0S14001 | 140 | Neutral White | 30 | 4350 |
6LBR1WWJE0S14001 | 140 | Warm White | 30 | 4200 |
6LBR1M6JE0S07001 | 70 | Cool White | 15 | 2250 |
70 | Warm White | 15 | 2100 |
170LM/M
Order Code | QTY.LEDs(m) | Colour | Power(w/m) | Typ.Flux(lm/m) |
6LBR1CWJE0S08001 | 80 | Cool White | 10.8 | 1830 |
6LBR1NWJE0S08001 | 80 | Neutral White | 10.8 | 1780 |
6LBR1WWJE0S08001 | 80 | Warm White | 10.8 | 1720 |
Applications Notes
PLCC light bar series are available in red, yellow, green, white, neutral white and warm white for application such as under-cabinet lighting, cove lighting and wall washing. Moreover ,additional fine-turned high color rendering index(CRI)version of white, neutral white and warm white all make PLCC Lighting choice for vividly building or decoration products, presenting the products outline.

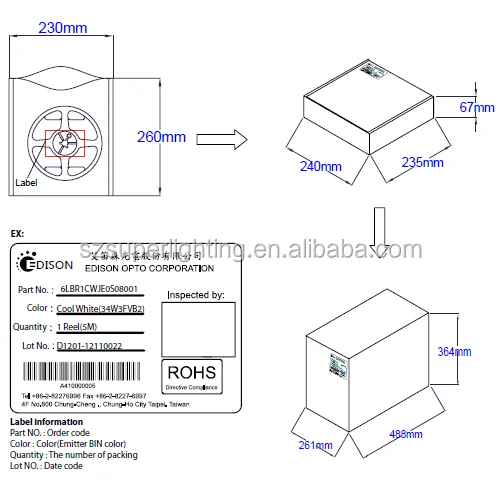

Packing & Delivery
PLCC Lighting FPC Material Description | ||||
Package Type | 6LBR1xxNx000000x | Dimension | ||
Antistatic bag | 1 reel | 260mm × 230mm | ||
Inside box | 4 Antistatic bags | 240mm × 235mm × 67mm | ||
Outside box | 10 Inside boxs | 488mm × 364mm × 261mm | ||
Our Company
About Edison
Edison Opto is a leading manufacturer of high power LED and a solution provider experienced in LDMS. LDMS is an integrated program derived from the four essential technologies in LED lighting applications- Thermal Management, Elctrical Scheme, Mechanical Refinement, Optical Optimization, to provide customer with various LED components and modules.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 7 days, mass production time needs 4-6 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
