Copper Wire Drawing Machine Copper Wire Stripping Machine
- Category: >>>
- Supplier: Shanghai Shineworld Group Co. Ltd.
Share on (60729494924):
Product Overview
Description
Technical Parameter
Description | 8 wires |
Inlet diameter (mm) | |
Outlet diameter (mm) | 8x(Φ0.15~Φ0.40) |
Mechanical speed (m/min) | Max1800 |
Φ80 | |
Capstan diameter (mm) | Φ100 |
Number of die | Max21 |
Mechanical elongation | 25-8% |
Main motor power (kw) | AC 75 |
Winding motor (kw) | AC 30 |
Steam generator (Kw) | 9 |
DC annealer current(A) | 0~1500 |
DC annealer voltage(V) | 0~53 |
Total power (kw) | 260 |
Standard spool | PND630 |
Suitable capacity of spool (kg) | Max. 500 |
Overall size of machine (mm) | 3800x980x1150 |
Net weight (kg) | 3500 |
Traverse method | |
Fan Spray | |
Pneumatic |

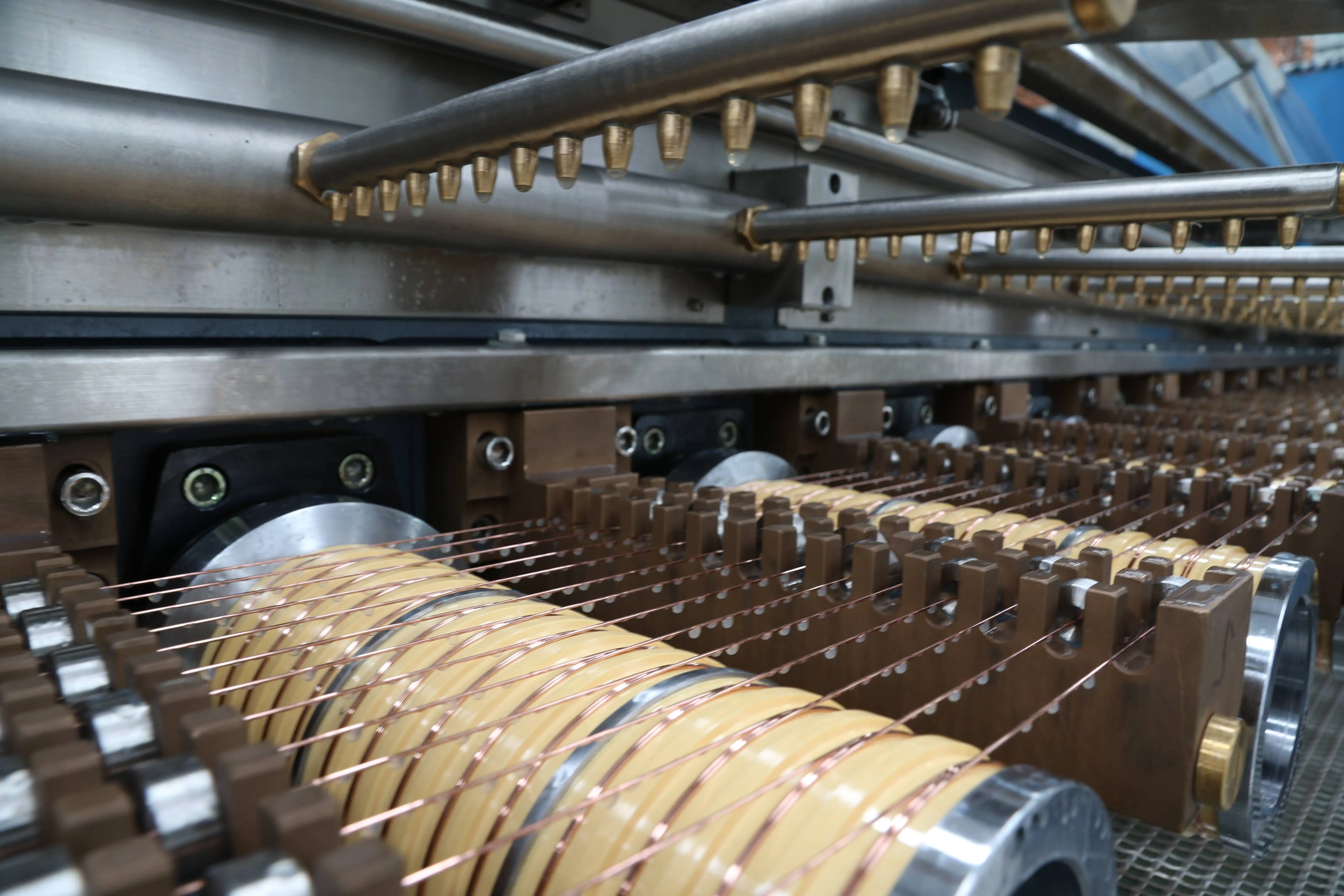

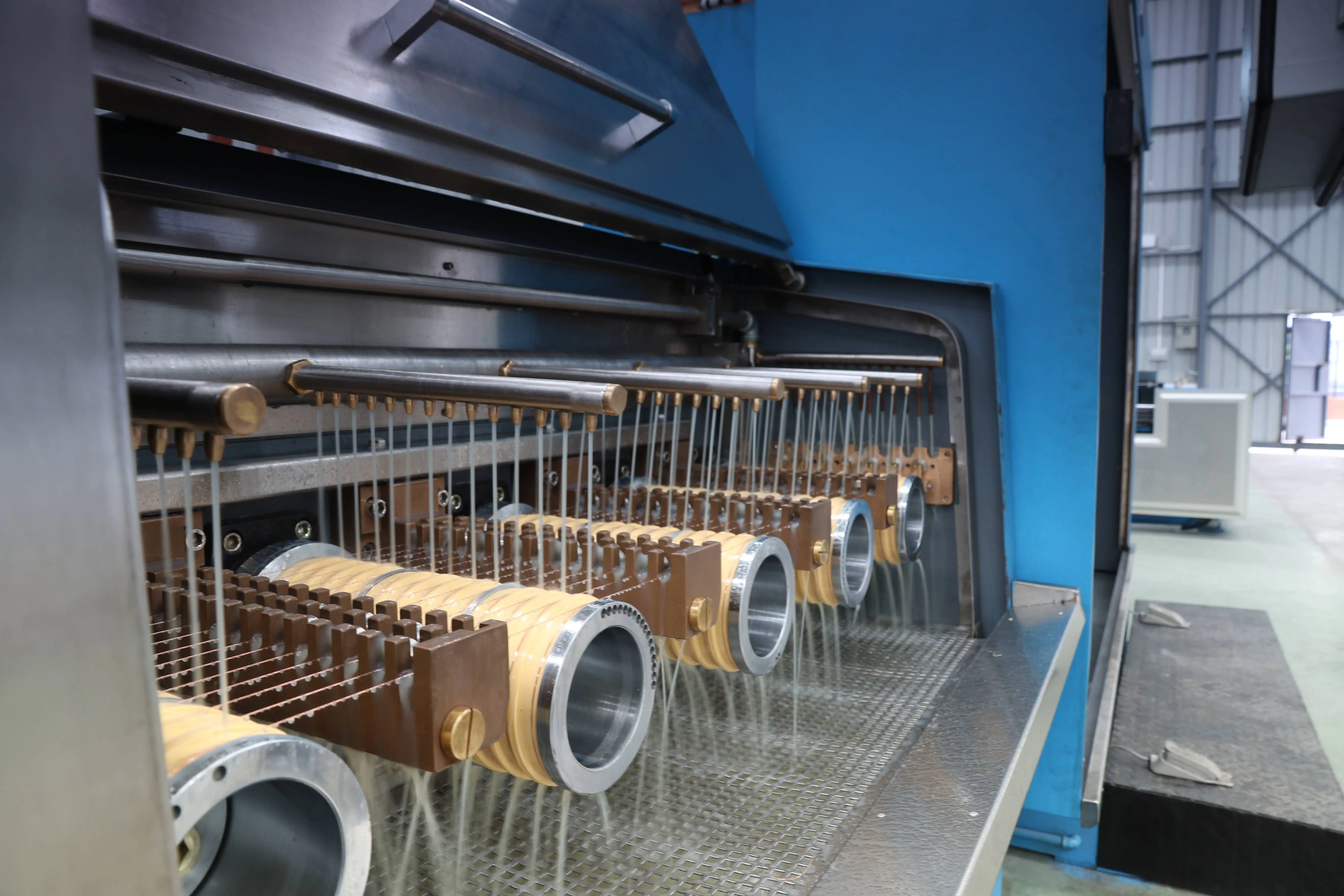

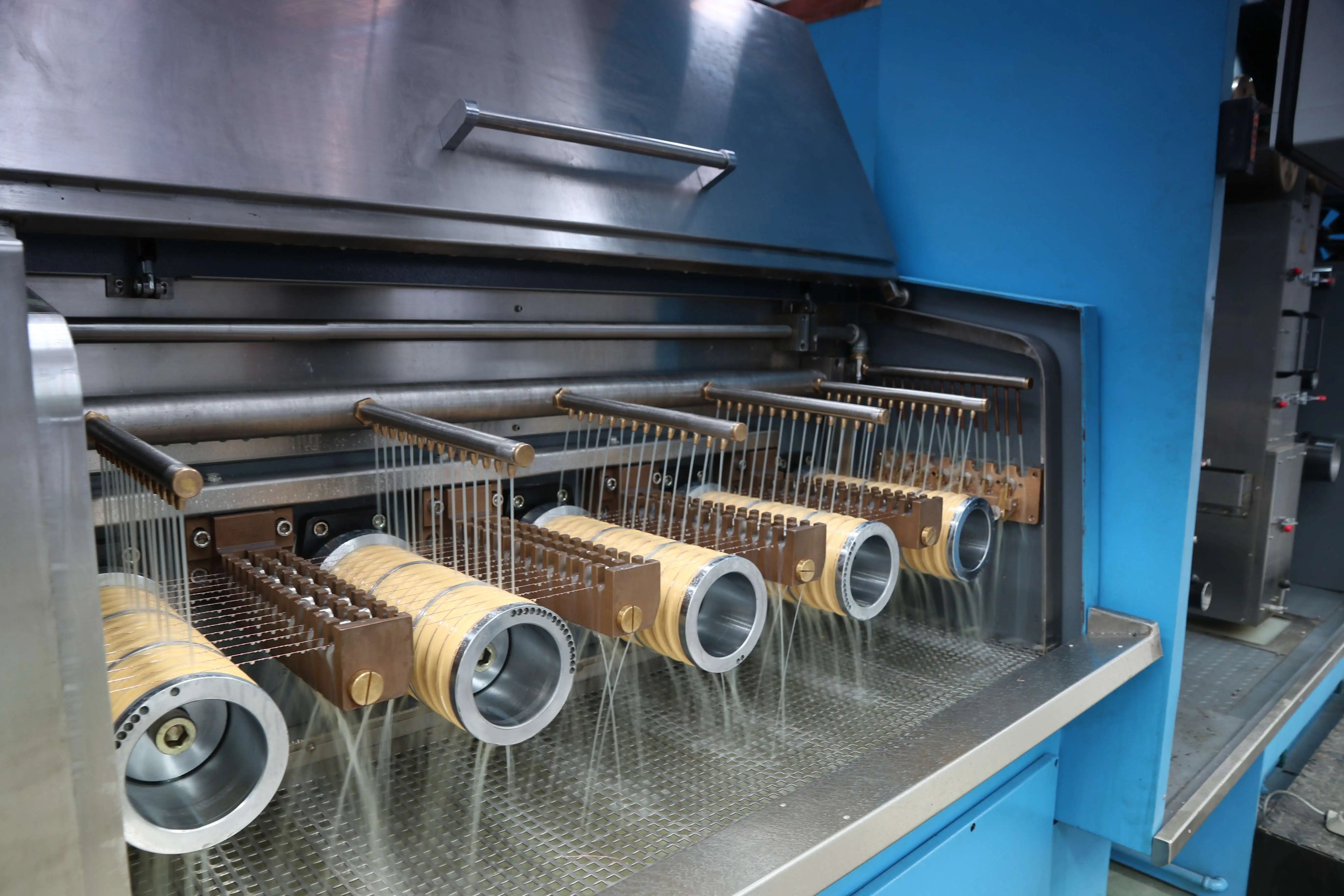

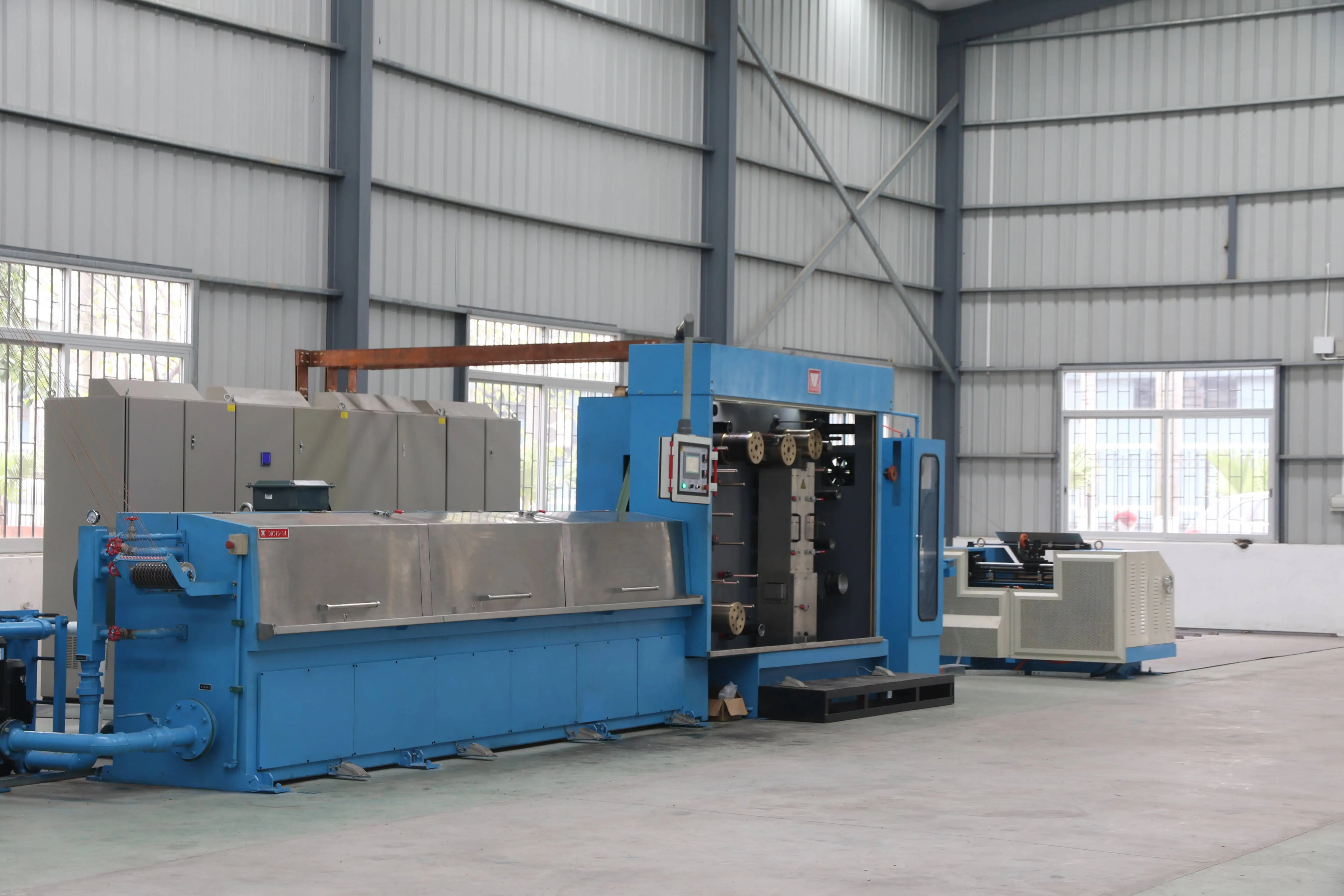

Product show
Advantage:
Power transmitted by belt,higher running speed, excellent quality.
Simple to operate and low noise.
Main technical parameter for Production speed with Annealer:
Wire Dia. (mm) | Wire speed(m/min) | Elongation rate | |
TY (hard wire) | TR (Soft wire) | ||
0.10 | 1500 | 1000 | 15~20% |
0.15 | 2000 | 1300 | 15~20% |
0.20 | 2000 | 1300 | 20~25% |
0.32 | 1500 | 1000 | |
0.40 | 1200 | 750 | 20~25% |
0.45 | 1000 | 500 | 20~25% |
2*0.15 | 1500 | 1200 | |
2*0.20 | 1800 | 1500 | 20~25% |
2*0.35 | 1800 | 1500 | 25~30% |
2*0.50 | 800 | 800 | |
1*0.60 | 1000 | 800 | 25~30% |
Procedure
why choose us

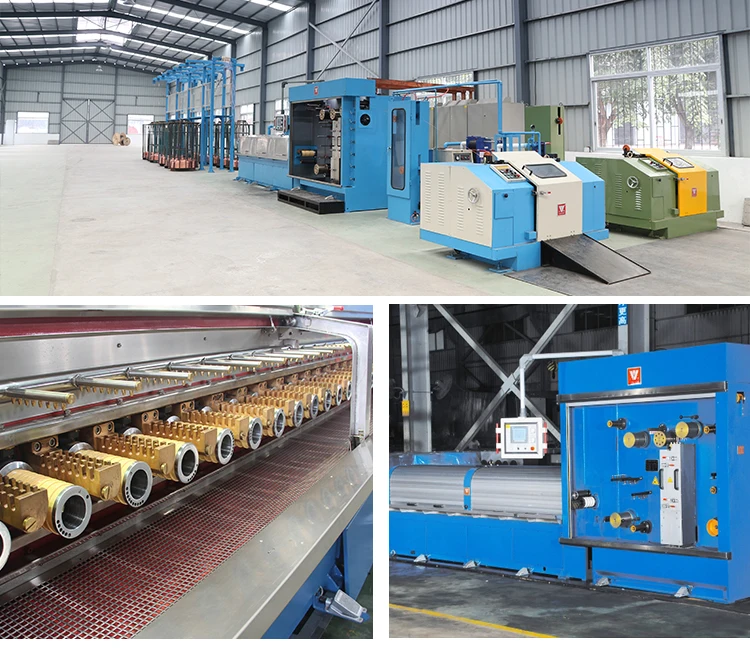

About us
Success case
Packaging
FAQ
1. Who are we?
Shineworld is based in shanghai, china.Factory is located in changzhou.Established in 2004, with 17 years of experience in wire and cable field trade.It only takes 1 hour from our company to the nearest airport. Welcome to visit our company!
2. How can we guarantee quality?
Online inspect facotry ,production, shipment,and aftersales service in 24 hours.
Always a pre-production sample before mass production.
Always final inspection before shipment;and provide full-process visualization services.
Mechnical parts gurantee 12months, elcctrical parts gurantee 6 months.
Dispatch skilled engineer on spot for installtion ,commisoning and maintanace.
3.What can you buy from us?
Raw materials for wire and cable.
Extruderline for insulation and sheathing.
Pe sheet lagging.
Trunkey projects for wire cable plan.
Accesorries for up casting and CCR.
4. How long is your delivery time?
Generally, 3-7 days for goods in stock and 10-30 days for goods after realsing order.
Make the delivery asap with guaranteed quality.
5. Will the price be cheaper if the order is placed in bulk?
Of course ,will make 5-10% discount!
6. What services can we provide?
Plant solution design and machine design.
Some free samples.
Technical support.
Installtion and commmsioning.
After sales service.
Packaging customization and other customized services.
For details, you can contact online customer service for communication.
