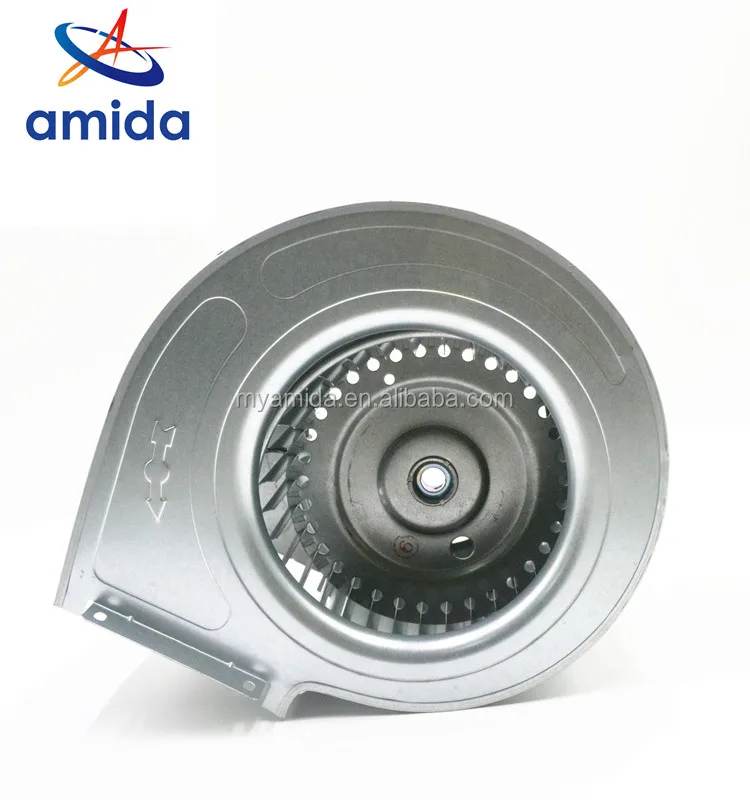

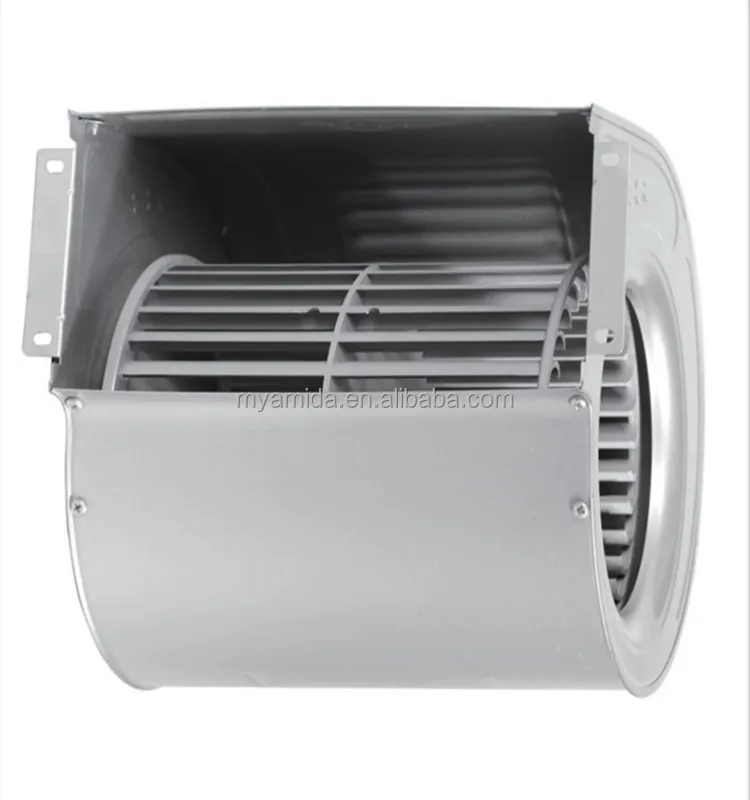

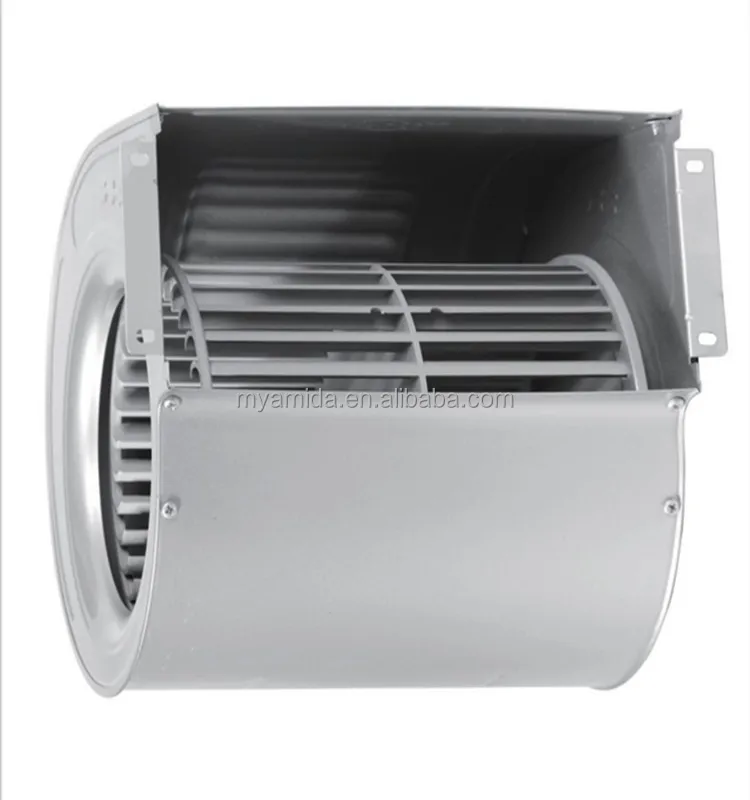

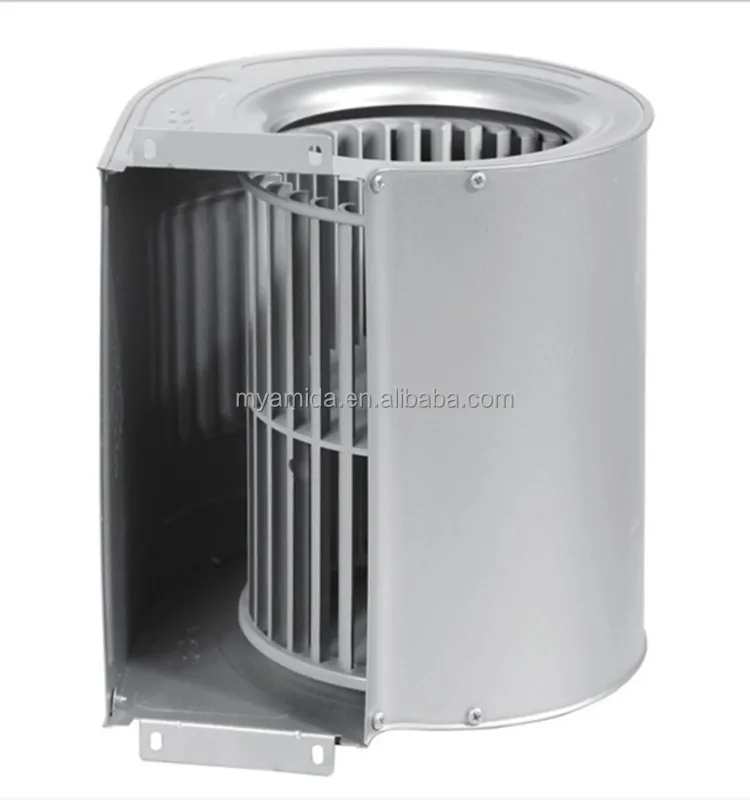

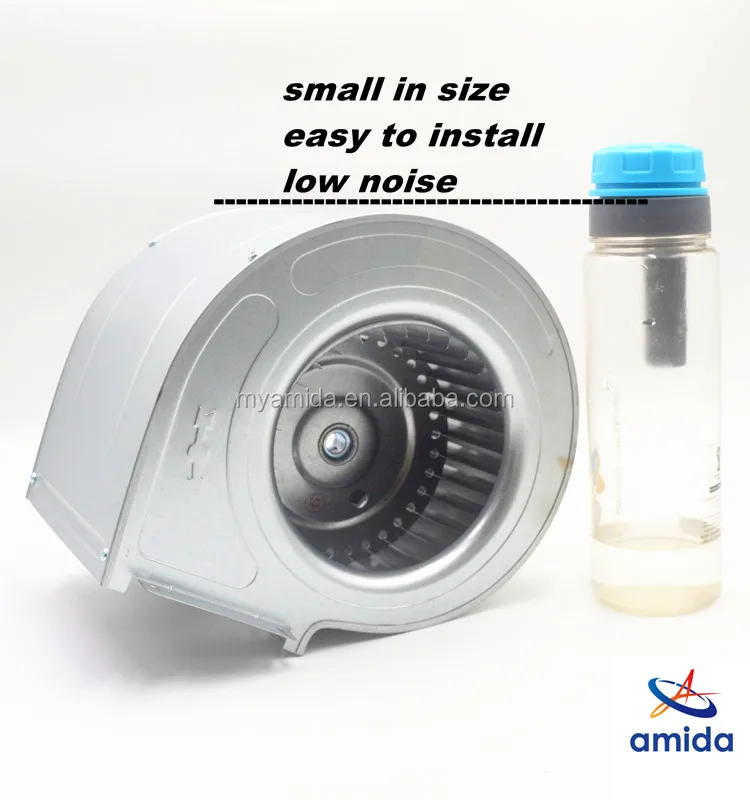

AMIDA SYP130 Centrifugal Fan Impeller with volute used for fan coil air conditioner

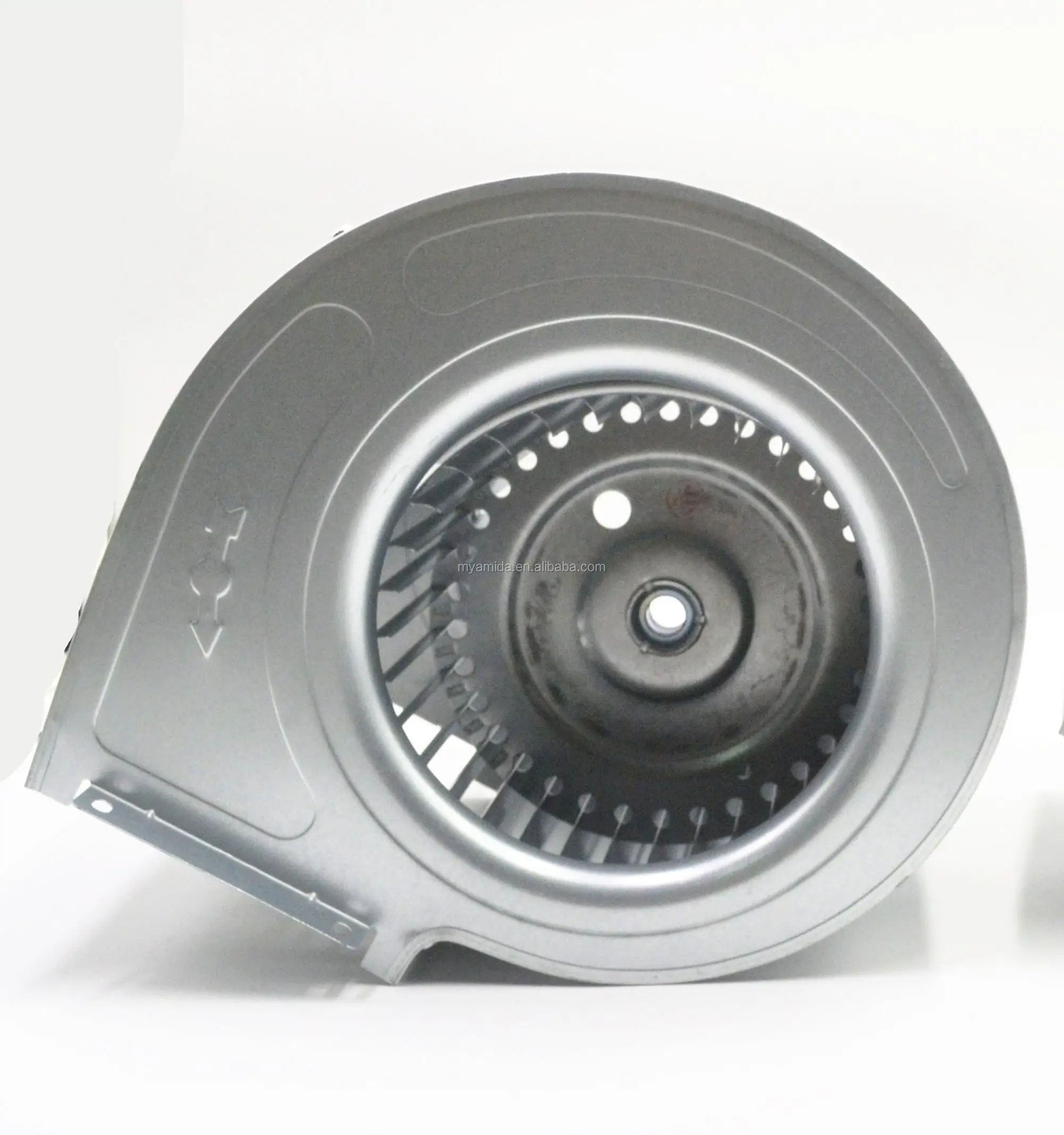

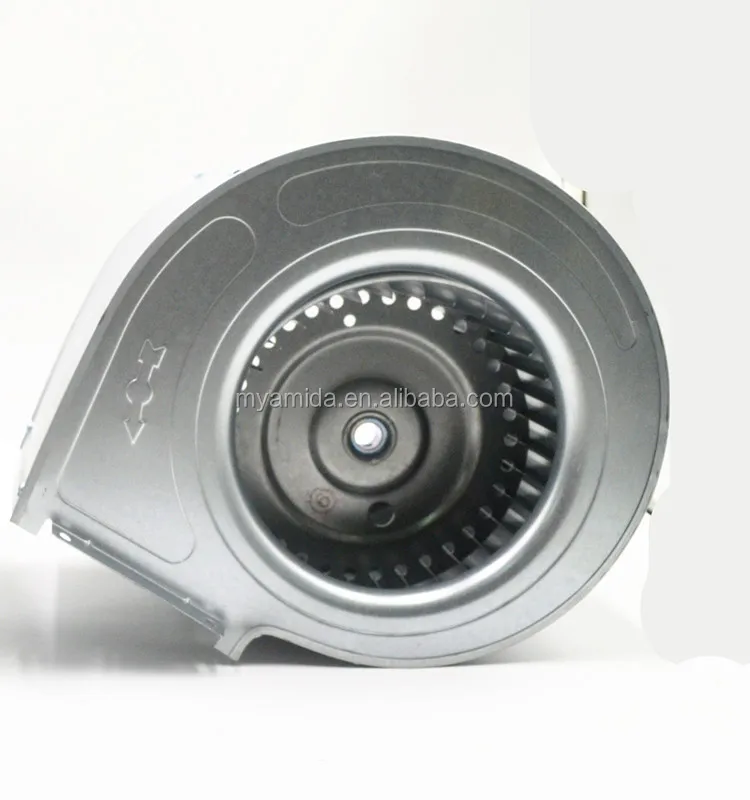

 SYP series fans are mainly consisted of housing , Wheel and hub.

 The SYP series air-conditioning fan, used for fan coil only, is the forward multi-vane centrifugal metallic fan developed and manufactured first by our company in the country. The fan Wheels are made of high quality of hot galvanizing steel sheet by using stamping technology with the advantages of high efficiency, lower noise and precision construction. Both the flow volume and pressure can meet with wide application, and the diameter of the Wheel is from 130mm to 250mm. The flow volume ranges from 250m /h to 3000m /h. Our products have reached the advanced level and have replaced those imported ones first in the country. Now the products have 55% share of the domestic market.

 According to the installed position of the hub, the fan can be divided into two types, right type and left type; viewing from hub side, if the Wheel rotates clockwise, the fan is called right type; if it rotates anti-clockwise, the fan is called left type.
