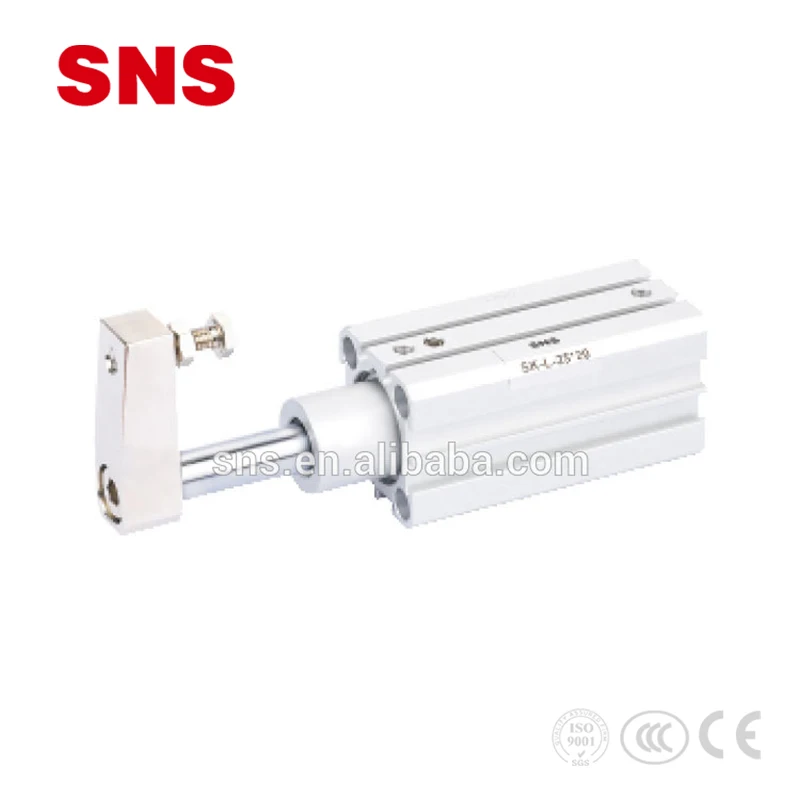

SNS (SCR Series) aluminum alloy swing clamp piston air cylinders
- Category: Pneumatic Cylinders >>>
- Supplier: China SNS Pneumatic Co. Ltd.
Share on (60729515679):
Product Overview
Description

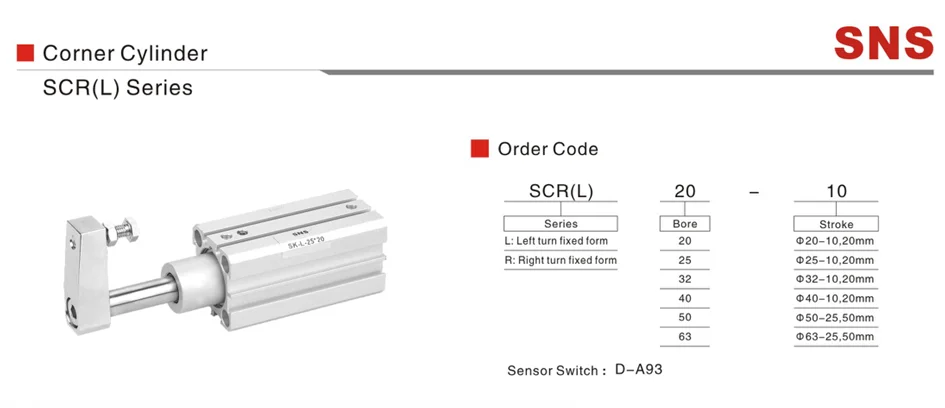

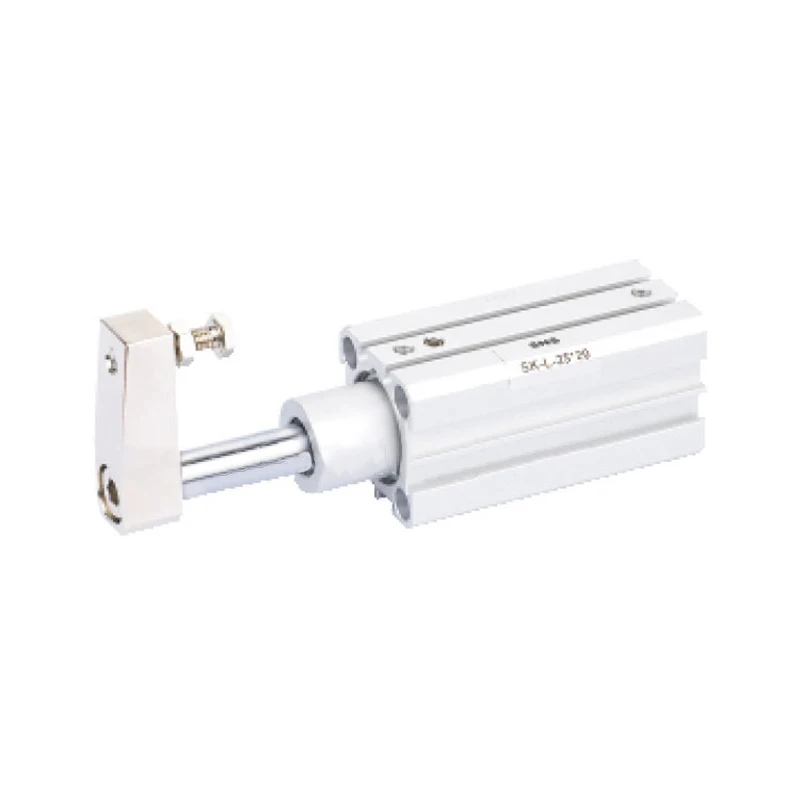

SNS (SCR Series) aluminum alloy swing clamp piston air cylinders
Banner
Product Description

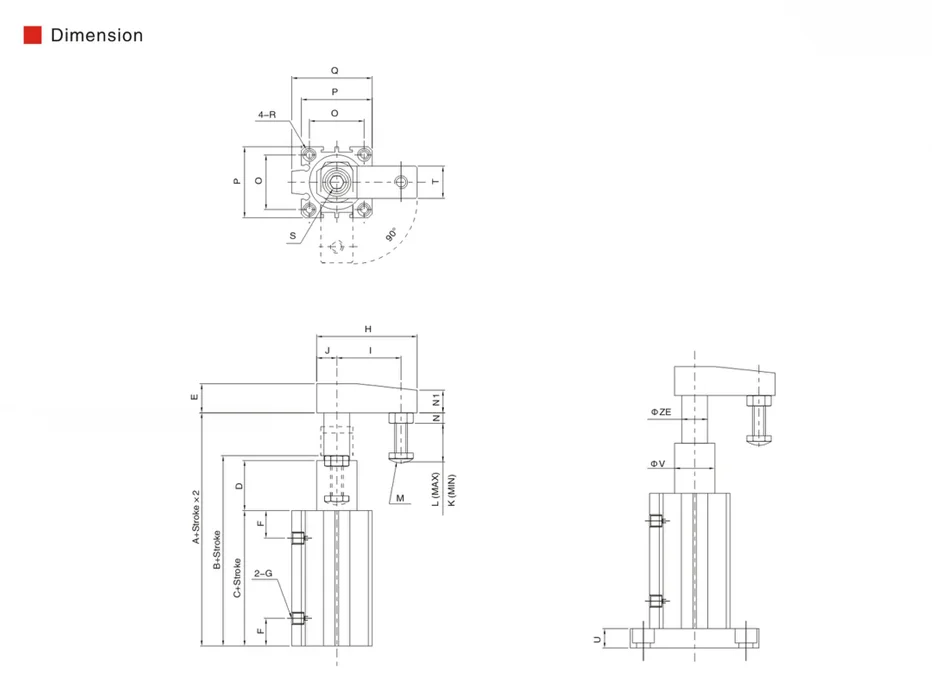

| Bore Size(mm) | A | B | C | D | E | F | G | H | I | J | K | L | M |
| Φ20 | 92.3 | 82.3 | 59.5 | 20.3 | 15.5 | 7.5 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6×1.0×25 Hexagon bolts |
| Φ25 | 93.6 | 83.6 | 61.2 | 20 | 15.5 | 8 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6×1.0×25 Hexagon boltslts |
| Φ32 | 113 | 98 | 64 | 31 | 18.5 | 9 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8×1.25×40 Hexagon bolts |
| Φ40 | 114.8 | 99.8 | 66.5 | 30.3 | 18.5 | 10 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8×1.25×40 Hexagon bolts |
| Φ50 | 159.9 | 140.9 | 78.6 | 59.6 | 22 | 10.8 | PT1/4 | 94 | 60 | 20 | 8 | 32 | M10×1.5×50 Hexagon bolts |
| Φ63 | 162.8 | 143.8 | 82.5 | 58.6 | 22 | 11 | PT1/8 | 94 | 60 | 20 | 8 | 32 | M10×1.5×50 Hexagon bolts |
| Bore Size(mm) | N | N1 | O | P | Q | R | S | T | U | V | ZE |
| Φ20 | 5 | 12 | 24 | 34 | - | HoleΦ4.3, ThreadΦM5×0.8x6 Depth; Counterbore holeΦ7x5 Depth; (2-side) | M8x1.25 | 15.9 | 8 | 19 | 12 |
| Φ25 | 5 | 12 | 28 | 40 | - | HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) | M8x1.25 | 15.9 | 10 | 24 | 12 |
| Φ32 | 6.5 | 14 | 34 | 44 | 50 | HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) | M10x1.5 | 19 | 10 | 30 | 16 |
| Φ40 | 6.5 | 14 | 40 | 52 | 58 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ9.5x8 Depth; (2-side) | M10x1.5 | 19 | 12 | 30 | 16 |
| Φ50 | 8 | 18 | 48 | 62 | 71 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 39 | 20 |
| Φ63 | 8 | 18 | 60 | 75 | 84.5 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 50 | 20 |
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
