2020 Высококачественная Автоматическая треугольная пирамидальная упаковочная машина для чая, распродажа
- Category: Multi-Function Packaging Machines >>>
- Supplier: Guangzhou Penglai Packing Machinery Co. Ltd.
Share on (60729528808):
Product Overview
Description

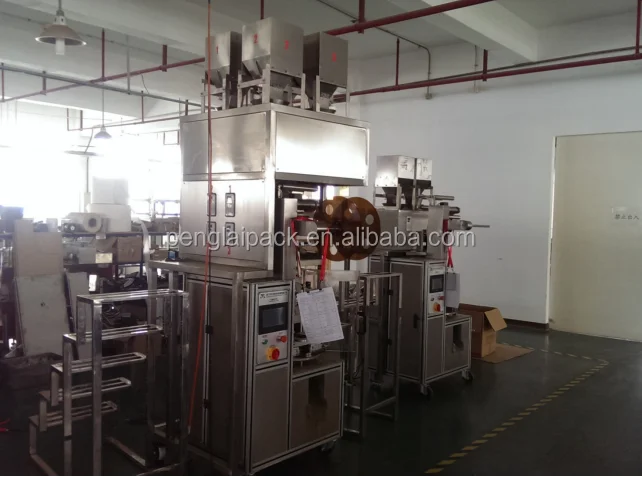

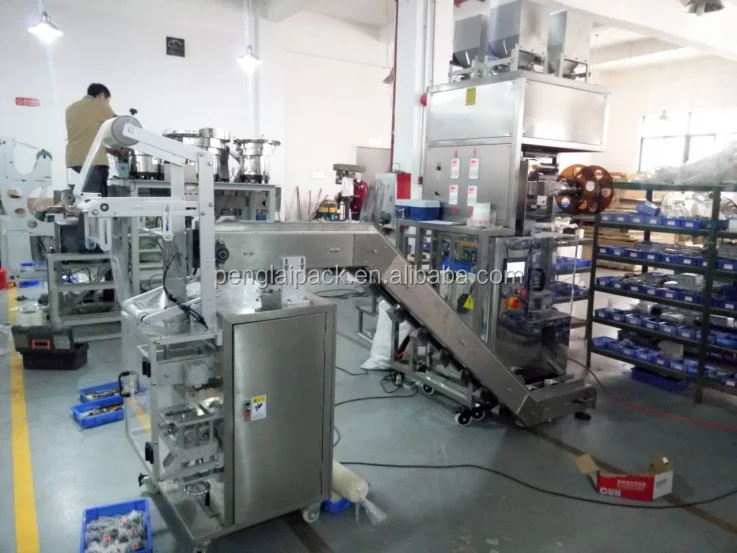

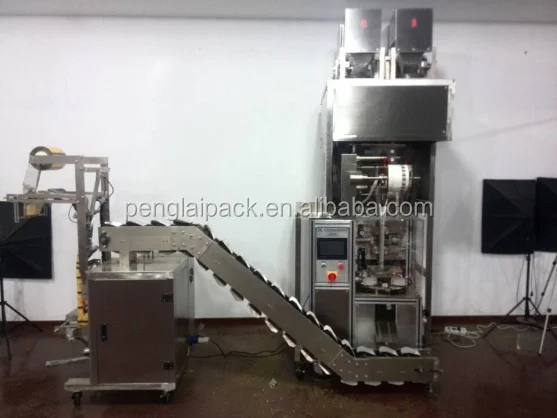

automatic triangle bag tea packing machine for sale
Product Description
FXPPP5_)9((N79M[CC$)RN.png" width="800" height="600" ori-width="557" ori-height="418"/>
![7ED}3AND74QM)[QM]0K}OIU.png](http://sc02.alicdn.com/kf/HTB1YtABQVXXXXb1XpXX760XFXXX6/223396165/HTB1YtABQVXXXXb1XpXX760XFXXX6.png)
![8Q1]EWAQE[38[6%VD30ATFQ.png](http://sc01.alicdn.com/kf/HTB11w.KQVXXXXckXXXX760XFXXXq/223396165/HTB11w.KQVXXXXckXXXX760XFXXXq.png)
Specification:
Automatic tea packing machine
Automatic adjustment of pouch size and filling range.
PLC Control system.
Technical parameters:
Model | PL-Tea | PL-2T |
Bag type | The inner bag without thread and tag | The inner bag with thread and tag |
Measuring range | 3-20ml | 3-10ml |
Speed | 40-70 bag/min | 40-60 bag/min |
Inner bag size | W50-80mm l50-90mm | W50-80mm L50-70mm |
Outer bag size | W70-90mm L65-130mm | W70-90mm L80-120mm |
Tag size | --- | W40-55mm L20-40mm |
Thread length | --- | 125mm |
Power supply | 220V/50HZ | 220V/50HZ |
Total power | 3KW | 3KW |
Air consumption | 0.2-0.5Mpa | 0.2-0.5Mpa |
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
Dimension | L1200*W1000*H1900mm | L1200*W1000*H1900mm |
Weight | 500KG | 550KG
|
Applicationst:
The machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas. Pack broken tea, herb tea, Saffron ,coffee and other similar products.

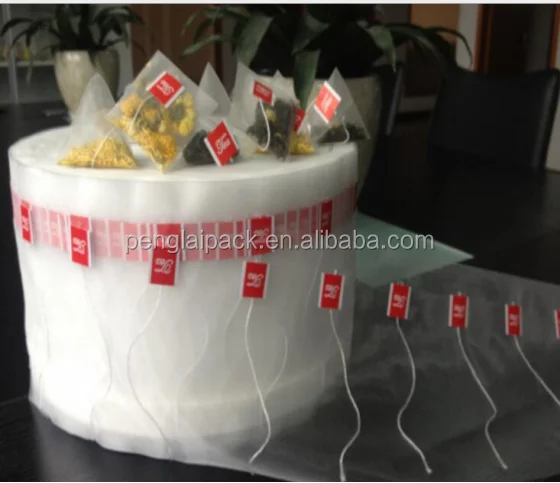

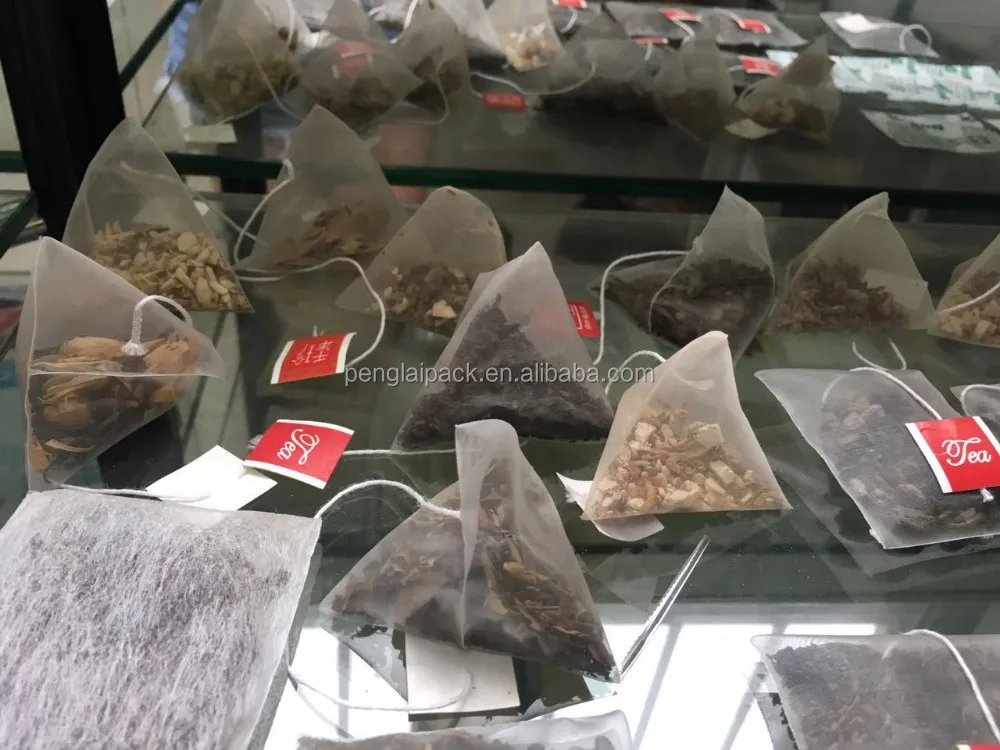

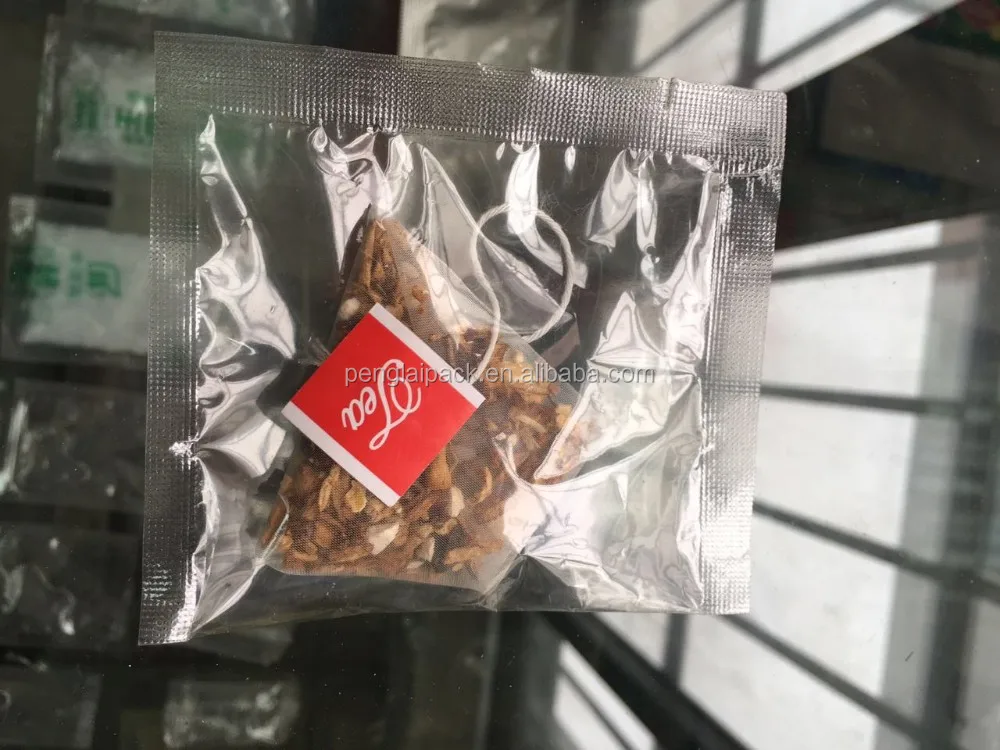

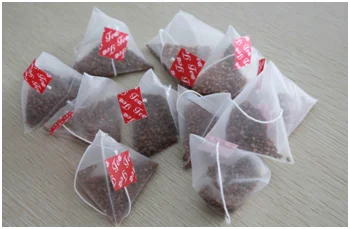

sample bags:
![LIIP88LWYCQ]X%B~3AR08TP.png](http://sc01.alicdn.com/kf/HTB1UtMKQVXXXXc1XXXX760XFXXXW/223396165/HTB1UtMKQVXXXXc1XXXX760XFXXXW.png)
Packaging & Shipping
Packed in plywood case.as following picture.
Our Services
Company Information

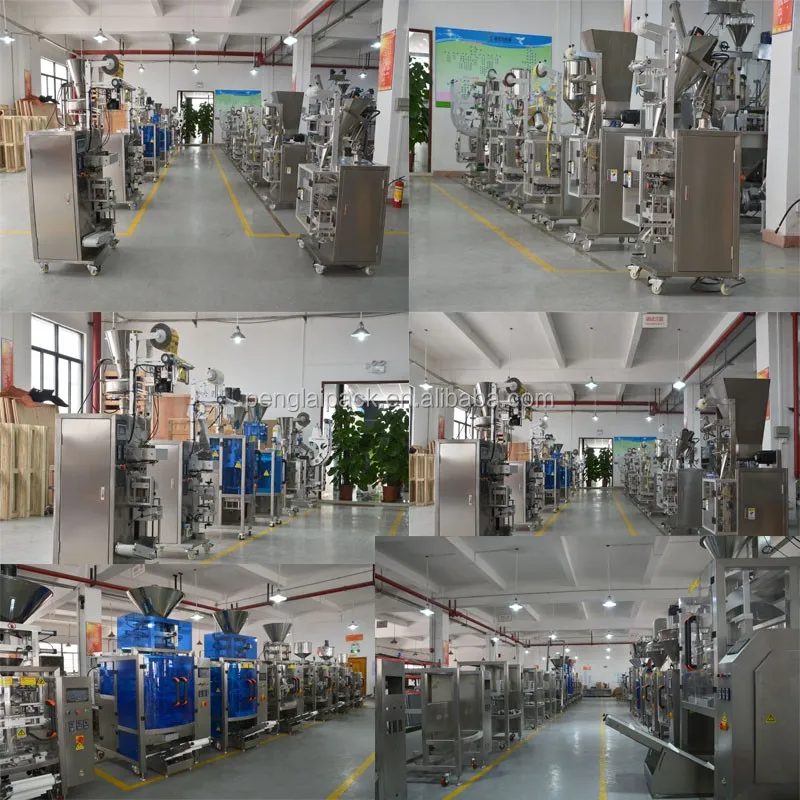

Guangzhou Penglai Packing Machinery Co.,Ltd are especially engaged in designing, R&D, manufacturing and selling various packing machines. Our main products includes: granule packing machines, liquid packing machines, powder packing machines, horizontal packing machines, counting & packing machines, filling machines, labelling machines, etc
