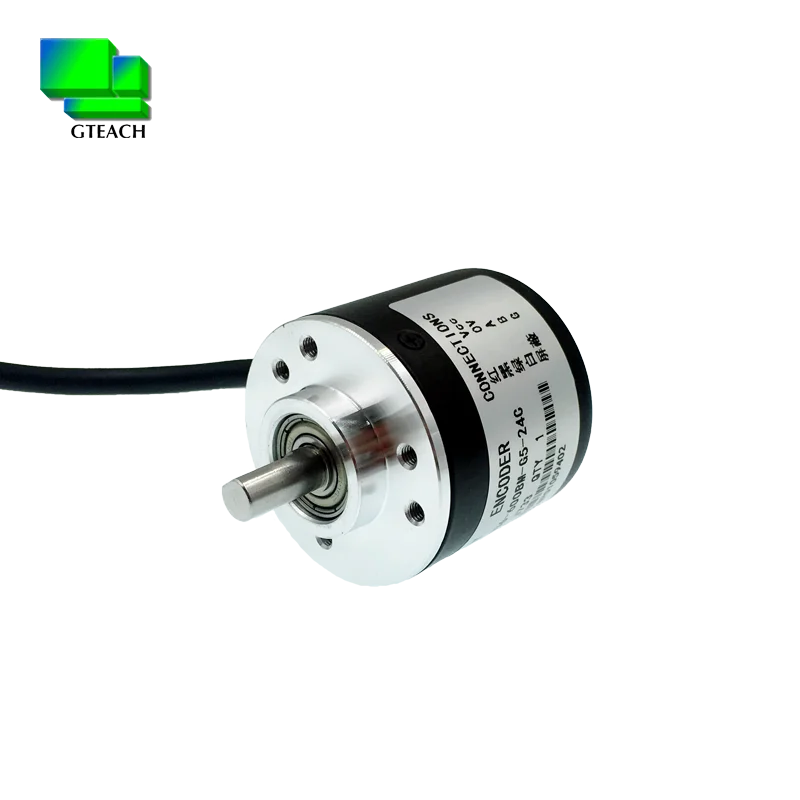

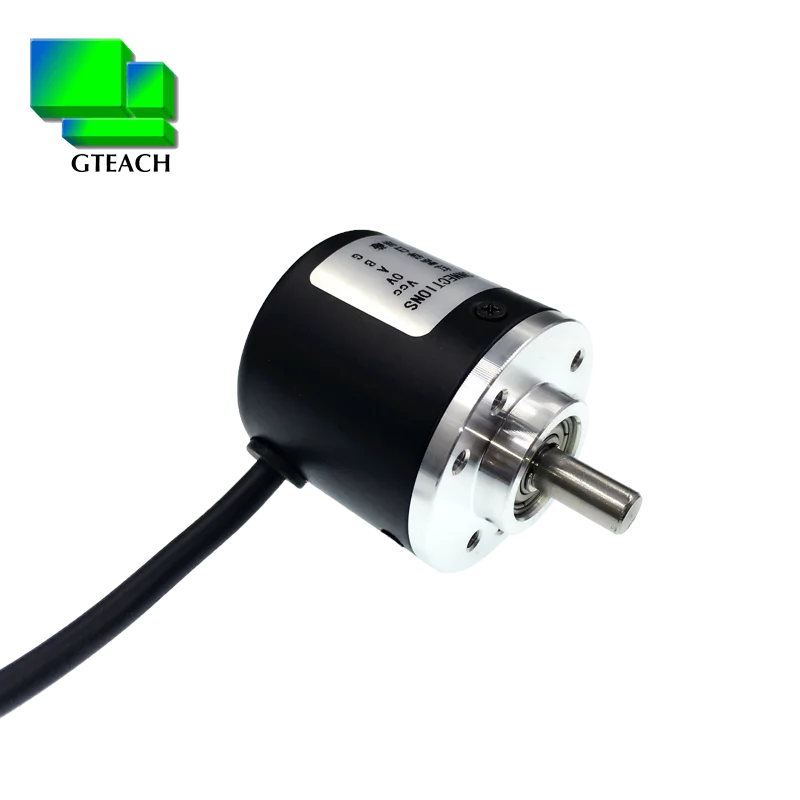

Optical encoder 360 ppr LPD3806 360BM G5 24C AB Two Phase Incremental optical shaft 6mm Rotary Encoder 360 Pulses lines

Product Overview

Description

♦ Parameter



Type: LPD3806-360BM-G5-24C                              Readout Model: Contact                              Signal Output: Open Collector Output
Package: SMD                                                            Brand: GTEACH                                              Pulses: 360
Working Principle: Incremental                             Operating System: Photoelectric              Installation Form:  Axonia
Axonia: Synchronous Flange                                  Transport Package: 1 PCS Per Box



♦ Product

♦ Recommend

♦ Specification

Item			Diameter 38mm shaft 6mm type incremental rotary encoder
Resolution(P/R)			360
	Output Phase		AB Phase
	Output Type		NPN Open Collector
	Electrical	Supply Voltage	5-24VDC
		Current consumption	Max. 40mA
		Response frequency	Max. 20Khz
		Allowable revolution	Max. 2000 rev/min
	Mechanical	Starting torque	Max. 20gf.cm (0.002N.m)
		Rotor interia	Max. 15g.cm2(1.5*10-6kg.m2)
		Shaft loading	Radial: Max. 2kgf Thrust: Max. 1kgf
		Mechanical Speed	Max. 5000 rev/min(*1)
	Environmental	Ambient temperature	-10~70 (at non-freezing status), Storage:-25~85
		Ambient humidity	35~85%RH, Storage: 35~90%RH
		Protection	IP50 (IEC standard)
		Vibration	1.5mm amplitude at frequency of 10-55 Hz in each of X,Y, Z direction for 2 hours.
		Shock	Max. 40G
Unit weight			Approx: 180g

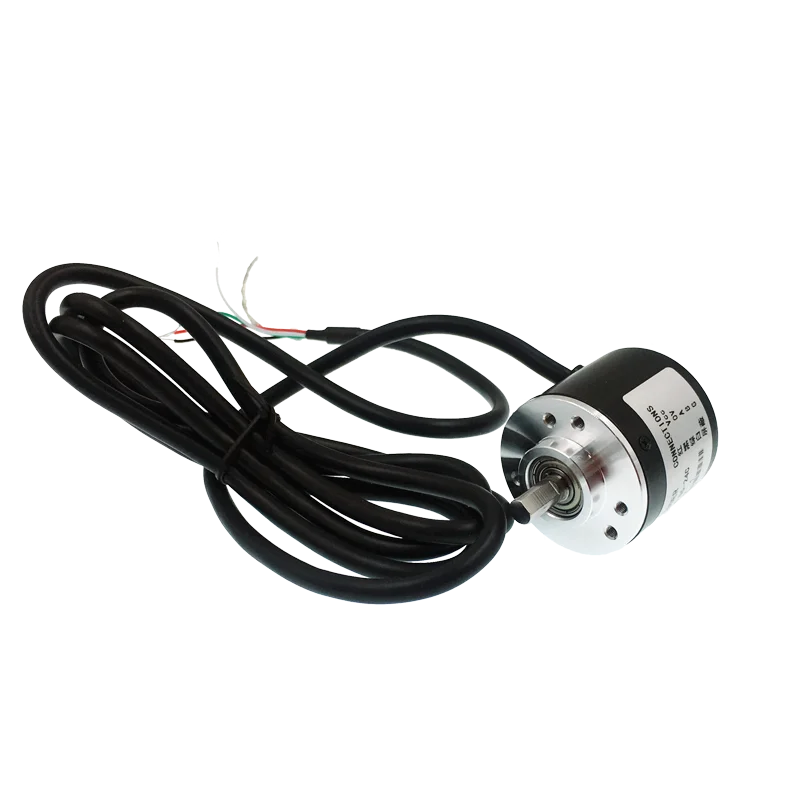

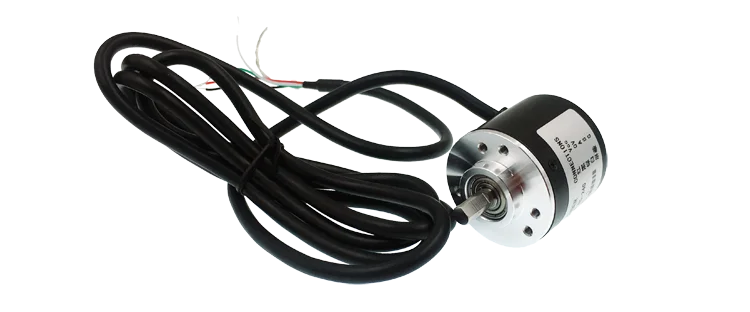

Cable			1.5m (The cable length can be customized)
Approval			CE  ROHS
(*1)			Mechanical speed > Allowable revolution, Please take allowable speed as standard when use

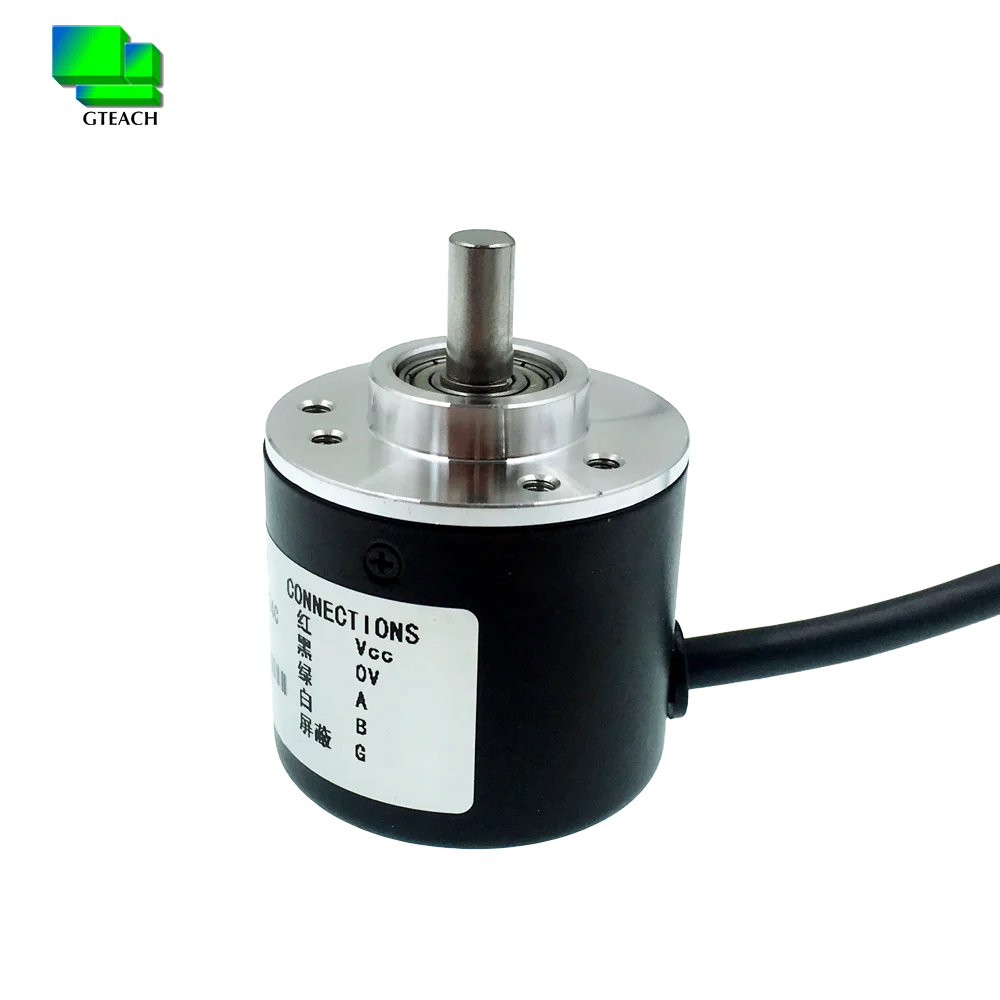

♦ Pin Assignment

Color	Red	Black	Green	White	Shield
Signal	Vcc	0V	A	B	Shield



♦ Drawing

♦ Our company

------------------------------------------------------------------------------------------------------------------------------------------------------

Conditions and terms

1. All of the products are brand new, top quality components, absolutely no used items

2 .The pictures are for reference only. Exact specifications should be obtained from the datasheet.

3. Prices, specifications, and availability of all items are subject to change without notice.



Payment Terms

1. We accept payments made by TT, PayPal, and L/C

2. Since you made the payment successfully, you can send us the Reference NO or MTCN.



Shipping

1. We will ship the items within 3-15 working days after the payment is reached.

2. We ship to you by Express, by sea, by air according to the PI.

3. Any import fees or charges are the buyer's responsibility.



Warranty

 Warranty is available based on the following points:

1. Quality guaranteed for one year.

2. If the items you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.

3. If the items are defective, please notify us within 3 days of delivery.

4. Any items must be returned in their original condition to qualify for a refund or replacement.



Caution for using
1.Installation
this unit consists of precision components. If you drop this unit, it may lose the function.
Please treat this product carefully.
When you install this unit, if eccentricity and deflection angle are larger, load is applied to the
Shaft it may shorten the life cycle of this unit.
Do not put strong impact with hammer, etc when insert coupling into shaft.

2. for using
do not cut or connect circuit when power is ON. It may cause damage to the unit.
When the power source is Switching Power, it may cause surge. Install a surge absorber in
Power line. Wire should be shorter in order not to be influenced by noise.
Do not splash water, oil etc, cover the protecting hood when necessity.

3. Environment
Please do not use this unit with below environment, or it may cause malfunction.
Place where this unit or component may be damaged by strong vibration or impact.
Place where there is a lot of flammable or corrosive gases.
Place where strong magnet field or electric noise occurs.
Place where is beyond of the rated temperature or humidity.
Place where strong acids or alkali nearby.
Place where there is the direct ray of the sun.

4. Vibration and Impact
if a big impact or strong vibration applies to the product it may cause pulse errors. Be sure that
when installing this unit.
Encoder with high resolution can be easily affected by vibration, therefore tighten fixing bracket
When installing this unit.

5. Wire connection
Do not pull out the wire with over 30N strength after fixing the unit and wiring the cable.
If wire encoder cable with high voltage line or power cable in the same conduit, it may cause a
Malfunction or mechanical problem. Please wire it separately or use separated conduit.
