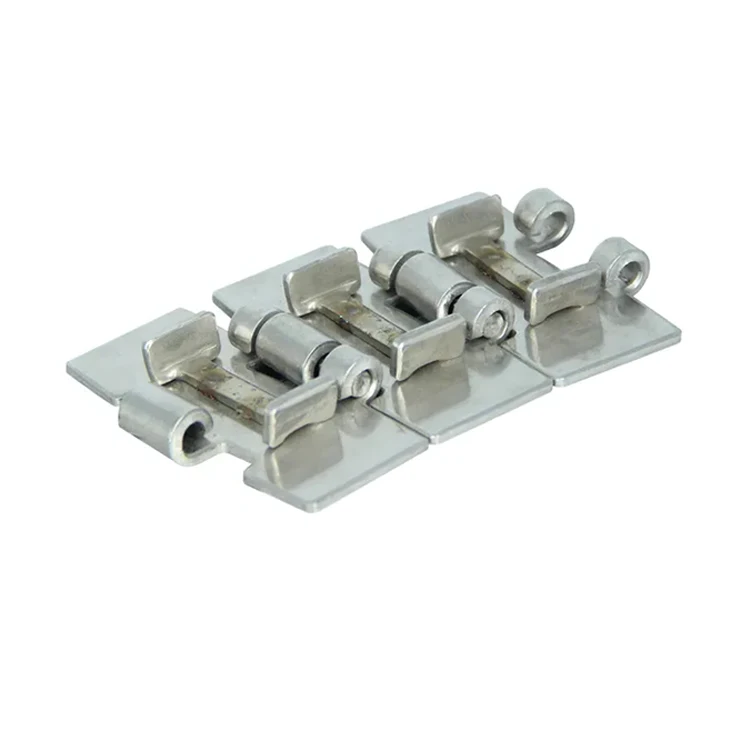

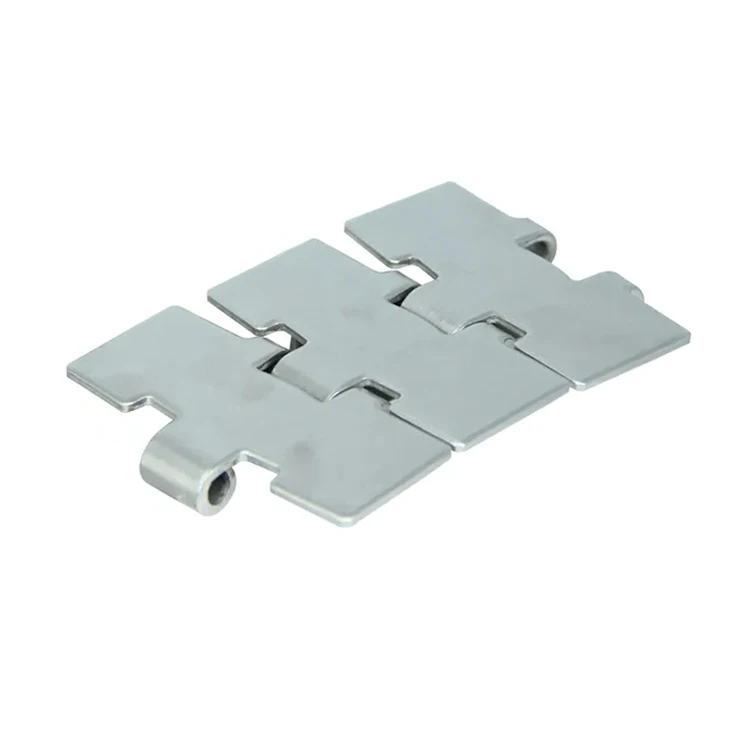

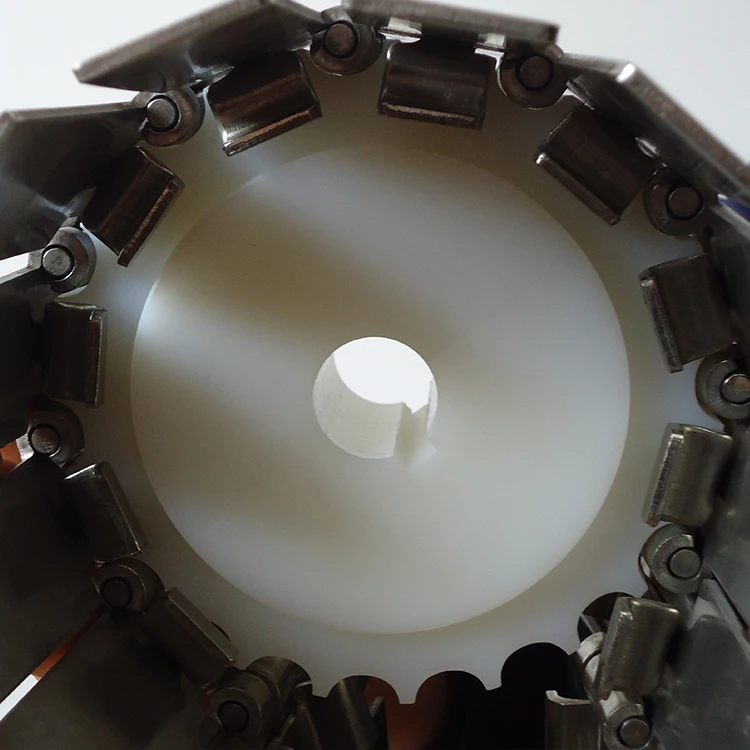

SS881 Factory Manufacturing Stainless Steel Side Flexing Chain for beer industry bottle conveyor
- Category: >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (60729560742):
Product Overview
Description
Short Description
Stainless Steel Table Top Chain SS881 with Bevel Guides, Side Flexing Chains, high wear resistance, durability and tensile strength, mainly application for conveying beer glass bottles, SS430 suitable for soft drinksbreweries, bottling plants, SS304 for wine industry.

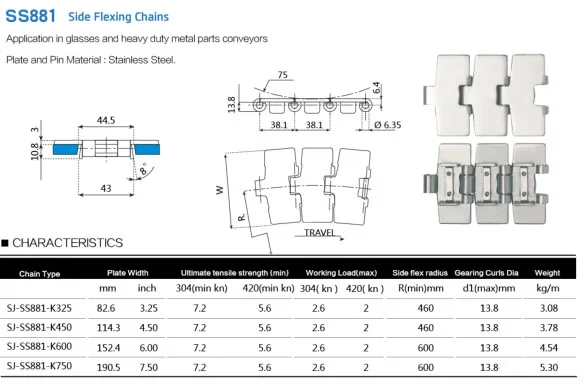

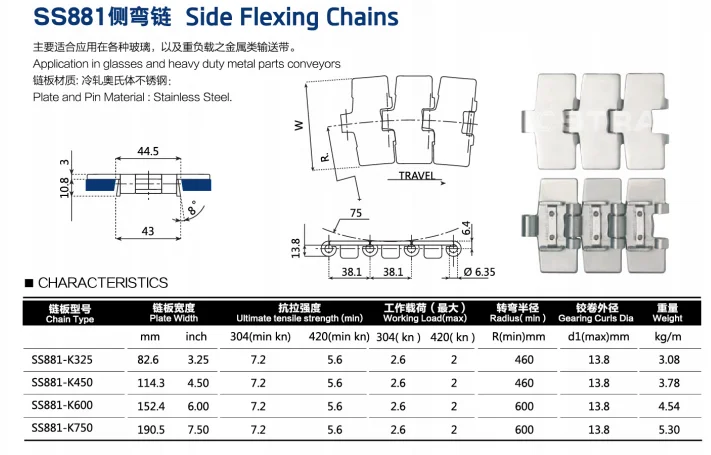

Product Parameters
Chain Type | Plate Width | Ultimate tensile strength | Working load(Max) | Radius(min) | Weight | |||||||||||
mm | inch | 304(min kn) | 420 (min kn) | 304(kn) | 420(kn) | mm | Kg/m | |||||||||
SS881-K325 | 82.6 | 3.25 | 7.2 | 5.6 | 2.6 | 2 | 460 | 3.08 | ||||||||
SS881-K450 | 114.3 | 4.50 | 7.2 | 5.6 | 2.6 | 2 | 460 | 3.78 | ||||||||
SS881-K600 | 152.4 | 6.00 | 7.2 | 5.6 | 2.6 | 2 | 600 | 4.54 | ||||||||
SS881-K750 | 190.5 | 7.50 | 7.2 | 5.6 | 2.6 | 2 | 600 | 5.30 | ||||||||
Pitch ：38.1mm | Pin Dia(Max)：6.35mm | Gearing Curis Dia(max): 13.8mm | ||||||||||||||
Material: ; austenitic stainless steel (non-magnetic) Pin material：stainless steel. | ||||||||||||||||
Maximum conveyor length: 15meters. | ||||||||||||||||
Corner tracks or turning disks can be selected for curved transportation. | ||||||||||||||||

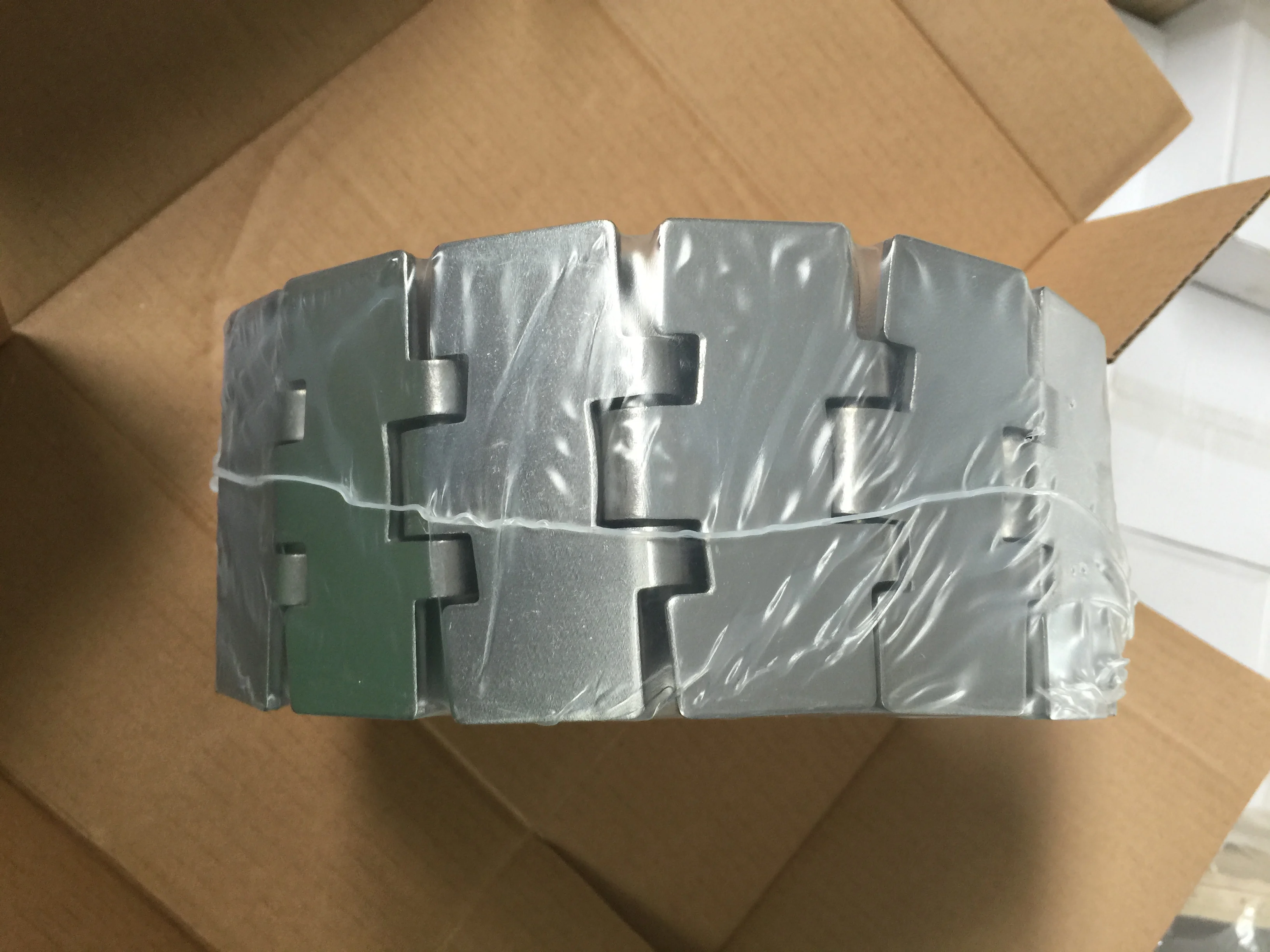

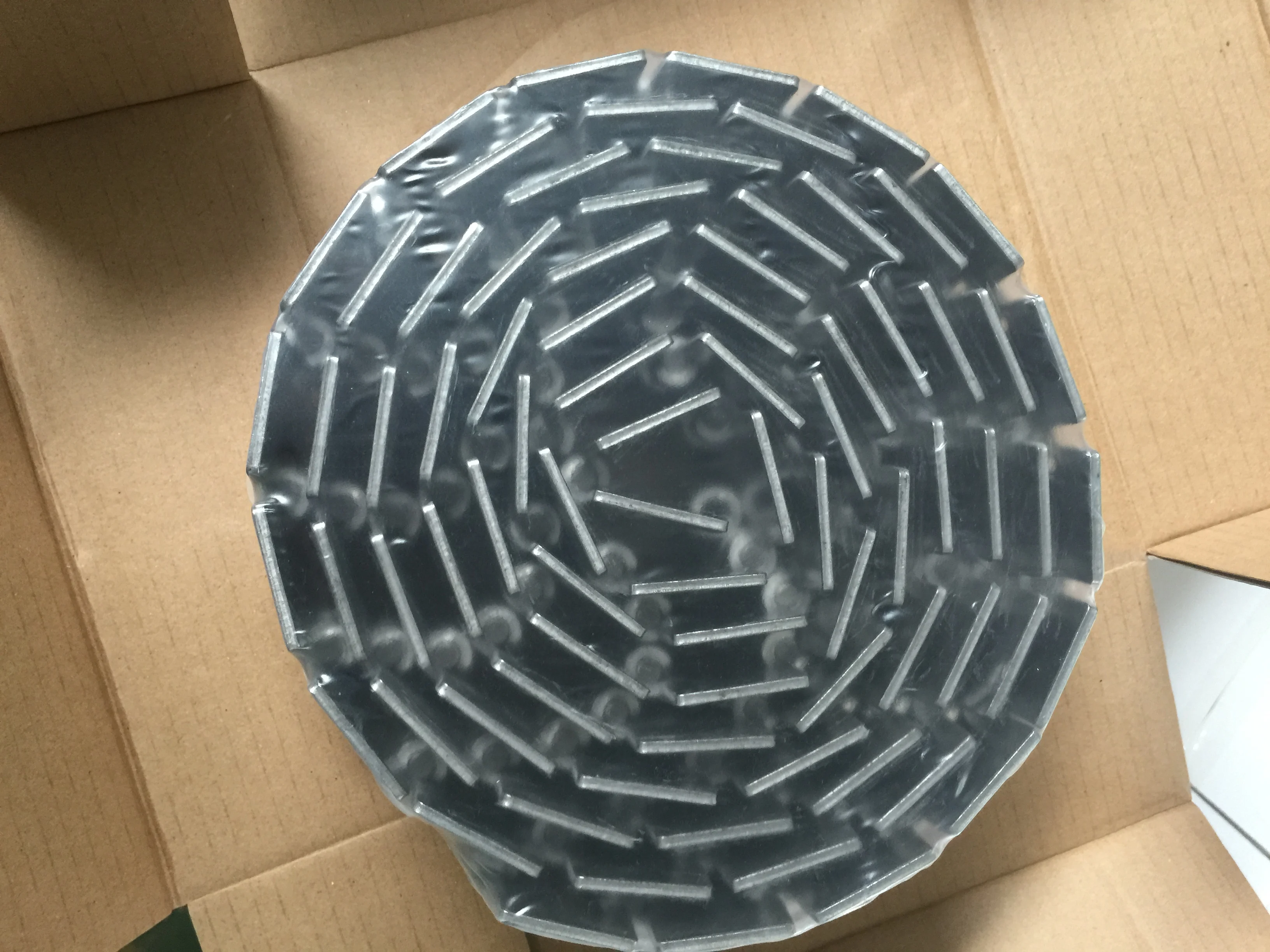

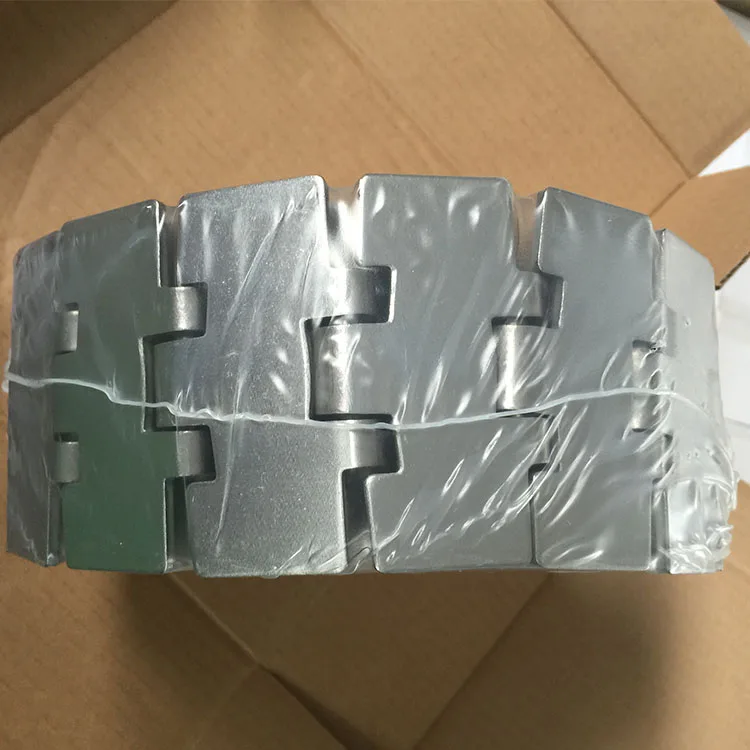

Packing: 10 feet=3.048 M/box 26pcs/m | ||||||||||||||||

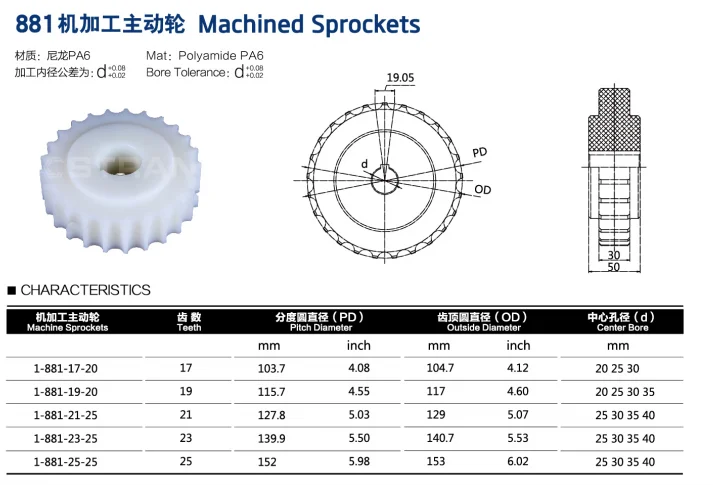

Machined Sprockets
Machine Sprockets | Teeth | Pitch Diameter(PD) | Outside Diameter(OD) | Center Bore(d) | ||||||||
mm | inch | mm | inch | mm | ||||||||
1-881-17-20 | 17 | 103.7 | 4.08 | 104.7 | 4.12 | 20 25 30 | ||||||
1-881-19-20 | 19 | 115.7 | 4.55 | 117 | 4.60 | 20 25 35 40 | ||||||
1-881-21-25 | 21 | 127.8 | 5.03 | 129 | 5.07 | 25 30 35 40 | ||||||
1-881-23-25 | 23 | 139.9 | 5.50 | 140.7 | 5.53 | 25 30 35 40 | ||||||
1-881-25-25 | 25 | 152 | 5.98 | 153 | 6.02 | 25 30 35 40 | ||||||
Material: Polyamide PA6 | ||||||||||||
Bore Tolerance: d: 0.02~008 | ||||||||||||
Application
Ideal for the foods, soft drinks, breweries, glass bottling filling, wine industry, dairy,cheese, beer production, incline conveying, canning and pharmaceutical packaging Suggestion: lubricant.
Advantage
Steel and Stainless Steel Flat Top Chains are produced in straight running and side
flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
Related
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
