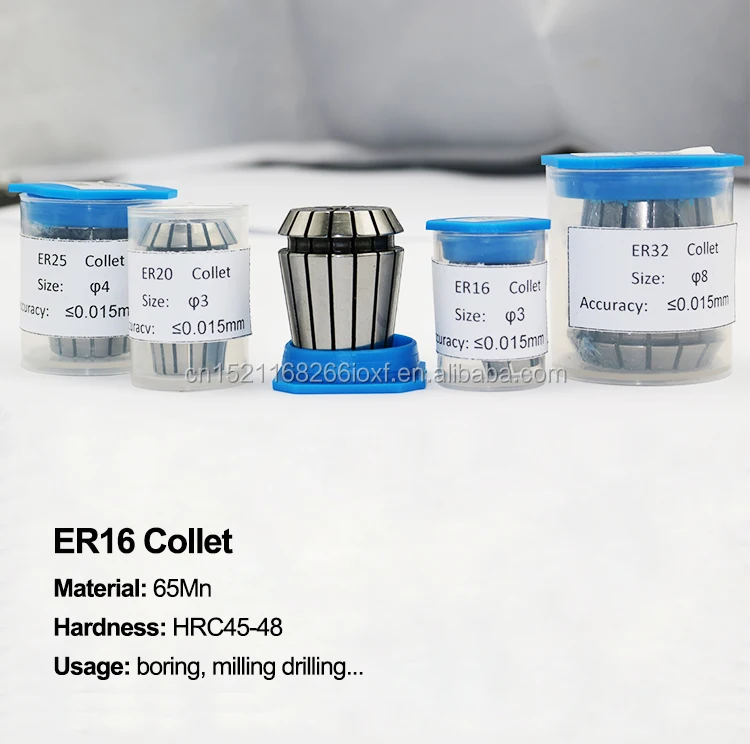

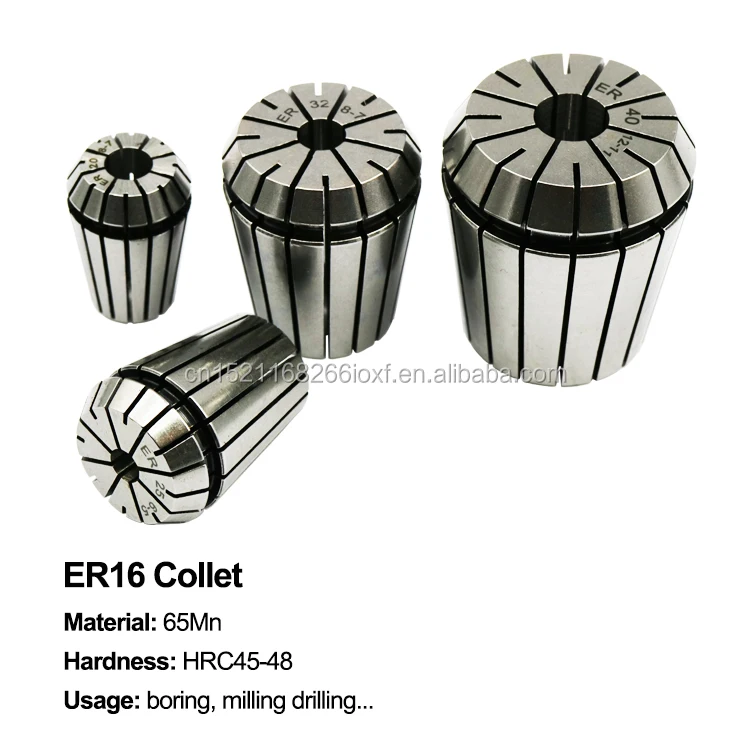

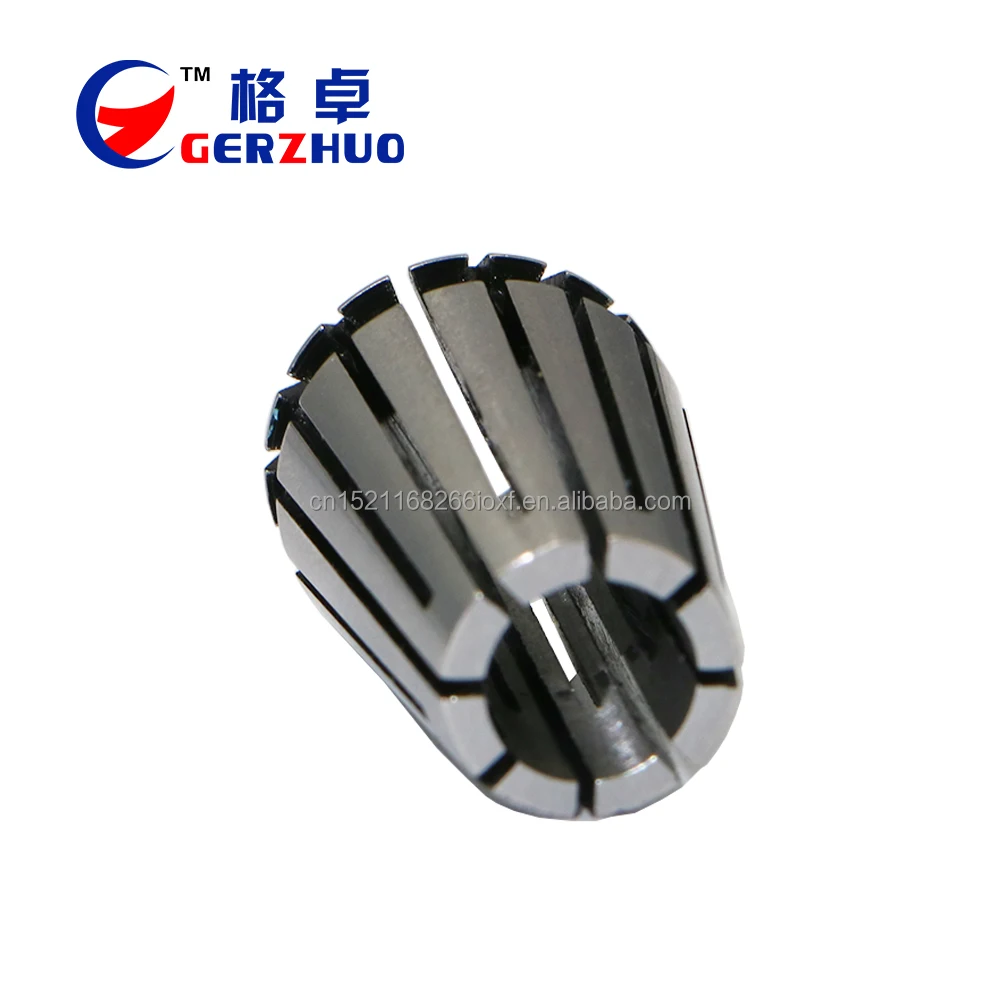

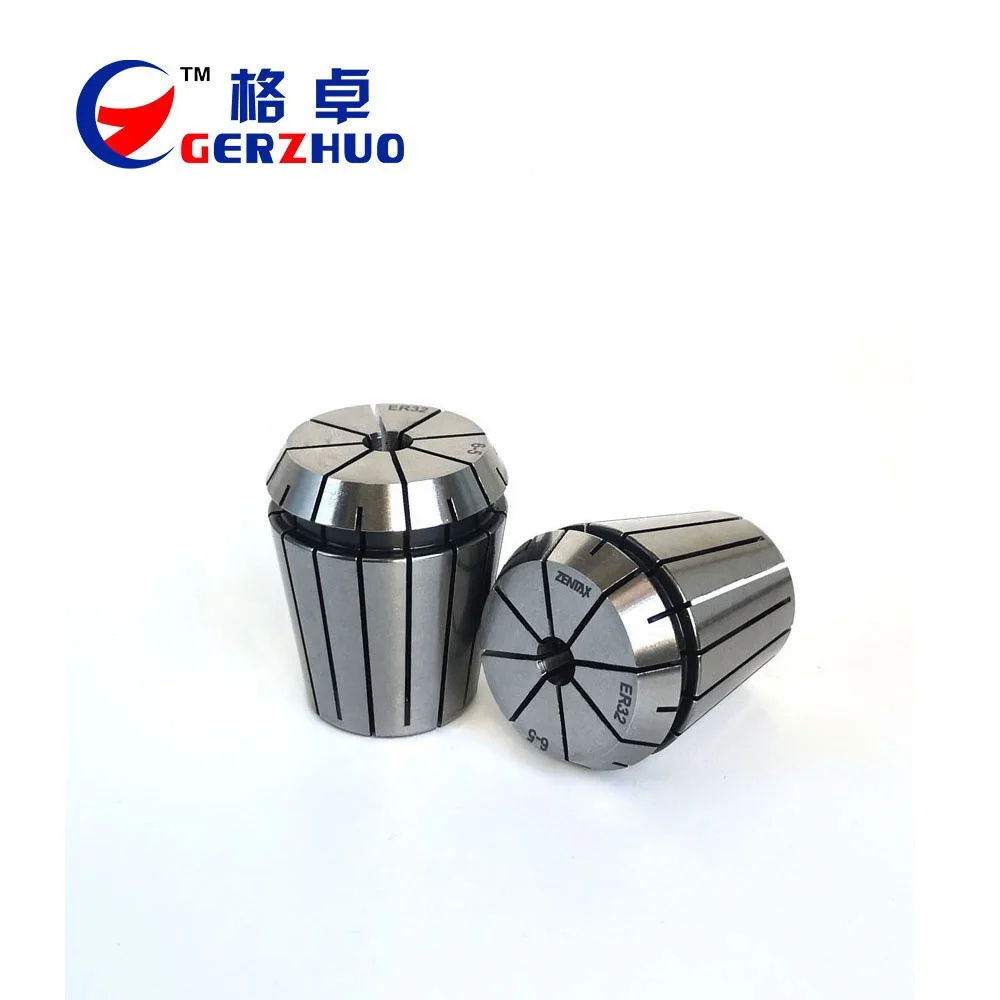

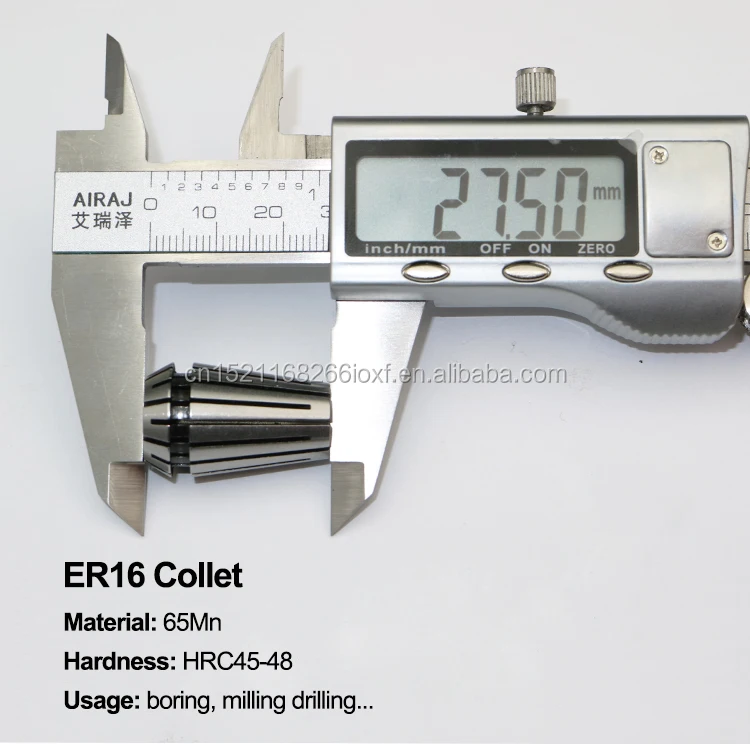

High Precision Collet Lathe Machine Accessories Tool Parts ER16 Collet

1, Material: 65Mn

2, Runout: 0.005mm-0.015mmm

3, Hardness: HRC44-48

4, Accuracy: 0.005-0.015mm

6, Size: Full size of ER8, ER11, ER16, ER20, ER25, ER32, ER40 and ER50 collet

7, Packing: Collets with plastic boxes, packing with carbon box

Usage

Used for boring, milling, drilling,tapping, grinding and engraving operation etc.

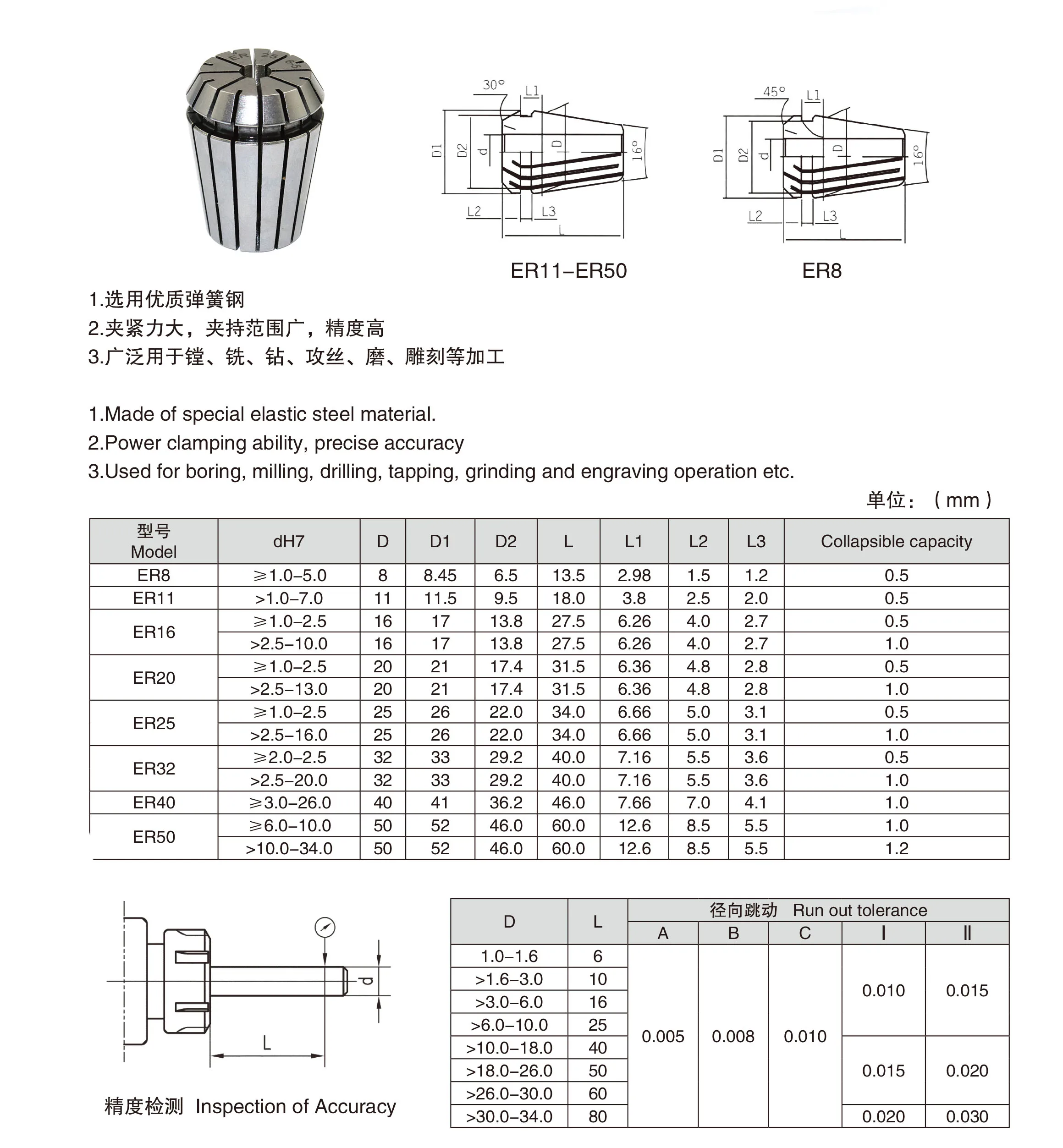

Technical parameter

ER Collet operation

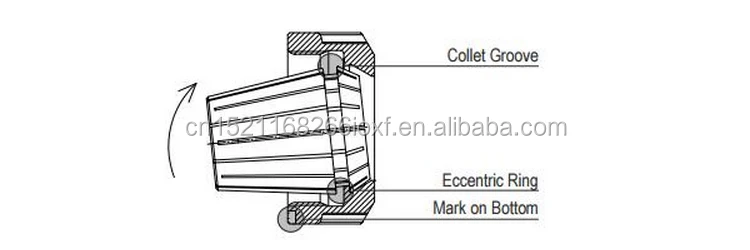

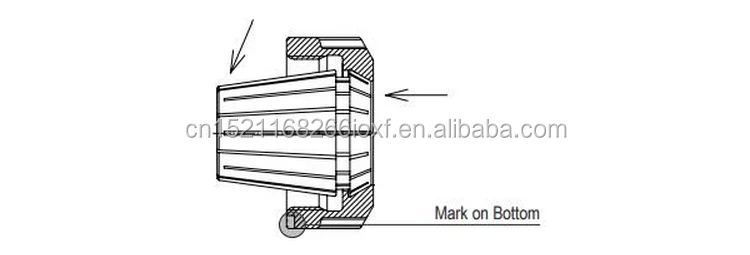

Assembling Collet

Insert groove of collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the direction of the arrow until it clicks in place. Screw nut with collet onto tool holder. We recommend tightening the nut with a torque wrench.

Disassembling Collet

After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.

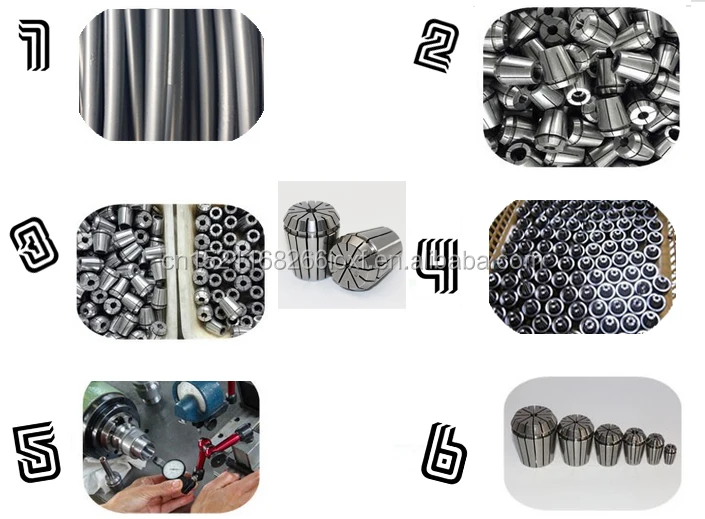

 Production process

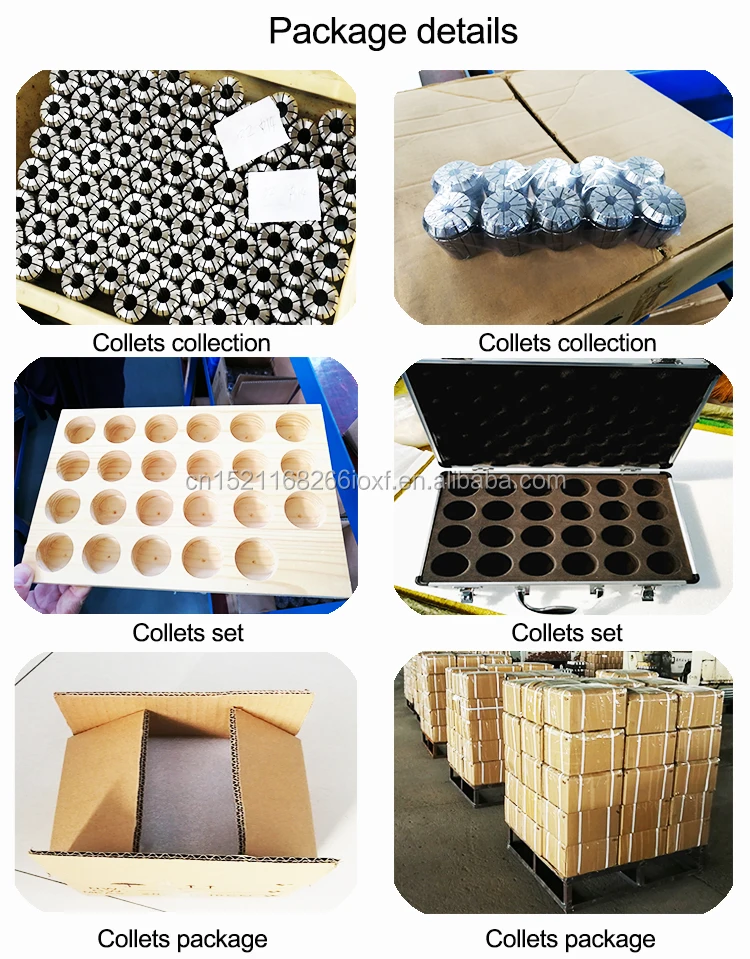

1, ER collets are sealed by film to keep original accuracy which aims at guarantee achieving

    customers' requirement.

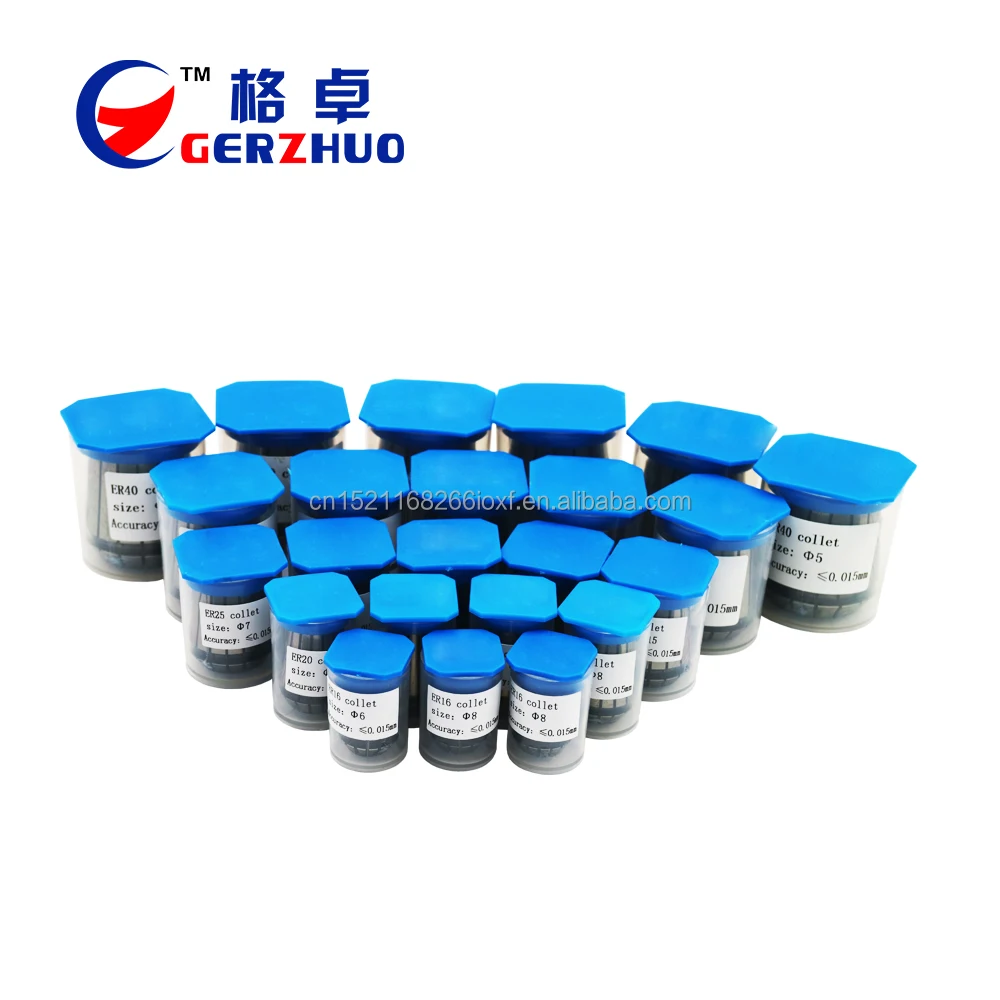

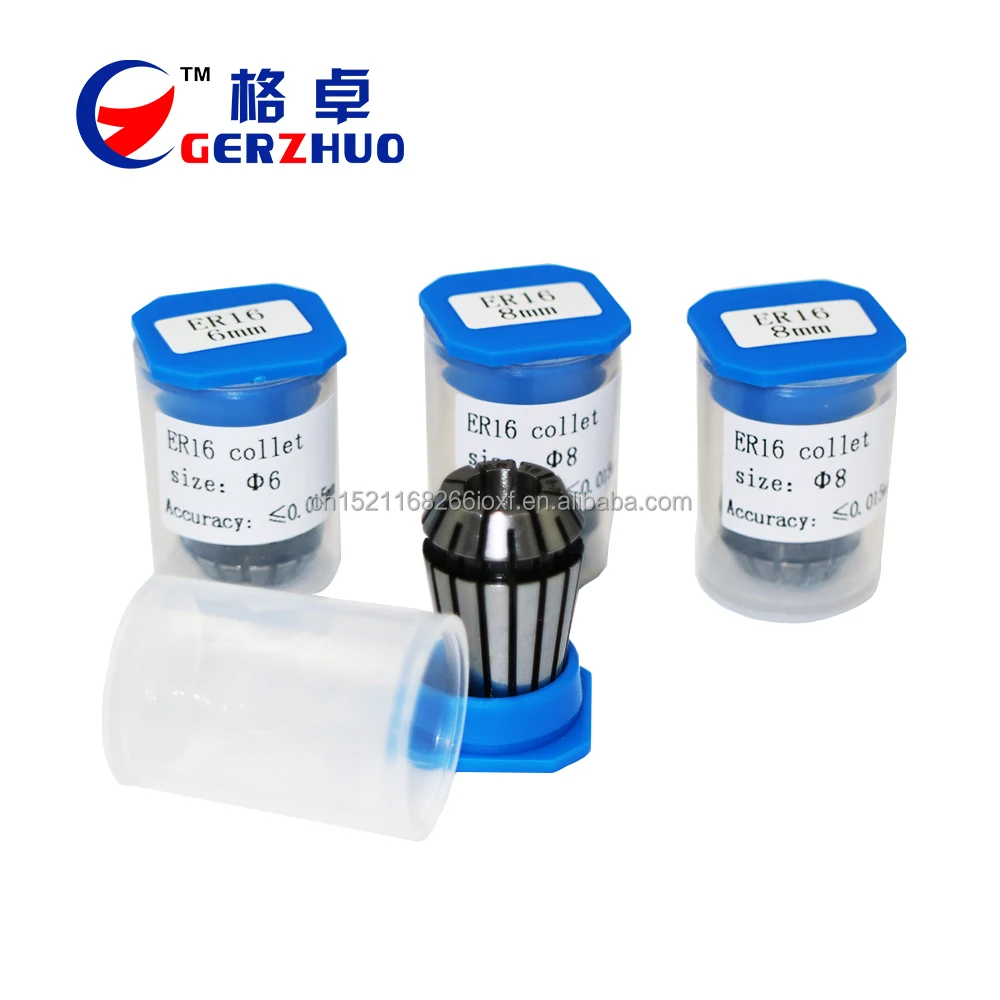

2, Single product is packed by plastic box that make it safe.

3, Bulk products are packed by carbon box to ensure reach transportation requirement.

1. Guarantee quality which mainly embodied in real accuracy.
2. Huge production capacity to ensure in time delivery
3. Manufacture that can accept OEM service.
4. Professional sales team and engineers.
5. Sufficient experience in domestic and international sales
6. Prompt reply which response in 15 minutes
7. Never stop in innovating and improving.

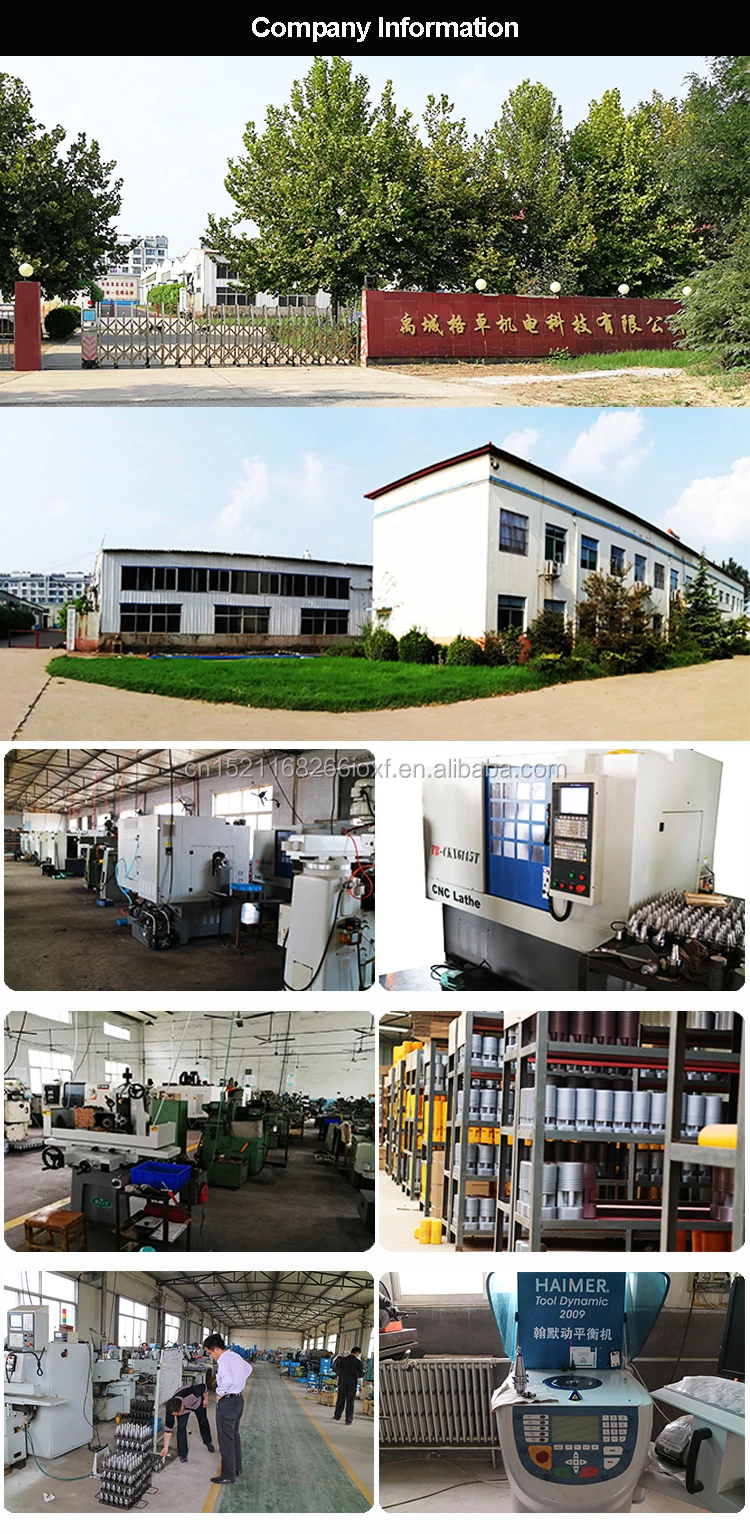

YUCHENG GERZHUO MECHATRONICS TECHNOLOGY Co., Ltd is a competitive private enterprise engaged in production of machine tool parts. Machine tool parts includes varied of series, and full range specification, specialized in advantage of ER collet, tool holders and accessories. We have established long-term friendly cooperation relationships with numerous customers all over the world as following: USA, Sweden, Russia, Spain, France, Italy, Britain, Germany, South-east countries, Latin America countries, Africa countries and so on.
We guarantee the security and quality of our product by optimized and centralized product selections, and have built strong partnerships with well-known companies in the industry in China.

We will keep improving technology and ourselves to lead industry development and create new marketing value. Make made-in-China become created-in-China.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective. Principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

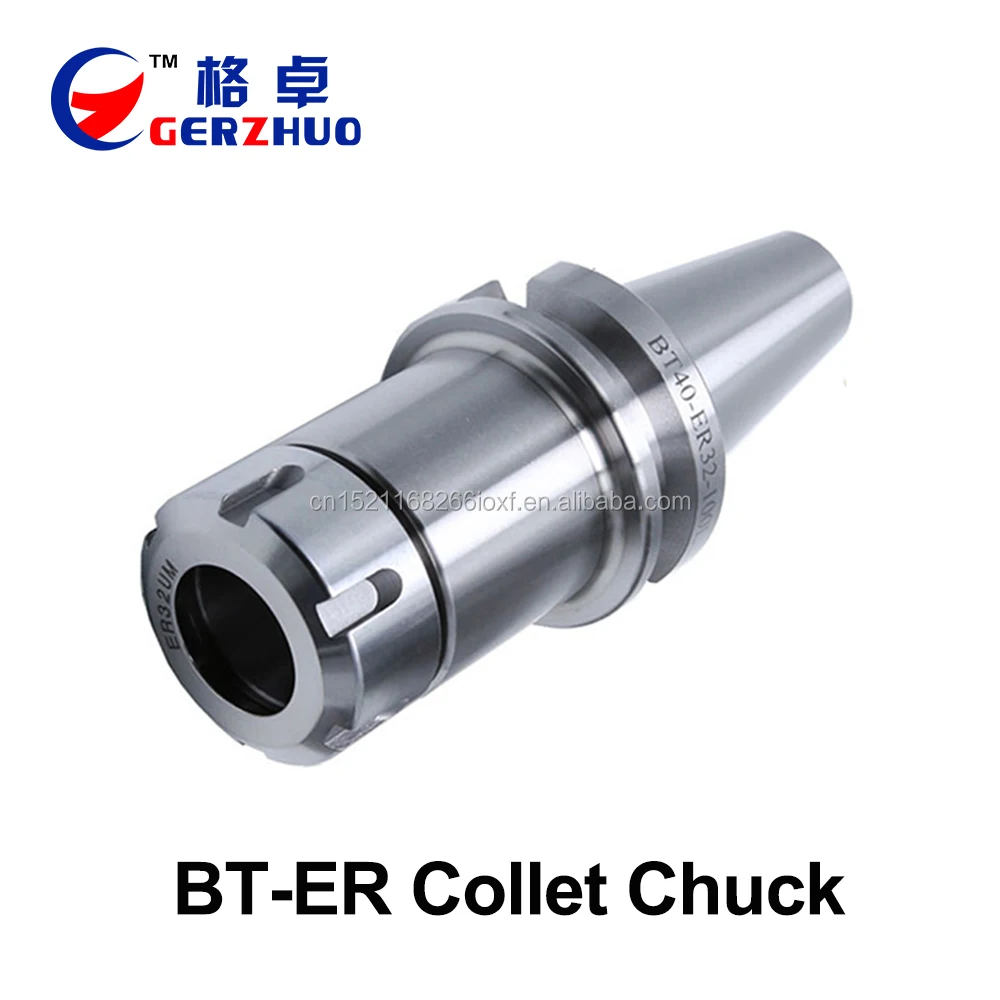

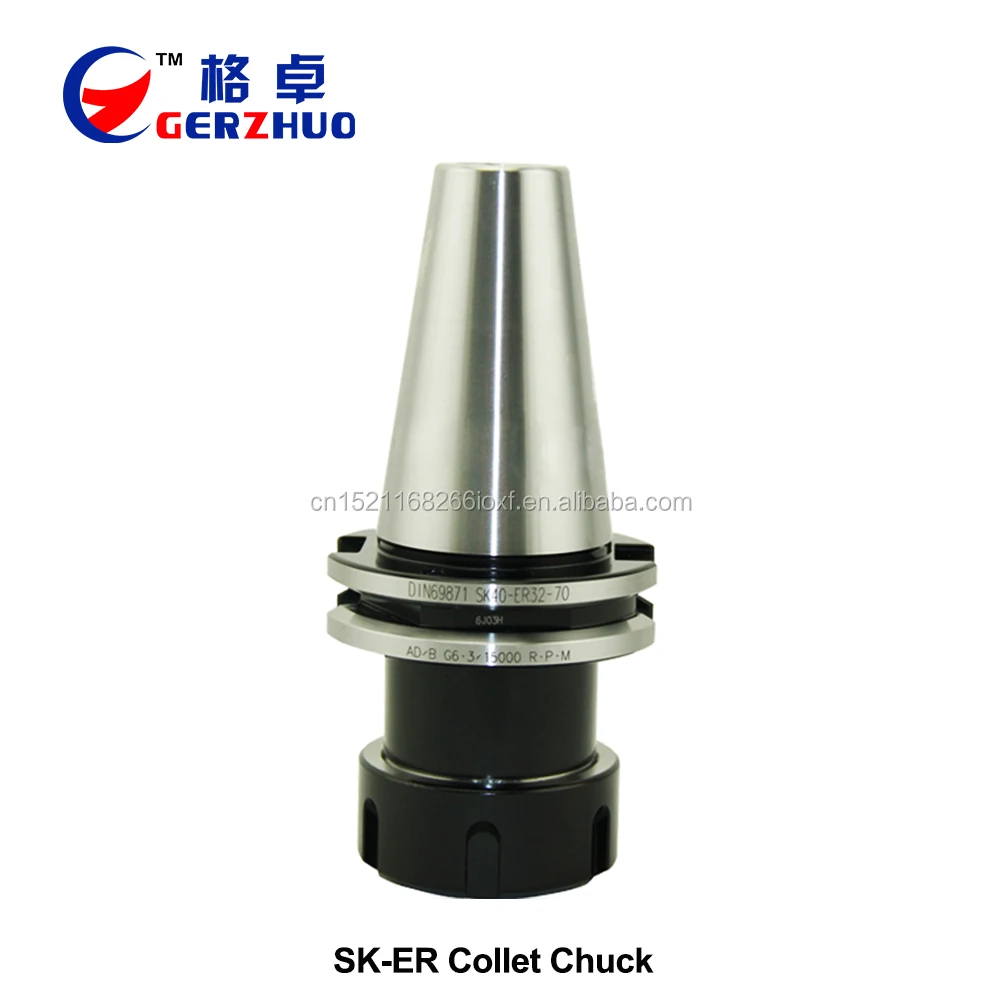

Our related products for your reference

Q:  Are you manufacturer or Trader?
  A:  We are the manufacturer specialized in CNC machine accessories including collets, collet chucks and related accessories, and we organized an professional trading team for global business.

Q:  Do you accept OEM service
  A:  We can offer OEM service based on your specific requirement.

Q:  Can you offer sample?
  A:  We can offer samples for custom’s testing.

Q:  What is your lead time?
  A:   It depends on customers’ item requirement and quantity.

Q:   How do you guarantee your output quality?
  A:   We take three times inner test before transfer to testing center. Additionally two more times testing
         procedure in testing center by Germany professional testing equipment.

Q:   Which countries have you exported?
  A:    Our business expanded to all over the world, and our main market are North American, Latin American, East Europe,
           German, UK, South Asia, Southeast Asia, Taiwan, Middle East.
