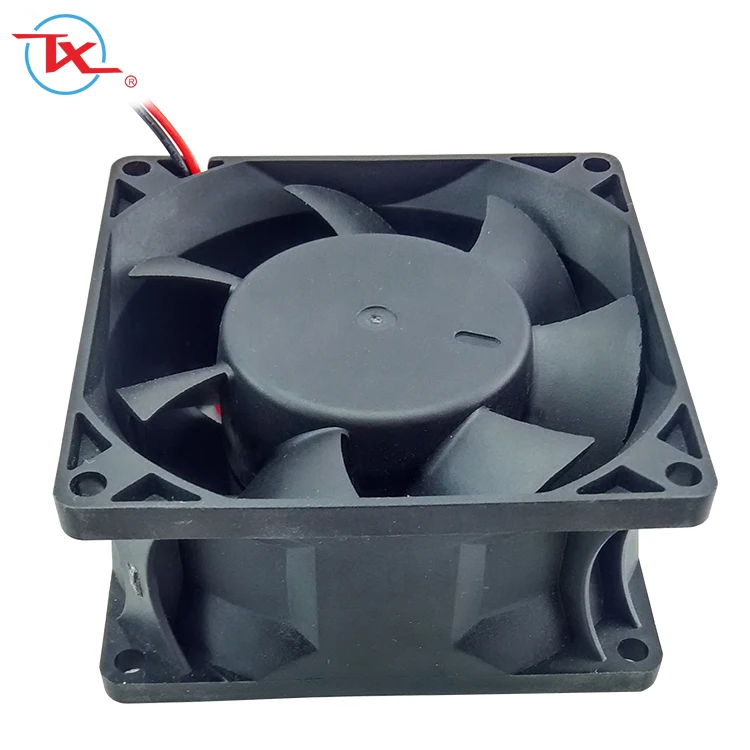

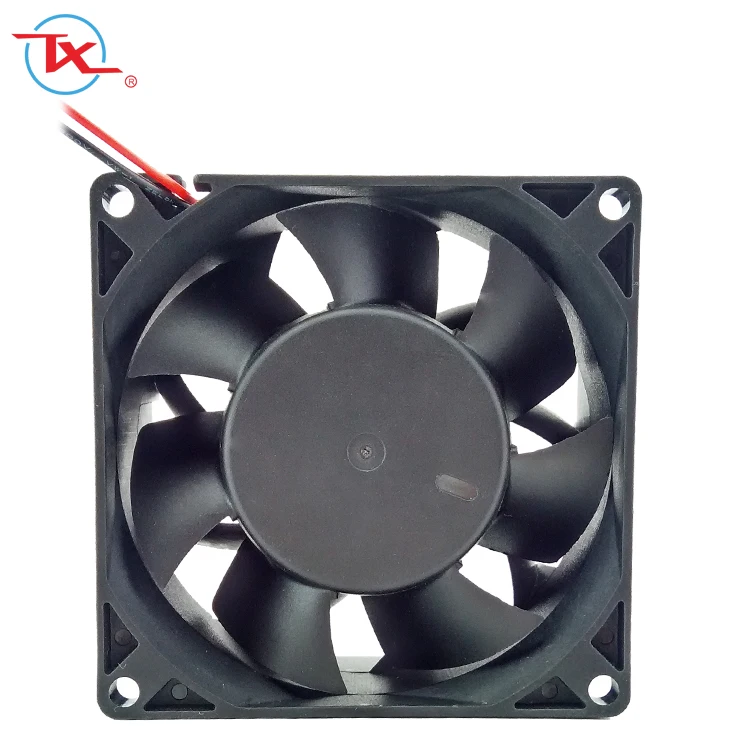

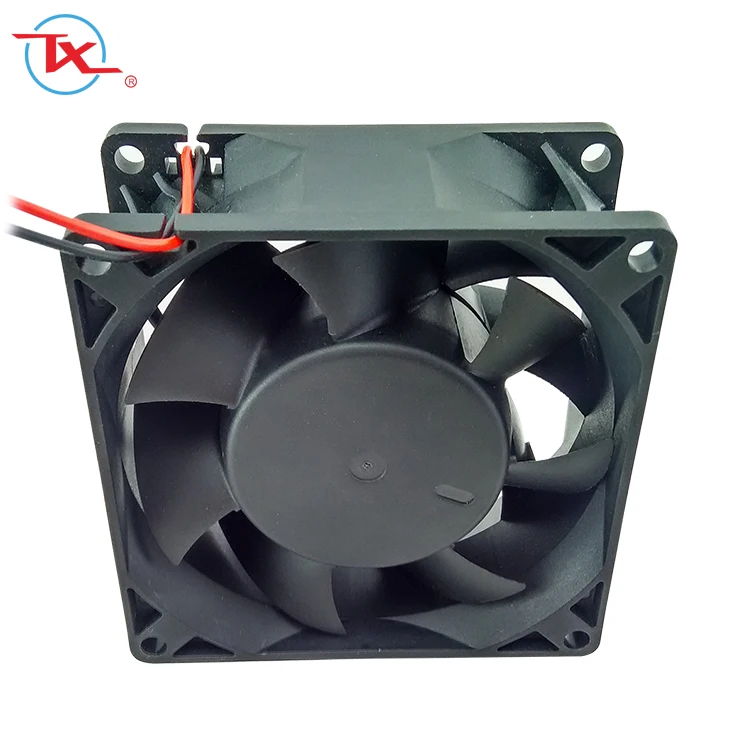

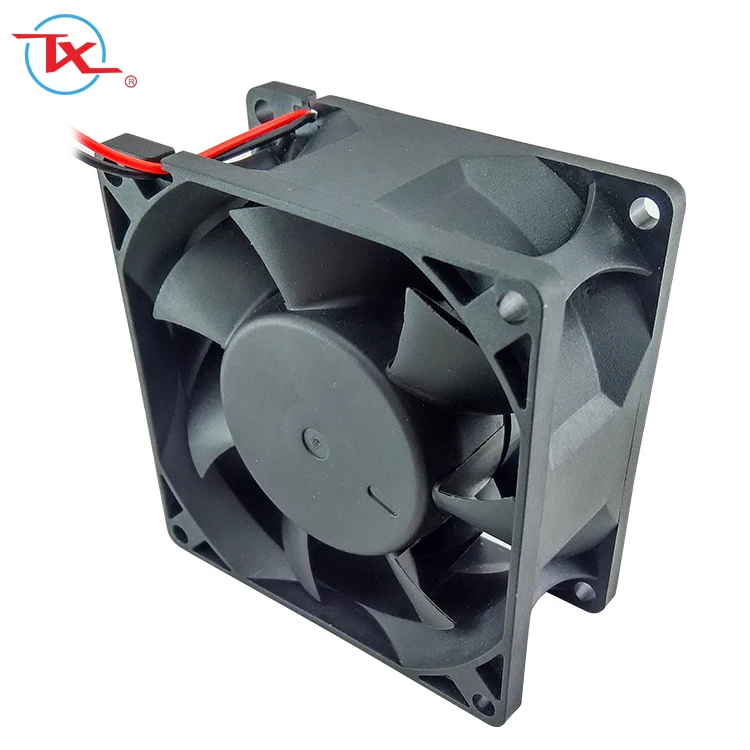

80mm 80x80x38mm 8038 12v 24v small dc brushless computer cooling fan 5v (TX8038HB) 12v micro 48v cooler industrial axial
- Category: >>>
- Supplier: Linyi Tongxin Electric Co. Ltd.
Share on (60729629304):
Product Overview
Description
| Model | Voltage V | Power | Current AMP | Speed R/min | Air flow CFM | Perssure mmH2O | Noise DB(A) | weight | Bearing Type |
| TX8038HS05 | 12 | 19.2 | 1.60 | 7500 | 105.0 | 35.0 | 63 | 170 | BALL |
| TX8025HB05 | 12 | 10.2 | 0.85 | 6000 | 83.5 | 21.8 | 57 | 170 | BALL |
| TX8025HS24 | 24 | 19.2 | 0.80 | 7500 | 105.0 | 35.0 | 63 | 170 | BALL |
| TX8025HB24 | 24 | 10.8 | 0.45 | 6000 | 83.5 | 21.8 | 57 | 170 | BALL |
| TX8025HS48 | 48 | 21.6 | 0.45 | 7500 | 105.0 | 35.0 | 63 | 170 | BALL |
| TX8025HB48 | 48 | 13.4 | 0.28 | 6000 | 83.5 | 21.8 | 57 | 170 | BALL |
1. | Category | Small Ventilation DC Brushless Axial Fan |

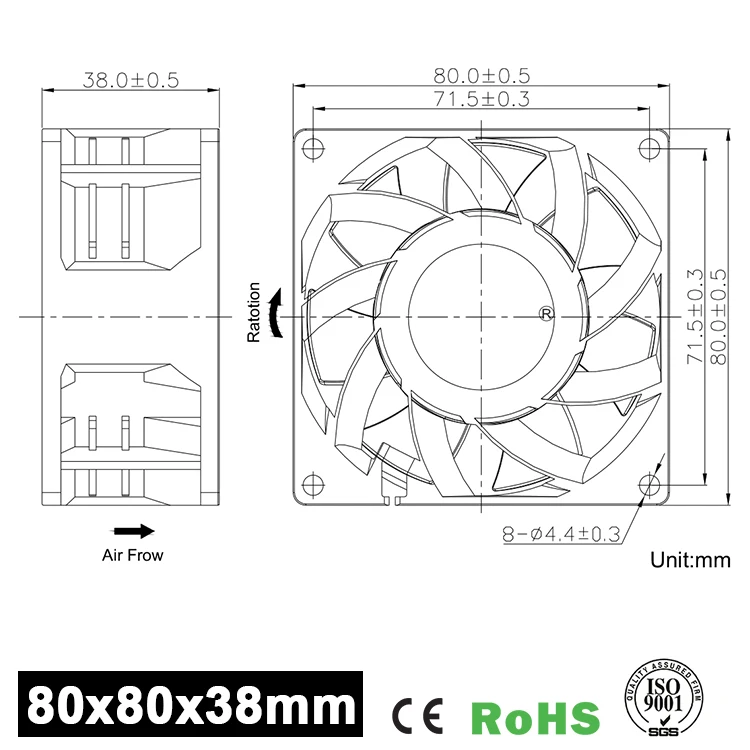

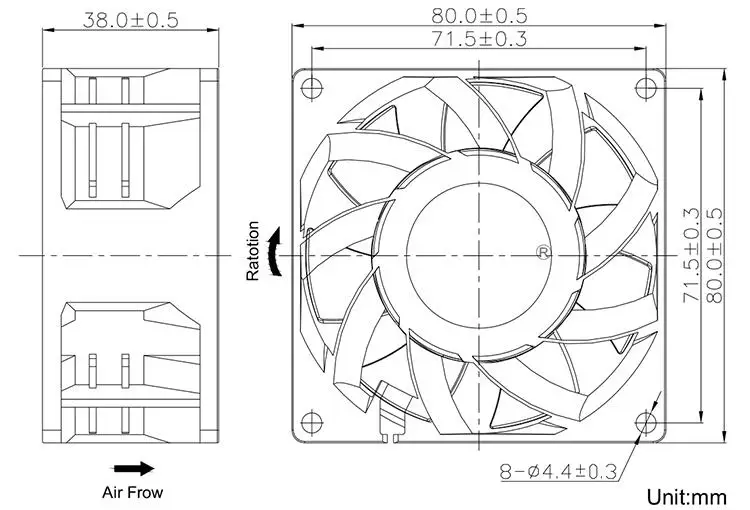

2. | Frame Size | 80x80x38mm,80mm,8cm,3 Inch,3" |
3. | Bearing Type | Dual-Ball Bearing/Sleeve Bearing |
4. | Frame Material | Plastic, UL94V-0 |
5. | Blade | 7 Blades, Plastic, UL94V-0 |
6. | Lead Wire | 280±10mm,AWG#26 UL1007 (+)Red (-)Black |
7. | Motor | 4 Poles Brushless DC Motor |
8. | Motor Protection | Impedance Protected,Reverse Polarity Protected,Thermal Protected (Auto Restart) |
9. | Weight | 170G |
10. | Insulation | Class A |
11. | Protection Grade | IP55~IP68 |
12. | Insulation Resistance | Above 100MΩ, DC500V (Between Lead Wire and Frame) |
13. | Operating Temperature | -10℃~70℃ (35%~85%RH) |
| 14. | Storage Temperature | -40℃~70℃ (35%~85%RH) |
15. | Life Expectancy(Dual Ball Bearing) | 50000hrs at 25 degree |
16. | Life Expectancy(Sleeve Bearing) | 30000hrs at 25 degree |
17. | Available Function | FG,RD,PWM,IP56,Thermal Control,Auto-Restart |
| 18. | Application | 1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6.UPS Power 7.LED Lighting 8.Computer Case 9.CPU 10.Safty Equipment 11.Office Electrics 12.SUP Power 13.Communication 14.Printing Equipment ... |
| 19. | OEM | Acceptable |
| 20. | Sample Service | Sample Can Be free,But You're Suggestsd Paying For Freight. |
| 21. | Quality Assurance | 24 Months |
| 22. | Item Condition | Brand New |
