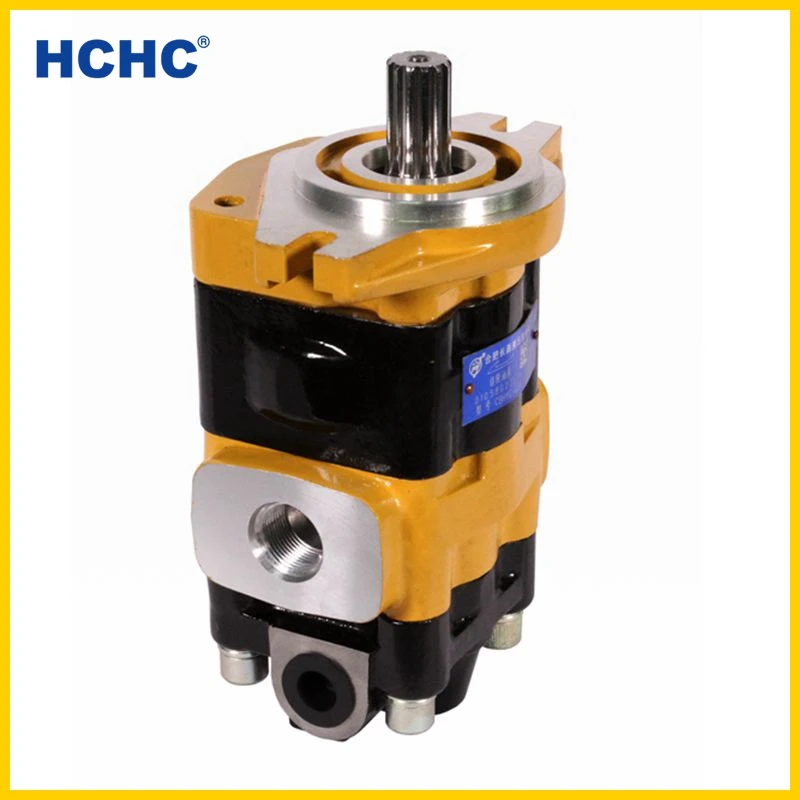

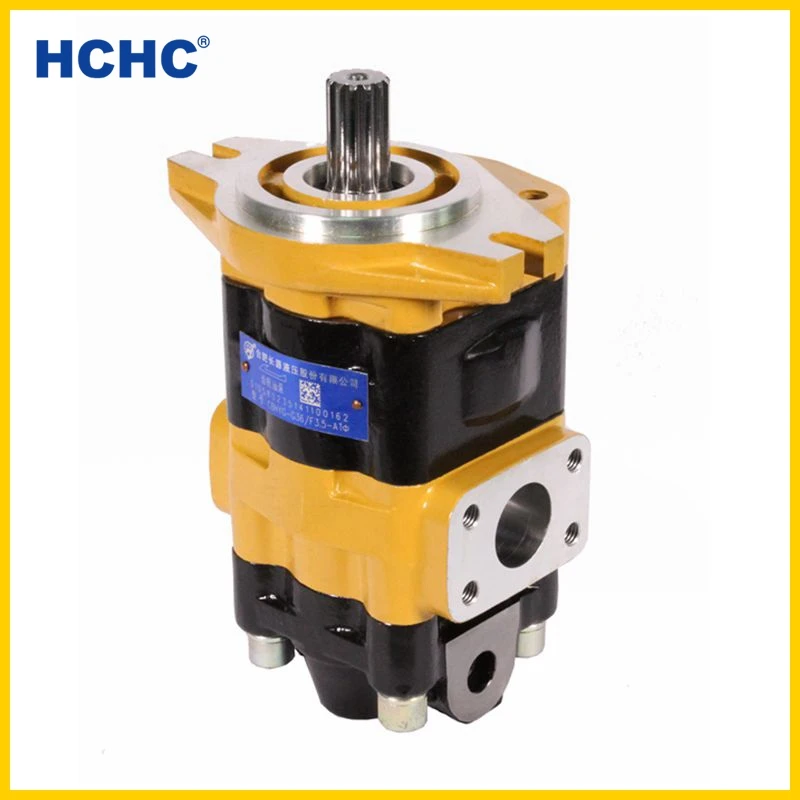

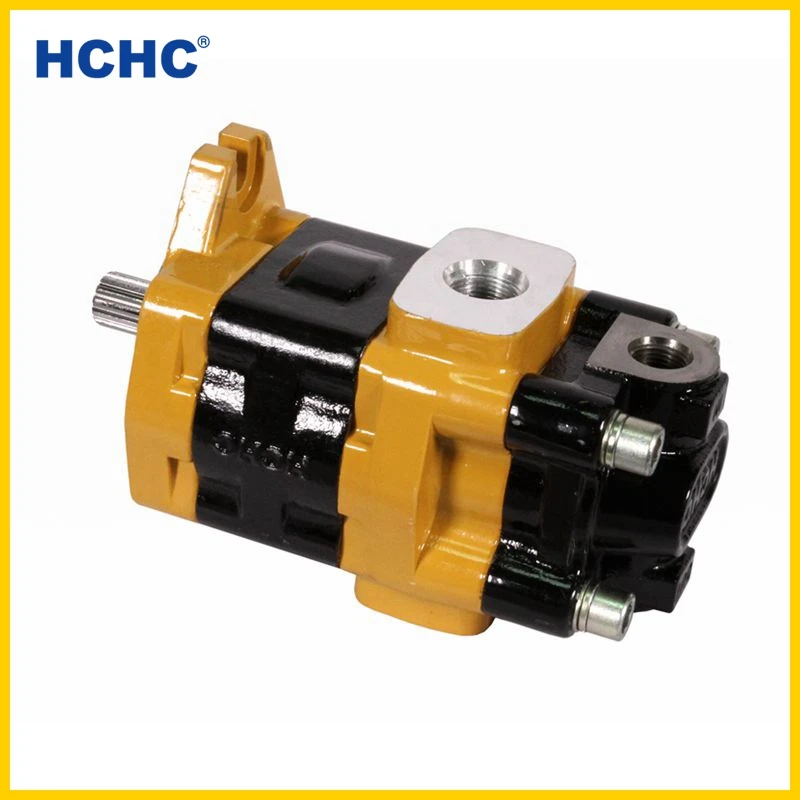

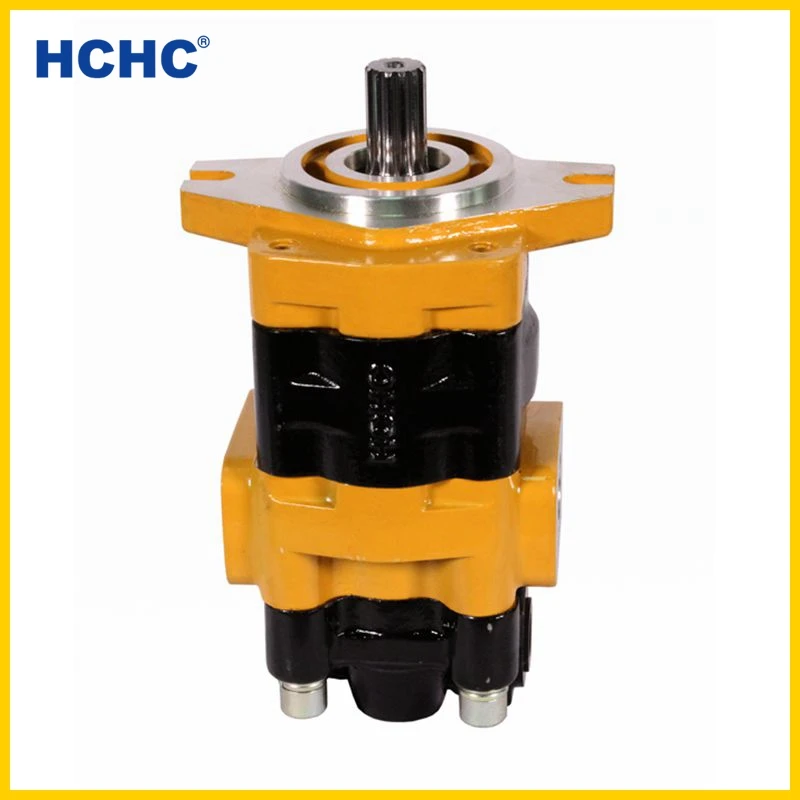

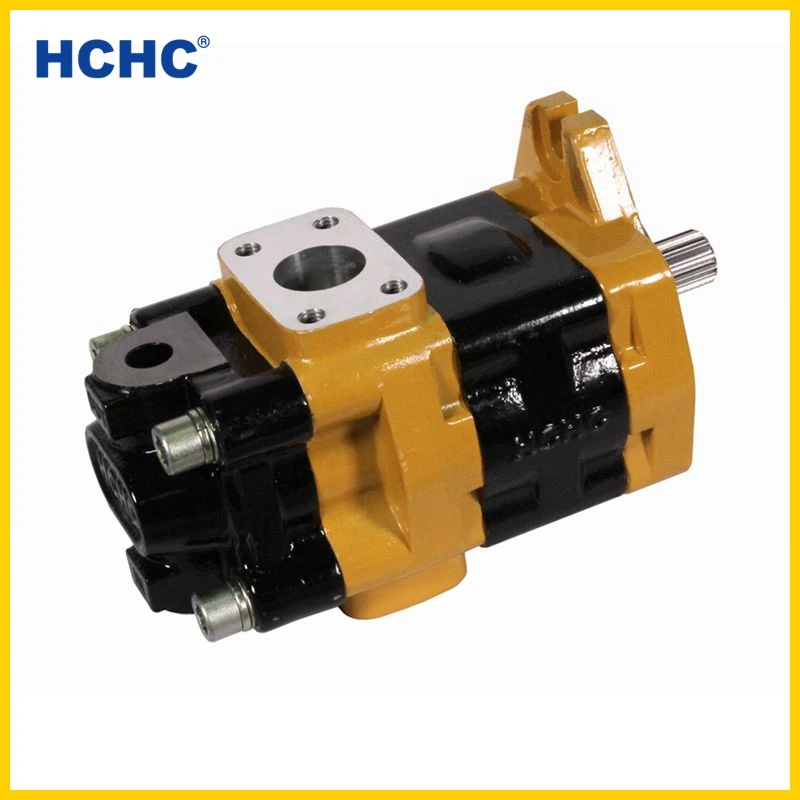

China manufacturer high pressure hydraulic double gear pump forklift CBHY

China manufacturer high pressure hydraulic double gear pump forklift CBHY

Category: >>>
Supplier: Hefei Changyuan Hydraulic Co. Ltd.

Price:$315.00

Quantity:

Product Overview

Description

Product Description

China manufacturer high pressure hydraulic double gear pump forklift CBHY

Performance Characteristics:

1.\tThe material combination of front/rear pump housing is high strength anti-wearing iron-casting and aluminum alloy.
2.\tThe combination of 2 gear pumps with different modulus is suitable for various combination of large and small displacement.
3.\tThe auto-compensation unit of axial clearance ensures the high volumetric efficiency.
4.\tThe dominated product of forklift industry.

Specification

Model Code

CBHY - G ** / F ** - A T φ *

① ② ③ ② ④ ⑤ ⑥ ⑦ ⑧

①\tProduct model
② Pressure
③\tNominal displacement of fore pump (mL/r)
④\tNominal displacement of rear pump (mL/r)
⑤\tMounting type: A=rhombic flange
⑥\tJoining port type: T=special connection
⑦\tShaft extension type: φ=SAE spline
⑧\tRotation direction:

L=counterclockwise, R=clockwise (omitted)

Model

Nominal Displacement Front/Rear

(mL/r)

Pressure

Front/Rear

(bar)

Speed (r/min)

Volumetric Efficiency

(≥%)

Weight

(kg)
