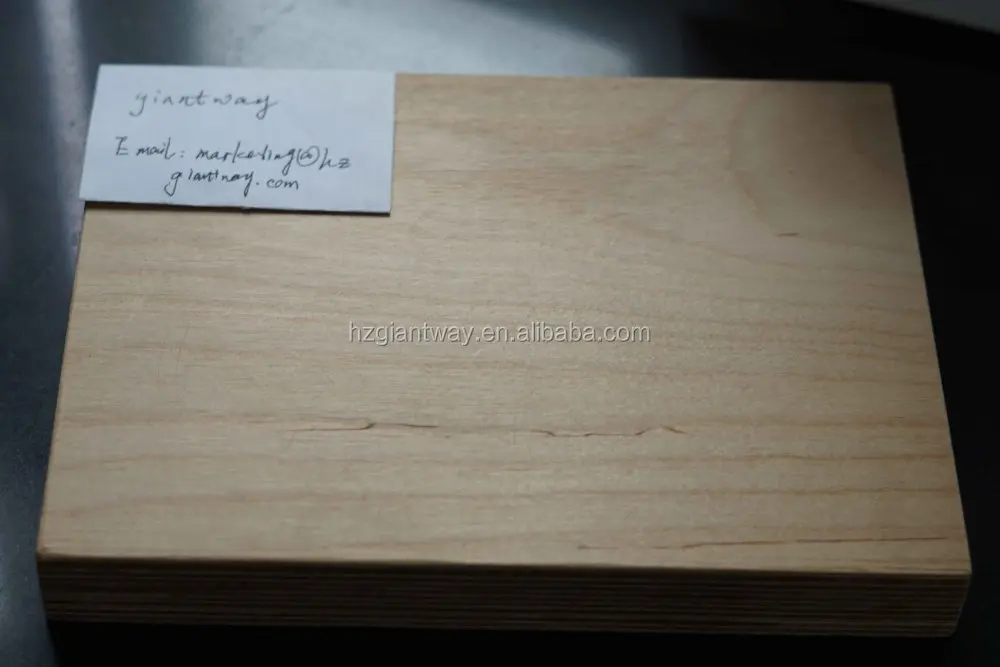

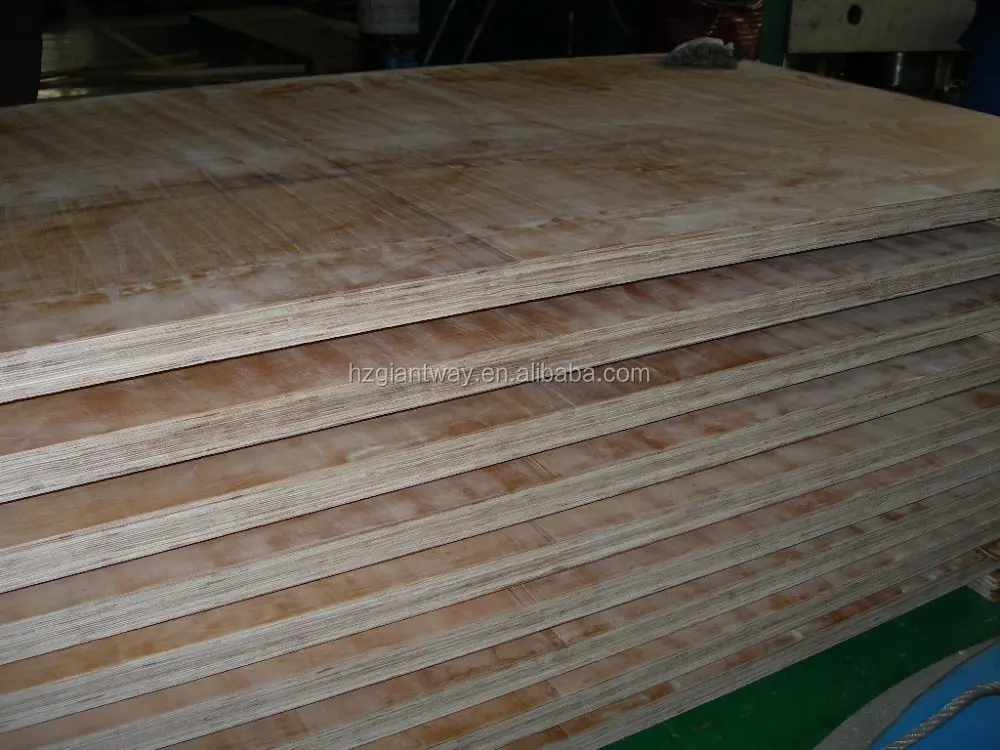

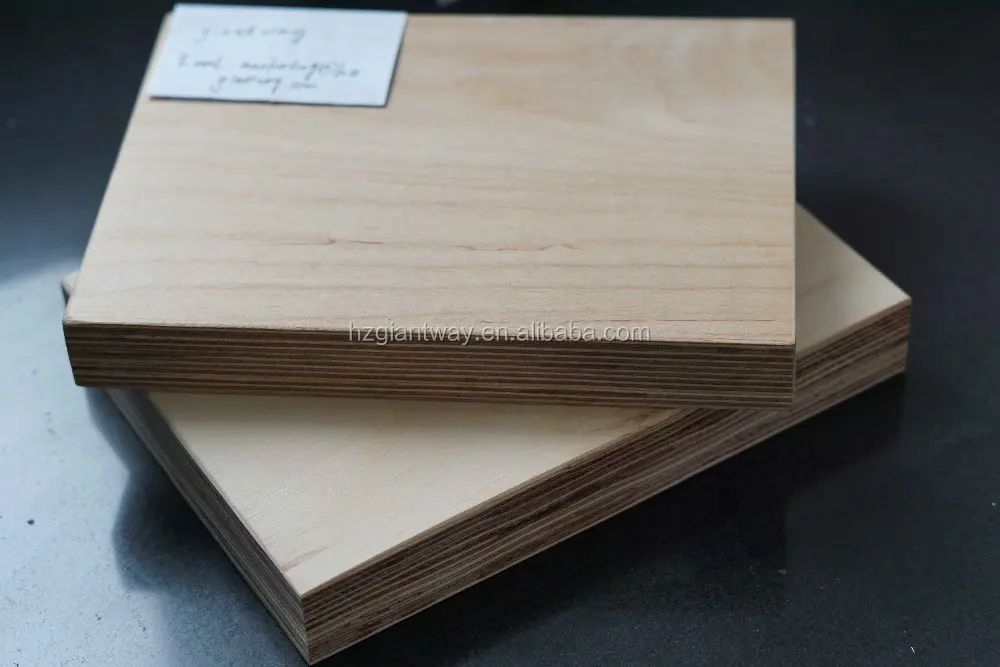

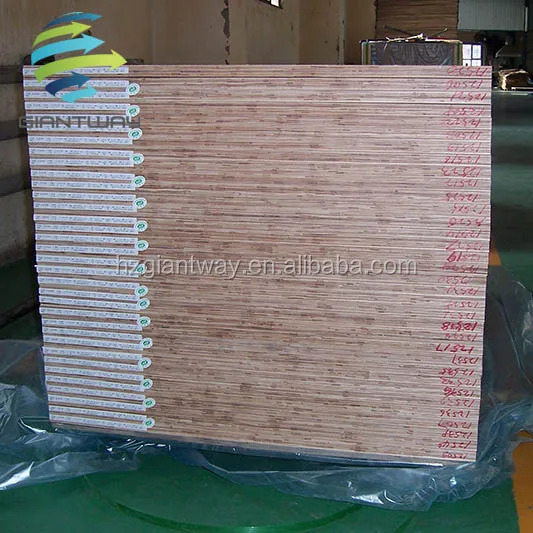

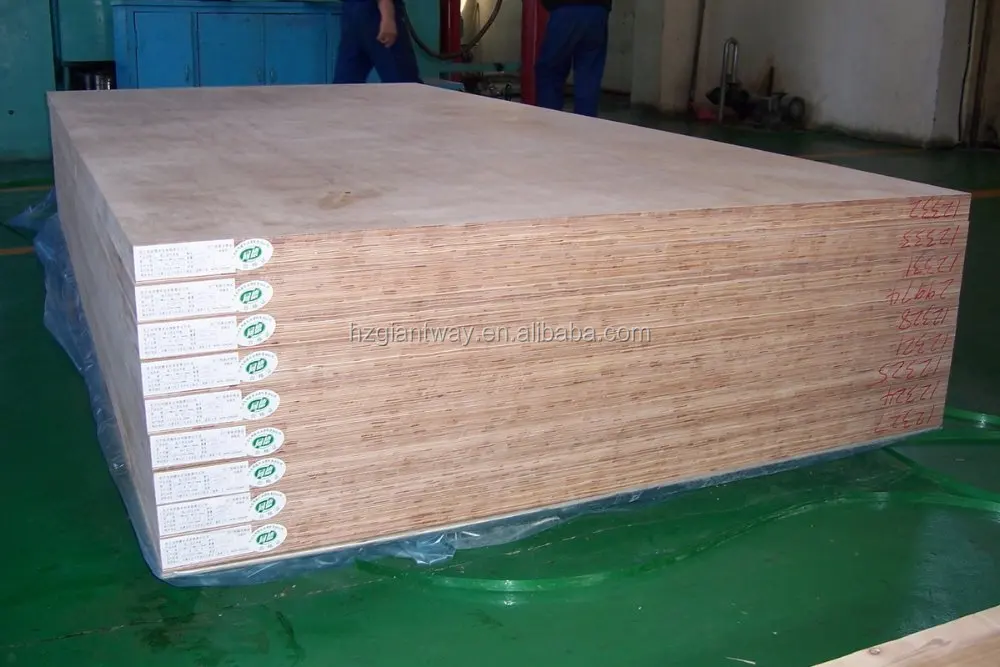

Good quality electrical insulation laminated wood sheet plywood transformer

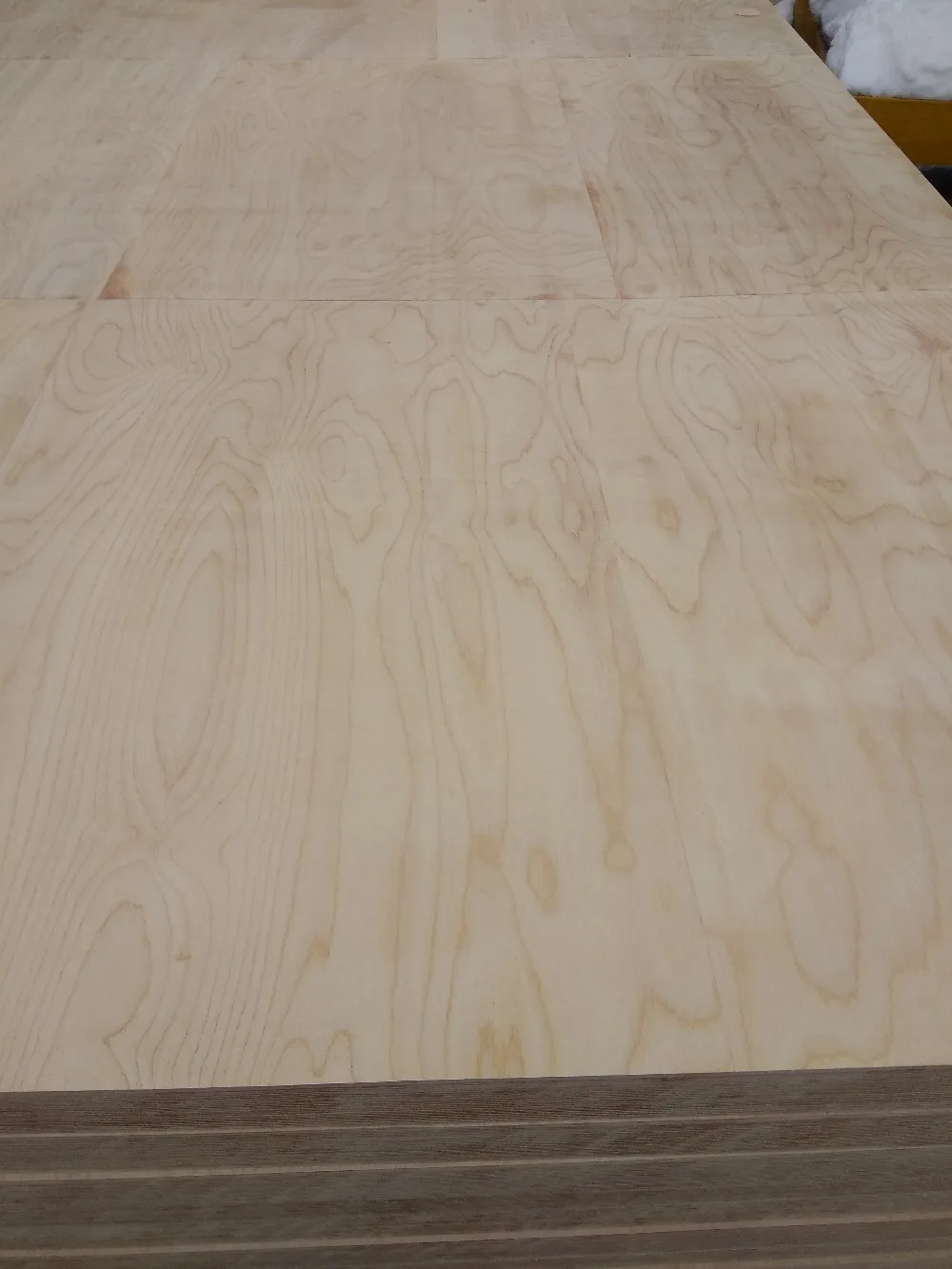

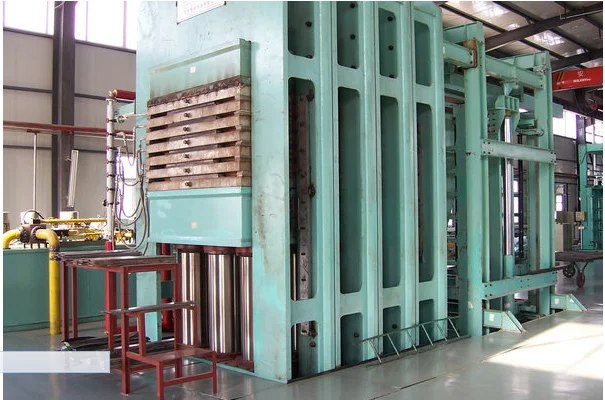

DescriptionIt's a press laminated wood veneer in crosswise direction, based on high quality and selected birch veneers, stick together with Electrical thermosetting synthetic resins under high pressure and temperature.

Property
Good Electrical properties
Excellent absorption of transformer oil
High mechanical strength
Low and high temperature resistance
Good resistance to the abrasion and wear

Application

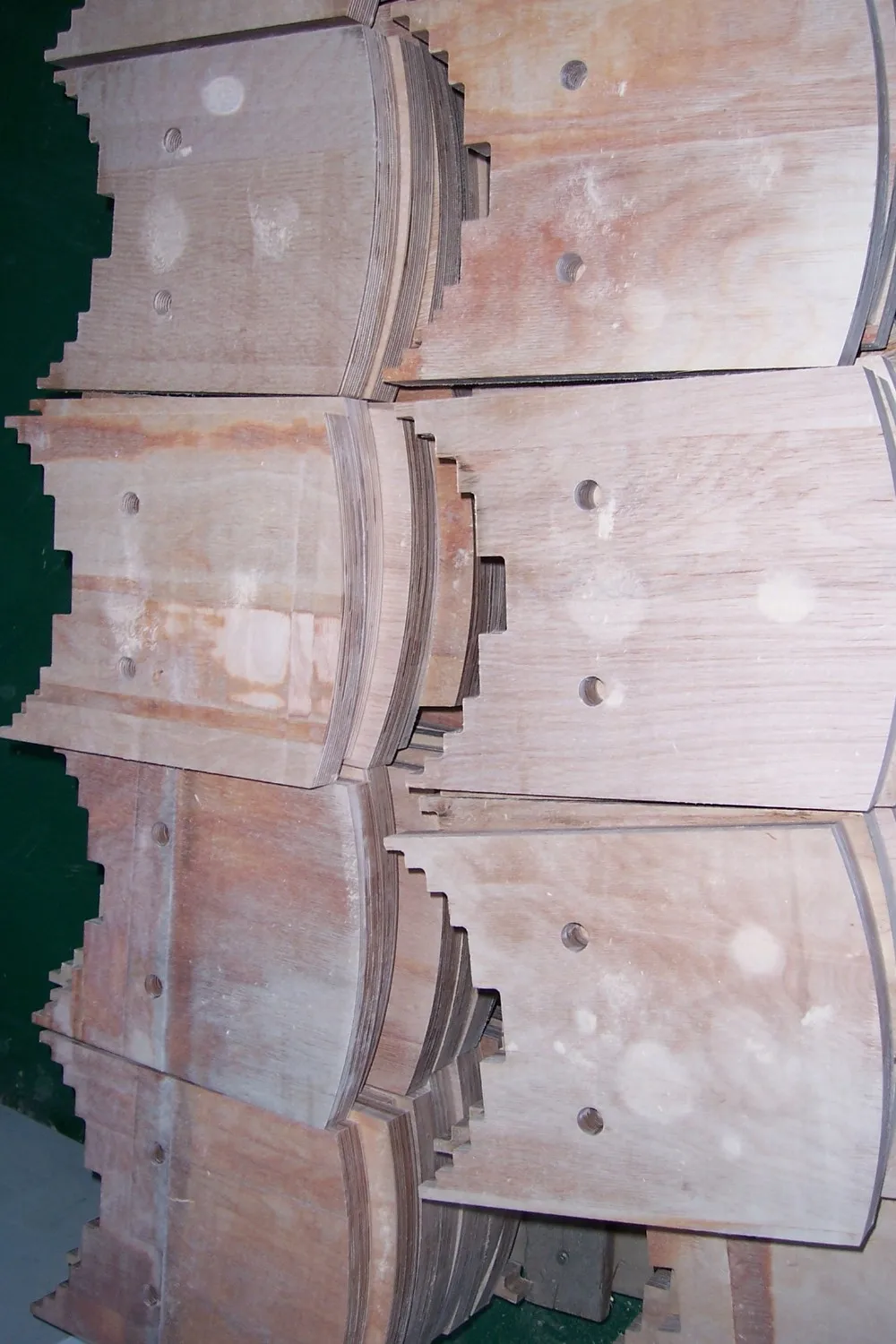

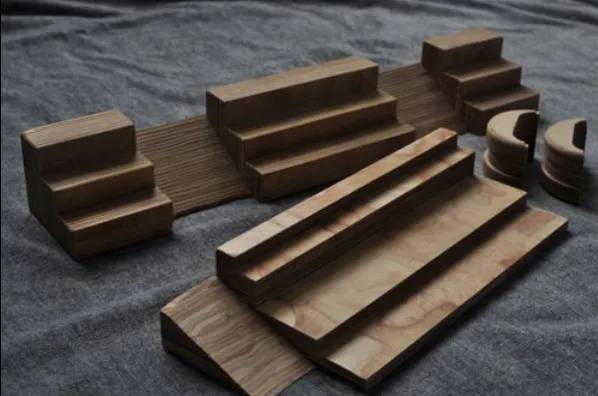

The product is mainly use in the electrical oil transformers applications as high electrical insulation material, like pressure beams, step blocks, pressure spare parts, top and bottom support coils, potential rings, pressure rings , spacers, etc. For his mechanical strength, laminated wood can be also use for many applications as abrasion resistance material under stress.

Standard Range of Production

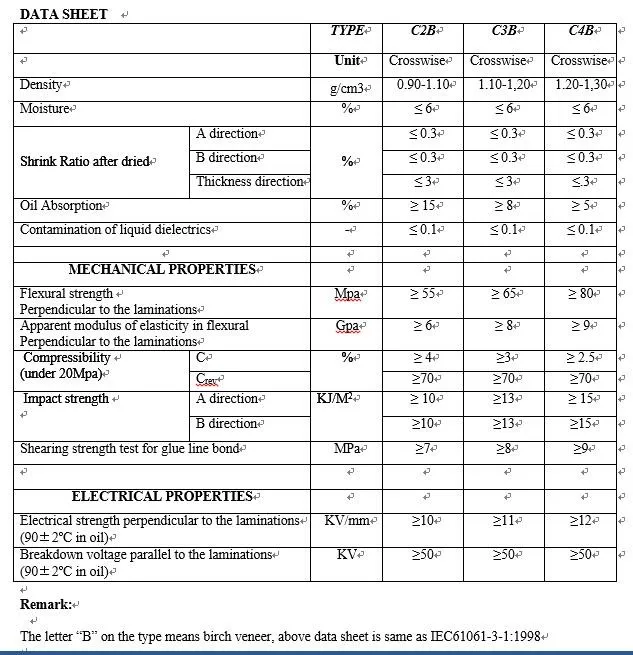

The laminated wood is produced in 3 different densities,

Type : C2B , density between 0,90 to 1,10 g/cm3
Type : C3B, density between 1.10 to 1,20 g/m3
Type : C4B, density between 1,20 to 1,30 g/cm3

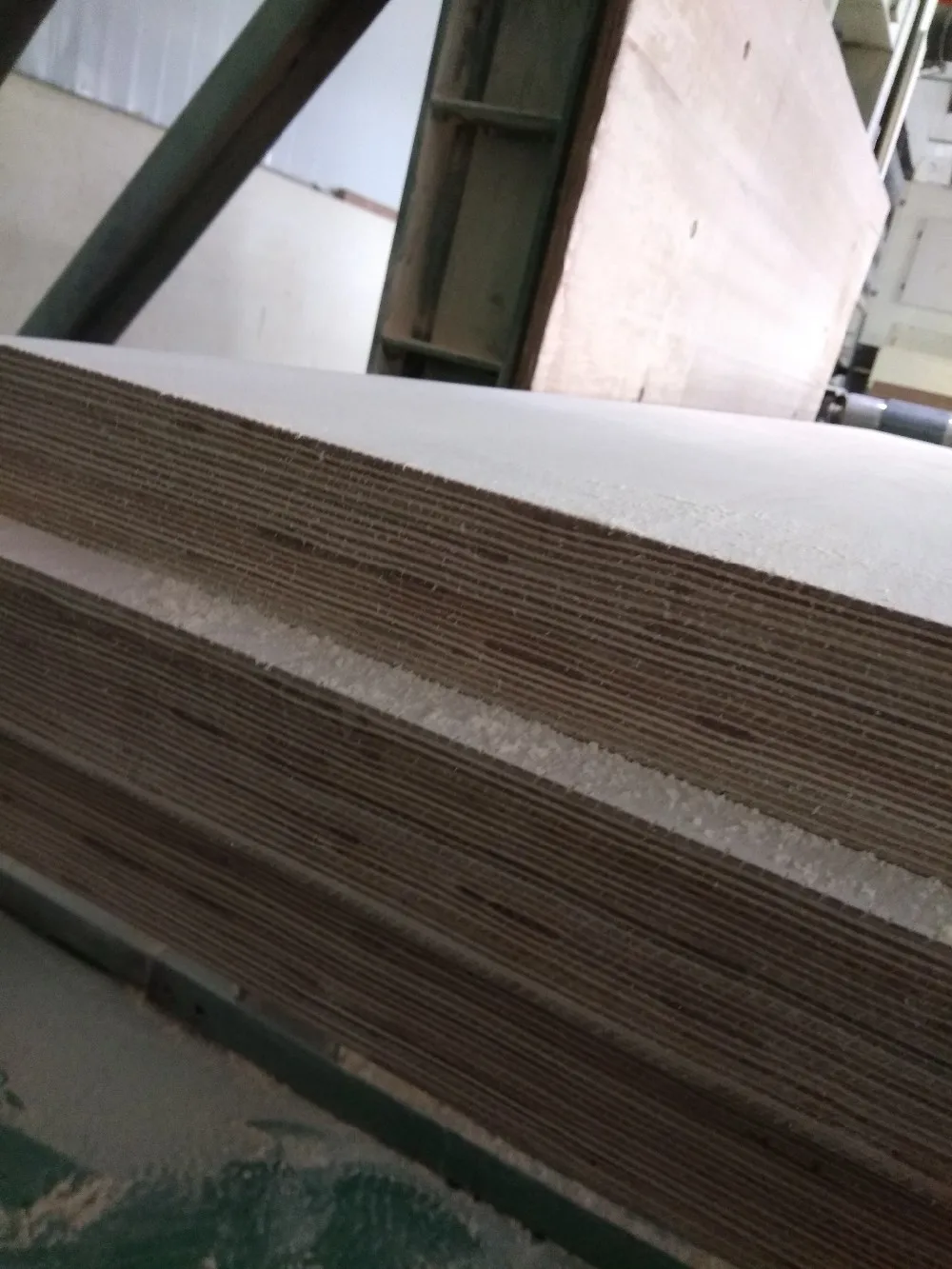

The lamination is made on crosswise veneers , and the standard thickness of the veneer is 2 mm. Under specification we can produce from 1 mm , 1,2 mm and 1,5 mm thickness veneer too.

Thickness range , from 10 mm to 100 mm

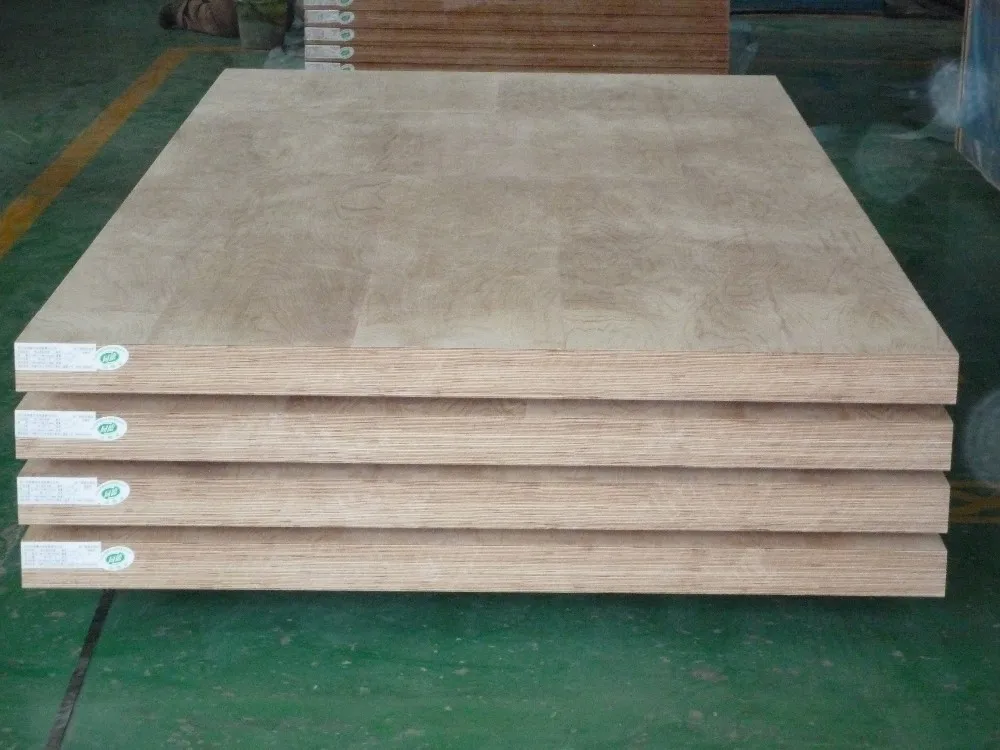

Standard Sheet Sizes,
1000x2000mm, 1500 x 1000 mm, 1500 x 1500 mm, 1500 x 2000 mm, 1500x3000mm and 3000 x 3000 mm

We can machine any kind of pieces produced with C.N.C equipments with sizes according sheets availability according costumers drawings.
