30N.m AC 45MM Tubular Motor For Roller Shutter Awning Sunshade Blinds Curtain Garage Door And Projection Screen curtain motor

Product Overview

Description

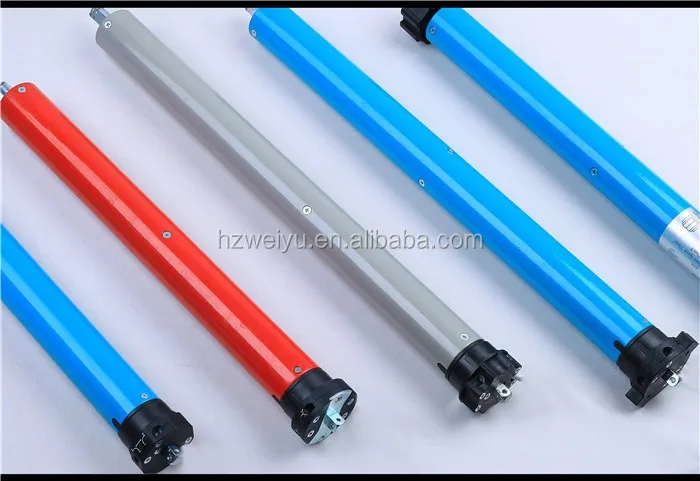

WY45-0S AC Tubular motor

1.The detail information

Model	WY45-30s	WY45-30S
Rated Torque(N.m)	30	30
Rated Speed(rpm)	15	17
Rated Power(W)	180	180
Rated Current(A)	0.8	0.8
Running Time(min)	>4	>4
Limit Rating(turn)	30	30
Complete Length(mm)	570	570
Complete Weight(KG)	2.1	2.1
Rated Voltage(V)	220-230	100-110
Rated Frequency(Hz)	50	60
Tube Diameter(mm)	45	45







2.The accessory:







3. The package:
Every one seprate packed in a box; 10 boxes in one carton.
The box dimension: 600*75*75mm
The outer carton dimensions: 660*450*200mm

4. The usage: Tubular motor usually can be used for the electric awnings, blinds, roller shutters and so on.



5. The Warranty:  we promise 5 years !

 All of them have passed CE certificate . So you can rest assured the goods quality . the warranty is 5 years .  If the tubular motor cannot work normally during the 5 years , we promise we will resend you new ones free of charge .

Firm framework for perfect Safety



Our advantage :



1. Competitive & High Quality



    Our company is located in Nanxun Zone Huzhou City which is closed to Shanghai.

It’s convenient for delivery.We only provide products with beat quality and competitive price.They are so popular in this field.



2.100% Standard Manufacture



    We are professional tubular motor manufacturer with many years of abundant experience. There are above 1000 square meters area in our company.Our main products are curtain motors,blinds motors,awning motors and door motors.They are exported to more than 55 countries which cover most of the continents in the world.



3. Experienced Staff

    We have an experienced and excellent production team, which provides OEM service and design service,Every single piece of product and production procedure are inspected and controlled by our quality inspectors before packing the goods into export cartons.



If any questions , please let me know…
